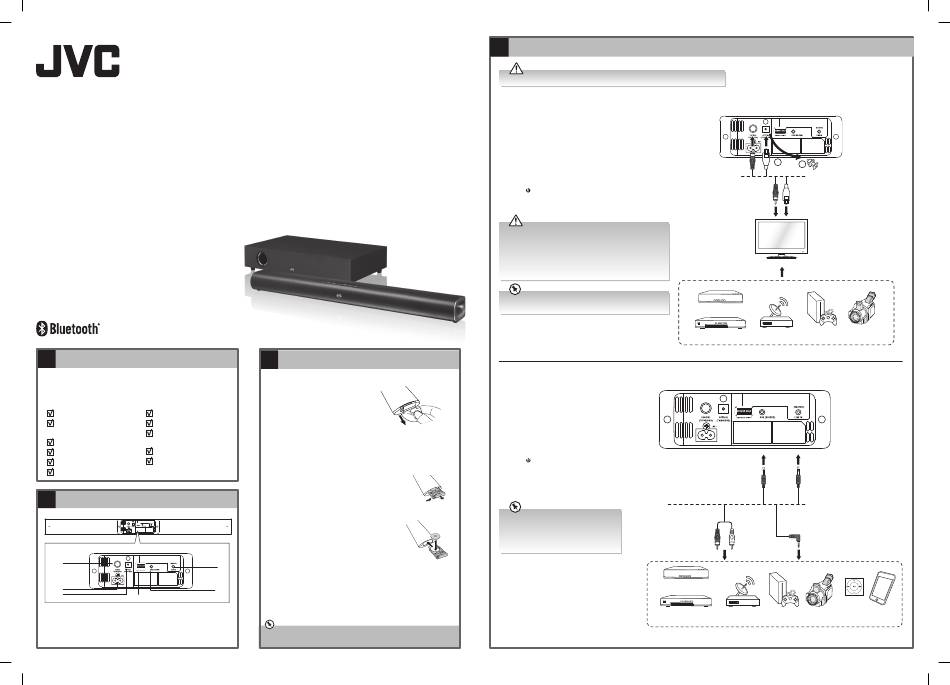

JVC TH-D357B Quick Start Manual

Quick Start Guide
2.1 Ch wireless soundbar with
wireless subwoofer
TH-D357B
Thank you
for purchasing your new product.
We recommend that you spend some time reading this Quick Start
Guide in order that you fully understand how to connect your
Soundbar to your TV.
Use your Soundbar instruction manual and TV instruction manual to
choose the best way to connect your Soundbar and TV together.
•
Unpacking
Remove all packaging from the unit. Retain the packaging. If you
dispose of it please do so according to any local regulations.
To get the most from this product, you may need to buy an
Optical cable.
Main Unit Mains Cable × 2
Remote Control Coaxial Cable
(battery included) 3.5 mm to 3.5 mm
Stereo Audio Cable
Subwoofer
Instruction Manual
Wall Bracket × 2
Quick Start Guide
Screw × 4
Dowel × 4
•
Soundbar Sockets Overview
1
2
3
4
1. COAXIAL Socket 4. SERVICE ONLY Socket
2. AC~ Socket 5. AUX Socket
3. OPTICAL Socket 6. LINE IN Socket
TH-D357B_QSG_Final180626V3.indd 1
•
Operating Your Remote Control
Remove the Plastic Strip from the Remote Control
The unit has a pre-installed
lithium CR2025 battery. Remove
the protective tab to activate the
remote control battery.
Battery Replacement for the Remote Control
1. Gently push the tab of the battery tray in and slide it free
from the remote control.
2. Replace with a new
battery
6
3. Slide the battery tray back into the remote control.
5
Install the battery correctly in the battery compartment. Normally the
battery's positive polarity (+) will face up.
•
Connections
Ensure the unit is disconnected from the mains socket before connecting it to other devices.
Connecting to the TV
Method 1: OPTICAL / COAXIAL Connection
Use an optical cable (not included) / coaxial cable (included)
to connect the soundbar's OPTICAL / COAXIAL socket to the
OPTICAL OUT / COAXIAL OUT socket of the external device.
The simplest option is to connect your soundbar directly to
your TV. If you connect the soundbar to another external
device (e.g. Blu-Ray player), you will hear the sound from that
device through the soundbar.
After the connection is complete,
1. Press on the unit or remote control to switch on the unit.
2. Press SOURCE repeatedly to select Optical or Coaxial
mode to play audio from your input device.
• The unit may not be able to decode all digital audio formats
from the input source. In this case, the unit will mute. This is
NOT a defect. Ensure that the audio setting of the input source
(e.g. TV, game console, DVD player, etc.) is set to PCM with
optical input.
• Before connecting the optical cable, remove the protective cap
of the OPTICAL socket.
DO NOT connect the soundbar with the TV through its RCA sockets
or headphone socket.
Connecting an External
Audio Device
Use a 3.5mm to RCA stereo audio cable
(not included) or a 3.5mm to 3.5mm stereo
audio cable (included) to connect the
soundbar's AUX or LINE IN socket to the
headphone socket of the external devices.
After the connection is complete,
1. Press on the unit or remote control to
switch on the unit.
2. Press SOURCE repeatedly to select AUX
or LINE IN mode to play audio from
your input device.
3.5mm to RCA Stereo Audio
• Ensure the colours on the cable plugs
Cable (not included)
match with the colours on the input and
output sockets.
• Do not connect the soundbar and TV by
using the AUX socket.
Set-top Box
Blu-ray Player / DVD
Player / Recorder
Rear View of the Soundbar
2
1
or
Coaxial cable (included) Optical cable (not included)
TV
Set-top Box
Blu-ray Player / DVD Satellite Game Video Camera
Receiver Console
Player / Recorder
Rear View of the Soundbar
or 3.5mm to 3.5mm stereo
audio cable (included)
Game Video MP3 Player or
Satellite Receiver
Console Camera Mobile Device
