Page 1

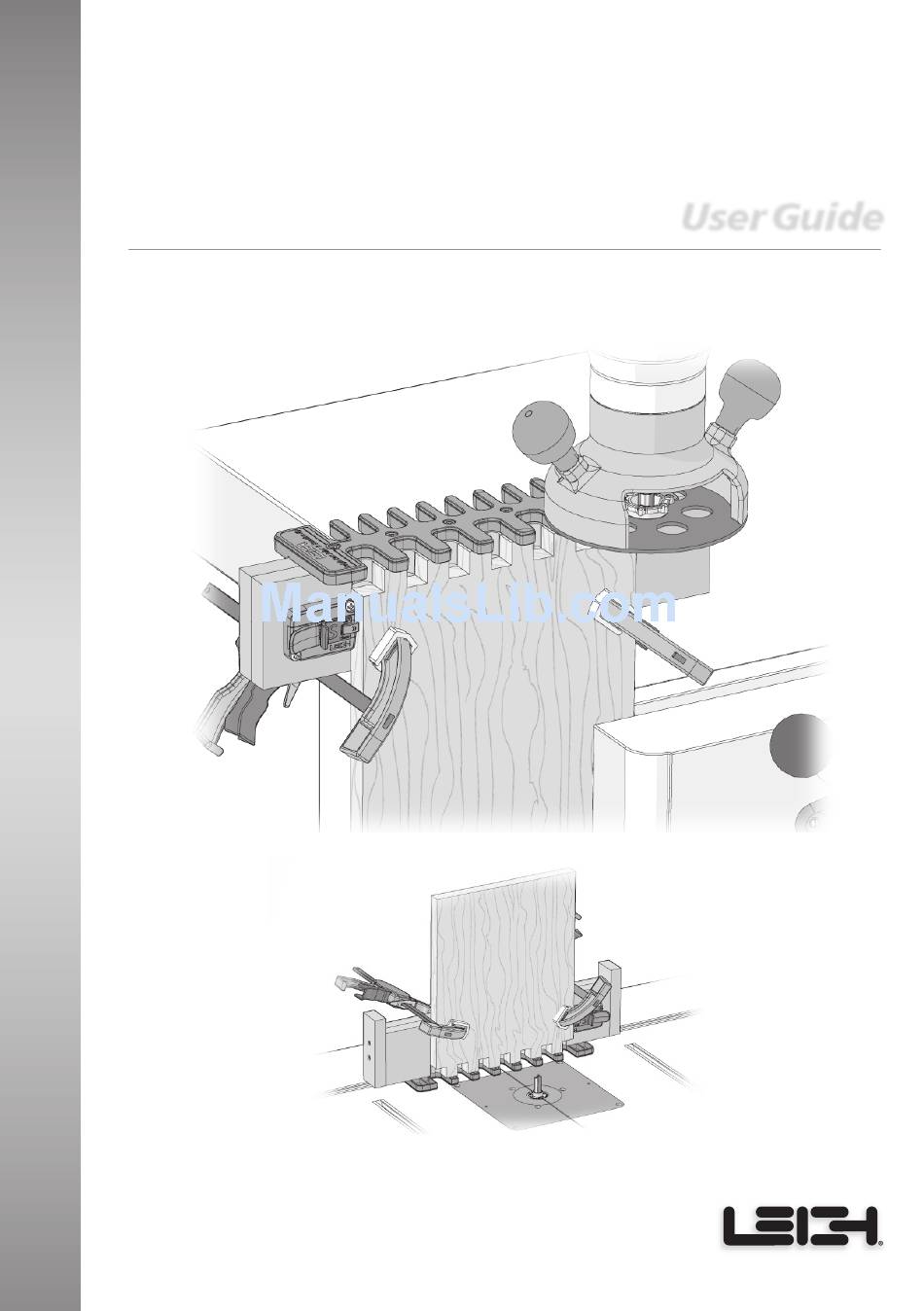

Leigh Box Joint Beehive Jig & User Guide Model B975 For WorkBench or Router Table Use Workbench Router Table See Page 65 for Customer Support 1-800-663-8932 Leigh Router Joinery Jigs...
Page 2
Your New Leigh Box Joint & Beehive Jig, Model B975 The Leigh Box Joint & Beehive Jig, Model B975, is a simple, easy-to-use tool for making 1/2" and 3/4" box joints on boards up to 13/16"[20.6mm] thick, and from 1-1/2"[38mm] to 17-13/16"[453mm] wide.
Page 3
Privacy Policy Leigh will NEVER rent, sell or distribute your information. *You must be at least 21 years of age to enter. Employees of Leigh Industries Ltd. and their families are ineligible to enter or win. This offer void where prohibited by law. Customer must complete a short online questionnaire. One winner will be drawn every two months.
Page 4
B975 User Guide This page is left blank intentionally.
Note: PDF of User Guide included on DVD If any parts are missing from your jig, please notify your supplier or Leigh immediately. See Chapter 9, Customer Support. *Leigh e10 Elliptical Guide Bushing: U.S. Patent no. 9,375,860 UK Patent no. GB2443974...
B975 User Guide Chapter 1 Introduction Units of Measure IMPORTANT! INCHES AND MILLIMETERS Text and illustrations in this English language user guide indicate dimensions in both inches and millimeters, where applicable, with “inches” first, followed by “millimeters” in square brackets, i.e. 1/2" x 2"[12.7mm x 51mm].
B975 User Guide Chapter 1 Introduction Symbols for Board Position The following symbols are used throughout this user guide. They indicate which edge of the board goes against the side stop. This board edge against the side stop. This board edge against the side stop (on other side of the board hidden from view).
B975 User Guide CHAPTER 2 Safety Safety is not optional. Read and follow the recommendations here. Read the owner’s manual that came with your router and router table. It is essential to understand all manufacturer’s instructions completely. Always wear: •...
Page 10
B975 User Guide Chapter 2 Safety Always disconnect the power before installing bits, guide source bushings or making adjustments. Before reconnecting the router to the power source, make sure the bit and collet revolve freely with and without the guide bushing in place.
The included Leigh e10 elliptical guide bushing (eBush) solves this problem. Patents for Leigh elliptical guide bushings: U.S. 9,375,860 UK GB2443974 How the e10 Works Routing on the B975 requires a router fitted with the included e10 eBush (guide bushing).
Page 12
B975 User Guide Chapter 3 The Leigh eBush The Leigh eBush System " 3 /8 designed around the 1-3/8" industry standard. Some routers accept the Leigh eBush directly. Many routers require the use of a guide bushing adapter. If your router requires an...
Page 13
B975 User Guide Chapter 3 The Leigh eBush Joint Fit Adjustment effective diameter of the e10 is 5/8" at 5/8" 0.010" 0.010" the 10 position. Rotating the eBush to the 0 position reduces the effective diameter by 0.020"[0.5mm]. One increment of the eBush changes the joint glue line by 0.002"[0.05mm].
Page 14
B975 User Guide Chapter 3 The Leigh eBush Fitting the eBush to the Place the router on the jig Router. with handles positioned the way you would normally hold the router Then turn the router upside down and place it on the workbench keeping the same face of the router toward you.
Mounting & Assembly The instructions on the following pages will guide you through the assembly process for the Leigh B975. You will need: • A workbench with vice or a portable workbench • 2 pieces of 3/4" MDF to make a beam 1-1/2"x 3-1/2"...
Page 16
B975 User Guide Chapter 4 Mounting & Assembly Making the Beam recommend laminating the two pieces of 3/4" MDF. Place the glued pieces in a vice or use clamps to hold them together. The template will be attached to the top of the beam, so be sure the top edges are flush and free of glue residue.
Page 17
B975 User Guide Chapter 4 Mounting & Assembly With the 3/4" comb facing you, lay the template flat on the beam and center it left to right. Slide the template forward until the ridges on the underside of the 1/2" comb contact the back of the beam.
Page 18
B975 User Guide Chapter 4 Mounting & Assembly Remove the template and mark 3/4" and 1/2" beside the lines, to indicate which is the 3/4" and which is the 1/2" side of the beam. 1/ 2" 3/4" Mark layout lines for the side stops.
Page 19
B975 User Guide Chapter 4 Mounting & Assembly The 3/4" and 1/2" side stops 4-10 will be attached in the following steps. 3/4" Side Stop 1/2" Side Stop 4-11 Install the 3/4" side stop. Lift the thumb lock , retract the center portion of the 3/4"...
Page 20
B975 User Guide Chapter 4 Mounting & Assembly Clamp the beam in the vice 4-13 with its 3/4" side facing you. Position the template on the beam with the 3/4" side of the template facing you. Align it with the pre-drilled holes.
Page 21
B975 User Guide Chapter 4 Mounting & Assembly Use a table saw, router table or 4-16 jointer to skim off the top surface of the 2x4. Now go back to step 4-7 for the rest of the beam preparation. 4-17 Install the Bit Install the No.160 1/2"...
Page 22
B975 User Guide Chapter 4 Mounting & Assembly 4-19 Depth of Cut Select a board at least 9-3/4" [248mm] wide and 1/2" to 3/4" thick. Length is not important as long as it can be clamped safely in the vice.
Page 23
B975 User Guide Chapter 4 Mounting & Assembly 4-22 Hold the router firmly and rout through the board and into the beam, in each template opening. Be sure the guide bushing touches the left side of each template opening on the way in and the right side on the way out.
Page 24
B975 User Guide Chapter 4 Mounting & Assembly This page is left blank intentionally.
For router table operation, see Chapter 7. 3/4" and 1/2" box joints are routed with the included Leigh Parts Required No.160 1/2" straight bit and the Leigh e10 guide bushing (eBush).
Page 26
B975 User Guide Chapter 5 Routing Box Joints Review the drawings below. joints have pins on both Joint layout Symmetrical edges of the pin board, and sockets on both edges of the socket board. Asymmetrical joints have a pin on one edge and a socket on the other edge of each board.
Page 27
B975 User Guide Chapter 5 Routing Box Joints Board widths indicated in the chart will produce full size Board Width Selection pins and sockets at each board edge, for symmetrical or asymmetrical joints. Symmetrical joint board widths may be reduced as required, resulting in smaller but equally sized pins and sockets at each board edge.
Page 28
B975 User Guide Chapter 5 Routing Box Joints Routing a Test Fit Joint Test joints are always routed with the eBush set at the 5 position. Retighten the eBush nut after each guide bushing adjustment. Clamp one of the test boards in the vice.
Page 29
B975 User Guide Chapter 5 Routing Box Joints Place the router on the jig and 5-10 adjust the tip of the bit up or down until it’s at the center of the line. Rotate the bit and collet to ensure it spins freely and does not contact the eBush.
Page 30
B975 User Guide Chapter 5 Routing Box Joints 5-13 Joint Fit Adjustment Assemble the test boards. If the joint is too loose, use the pin wrench and turn the eBush to a higher number and rout two fresh board ends.
Page 31
B975 User Guide Chapter 5 Routing Box Joints Joint flushness is determined 5-16 by the depth of cut. If the joint is over flush, raise the bit to decrease the depth of cut. If the joint is under flush, lower the the bit to make a deeper cut.
Page 32
B975 User Guide Chapter 5 Routing Box Joints 5-19 Routing the Socket Board With the 3/4" side of the template facing you, lift the thumb lock and move the socket board stop fully to the left. Lock it in position.
Page 33
B975 User Guide Chapter 5 Routing Box Joints 5-22 For both joint types, lift the thumb lock , and move the socket board stop to the right until it touches the board. Press the thumb lock to lock it in place.
Page 34
B975 User Guide Chapter 5 Routing Box Joints Hold the router firmly, as 5-25 you rout straight in and out of each template opening. Be sure the e10 guide bushing touches the left side of the template opening on the way in, and the right side on the way out.
Page 35
B975 User Guide Chapter 5 Routing Box Joints With the side stop set, 5-28 position the jig over the pin board, and slide it over until the side stop touches the board edge. Clamp in place. 5-29 Use the socket board to mark the depth of cut.
Page 36
B975 User Guide Chapter 5 Routing Box Joints Hold the router firmly as 5-31 you rout straight in and out of each template opening. Be sure the e10 guide bushing touches the left side of the template opening on the way in, and the right side on the way out.
This example uses 3/4" box joints on 3/4" Procedures for routing 1/2" and 3/4" joints are identical. thick boards. 3/4" and 1/2" box joints are routed with the included Leigh Parts Required No.160 1/2" straight bit and the Leigh e10 guide bushing (eBush).
Page 38
B975 User Guide Chapter 6 Routing Wider Boards Review the drawing below. joints have pins Joint layout Symmetrical both edges of the pin board, and sockets on both edges of the socket board. Note: Asymmetrical joints are not Only symmetrical joints can be routed on wider boards.
Page 39
B975 User Guide Chapter 6 Routing Wider Boards In this Wood Preparation example we are using boards with the following dimensions: 3/4" x 17-3/16" x 24" [19mm x 437mm x 203mm]. Mark the pin and socket boards and the board edge that goes against the side stop.
Page 40
B975 User Guide Chapter 6 Routing Wider Boards Slide the socket board stop until it touches the edge of the board and lock in place. The side stop is now set. Remove the jig from the narrow board, and remove the board from the vice.
Page 41
B975 User Guide Chapter 6 Routing Wider Boards Set the depth of cut using a 6-11 board the same thickness as the pin board, in this case 3/4". Holding the board flush under the template, draw a line on the socket board.
Page 42
B975 User Guide Chapter 6 Routing Wider Boards There will now be sockets 6-14 on the left side of the board. The remaining part of the board is routed next, but first..point the tip of the 3/4" cam 6-15 to the back of the jig and insert it in the extreme right hand template opening.
Page 43
B975 User Guide Chapter 6 Routing Wider Boards Unclamp the jig, flip the 6-17 board horizontally, and re-clamp in the vice. Position the jig on the board so the right edge of the cam just touches the inside right edge of the last routed opening.
Page 44
B975 User Guide Chapter 6 Routing Wider Boards 6-20 Routing the Pin Board Flip the pin board stop to the position. Place the jig on the board and slide it to the right until the left edge of the board touches the pin board stop.
Page 45
B975 User Guide Chapter 6 Routing Wider Boards Now, hold the router firmly, 6-23 as you rout straight in and out of each template opening. Be sure the e10 guide bushing touches the left side of the template opening on the way in, and the right side on the way out.
Page 46
B975 User Guide Chapter 6 Routing Wider Boards Unclamp and flip the board 6-26 horizontally. Re-clamp in the vice. The stepover cam not the side , is used to position the jig on the stop board. There will be a small gap between the side stop and the board.
Chapter 2. procedures in this user guide. The B975 can be used to rout box joints on a router table, on Getting Started boards up to a maximum width of 9-11/16"[246mm]. This example uses 3/4" box joints on 3/4"...
Page 48
Router tables are typically used with a bearing or Router Table Requirements fence, however, the Leigh B975 is guided around a guide bushing mounted in the router table. Leigh eBushes (guide bushings) are designed around the 1-3/8" diameter industry standard. See specifications below.
Page 49
B975 User Guide Chapter 7 Router Table Operation Draw a reference line with a permament pen on the router table, centered on the guide bushing opening at 12 o’clock and 6 o’clock (shown in red for clarity only). This will ensure correct orientation...
Page 50
B975 User Guide Chapter 7 Router Table Operation Before using the jig on a router table, handles must be attached to the 3/4" ends of the beam. Cut two pieces of wood to the dimensions indicated and attach with screws.
Page 51
B975 User Guide Chapter 7 Router Table Operation Do not turn or rotate the jig 7-11 as you rout. Keep the jig parallel to the router table and go straight in and straight out of each template opening. Never tilt the jig. Keep the jig 7-12 flat on the router table at all times.
Page 52
B975 User Guide Chapter 7 Router Table Operation Symmetrical joints have pins on both edges of the pin board, and 7-14 Joint layout sockets on both edges of the socket board. Asymmetrical joints have a socket on one edge and a pin on the other edge of each board.
Page 53
B975 User Guide Chapter 7 Router Table Operation Board widths indicated in the chart on the previous page will produce full size pins and 7-16 sockets at each board edge, for symmetrical or asymmetrical joints. Symmetrical joint board widths may be reduced as required, resulting in smaller but equally sized pins and sockets at each board edge.
Page 54
B975 User Guide Chapter 7 Router Table Operation Test 7-18 Routing a Test Joint joints are routed with the eBush set at the 5 position. Tighten the eBush nut after each guide bushing adjustment. Center a test board on the left 7-19 side of the 3/4"...
Page 55
B975 User Guide Chapter 7 Router Table Operation Socket and pin boards may 7-21 differ in thickness. Always use the mating pin or socket board to determine the depth of cut. In this case, hold a pin board flush against the template and draw a line on the board, indicating depth of cut.
Page 56
B975 User Guide Chapter 7 Router Table Operation Place the second test board 7-24 against the side stop and clamp in place. Rout the board. 7-25 Joint Fit Adjustment Assemble the test boards. If the joint is too loose, use the pin wrench and turn the eBush to a higher number and rout two fresh board ends.
Page 57
B975 User Guide Chapter 7 Router Table Operation Use these eBush diagrams 7-27 to record the settings you used to SAMPLE achieve perfect joint fit. The first eBush is an example of how to record your setting. June 7, 1/2"joint...
Page 58
B975 User Guide Chapter 7 Router Table Operation Before clamping the first 7-30 socket board, ensure the socket board stop is fully retracted, and locked in place. With the left edge of the board 7-31 in the first template opening, position...
Page 59
B975 User Guide Chapter 7 Router Table Operation Hold a pin board flush against 7-33 the template and draw a line on the board, indicating depth of cut. 7-34 Adjust the tip of the bit up or down until it’s at the center of the line.
Page 60
B975 User Guide Chapter 7 Router Table Operation Unclamp and flip the first 7-36 socket board end for end, keeping the same board edge against the side stop, and clamp in place. Rout in each template opening. Repeat the procedure for the second socket board.
Page 61
B975 User Guide Chapter 7 Router Table Operation Hold a socket board flush 7-39 against the template and draw a line on the board, indicating depth of cut. Adjust the tip of the bit up or 7-40 down until it’s at the center of the line.
Page 62
B975 User Guide Chapter 7 Router Table Operation 7-42 Unclamp and flip the first pin board end for end, keeping the same board edge against the side stop, and clamp in place. Rout in each template opening. Repeat the procedure for the second pin board.
Guide Bushing Adapter Selection FOR HAND HELD ROUTERS ONLY The B975 requires a router fitted with the e10 guide bushing, and possibly an adapter to fit the bushing to the router. Leigh offers the following guide bushing adapters that fit many common routers.
Page 64
C. Note: ◆ The e10 elliptical guide bushing (5/8"[15.8mm]) shown A. Locate router maker and router model in Columns 1 and 2. in column 4 is supplied with the B975 jig. Order only if you require a B. Locate adapter required for your router in Column 3.
Customer Support Our Commitment to You Leigh Industries takes pride in its commitment to providing excellence in customer service and support. This user guide is designed to provide you with the answers to any questions you have. However, if you require assistance, please feel free to contact customer service/technical support below or a distributor listed on the next page.
Page 67
Leigh stands behind its products with a 5 year limited warranty. Contact Leigh for warranty service. Proof of purchase may be required. Postage is to be prepaid and insured to Leigh Industries Ltd. Return shipping is by means chosen by Leigh Industries Ltd.
Page 68
Quick Reference B975 Board Width Selection PIN BOARD PIN BOARD SOCKET BOARD SOCKET BOARD joints have pins on both joints have a pin on one Symmetrical Asymmetrical edges of the pin board, and sockets edge and a socket on the other edge of both edges of the socket board.
