Balance Charging
Use this mode to make the voltage of each cell balanced after charging. The charger will
monitor and control the voltages of each cell to balance the individual call voltage. You must
connect the battery to both the output port and balance port of the charger to allow this mode
to work.
Fast Charging
The charging current continually reduces as the charging process finishes. The Fast Charging
program will finish charging slightly in advance and then omit some CV and complete the
balance process. When the process is completely finished the charging current will go to 1/5 of
the initial value. The charging capacity may be a bit smaller than normal charging capacity, but
the charging time will be decreased.

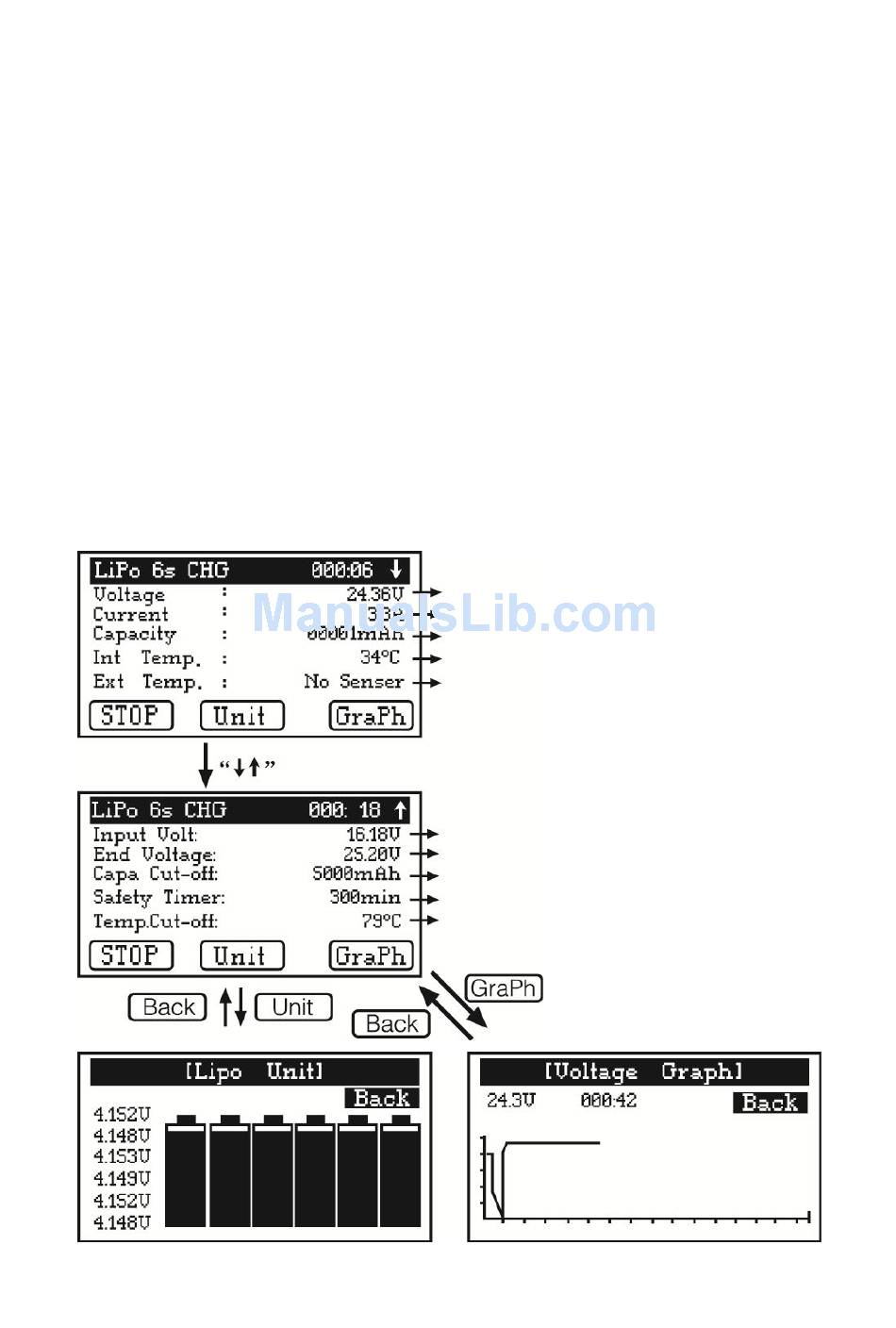

The set cell count and the detected cell count will be displayed on the top of the screen ("Set" is
the cell count the user set in the previous menu, and "Read" is the charger detected cell count). If
the data is the same, charging will begin once you have pressed "Start" for 2 seconds. If the data is
different, please touch "Back" to go back to the charging parameter menu and check the cell count
before charging. The charger will also be able to detect the external temperature of the battery if
a temperature-sensor is connected to the corresponding port.
Whole Voltage
Charge Current
Battery Capacity
Internal Temperature
External Temperature (when cable is connected)
Input voltage
End Voltage
Capacity Cut-off
Safety Timer
Temperature Cut-off
