WARNING : This charger is not a domestic appliance, it should be only used and positioned in the
correct environment. Due to the power volatility of Lithium batteries it should be positioned on a fireproof
base at least 1.5 meters from any flamable materials
WARNING : Never leave the charger unattended
Never exceed maximum battery charge rate
Never charge non-approved or non EU compliant Batteries
Never charge in the wrong mode
Never charge near flammable material
Warning : Read and familiarise yourself with the instruction manual before operating the charger, seek
advice from other charger users or Overlander is you are unsure of any proceedures
Advertisement
Table of Contents
Related Manuals for Overlander RC6-Touch
Summary of Contents for Overlander RC6-Touch

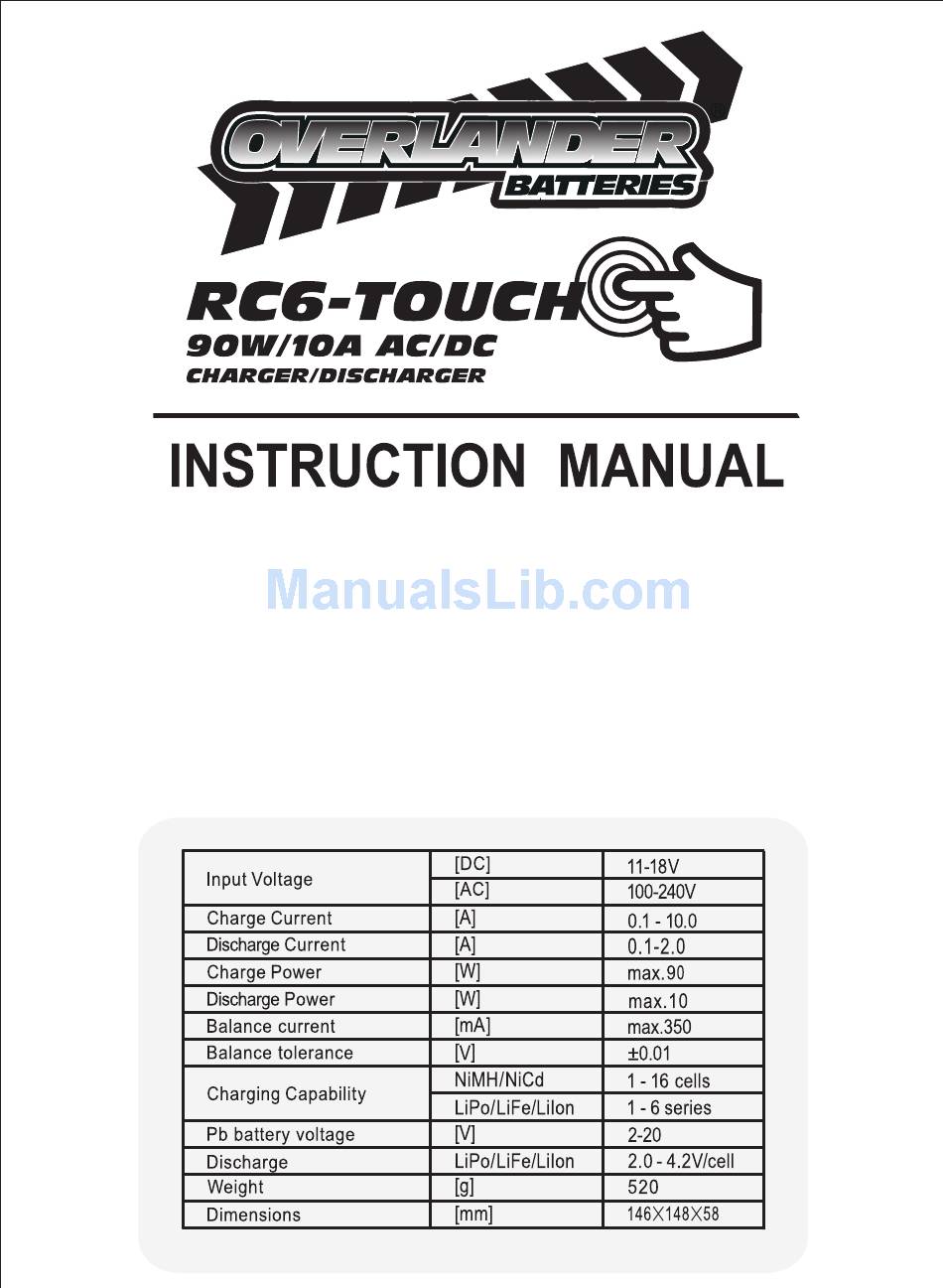

- Page 1 Never charge in the wrong mode Never charge near flammable material Warning : Read and familiarise yourself with the instruction manual before operating the charger, seek advice from other charger users or Overlander is you are unsure of any proceedures...
- Page 2 WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. WARNING: Never leave charger unattended, exceed maximum charge rate, charge with non- approved batteries or charge batteries in the wrong mode. Failure to comply may result in excessive heat, fire and serious Injury CAUTION: Always ensure the battery you are charging meets the specifica-...
- Page 3 After switching on the charger, the main menu will be visible. Press the arrow keys (”<” or”>”) to toggle between the LiPo/LiIon/LiFe/NiMH/NiCd/Pb/Digital Power/Setup/Data View functions...
- Page 4 Tip: We suggest setting parameters in the ‘User Set’ menu before using charger for the first time. This charger recognises the cell count of Lithium batteries automatically. If the battery voltage is below the defined lowest safe voltage, then the charger will not start the charge process.
- Page 5 The charger can accept three types of Lithium batteries: LiPo/LiIon/LiFe. IMPORTANT: Please ensure that you use the correct setting for your type of battery and that it is connected appropriately. Failure to do this may risk fire, explosion and serious injury. Note: Charger will set the charge current according a rate of 1C automatically when you set the capacity of the battery pack.
- Page 6 Peak temperature, measured by the temperature sensor...
- Page 7 “CHARGE” mode can be “Man” or “Auto”. In “Man” mode, the battery will charge at the current you set at the display. However in “Auto” mode, you need to set the upper limit of charge current to avoid possible damage to the battery.
- Page 8 When NiMH or NiCd battery is on the cycling process of charge/discharge, it may become warm. The program incorporates a time delay function to allow the battery enough time to cool down during the two cycle process. The value ranges from 1 to 60 minutes. If you are not sure, we advise you to set the time above 15 minutes or longer, to allow the batteries to fully cool...
- Page 9 This is programmed for charging Pb batties with nominal voltages from 2 to 20V. Pb batteries cannot be charged rapidly as they can only deliver relatively low current compared to their capacity. The optimal charge current will be 1/10 of the capacity. Please follow the instructions supplied by the battery manufactuer Pb mode is for charging Pb batteries only.
- Page 10 to key back to previous screen...
- Page 11 In this mode, charger can provide output power of DC3.0V-24V for the other electronic equipment to a max of 60 watt output for the power supply application. In the digital power menu, the charger shows the parameters defined by the user previously. If you do not need to modify the settings, press the “START”...
- Page 12 Tips: When you press “view”, the charger will enter into the resistance measurement process for one time only. Please ensure that you have connected the battery to the output socket port of the charger You can use the balance function to correct unbalanced battery packs.
- Page 13 RC6 Touch Input voltage error. Either below or above the limit of 11-18V...
- Page 15 Thankyou for purchasing the RC6-Touch Balance charger. We will do our best to provide you with a comprehensive after-sales service and protect your rights and interests. We provide a warranty for this product for a period of one year from the date of purchase.
- Page 16 Distributors of new Electric and Electronic Equipment (EEE) have a part to play in reducing the amount of WEEE going into landfill sites. Overlander Batteries is obliged under these regulations to offer our customers free take-back of their WEEE on a like-for-like basis when they buy a new Electrical or Electronic product from us.
