Summary of Contents for Overlander RC-S65
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION SPECIAL FEATURES WARNING AND SAFETY NOTES PROGRAM FLOW CHART OPERATION OPERATING PROGRAM BATTERY MEMORY SET AND CALL OUT SYSTEM SETTING BATTERY METER BATTERY RESISTANCE METER WARNING AND ERROR MESSAGE THE SET CONTAINS SPECIFICATION CONFORMITY DECLARATION COMMONLY USED TERMS WARRANTY AND SERVICE... -
Page 3: Introduction

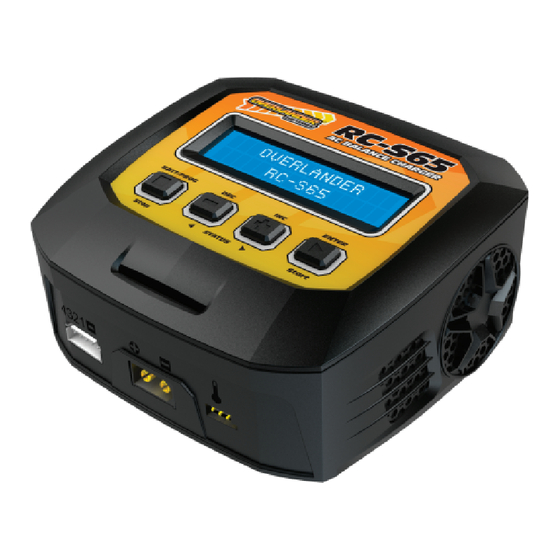

LiPo, Lilon, LiFe, NiCd, NiHM, PB and also the new generation LiHV which have an end voltage of 4.35V per cell. For Pb batteries, the RC-S65 has AGM and cold modes. - Page 4 Stop Any Charge Processes Alter Values See the Status of Individual Cells in Balance Charge LCD Display Mode Smart Ventilation Balance Lead Socket JST-XH Ports Resume or Start Charge Processes Battery Connector Confirm Any Action (XT60 Female) Temperature Sensor Port · 02 RC-S65...
-
Page 5: Special Features
Purposes to charge lithium battery varies, 'fast' charge reduce the duration of charging, whereas 'store' state can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery. RC-S65 03 ·... - Page 6 If the temperature limit is reached, the process will be terminated. This function is available by connecting optional temperature probe, which is not included in the package. Processing Time Limit: You can also limit the maximum process time to avoid any possible defect. · 04 RC-S65...
-
Page 7: Warning And Safety Notes
0.1-1.1V/cell 0.1-1.1V/cell 1.8V/cell 3.0-3.3V/cell 2.9-3.2V/cell 2.6-2.9V/cell 3.1-3.4V/cell Voltage Be very careful to choose the correct voltage for different types of battery otherwise you may cause damage to the batteries. Incorrect settings could cause the cells to fire or explode. RC-S65 05 ·... - Page 8 Always refer to the manual by battery manufacturer about charging methods, recommended charging current and charging time. Especially, the lithium battery should be charged according the charging instruction provided by the manufacturer strictly. · 06 RC-S65...
- Page 9 This is a memory effect. It is said that NiCd and NiMH batteries are suffering from memory effect. NiCd has more memory effect than NiMH. RC-S65 07 ·...
-
Page 10: Program Flow Chart
SAVE PROGRAM START SAVE PROGRAM 2.0A 2.0V (1P) Pb 4.0V (2S ) LOAD…… C:3.3A D:1.5A SAVE…. ENTER ENTER STARG/ENTER>3 Seconds Pb AGM CHG Pb COLD CHG Pb DISCHARGE 0.1A 2.0V (1P) 0.1A 2.0V (1P) 0.1A 2.0V (1P) · 08 RC-S65... -
Page 11: Operation
If you have no request for LiPo Battery program, please press the BATT PROG/STOP button to enter BATT PROGRAM screen. RC-S65 09 ·... -
Page 12: Operating Program
Failure to connect as shown in this Stop Start diagram will damage this charger. To avoid short circuit between the charge lead always connect the charge cable to the charger first, then connect the battery. Battery Reverse the sequence when Pack disconnecting. · 10 RC-S65... - Page 13 C A N C E L ( S T O P ) both numbers are not identical, press STOP to go back to previous screen to recheck the number of cells of the battery pack before going ahead. RC-S65 11 ·...
- Page 14 Temperature probe is needed to show external temperature. Int. Temp 37 C Cut off temperature Temp Cut-Off 50 C Safety timer ON and duration of time in minutes. Capacity cut-off ON and the setting value of capacity. · 12 RC-S65...
- Page 15 AGM CHG This mode is for charging AGM battery. This mode is for charging Pb battery in cold days when the temperature is COLD CHG 5 ℃ to -20 ℃. DISCHARGE This mode is for discharging Pb battery. RC-S65 13 ·...
-
Page 16: Battery Memory Set And Call Out
T V C = Y O U R R I S K 4 . 2 0 V DEC INC Press ENTER to save program. S A V E P R O G R A M E N T E R START/ENTER · 14 RC-S65... - Page 17 L O A D Press START/ENTER for 3 seconds to start the process. L i P o B A L A N C E C H G 4 . 9 A 7 . 4 V ( 2 S ) RC-S65 15 ·...
-
Page 18: System Setting
C e l s i u s you like. A rest time allowing the battery to cool R e s t T i m e 1-60Min down between charging/discharging C H G > D C H G 1 0 M i n cycle. RC-S65 · 16... - Page 19 L o a d F a c t o r y S e t setting. E n t e r It indicates the hardware and firmware V e r s i o n version. H W : 1 . 0 0 F W : 1 . 1 0 RC-S65 17 ·...
-
Page 20: Battery Meter
The screen indicate the total voltage, the highest M A I N 1 6 . 7 6 V voltage and the lowest voltage. H 4 . 2 0 0 V L 4 . 1 8 2 V · 18 RC-S65... -
Page 21: Battery Resistance Meter
The screen indicate each cell's resistance. m Ω 0 0 6 The screen indicate the total resistance, the highest T A T A L : 2 8 mΩ resistance and the lowest resistance. H : 1 2 mΩ L : 5 mΩ RC-S65 19 ·... -
Page 22: Warning And Error Message
Voltage of the battery pack is lower than 5V. This charger C O N T R O L F A I L can not charge battery whose voltage under 5V. · 20 RC-S65... -
Page 23: The Set Contains
THE SET CONTAINS THE SET CONTAINS 1. Overlander RC-S65 Charger 2. Power Cord 3. Deans to XT60 conversion lead RC-S65 21 ·... -
Page 24: Specification
Discharge Cut-off Voltage: NiMH/NiCd: 0.1-1.1V/cell LiPo: 3.0-3.3V/cell LiHV: 3.1-3.4V/Cell LiFe: 2.6-2.9V/cell LiIon: 2.9—3.2V/cell Pb: 1.8-2.0V/cell Discharge Wattage: 10W Balance Cells: 2-4 cells Memory: 10 different charge/discharge profiles Charge Method: CC/CV for lithium types and lead (Pb) batteries Delta-peak Sensitivity for NiMH/NiCd. · 22 RC-S65... -
Page 25: Conformity Declaration
CONFORMITY DECLARATION Overlander’s RC-S65 satisfy all relevant and mandatory EC directives and FCC Part 15 Subpart B: ANSI C63.4:2014 SAFETY Household and similar electrical appliances - Safety - Part 1: EN 60335-1:2012+A11:2014 PASS General requirements EN 60335-2-29:2004+A2:2010 Part 2-29: Particular requirements for battery chargers... -
Page 26: Commonly Used Terms
13.2 volts (4x3.3). If the nominal voltage of the battery is not printed on the battery's label, consult your battery manufacturer or supplier. Do not guess the rated voltage of battery. · 24 RC-S65... -
Page 27: Warranty And Service
Liability exclusion This charger is designed and approved exclusively for use with the types of battery stated in this Instruction Manual. Overlander accepts no liability of any kind if the charger is used for any purpose other than that stated. - Page 28 All specifications and figures are subject to change without notice. Printed in China 2019 7504-1120-01...
