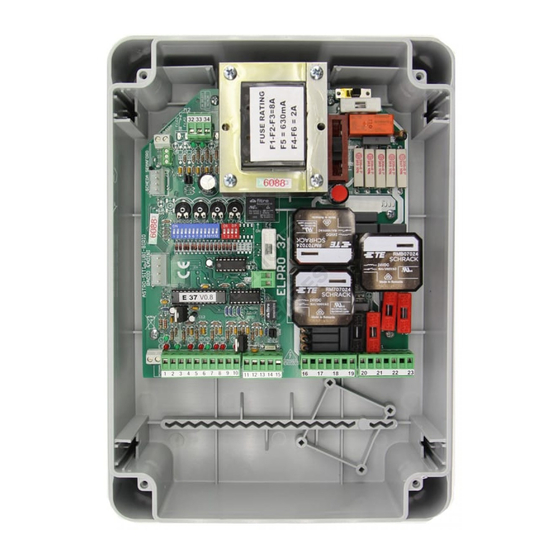

Single-three phase electronic control board for sliding gate and automatic systems with or without limit switches (max 1,5 hp three-phase or 1,0 cv single-phase).
Hide thumbs Also See for Elpro 37:

Advertisement

- FRENO ELETTRONICO
- FUNZIONE PASSO PASSO
I
- UOMO PRESENTE
- APERTURA PEDONALE
- POSSIBILITA' DI ESCLUDERE LAMPEGGIANTE IN PAUSA
- ELECTRONIC BRAKE
- STEP BY STEP FUNCTION
GB
- HOLD-ON SWITCHED (DEADMAN) CONTROL
- FLASHING LAMP DURING DWELL TIME MADE ON/OFF SWITCHED ABLE
- FREIN ELECTRONIQUE
- FONCTION PAS A PAS
F
- HOMME MORT
- OUVERTURE PIETON
- POSSIBILITE D'ETEINDRE LA LAMPE DE SIGNALISATION EN PAUSE
- ELEKTROBREMSE
- SCHRITTWEISE FUNKTION
D
- TOTMANNBETRIEB
- FUßGÄNGERFUNKTION
- MÖGLICHKEIT ZUM AUSSCHLUSS DER BLINKLEUCHTE BEI DER PAUSE
7583
Dis. N.
Programmatore elettronico monofase - trifase con freno elettronico per
I
37
cancelli scorrevoli e automazioni con o senza finecorsa (max 1,5 CV trifase o
1,0 CV monofase).
Single-Three phase electronic control board for sliding gate and automatic
GB
systems with or without limit switches (max 1,5 HP three-phase or 1,0 CV
single-phase).
Programmateur electronique monophasé - triphasé avec frein electronique
F
pour portails coulissants et automatismes avec ou sans fin de course (max 1,5
HP triphasé ou 1,0 HP monophasé).
Elektronische Steuerung, einphasig – dreiphasig, mit Elektrobremse für
D
Schiebetore, und Automationen mit oder ohne Endschalter max 1,5 PS
dreiphasig oder 1,0 PS einphasig)
meccanica
FADINI
- FUNZIONE OROLOGIO
- AUTOMATICO / SEMIAUTOMATICO
- USCITA ELETTROSERRATURA
- LUCE DI CORTESIA TEMPORIZZATA
- TIME CLOCK OPTION
- ADJUSTABLE COURTESY LIGHT TIME
- ELECTRIC LOCK OUTPUT
- FONCTION HORLOGE
- FONCTION AUTOMATIQUE / SEMIATUMATIQUE
- LAMPE D'ECLAIRAGE TEMPORISEE
- SORTIE SERRURE ELECTRIQUE
- UHR-FUNKTION
- AUTOMATISCH/HALBAUTOMATISCH
- ELEKTROSCHLOß AUSGANG
- HILFSBELEUCHTUNG TIMER
