Summary of Contents for Mettler Electronics Tens-Stim 211

  • Page 1: Instruction Manual

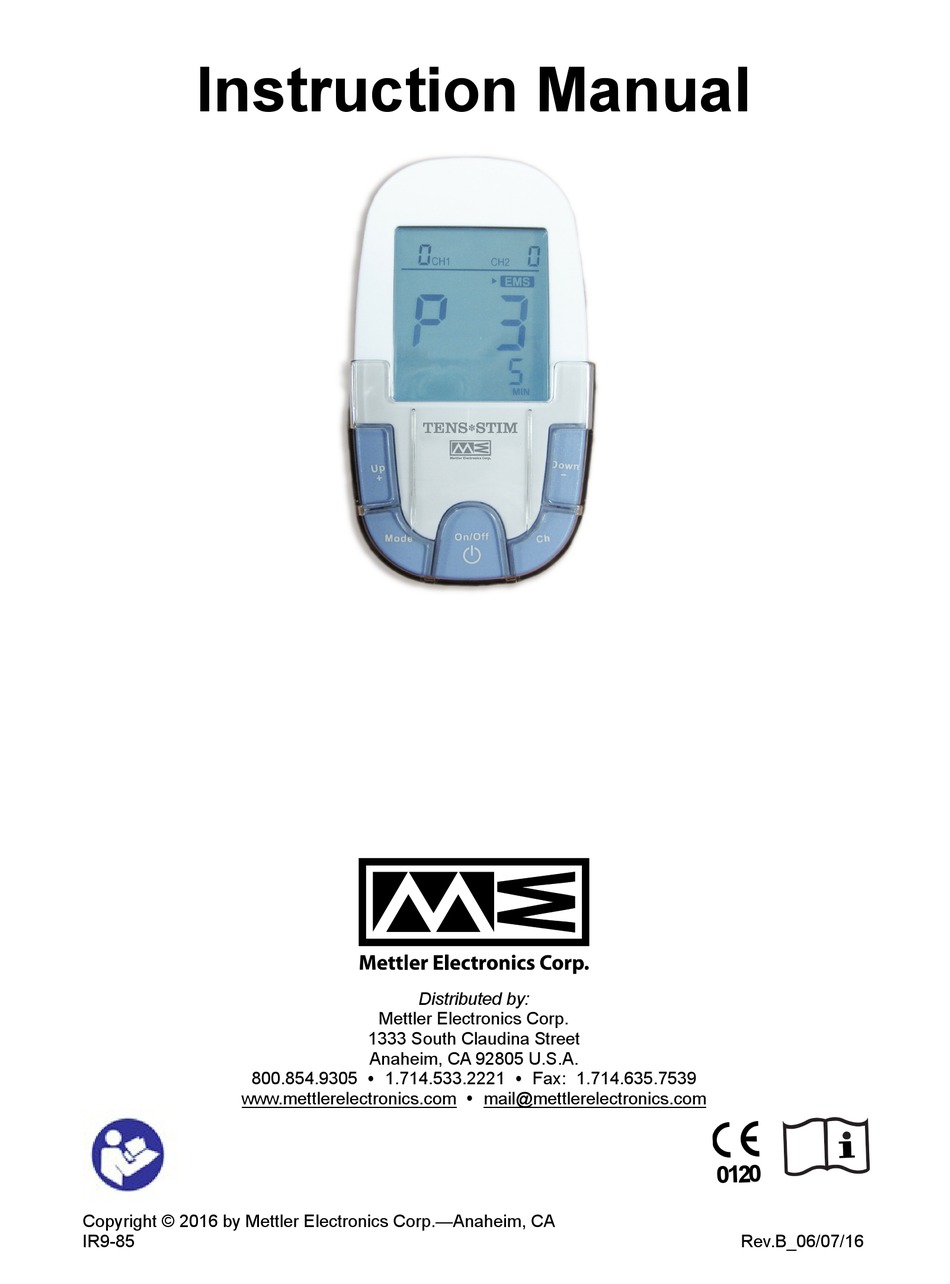

    Instruction Manual Distributed by: Mettler Electronics Corp. 1333 South Claudina Street Anaheim, CA 92805 U.S.A. 800.854.9305  1.714.533.2221  Fax: 1.714.635.7539 www.mettlerelectronics.com  mail@mettlerelectronics.com Copyright © 2016 by Mettler Electronics Corp.—Anaheim, CA IR9-85 Rev.B_06/07/16...
  • Page 2: Table Of Contents

    Intended Use The Mettler Electronics, TENS * STIM is to be used: - for temporary relief of pain associated with sore and aching muscles in the lower back due to strain from exercise or normal household and work activities. (Choose TENS Modes P1 through P7) - for temporary relief of pain associated with sore and aching muscles in the upper and lower extremities (arm and/or leg) due to strain from exercise or normal household and work activities.
  • Page 3: Indications And Contraindications

    Indications for Use The Mettler Electronics TENS * STIM ,model no. ME 211 is to be used: - for temporary relief of pain associated with sore and aching muscles in the lower back due to strain from exercise or normal household and work activities.
  • Page 4: Warnings And Precautions

    administered (short-term or long-term) by injection (e.g. hormone treatment).  You have epilepsy.  You have recently undergone a surgical procedure.  Following acute trauma or fracture.  In case of critical ischemia of the limbs. Warning and Precautions Warnings ...
  • Page 5  The device is not intended for medical use, for the treatment of any medical condition, or for any permanent physical changes.  Contact Mettler Electronics, if your unit is not working correctly. Do not use in the meantime. Replace batteries.
  • Page 6: Adverse Reactions

    7 and then restart the program again.  Only use pads supplied by Mettler Electronics with your device. Any others many not be compatible with your unit and could degrade the minimum safety levels.
  • Page 7 electrical stimulation near your eyes and to your head and face.  You should stop using the device and should consult with your physician if you experience adverse reactions from the device. Conditions that may affect your TENS * STIM Since the stimulator is a battery-operated electronic system, its output performance and safety may be affected greatly in extreme humidity.
  • Page 8: Package Contents

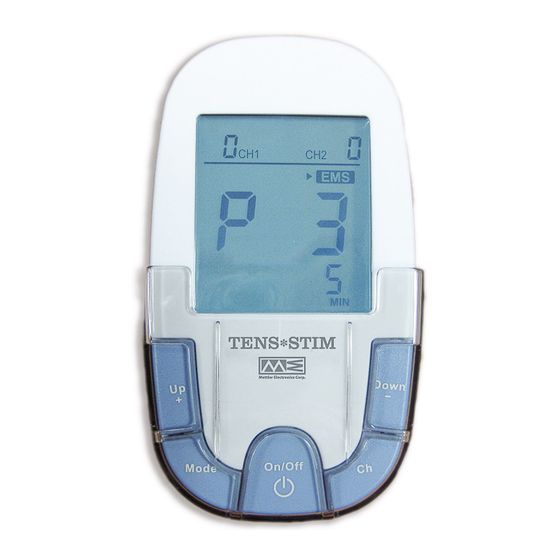

    Package Contents 1. ME 211 Device 2. Self Adhesive Electrodes, Size: 2 inch square, 4 pcs/bag 3. 3 AAA batteries 4. 2 lead wires 5. Holder About the Device Power On/Off key CH1 intensity level CH key CH2 intensity level Mode key Lock status indicator Up + key...
  • Page 9: Step By Step Operation Guide For Treatment

    Step by Step Operation Guide for Treatment Preparing the Skin for Running a Session Proper preparation of the skin covered by the electrodes allows more stimulation to reach targeted tissues, prolongs electrode life, and reduces the risk of skin irritation. After connecting the lead wire(s) to the stimulator, use the following steps to prepare your skin at the electrode placement sites: 1.
  • Page 10: Pain)

    Connecting the Cable to The Device Connect the lead wire to the electrodes before applying to the skin. Placement of the Electrode Pads for TENS (Treatment of Pain) Note 1. Recommended Electrodes: 2 in. x 4 in. (V Trode, 2704), or larger (e.g. leg muscles, lower back), and 2 inch (V Trode, 2702 or 2705) for smaller areas such as forearm muscles etc.
  • Page 11: Placement Of Pads For Ems (Muscle Stimulation)

    Placement of the Electrode Pads for EMS 1. Connect the lead wire to the electrodes before applying them to the skin. Use the large Electrode Pads for EMS. 2. The pad placement chart hereafter illustrates the correct placement of the pads for a selection of target muscles. Note: Always start with a low intensity level, increase gradually.
  • Page 12: Turning On The Device

    Turning On/OFF the Device To Turn ON/OFF the device, Press and hold the On/Off button for one (1) second to turn on the device and hold for three (3) seconds to turn it off. 1. The most recently selected treatment time and program will display on the screen ▲Note : When stimulating the muscles of the arms or legs bear in mind that the muscle contraction may...
  • Page 13: Selecting The Program

    Selecting the Program The Device offers 8 different preset treatment programs respectively for TENS and 6 EMS modes; the programs differ with respect to varying pulse widths and frequencies. Choice of the appropriate mode The mode you choose determines the kind of work that is imposed upon the stimulated muscles. Choose the mode that is appropriate to your needs or gives you the greatest pleasure.
  • Page 14 For EMS programs: When using the device for muscle stimulation (EMS) any of the 6 programs may be used. The intent is to cause a muscle to contract, and then relax. All 6 programs will achieve contraction and vary mainly by the rate and duration of the contractions.
  • Page 15: Selecting The Treatment Time

    The Device offers 8 different preset treatment programs respectively for TENS and 6 EMS modes; the programs differ with respect to varying pulse widths and frequencies. Press the button ON + (to increase) or the button OFF – (to decrease) for choice of program of the selected modality. ...
  • Page 16 If using the device for help with temporary relief of pain associated with sore and aching muscles, you will find that setting the current intensity to your own comfortable and pleasing level will give you much satisfaction. This level is different for each user so adjust it slowly.
  • Page 17: Special Features

    SPECIAL FEATURES Treatment Time The device offers 12 preset times: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55 and 60 minutes. Time will count down on the display in 1-minute increments for the duration of your session. ...
  • Page 18: Care And Maintenance

    CARE AND MAINTENANCE Stimulator The stimulator may be wiped clean with a small amount of soapy water on a clean cloth. Do not submerge the stimulator in liquids or expose it to large amounts of water. Never use aggressive cleaning products of stiff brushes to clean the device. ...
  • Page 19: Troubleshooting

    Properly electric pulses Treatment time has Switch unit to the OFF Expired Position and switch back on. The unit does not turn on even though Contact Mettler Electronics or your distributor new batteries have been inserted - 17 -...
  • Page 20: Tens * Stim 211 Technical

    ME 211 STIMULATOR TECHNICAL SPECIFICATIONS Channel: Dual, isolated between channels Pulse Amplitude: Adjustable 0 – 80mA peak into 500Ω load each channel; RMSV at 3.5 V (max.), RMSA at 1.3mA (max.) Pulse Rate: As pre-programming operation mode Pulse Width: As pre-programming operation mode Timer: 5~60 min.
  • Page 21 ELECTROMAGNETIC COMPATIBILITY The device complies with current specifications with regard to electromagnetic compatibility and is suitable for  use in all premises, including those designated for private residential purposes. The radio frequency emissions of the device are extremely low and in all probability do not cause any interference with other devices in the proximity.
  • Page 22 Guidance and manufacturer’s declaration – electromagnetic immunity The ME 211 is intended for use in the electromagnetic environment specified below. The customer or the user of the ME 211 should assure that it is used in such an environment. Immunity test IEC 60601 Compliance level Electromagnetic environment...
  • Page 23 Guidance and manufacturer’s declaration – electromagnetic immunity The ME 211 is intended for use in the electromagnetic environment specified below. The customer or the user of the ME 211 should assure that it is used in such an environment. Immunity test IEC 60601 Compliance Electromagnetic environment –...
  • Page 24 WARRANTY This Mettler Electronics TENS * STIM, Model no. ME 211, carries a one-year warranty from the date of purchase. The warranty does not apply to damage resulting from failure to follow the operating instructions, accidents, abuse, alterations or disassembly by unauthorized individuals.
