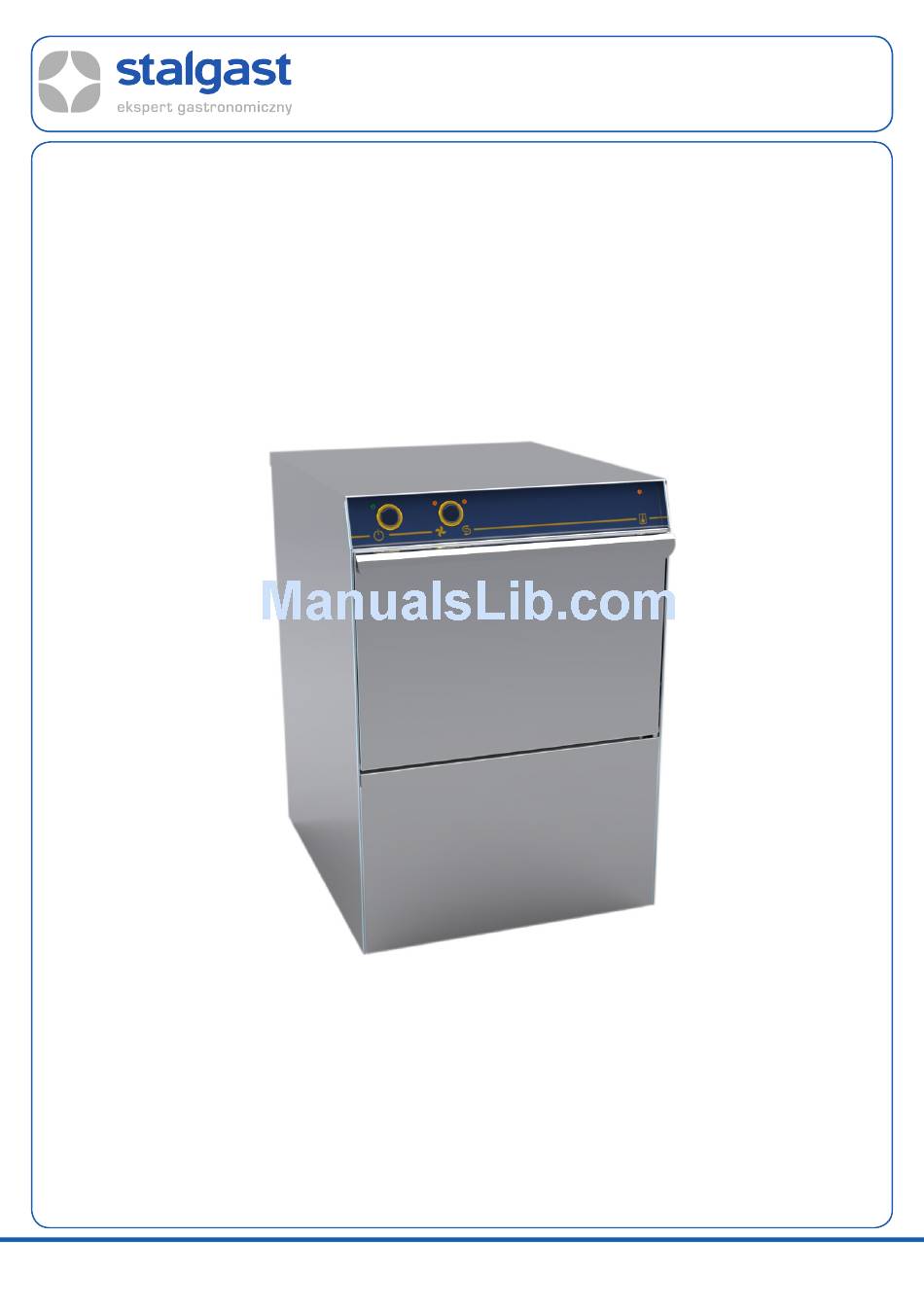

- Page 1 INSTRUCTION MANU AL v4.0 - 08.2011 Glasswasher MODEL: 804350, 804351, 804412, 804413, 804414 Stalgast sp. z o.o. ul. Staniewicka 5 03-310 Warszawa tel.: 22 517 15 75 fax: 22 517 15 77 www.stalgast.com email: stalgast@stalgast.com...
-
Page 2: Table Of Contents
Contents 1. SAFETY INSTRUCTIONS ......................3 2. SAFETY REGULATIONS ......................3 3. STRUCTURE OF THE APPLIANCE ..................4 3.1. Appliance usage ..............................4 3.2. Control panel ............................... 4 4. TECHNICAL SPECIFICATION ....................4 5. SETTING UP THE APPLIANCE ....................5 5.1. -
Page 3: Safety Instructions
Thank you for your purchase of a Stalgast product. Before use please familiarize yourself in detail with the following instruction manual. Copying of the following manual without the consent of the manufacturer is prohibited. Images and drawings are of illustrative character and may differ from the purchased product. -
Page 4: Structure Of The Appliance
(CEI-EN-IEC 60335-2-58 / 61770) and electromagnetic compatibility (CEI-IEC-EN 55014-1 / -2, 61000-3, 4, 50366). 3.2. Control panel 804350, 804412 pic. 1 804351, 804413 pic.2 804414 pic.3... -
Page 5: Setting Up The Appliance
Frequency 50 Hz 50 Hz Max power consumption 2,73 kW 2,73 kW Boiler power 2,6 kW 2,6 kW Water tank power 1,6 kW 1,6 kW Washing pump power 0,13 kW 0,13 kW Water supply pressure 200-400 kPa 200-400 kPa Supplied water temperature 50 –... -
Page 6: Initializing The Appliance
• PE – polyethylene; external packaging, instruction manual cover, safety elements of the packaging • PP – polypropylene; handles • PS – polystyrene foam; edge guards, lid • Wooden and cardboard elements of the appliance should be left in designated places in accordance with current regulation. It is not allowed to store the appliance or elements of the appliance directly within the natural environment. -
Page 7: Operating The Appliance
Specification of the level indicator: 230V?50Hz, 15W. The washing fluid level indicator should be connected to the washer using the transparent pipe above the indicator. 6. OPERATING THE APPLIANCE. 6.1. Setting up activities before the start of washing Make sure you use washing and rinsing fluids for industrial washing machines. It is not allowed to use fluids meant for hand washing. -
Page 8: Tank Empting At The End Of The Day
After the cycle is finished the cycle control indicator turns off and the heating indicator turns on Remove the basked from the chamber of the appliance. 6.4. Tank empting at the end of the day a. Emptying the tank in the models equipped with a drain pump Otworzyć... -
Page 9: Periodic Inspections
Surface of the filters should be carefully cleaned with a damp cloth and a neutral detergent (non-corrosive) without any chlorine or any other corrosive substance, which may damage surface of stainless steel. In order to avoid corrosion stains on the surface of stainless steel avoid using any corrosive detergents including chlorine or causing mechanical damage to the surface of stainless steel. -
Page 10: Troubleshooting
CAUTION! Use only special salt suitable for this purpose. Do not use table salt. The salt dispenser accommodates about 1 kg of granulated salt. The salt container is located in the lower part of the tank. After removing the basket, unscrew the lid and pour the salt through provided for this purpose hole.
