Connections (continued)

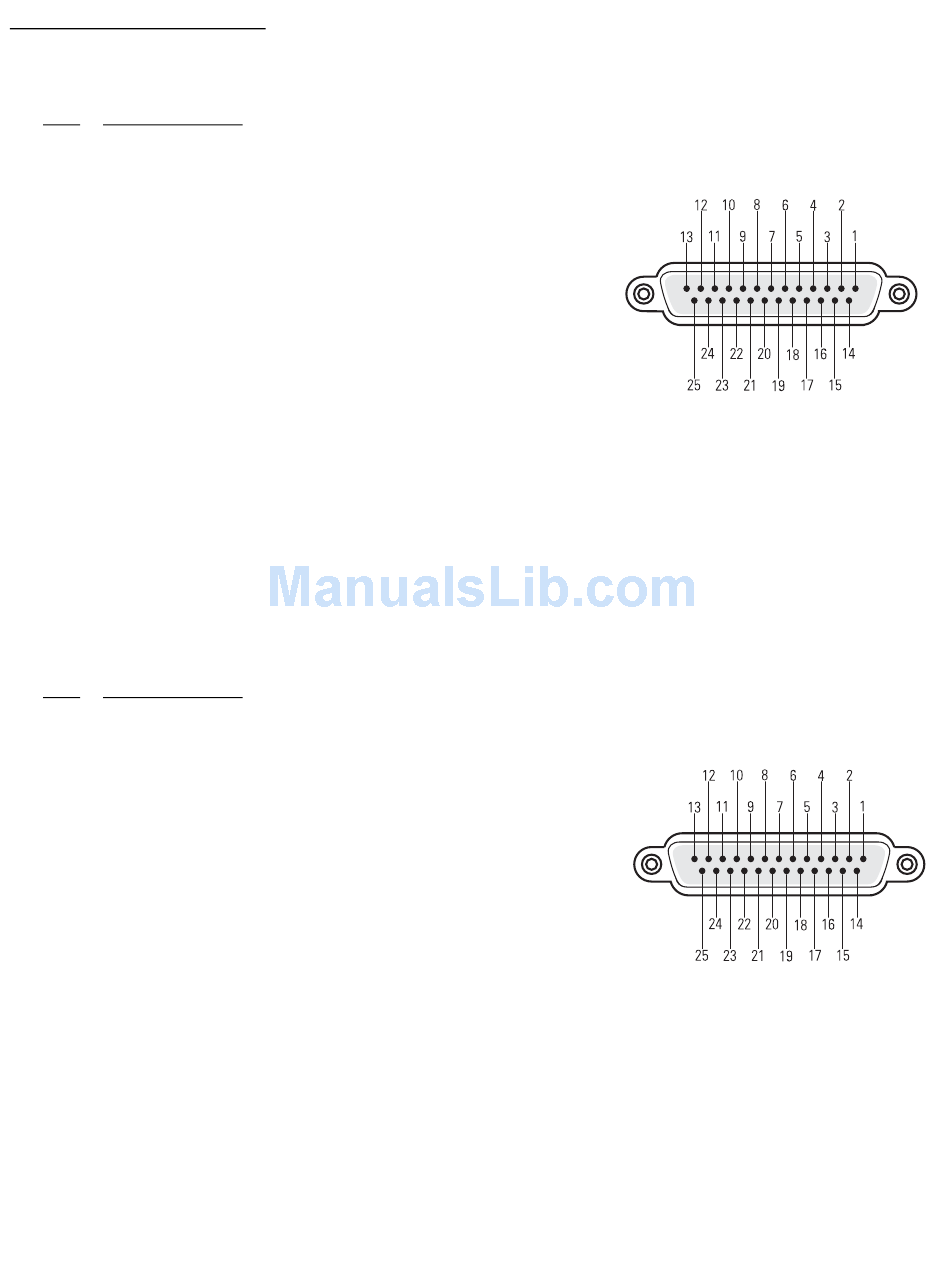

MAIN ANALOG INPUT Pinout
Configuration: 25-pin SubD male to 25-pin SubD male.
Pin #
Signal Description
1
Chassis Ground
2
Left +
3
Left Center -
4
Chassis Ground
5
Center +
6
Right Center -
7
Chassis Ground
8
Right +
9
Chassis Ground
10
Surround Left -
11
Surround Right -
12
Subwoofer -
13
Chassis Ground
SURROUND EX INPUT (OPTION CARD) Pinout
Configuration: 25-pin SubD male to 25-pin SubD male.
Pin #
Signal Description
1
(not used)
2
(not used)
3
Back Surround Left -
4
(not used)
5
(not used)
6
Back Surround Right -
7
Ground Digital Inputs
8
(not used)
9
Right Extra + *
10
Surround Left -
11
Surround Right -
12
(not used)
13
(not used)
14
Left -
15
Chassis Ground
16
Left Center +
17
Center -
18
Chassis Ground
19
Right Center +
20
Right -
21
(not used)
22
Chassis Ground
23
Surround Left +
24
Surround Right +
25
Subwoofer +
14
Left Extra + *
15
Left Extra - *
16
Back Surround Left +
17
(not used)
18
(not used)
19
Back Surround Right +
20
(not used)
21
(not used)
22
Right Extra - *
23
Surround Left +
24
Surround Right +
25
(not used)
* Requires Cat.No 791 Card on Cinema Processor
MAIN ANALOG INPUT
SURROUND EX INPUT
