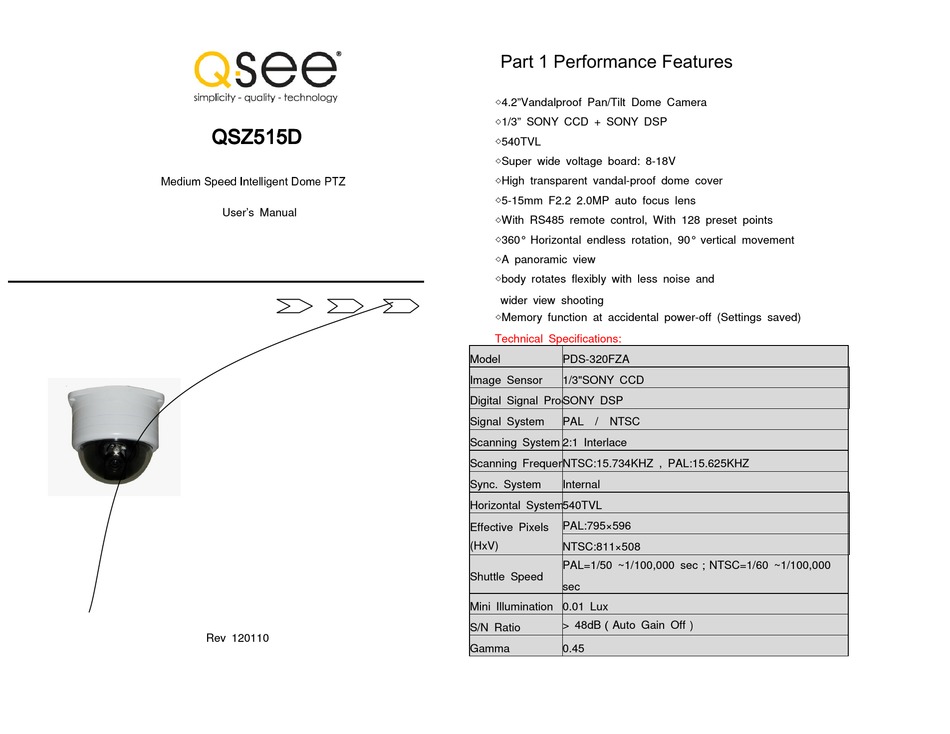

QSZ515D
QSZ515D
QSZ515D
QSZ515D
M e d i u m S p e e d I n t e l l i g e n t D o m e P T Z
User's Manual
Rev 120110

Part 1 Performance Features

4 .2"Vandalproof Pan/Tilt Dome Camera
◇
1 /3" SONY CCD + SONY DSP
◇
5 40TVL
◇
S uper wide voltage board: 8-18V
◇
H igh transparent vandal-proof dome cover
◇
5 -15mm F2.2 2.0MP auto focus lens
◇
W ith RS485 remote control, With 128 preset points
◇
3 60° Horizontal endless rotation, 90° vertical movement
◇
A panoramic view
◇
b ody rotates flexibly with less noise and
◇
wider view shooting
M emory function at accidental power-off (Settings saved)
◇
Technical Specifications:
Model
PDS-320FZA
Image Sensor
1/3"SONY CCD
Digital Signal Processor
SONY DSP
Signal System
PAL / NTSC
Scanning System 2:1 Interlace
Scanning Frequency(H)
NTSC:15.734KHZ , PAL:15.625KHZ
Sync. System
Internal
Horizontal System540TVL
PAL:795×596
Effective Pixels
(HxV)
NTSC:811×508
PAL=1/50 ~1/100,000 sec
Shuttle Speed
sec
Mini Illumination 0.01 Lux
> 48dB
A uto Gain Off
S/N Ratio
（
Gamma
0.45
N TSC=1/60 ~1/100,000
；
）

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QSZ515D and is the answer not in the manual?

Questions and answers

Related Manuals for Q-See QSZ515D

Summary of Contents for Q-See QSZ515D

  • Page 1 QSZ515D QSZ515D QSZ515D QSZ515D M e d i u m S p e e d I n t e l l i g e n t D o m e P T Z User’s Manual Rev 120110 Part 1 Performance Features 4 .2”Vandalproof Pan/Tilt Dome Camera...
  • Page 2 Lens 1.3 Megapixel 5-15mm F2.2 2.0MP auto focus lens White Balance Auto Open Video Output 1.0V P-P,75 Auto Power Voltage Super Wide Voltage (8V~18V) Input Current DC12V+/_20% 50/60Hz, 1.2A above Output Current 12V 800mA 14° F to 122° F (-10° C to 50℃) Operating Temperature r elative humidity: up to 95% （...
  • Page 3 Large square of monotonous object, like a wall; The object is too dark or vague; The targeted picture is too small 3. Surveillance function Set & Transfer the preset points The function of preset positions is, temporarily storing such location parameters as horizontal angle / inclination / lens’ focus in ory and transferring them whenever they’re needed.
  • Page 4 Problem Possible reason No movement and ima 1.Check the connection of ge at power-on C power input 2.Turn off power and he transformer Power-on shows 1. DIP switch setting is incorrect mage, 2.RS485 interface is not connec but the controlle ted or is not connected corre r doesnot work...
  • Page 5 Baud Rate 2 400, 4800, 9600, 19200Bit/S ： ： ： ： Command Form ： Byte 1 Byte 2 Byte 3 Byte 4 Synchronized Byt Address Cod Command Code Command Code All data in the Protocol as REX; 2. Synchronized Byte is 0FFH; 3.
  • Page 6 Technical Parameter: Model PDS-320FZA Image Sensor 1/3"SONY CCD Digital Singnal Processor SONY DSP Signal System PAL / NTSC Scanning System 2:1 Interlace Scanning Frequency(H) NTSC:15.734KHZ , PAL:15.625KHZ Sync. System Internal Horizontal System540TVL PAL:795×596 Effective Pixels (HxV) NTSC:811×508 PAL=1/50 ~1/100,000 sec ；...
  • Page 7 PELCO“P”Protocol PELCO“D”Protocol Baud Rate : 1200b/2400b/4800b/9600b...
