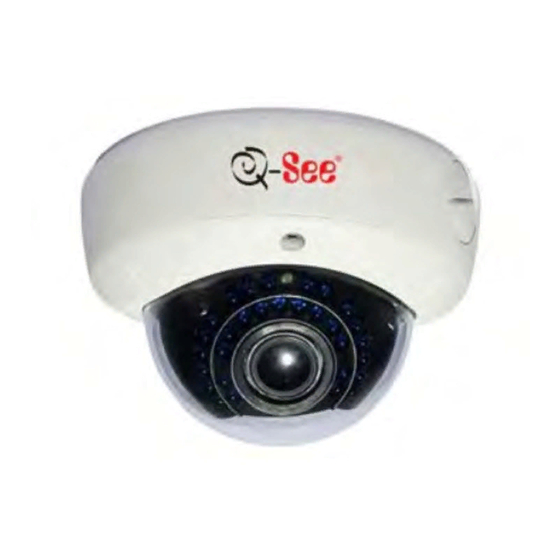

Hi-resolution ccd color camera with 2.8 to 12mm varifocal lens and built-in on screen display

Advertisement

Quick Links

QSC13212D
Hi-Resolution CCD Color Camera
With 2.8 to 12MM Varifocal Lens
And Built-in On Screen Display
OPERATION MANUAL
Product Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QSC13212D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Q-See QSC13212D

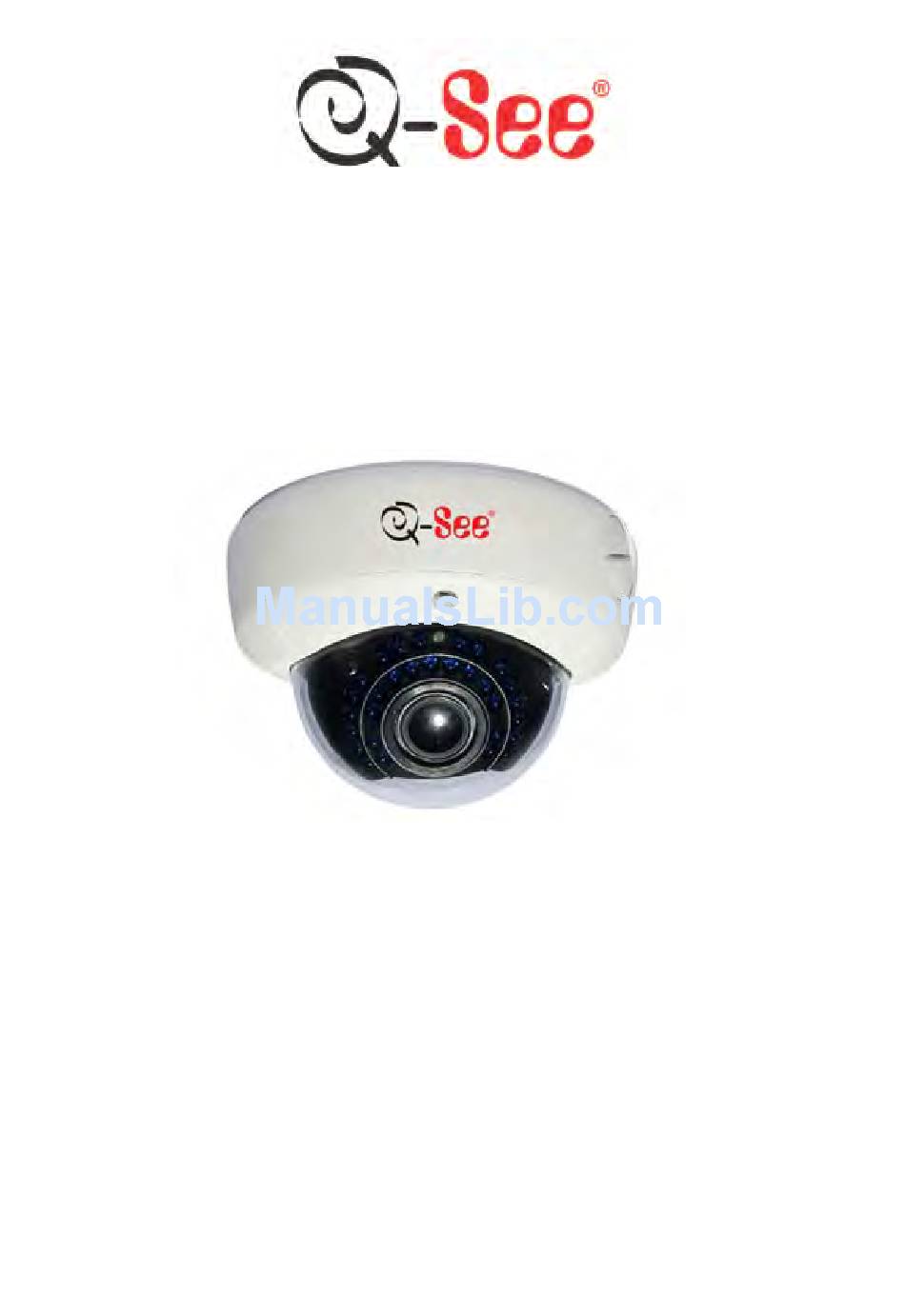

  • Page 1 QSC13212D Hi-Resolution CCD Color Camera With 2.8 to 12MM Varifocal Lens And Built-in On Screen Display OPERATION MANUAL Product Manual...
  • Page 2: Other Precautions

    Unit should only be serviced by authorized repairmen. Contact Q-See for any needed repairs. Other Precautions: ☆ Please make sure the power adapter is consistent with product specifications, otherwise it might cause fire, electric shock or damage.
  • Page 3 Notes 1. Avoid strong impact and stay away from strong electromagnetic interference and vibration. 2. There are some sophisticated parts inside the camera, therefore, during transportation and installation, please avoid damage caused by stress or severe vibration. For the sake of safety, please do not switch on power before completing all installation.
  • Page 4: Table Of Contents

    1. Features ·································································································· 1 2. Dimensions and Accessories ······························································ 2 3. Installation ················································································· 3 4. Circuit Board Layout ········································································10 5. OSD (On Screen Display) Operation ··············································· 11 5.1 Exposure ····················································································12 5.2 Color ························································································· 13 5.3 Day & Night Switch ···································································14 5.4 Function ·····················································································15 5.5 Motion Detection ······································································16 5.6 Privacy Zone ············································································...
  • Page 5: Features

    1. Features 1. New Generation SONY CCD Adopting the latest Second-generation high-sensitive CCD, it can receive clear and lucid images even with very low illumination. 2. Hi-resolution Video Resolution Color horizontal resolution can reach 550TVL, B/W horizontal resolution can reach 600TVL.
  • Page 6: Dimensions And Accessories

    2. Dimensions and Accessories Dome Camera Dome Camera 2.2 Accessories Item Accessories Product Manual Customer Info Card Fixed Screws Quantity Remark 1 PC Standard 1 PC Standard 1 Set Dome Camera...
  • Page 7: Installation

    3. Installation Release screws to open the cover 2. Use the pictured tool to take off the screws...
  • Page 8 3. Open the cover 4. Arrows point to the 3 holes for ceiling mount screws...
  • Page 9 5. Mounting the base to ceiling 6. Screws for changing the angle of the lens...
  • Page 10 7. Loosen the screws on both sides with a screwdriver 8. Twist the top to change the left/right angle of the lens...
  • Page 11 9. Top screw adjusts focus, bottom screw adjusts lens size. 10. Cover of cable pull out hole...
  • Page 12 11. You can remove the cover with a coin 12. Pull cable through the hole...
  • Page 13 13. Place cable in channel and through side hole 14. Cable through the hole...
  • Page 14: Circuit Board Layout

    15. Connector for portable video tester if needed by the installer, the black button is for operating OSD (On Screen Display). 4. Circuit Board Layout QSC13212D Dome Camera Circuit Board...
  • Page 15: Osd (On Screen Display) Operation

    4.2 On Screen Display Switch ENTER Press to Enter or Exit the menu UP/DOWN Tilt toward UP and DOWN to move up and down in menu Tilt toward LEFT, RIGHT for modifying the menu parameters, LEFT/RIGHT press RIGHT to move to the next menu and modify the parameter. 5.
  • Page 16: Exposure

    5.1 Exposure When the cursor stops on "exposure", press “Ok” button to enter "exposure" to set the parameters.  Lens There are two kinds of options, automatic or manual; depending on the specific type of the lens.  Lens Brightness User can adjust image brightness from 0 to 100, depending on the lightness of surroundings.
  • Page 17: Color

    5.2 Color Move the cursor to "RGB" icon, click "OK" to enter the White Balance menu to set relevant parameters.  White Balance This is used to restore the authenticity of the color, affected by the change of color temperature. Users can choose white balance mode according to the actual situation: Auto White Balance / Auto-tracking White Balance / Lock White Balance / Manual White Balance respectively.
  • Page 18: Day & Night Switch

    5.3 Day & Night Switch Day & Night Switch is specially designed for different occasions. There are four kinds of modes as follows: automatic mode, color mode, B/W mode, and external switch. The user can set different modes according to the surroundings. ...
  • Page 19: Function

     CDS Control The filter switch will be controlled by the photocell, and it can work only in external control mode. 5.4 Function  Mirror Left or Right Mirror can be set when turning on the mirror switch.  Sharpness adjustment Adjust the image sharpness from 0-50.
  • Page 20: Motion Detection

     Wide Dynamic Compensation This is digital wide dynamic function, you can adjust its value in order to achieve the best results, the values are: 60DB, 80DB, 100DB. 5.5 Motion Detection (This camera does not have this feature) Mainly used for setting the image motion detection and alarm linkage function. 5.6 Privacy Zone "Privacy Zone"...
  • Page 21: Camera Id

    5.7 Camera ID (This camera does not use this feature) Used for setting the camera's address, communication protocol and baud rate. 5.8 Camera Settings  Title Display The title can be set ON or OFF.  Title Edit Move the cursor to "Title Edit", Click "OK" to enter the title setting. Up to16 letters, numbers &...
  • Page 22: Exit

    Move the cursor to the input column, press "OK"-the cursor will be moved to the above input character column, after selecting characters, press "OK", the cursor will be moved to the next input position. If you need additional settings, please refer to the above operation.
  • Page 23: Technical Specifications

    (BLC) Strong Light Reversion Backlight Compensation Privacy Zone Privacy Zone Color QSC13212D Dome Camera SUPER HAD ‖ hi-sensitivity CCD & DSP " 1 / 3 4.9mm x 3.7mm 2.8mm to 12mm Manual Varifocal PAL: 752(H)×582(V) ;NTSC: 768(H)×494 (V) PAL or NTSC Power Synchronization / Internal Synchronization PAL:1/50~1/100000s;...
  • Page 24 Wide dynamic compensation Mirror Sharpness adjustment Gamma Correction CCD white Point Auto-detection Auto-completion point Menu Background Power Supply Power Consumption Operation Power & Temperature Other Operation Humidity Parameters Storage Temperature Storage Humidity Weight (kg) 60dB, 80dB, 100dB optional Manual / Auto / Auto Tracking On/Off 0~50 adjustable 0.3~1.0 adjustable...
  • Page 25: Faqs

    7. FAQs 1. Q: No image after installation? A: a. Check the power supply connections, try plugging into different surge protector and a different power outlet. and whether the indicating led is always on or not; b. Check the video cable, make sure it is ok. c.
  • Page 26: Contact Information

    Please contact us using the following methods with questions about your Q-See product. Q-See Products 8015 E. Crystal Dr. Anaheim, CA 92807 Email: Customer Service cs@dpsi-usa.com Technical Support ts@dpsi-usa.com Online Live Web Chat Visit: www.q-see.com Telephone: Customer Service 1.877.998.3440 x 538 Technical Support 1.877.998.3440 x 539...
  • Page 27: Product Warranty

    Q-See Product Warranty Thank you for choosing our products. All of our products users have a conditional free warranty repair service for hardware within 12 months starting from purchase date, and a free exchange service within one month (valid for manufacturing defects). Permanent upgrading service is provided for the software.
  • Page 28 The material in this document is the intellectual property of our company. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without our company’s prior written permission. 1. Our products are under continual improvement and we reserve the right to make changes without notice.
  • Page 29: Customer Information Card

    Customer Information Card User’s Name Mr./Mrs. Company Name Postal Address Postal code Phone Number E-mail Model Number of Product Serial Number of Product Purchase Date Distributor...
