Toco grow-fix Instructions Manual

Isofit car seat group 1,2,3
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

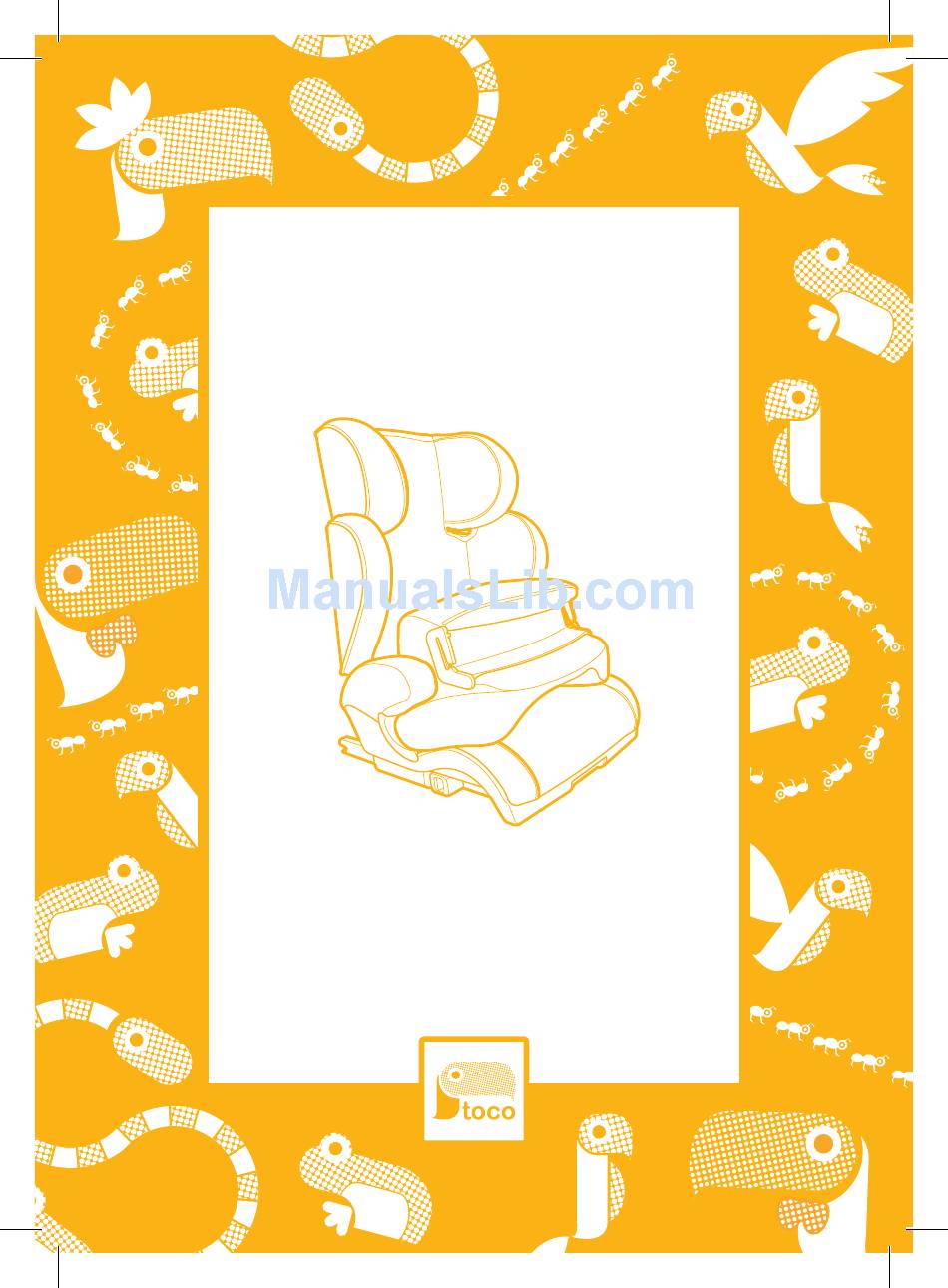

grow-fix
ISOFIT CAR SEAT
Group 1,2,3
INSTRUCTIONS: PLEASE READ CAREFULLY AND
KEEP FOR FUTURE REFERENCE. YOUR CHILD'S
SAFETY MAY BE AFFECTED IF YOU DO NOT
FOLLOW THESE INSTRUCTIONS.
This product conforms to ECE R44.04
Group 1,2,3 child car seat.
Suitable for children from 9kg to 36kg (approx 9 months to 12 years old)
V1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the grow-fix and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toco grow-fix

Summary of Contents for Toco grow-fix

  • Page 1 ISOFIT CAR SEAT Group 1,2,3 INSTRUCTIONS: PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. YOUR CHILD’S SAFETY MAY BE AFFECTED IF YOU DO NOT FOLLOW THESE INSTRUCTIONS. This product conforms to ECE R44.04 Group 1,2,3 child car seat. Suitable for children from 9kg to 36kg (approx 9 months to 12 years old)

  • Page 2: Table Of Contents

    Whilst we make and test our products to the highest standards of durability there’s always a small chance of a hiccup! Our promise is to repair, replace or refund a Toco product that has an identified manufacturing defect from the date of purchase for a full 3 years thereafter at no extra cost.

  • Page 3: Safety Information

    Safety NOTICES 1. This child car seat is approved for two different types of fitting: a) “Semi-Universal” with connectors locked onto the vehicle’s ISOFIT anchor points [also known as ISOFIX anchor points], used in conjunction with the vehicle’s 3-point safety belt. b) “Universal”...
  • Page 4 Which is the safest passenger seat for the child seat? If your centre rear passenger seat is fitted with a three point seatbelt system then you should use it. If your centre rear passenger seat does not have a three point seatbelt system (i.E. No seatbelt at all, or only a lap belt) - Then you should use the rear left passenger seat or the rear right passenger seat.
  • Page 5 Seatbelt WARNING: Never use any load bearing contact points other than those described in these instructions or marked on the child car seat. WARNING: Ensure that the lap section of the harness is worn low down, so that the pelvis is firmly engaged.

  • Page 6: Parts Checklist

    Parts checklist Headrest Red ISOFIT adjust lever Impact shield Headrest adjust lever Seatbelt guide Shoulder belt guides ISOFIT arms Instruction manual pocket Lap belt guide ISOFIT guides ISOFIT release button...

  • Page 7: Adjusting The Headrest

    Adjusting the headrest 1. Squeeze the handle at the back of the seat and raise or lower the headrest as needed. Ensure the shoulder belt guide (A) is at the correct height for your child’s shoulders and not too high or too low.

  • Page 8: Positioning The Car Seat

    Positioning the car seat The child car seat should only be installed using either the ISOFIT anchor points or the vehicle’s 3-point seatbelt on a forward facing passenger seat. WARNING: Never attempt to use a 2-point seatbelt to secure the seat. WARNING: Never use on a seat with an active airbag.

  • Page 9: Installing The Group 1,2,3 Car Seat Using The Vehicle's Isofit System

    Installing the group 1,2,3 car seat using the vehicle’s ISOFIT system 1. Place the car seat on a suitable passenger seat. 2. Pull the red lever (A) at the front of the Note: If the passenger seat has a headrest car seat to extend the two ISOFIT arms then it must be removed before fitting the (B).

  • Page 10: Installing The Group 3 Booster Seat Using The Vehicle's Isofit System

    Installing the group 1,2,3 car seat using the vehicle’s ISOFIT system (continued) 5. Pull the red lever at the front of the seat and push the base of the car seat back towards the passenger seat as far as it will go (C). Hold the seat base and push the backrest (D) until it rests against the passenger seat (E).

  • Page 11: Installing The Group 3 Booster Seat Using The Vehicle's Isofit System

    Installing the group 3 booster seat using the vehicle’s ISOFIT system (continued) green Click 4. IMPORTANT! Check that BOTH lock indicators on each side of the seat have turned green indicating the seat is LOCKED in position. 3. Hold the seat with both hands and slide Pull the seat forward to check that the it back, guiding the two ISOFIT arms into ISOFIT system is locked in place...

  • Page 12: Removing The Group 1,2,3 Car Seat When Using The Vehicles Isofit System

    Removing the group 1,2,3 car seat when using the vehicle’s ISOFIT system Click 1. Pull BOTH lock indicator buttons 2. Check that BOTH lock indicators have forward to release the ISOFIT system from turned from green to RED indicating the the anchor points.

  • Page 13: Installing The Seat Using Only The Vehicle's 3-Point Seatbelt [Groups 1,2,3]

    Installing the seat using only the vehicle’s 3-point seatbelt [groups 1,2,3] 1. To ensure a correct fit whilst only using the vehicle’s 3-point seatbelt it is important that the ISOFIT arms are NOT extended and that they have been retracted into the car seat.

  • Page 14: Installing The Group 3 Booster Seat Using Only The Vehicle's 3-Point Seatbelt

    Installing the group 3 booster seat using only the vehicle’s 3-point seatbelt 1. To ensure a correct fit whilst only using the vehicle’s 3-point seatbelt it is important that the ISOFIT arms are NOT extended and that they have been retracted into the car seat.

  • Page 15: Placing Your Child In The Car Seat [Group1]

    Placing your child in the car seat [group1] Ensure you have installed the car seat correctly following either the instructions under “Installing the group 1,2,3 car seat using the vehicle’s ISOFIT system” pages 9-10 or following the instructions under “Installing the seat using only the vehicle’s seatbelt [groups 1,2,3]” page 13. 1.

  • Page 16: Placing Your Child In The Car Seat [Group 2,3]

    Placing your child in the car seat [group1] (continued) Click 5. Pull the lap section of the seat belt 4. Lock the vehicle’s seat belt into the towards the buckle (E) and then pull the buckle (D) ensuring it “clicks” into place. diagonal section back up towards the seat belt anchor point (F), ensuring the seat belt is tight along its length.

  • Page 17: Placing Your Child In The Car Seat [Group 2,3]

    Placing your child in the car seat [group 2,3] (continued) Click 3. Place the diagonal belt section through the shoulder belt guide (B). The diagonal belt should pass over your child’s shoulder and should not be against their neck. If necessary adjust the headrest up or down so that the diagonal belt passes over your child’s shoulder correctly.

  • Page 18: Placing Your Child In The Group 3 Booster Seat

    Placing your child in the group 3 booster seat Ensure you have installed the car seat correctly following either the instructions under “Installing the group 3 booster seat using the vehicle’s ISOFIT system” pages 10-11 or following the instructions under “Installing the group 3 booster seat using only the vehicle’s 3-point seatbelt” pages 14. 1.

  • Page 19: Removing The Seat Cover

    Removing the seat cover Snap 1. Holding the car seat base with one hand, push the backrest away from you until it is flat on the floor. The backrest can now be removed from the base. To reattach the backrest: slot the bottom of the backrest into the seat base and then pull the backrest back up into an upright position until it clicks into position.

  • Page 20: Fitting The Seat Cover

    Removing the seat cover (continued) 5. Unbutton the two press studs (C) and 4. Unbutton the four press studs (B) and holding the fabric near to the press studs, remove the back fabric. CAREFULLY pull the base cover forward and off from the base. Fitting the seat cover 1.
  • Page 21 Fitting the seat cover (continued) 3. The car seat has a channel running around the edge of the seat where the fabric is slotted into. Locate the plastic trim running along the top of the seat fabric and starting at point (B) push the trim into the channel.
  • Page 22 Fitting the seat cover (continued) 6. Push 2 or 3 cm of the plastic trim into 5. Locate the plastic trim running along the channels on each side of the seat. Place the front of the base cover and starting at your thumb or finger over the length you one corner of the base, push the trim into have already seated and slide your digit...

  • Page 23: Care And Maintenance

    2) The child car seat may have a slight rattle when not in use, this is normal. If in any doubt, contact Toco or a Toco distributor immediately. 3) Check the adjustable parts of your child seat at intervals of about 6 months to ensure it is still...
  • Page 24 Discover more products at Discover more products at www.tocobaby.co.uk www.toco.co.uk...
