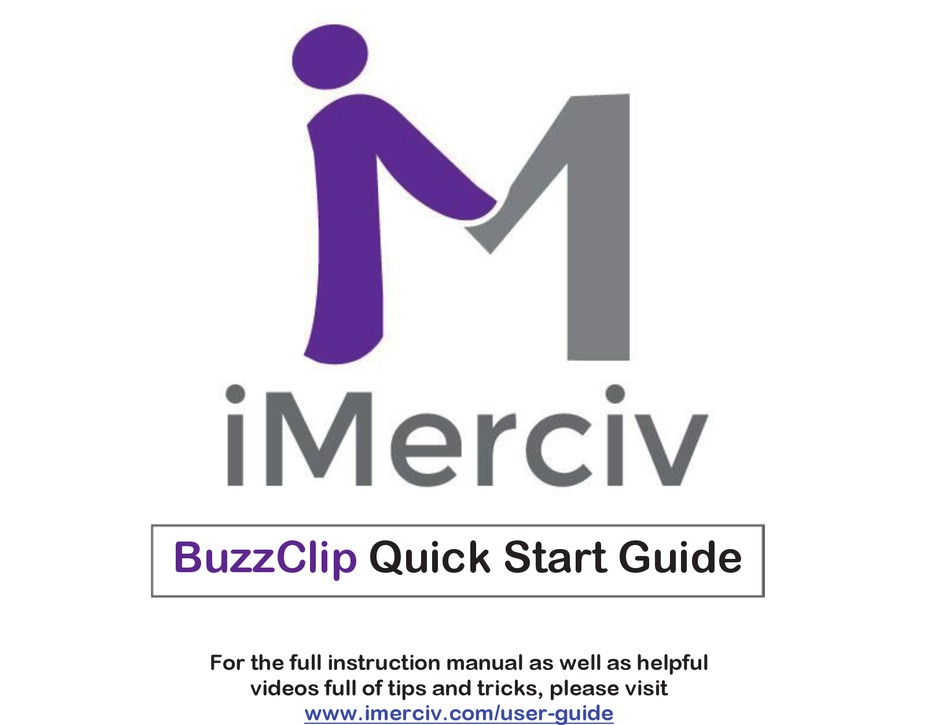

- Page 1 BuzzClip Quick Start Guide BuzzClip Quick Start Guide For the full instruction manual as well as helpful videos full of tips and tricks, please visit For the full instruction manual as well as helpful www.imerciv.com/user-guide videos full of tips and tricks, please visit...
-
Page 2: Getting Familiar With Your Buzzclip
Your BuzzClip consists of 4 main parts: The Rounded Top (A) – This is the main control panel for the BuzzClip and it can be found at the top of the device. The sensor is housed here and it slightly protrudes out of it’s rounded enclosure. - Page 3 It is located at the back or bottom of the device. The shape of the housing provides a stable anchor point for when the BuzzClip is being worn.
-
Page 4: Operating Your Buzzclip
On/Off button. 1. Press and hold this button to turn on your BuzzClip. You should then immediately feel a series of short vibrations followed by two longer vibrations. - Page 5 2-meter mode and a 3-meter mode. We suggest using the 1-meter mode for indoor use and the 2-meter and 3-meter modes for outdoor use. 2. While the BuzzClip is ON, Press and hold the Mode button to change modes on your BuzzClip. You should then immediately feel two short rapid vibrations.
- Page 6 Turning Off your BuzzClip: Turning Off your BuzzClip: Locate the On/Off Button – With the BuzzClip in your palm, you should be able to Locate the On/Off Button – With the BuzzClip in your palm, you should be able to feel a circular ring at the top which is the sensor.
- Page 7 BuzzClip. rounded top from the main body of the BuzzClip. Fastening the BuzzClip: Fastening the BuzzClip: 1. The main body and the vibrator housing 1. The main body and the vibrator housing...
- Page 8 The BuzzClip can be worn many different ways based on one's mobility needs. It can be easily clipped onto shirts, t-shirts, on sleeves (long or short), sweaters, jeans, sweatpants, and more.
- Page 9 protect your front and sides.
-
Page 10: Holding Your Buzzclip
90-degree angle so that the sensor is now facing forward rather than up at you. 3. You can now hold the BuzzClip in your hand similarly to how you would hold a flashlight and use it as a handheld to detect obstacles. We... - Page 11 2. Gently push the rounded top a little past a 90-degree angle and then slide this plastic stopper to the right with your thumb. 3. Now the BuzzClip is in the Unlocked Position with the rounded top and sensor back in their resting states.
-
Page 12: Using Your Buzzclip
Using your BuzzClip The BuzzClip is not a replacement for a cane but a complementary mobility tool. It is intended to be used in combination with a cane or a guide dog. For those who frequently travel with a cane or a guide dog, we recommend using the BuzzClip to address upper body and head level obstacles while the cane can address changes in elevation and lower obstacles. - Page 13 2. The angle of detection is a conical shape from the center of the sensor (mesh within circular ring) and the BuzzClip has three ranges of detection: a 1-meter mode, a 2-meter mode and a 3-meter mode. 0.5 m 1 meter 1.5 m...
- Page 14 3. When the BuzzClip is clipped around your upper body or chest area in the 2-meter mode, the detection range will cover you shoulder to shoulder and from about your waist to just above the top of your head. 4. When the BuzzClip is clipped around your upper body or chest area in the 3-meter mode, the detection range will cover you more than shoulder to shoulder and from about your ankles to just above the top of your head.
- Page 15 2. For example, if you were having a conversation with someone face to face, you would be within 1 or 3 meters of each other, meaning the BuzzClip would be vibrating constantly while you are conversing. 3. The automatic sleep feature activates when you are a fixed distance away from a person/object for longer than 5-7 seconds.
-
Page 16: Charging Your Buzzclip
4. Ensure that the sensor is always exposed even with heavy winter clothing. Charging your BuzzClip The BuzzClip’s battery will easily last up to 10 hours under rigorous use and can be charged using a standard Micro-USB cable. To Charge your BuzzClip:... - Page 17 4. Plug in the smaller end (Micro-USB) of the charging cable into the Micro- USB charging port on the BuzzClip. 5. Your BuzzClip is now charging! It should take less than an hour for the BuzzClip to reach a full charge.
-
Page 18: Connecting The Lanyard To Your Buzzclip
Connecting the Lanyard to your BuzzClip Locate the Lanyard Loop – This is a small hole or loop located along the chamfered edge of the main body. This hole is to attach the lanyard that is included in your box for additional safety and security purposes (in case of drops, etc.) - Page 19 4. To detach the lanyard, push the small round button at the center of the plastic adaptor and pull out the ring on the perimeter of the adaptor.
- Page 20 • Do not wash your BuzzClip with water. following precautions can result in serious injury or death from electric shock, fire, or damage to the BuzzClip. • Do not clean it when the BuzzClip is turned on or being charged. • Use only an approved charging cable •...
- Page 21 • Do not recharge batteries near a fire or in extremely hot conditions 1.5 Warning: The Buzzclip is water resistance but not water 1.3 Charging proof. • Always use the charger provided with the device. The •...
- Page 22 • Clean the outside of the buzzclip with a wet cloth. While • Please use the device only when the sensor is dry. If the cleaning, avoid spilling water on the sensor. Dry it with a sensor is wet due to rain or water spillage, the device might clean and dry cloth.
- Page 23 • Do not attempt to take apart, open, service, or modify the range of 2 meters only. This feature is intended only as a BuzzClip. Doing so could present the risk of electric shock, cautionary alert and you may not be able to fully move out damage, fire, or other hazard.
- Page 24 4.2 What will we do to correct problems? 4.5 What do you have to do? iMerciv Inc. will either repair the Product at no charge, using To obtain warranty service, you must first contact us to new or refurbished replacement parts.
- Page 25 5.3 Battery Specifications Resolution : 1 cm at 2 m Type : Rechargeable Li-polymer Indoor Range : 0.3 to 1.0 m Rating : 3.7 V; 350mAh Outdoor Range : 0.3 to 2.0 m Size : (50 x 20 x 3.5) mm Weight : 8 grams 5.6 Service Life...
