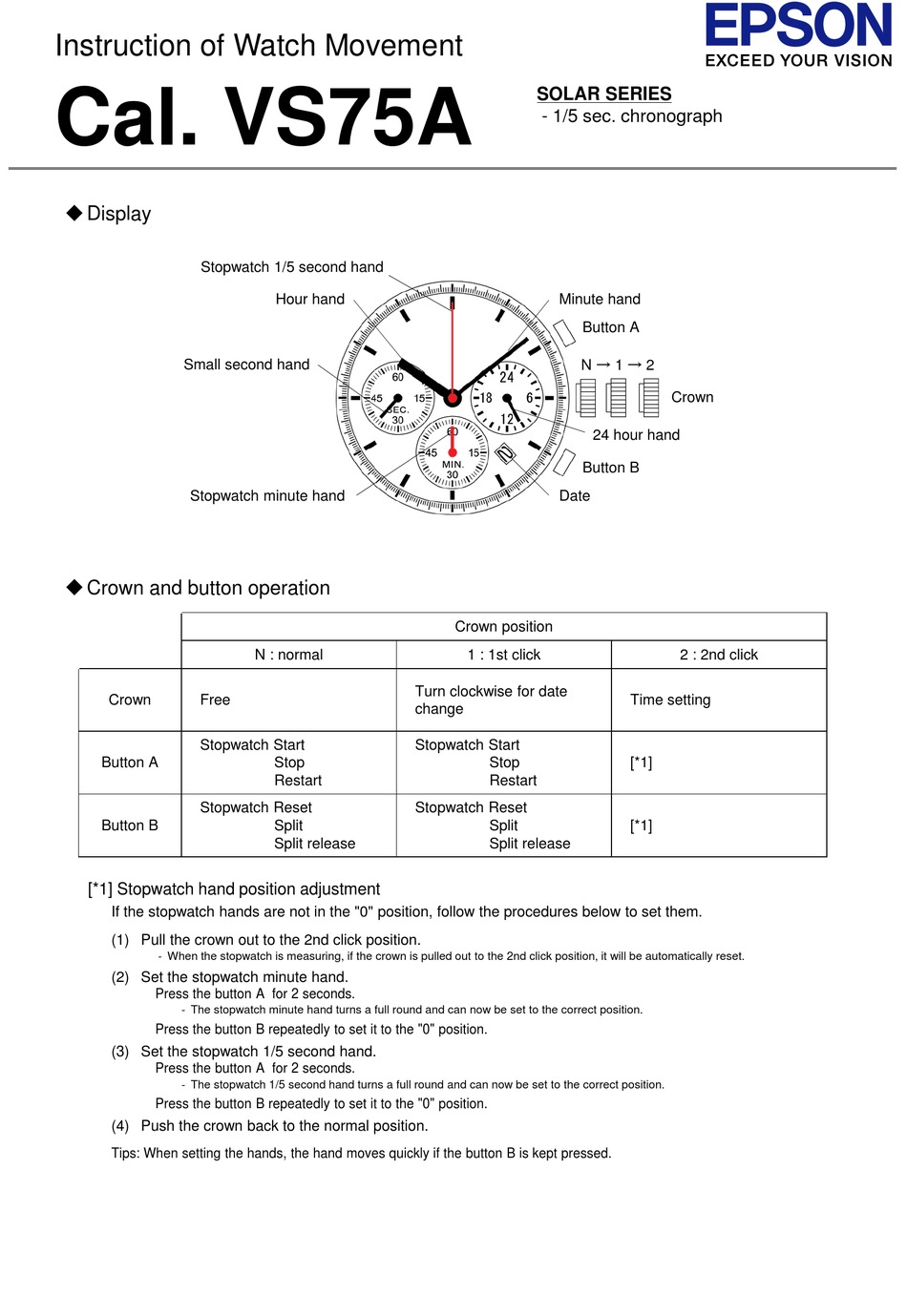

Instruction of Watch Movement
Cal. VS75A
 Display
Stopwatch 1/5 second hand
Small second hand
Stopwatch minute hand
 Crown and button operation
Crown
Free
Stopwatch Start
Button A
Stopwatch Reset
Button B
[*1] Stopwatch hand position adjustment
If the stopwatch hands are not in the "0" position, follow the procedures below to set them.
(1) Pull the crown out to the 2nd click position.
- When the stopwatch is measuring, if the crown is pulled out to the 2nd click position, it will be automatically reset.
(2) Set the stopwatch minute hand.
Press the button A for 2 seconds.
- The stopwatch minute hand turns a full round and can now be set to the correct position.
Press the button B repeatedly to set it to the "0" position.
(3) Set the stopwatch 1/5 second hand.
Press the button A for 2 seconds.
- The stopwatch 1/5 second hand turns a full round and can now be set to the correct position.
Press the button B repeatedly to set it to the "0" position.
(4) Push the crown back to the normal position.
Tips: When setting the hands, the hand moves quickly if the button B is kept pressed.
Hour hand
N : normal
Turn clockwise for date
change
Stopwatch Start
Stop
Restart
Stopwatch Reset
Split
Split release
SOLAR SERIES
- 1/5 sec. chronograph
Minute hand
Button A
N → 1 → 2
24 hour hand
Button B
Date
Crown position
1 : 1st click
Stop
Restart
Split
Split release
Crown
2 : 2nd click
Time setting
[*1]
[*1]
