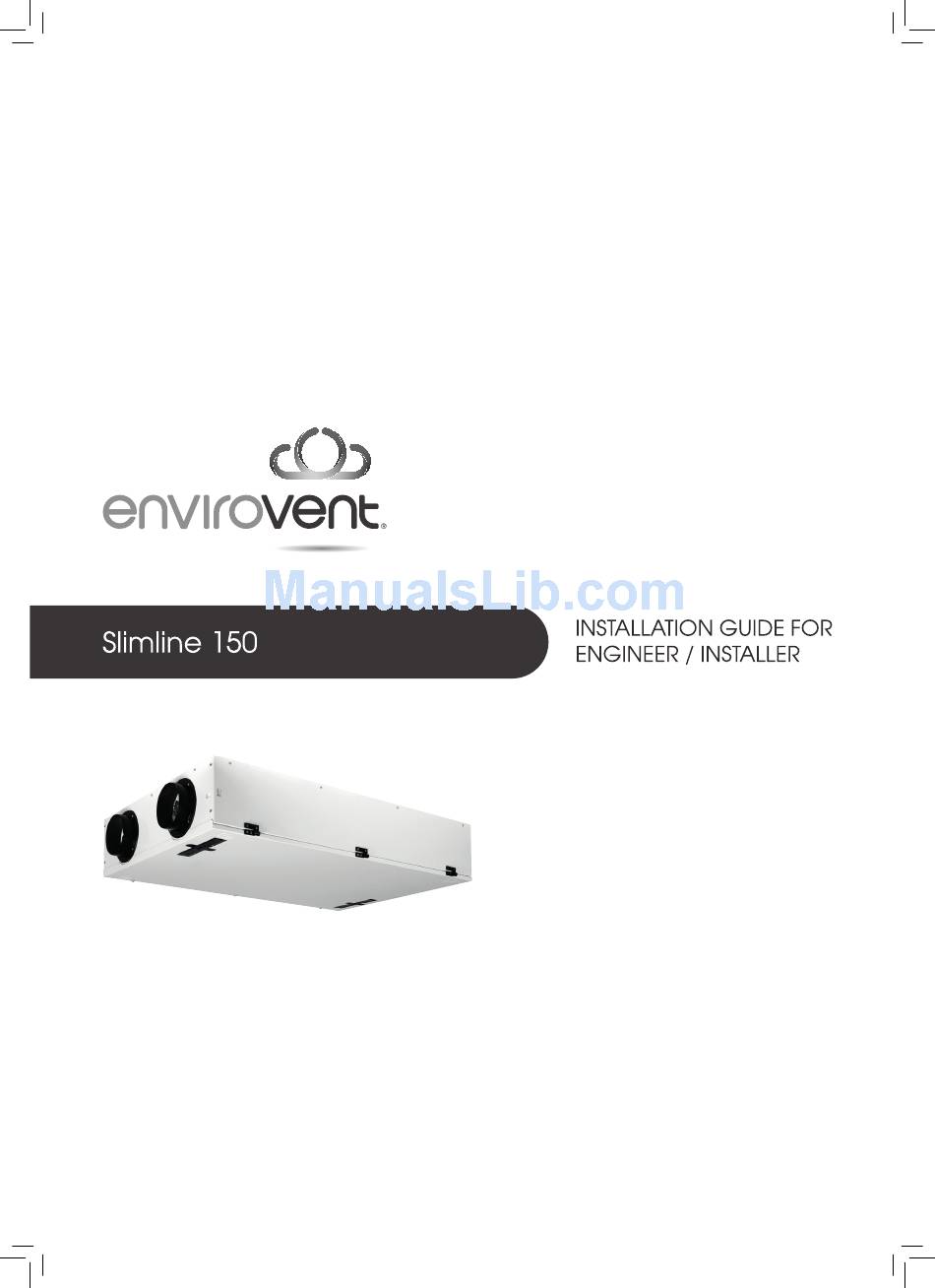

Envirovent Slimline 150 Installation Manual

Engineer / installer
Hide thumbs Also See for Slimline 150:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Slimline 150 and is the answer not in the manual?

Questions and answers

Related Manuals for Envirovent Slimline 150

Summary of Contents for Envirovent Slimline 150

  • Page 2: Safety Instructions

    Safety Instructions IMPORTANT SAFETY AND RECOMMENDATIONS Be sure to have read and understood these • This appliance can be used by children instructions before beginning the installation aged from 8 years and above and process. persons with reduced physical, sensory or mental capabilities or lack of experience PRE-INSTALLATION CHECK LIST and knowledge if they have been given...

  • Page 3: Technical Specifications

    Technical Specifications Before you begin to install the heat recovery unit, check that it has been supplied complete and undamaged. The Slimline 150 unit should include the following components: 1. Heat recovery appliance 2. Wall mounting bracket kit; - 2x suspension strips 3.
  • Page 4 The Slimline 150 comes ready to wire into • Low sound level the 230V mains fused spur. • Comes as standard with automatic bypass...
  • Page 5 Technical Specifications Supply voltage (V/Hz) 230/50 Protection degree IP30 Dimensions 1000 x 660 x 198 Duct diameter (mm) Ø125 (w x d x h) (mm) External discharge Weight (kg) 24.5 Filter class Fan factory setting (control unit) 4-Way switch Ventilation capacity Permissible resistance ducts 13-38...
  • Page 6 Technical Specifications Sound Power Ventilation capacity (m Static pressure (Pa) Housing emission dB(A) Sound power level Lw (A) Duct “from dwelling” dB(A) Duct “to dwelling” dB(A) Note: In practice, the value may deviate 1 dB(A) as a result of measuring tolerances. = [W] Note: The value stated in the circle is the capacity per fan (in Watt) SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL...
  • Page 7 Technical Specifications 1. To dwelling   2. To atmosphere 3. From dwelling 4. From atmosphere 5. Electric connections 6. Connection condensate discharge AFTER INSTALLING THIS UNIT PLEASE PASS ONTO END USER DO NOT THROW AWAY...
  • Page 8 Technical Specifications 1. Extract air filter 2. Indoor temperature sensor 3. Bypass 4. Condensate bin 5. Extract fan 6. Locking screw front panel (mounted in front panel) 7. Connector X14 8. Control board 9. Connector X4 10. Condensate discharge 11. Supply air filter 12.
  • Page 9 The control system has four ventilation at extremely low outdoor temperatures, modes. The air flow rate can be adjusted the Slimline 150 features an intelligent frost per ventilation mode. The constant volume control. Temperature sensors measure the control system ensures that the air flow...
  • Page 10 B. Hole for gland to be mounted by installer (for sleeve cable postheater/ extra preheater). The Slimline 150 is also available as a Plus If a postheater or extra preheater is version. This version is equipped with a connected to connector X14 (accessible...
  • Page 11 Silencer- / air distribution control 2 positions (1 200 mm box 130 x 60 mm (12x) transmitter & 1 receiver) 660 mm 482 mm Please contact EnviroVent for order codes AFTER INSTALLING THIS UNIT PLEASE PASS ONTO END USER DO NOT THROW AWAY...

  • Page 12: Installation Instructions

    Installation Instructions The Slimline 150 can be mounted directly • The installation room must be frost-free. to the wall or ceiling using the mounting • When mounting flexible ducts, bear in brackets supplied for that purpose. mind that it must be possible to replace them in due course.
  • Page 13 Installation Instructions Placing the appliance for ceiling mounted   Condensate discharge  Appliance disconnecting from   mounting bracket   AFTER INSTALLING THIS UNIT PLEASE PASS ONTO END USER   DO NOT THROW AWAY ...
  • Page 14 Installation Instructions Placing the appliance for wall mounted     Appliance disconnecting from mounting bracket Condensate discharge  SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL ...
  • Page 15 Installation Instructions The Slimline 150 must always be fitted with a The condensate discharge line can be mounted condensate discharge. The condensate must to it, preferably glued, if necessary using a square be discharged through a drainpipe. EnviroVent bend. The installer can glue the condensate discharge to the appliance in the desired recommend using KITCONDENSATE-BK.
  • Page 16 Installation Instructions The appliance can be connected to an Warning easily accessible fused spur. The electric The fans and control board carry installation must comply with the wiring a high voltage. Always remove regulations. the voltage from the appliance by isolating power when working on The appliance the appliance.

  • Page 17: Control Display

    Control Display Switching the appliance ON/OFF 0 8 :30 Sonntag Sunday 23.01.12 Connecting 0 8 :0 0 2 3 :0 0 Software S1.03.03 FILTER Warning When working on the appliance, always remove the voltage from the appliance by first switching it off through software and then isolating the power.
  • Page 18 Sonntag 23.01.12 0 8 :0 0 2 3 :0 0 unit software of the Slimline 150 can be called up and changed with the aid of the operating FILTER keys. Ex factory the control module is set for the English language. In the setting menu control unit, (see page 21) you can choose a language.
  • Page 19 Control Display The supply and extract The supply and extract The supply and extract The supply and extract fans are running at fans are running in fans are running in fans are running in 30 m /h or they are ventilation mode 1 ventilation mode 2 ventilation mode 3...

  • Page 20: User Information Menu

    Control Display User information menu Readout Value Pressing the info key () on the control unit calls up current values. Modifying values or settings Airflow rate 30 m is not possible in this menu. Airflow rate / 75 m Ventilation mode 1 Airflow rate / 100 m Ventilation mode 2...
  • Page 21 Control Display Service menu From the main menu, rotate the right-hand setting up to select the SERVICE MENU and confirm this choice by pressing the right-hand  setting knob. In the service menu, you can select from three underlying menus, including: MAIN MENU SERVICE MENU •...
  • Page 22 Control Display Settings menu control unit From the main menu, rotate the right-hand   setting up to select the SETTING MENU CONTROL UNIT (Setting control unit) and confirm this choice by pressing the right-hand setting knob. In this menu, you can select from MAIN MENU SETTINGS MENU CONTROL UNIT...
  • Page 23 Control Display Settings menu appliance From the main menu, rotate the right-hand  setting knob to select the SETTINGS MENU  APPLIANCE (Setting appliance) and press the right-hand setting knob to confirm this selection. In this menu, you can select from two underlying MAIN MENU SETTINGS MENU menus, including:...
  • Page 24 Control Display Installer information menu From the main menu, rotate the right-hand  setting knob to select the INFORMATION  MENU INSTALLER (Information install.) and confirm this choice by pressing the right-hand setting knob. MAIN MENU INSTALLER This menu shows seven current values, including: INFORMATION MENU •...

  • Page 25: Troubleshooting

    Trouble Shooting G : 1 0 8 :30 M o n d a y 23/01/12 When the appliance control system detects a When the appliance detects a locking fault, it fault, it is indicated on the display of the control will no longer work.
  • Page 26 Trouble Shooting Fault Cause Action Appliance Action Installer Code • None. • (Current too low → stepper motor • Disconnect unit from power E103 Bypass fault not correctly connected or effective; • Check connection stepper motor; current too high → short-circuit replace wiring or stepper motor in wiring or stepper motor) •...

  • Page 27: Maintenance

    Maintenance User maintenance User maintenance is limited to periodically 0 8 :30 cleaning or replacing the filters. The filter only Sonntag Sunday 23.01.12 0 8 :0 0 2 3 :0 0 has to be cleaned when that is indicated on the display (it shows the text “FILTER”) or, if a FILTER multiple switch with filter indication is mounted,...
  • Page 28 Maintenance 0 8 :30 Sonntag Sunday 23.01.12 0 8 :0 0 - 2 3 :0 0 FILTER Filter reset WRG - Lüftung 22.00 - 07.00 Mittwoch 0 8 :30 Sonntag 23.01.12 0 8 :0 0 - 2 3 :0 0 Sunday Filter 14.12...

  • Page 29: Installer Maintenance

    Maintenance Installer maintenance Isolate power Swing open the front panel (can also be taken from the hinges, if required). AFTER INSTALLING THIS UNIT PLEASE PASS ONTO END USER DO NOT THROW AWAY...
  • Page 30 Maintenance For ceiling mounting, carefully remove the condensate bin; there may still be some condensate left in the condensate bin Rinse the exchanger with warm water and a regular detergent. SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL...
  • Page 31 Maintenance AFTER INSTALLING THIS UNIT PLEASE PASS ONTO END USER DO NOT THROW AWAY...
  • Page 32 Maintenance Isolate power Software Software S1.03.03 S1.03.03 Connecting Connecting   0 8 :30 Sonntag Sunday 23.01.12 0 8 :0 0 2 3 :0 0 Filter reset; (see page 20) FILTER Press the Return key ( ) to leave any selected menu ...

  • Page 33: Electric Connections

    Electric Connections Wiring diagram Only for Plus version Slimline Green/ Slimline Brown Blue White nr.1 nr.2 Green Yellow yellow 150 Plus Outdoor Indoor Service Motor Sensor External Multiple Pre- Control Supply Extract Control Post- Output 0-10 V temp. temp. connec- bypass post- 24V.

  • Page 34: Electric Connections Accessories

    Electric Connections Accessories Connecting wireless remote control E2365-A.pdf 26-1-2011 14:26:21 Service connector Note: When several remote controls are used, the Modular connector for rpm control appliance will always run according to the remote control with the highest set ventilation mode. Additional cable feed option The 4-way switch can also be used to activate a EBus connector...
  • Page 35 Electric Connections Accessories Coupling several Slimline appliances  The slave appliances must be set as slaves before the appliances are interconnected through eBus! Refer to the supplied service tool manual for further instructions. There must be a separate 230V fused spur/isolator for every appliance. Important: Because of polarity sensitivity, always connect contacts X1-1 to X1-1 and...
  • Page 36 Cable sleeve Connection postheater or extra preheater The postheater or extra preheater (only possible for Slimline 150 Plus) are electrically connected to connector X14; just for a postheater there is also a temperature sensor that must be connected to no. 7 and 8 of the 9-pole connector that is only installed in the Plus version.
  • Page 37 Electric Connections Accessories Connection postheater Temperature sensor postheater 7 - 8. Connection extra preheater Setting parameter 11 & 12 (see page 39) The strain reliever to be installed by the installer (not supplied with the appliance) for feeding the 230 volt cable to the postheater or extra preheater.
  • Page 38 2 can optionally be used as 0-10 volt input as well Setting parameter 19, 20 & 21 (page 40) The Slimline 150 Plus can be equipped with an external provision with 0-10 volt control. Connections X15-3 and X15-4 are set as standard as 0 - 10 V input; it is activated as standard.
  • Page 39 Filter kit 2x G4 filter (standard version) order a replacement mains cable from Control board (Plus version) When replacing, EnviroVent to avoid danger. A damaged note the correct dip switch settings mains should only be replaced by a Cable 230V* qualified person.

  • Page 40: Setting Values

    Fixed imbalance -100 m /h t/m 100 m FACTORY SETTING STEP NO. DESCRIPTION ADJUSTING RANGE STEP Slimline 150 Plus 0 (= no additional heater) Heater 1 (= additional preheater) 2 (= postheater) Temperature postheater 21,0 °C 15,0 °C t/m 30,0 °C 0,5 °C...
  • Page 41 Setting Values FACTORY SETTING STEP NO. DESCRIPTION ADJUSTING RANGE STEP Slimline 150 Plus 0 (= Extract fan off) 1 (= Absolute min. flow rate 30 m 2 (= Flow rate mode 1) Extract fan mode 3 (= Flow rate mode 2)
  • Page 42 Setting Values FACTORY SETTING STEP NO. DESCRIPTION ADJUSTING RANGE STEP Slimline 150 OFF (= RH-sensor not active) RH-sensor (= RH-sensor active) +2 most sensitive +1 ↑ Sensitivity RH-sensor default setting RH-sensor -1 ↓ -2 least sensitive FACTORY STEP NO. DESCRIPTION...
  • Page 43 Product data sheet conform Ecodesign (EU), nr. 1254/2014 (Annex IV) Supplier: EnviroVent Model: Slimline 150 The annual electricity The annual heating SEC-Value Climate zone Type of control Energy class (SEC) consumption (AEC) saved (AHS) in kWh/m²/a in kWh in kWh...
  • Page 44 EnviroVent House Hornbeam Business Park Harrogate HG2 8PA 01423 810 810 info@envirovent.com www.envirovent.com E&OE MKT ENV299-V1-01.09.15 Due to our policy of continuous innovation and improvement EnviroVent reserves the right to alter products specification and appearance without notice. 615249-A, manual Slimline 150...
