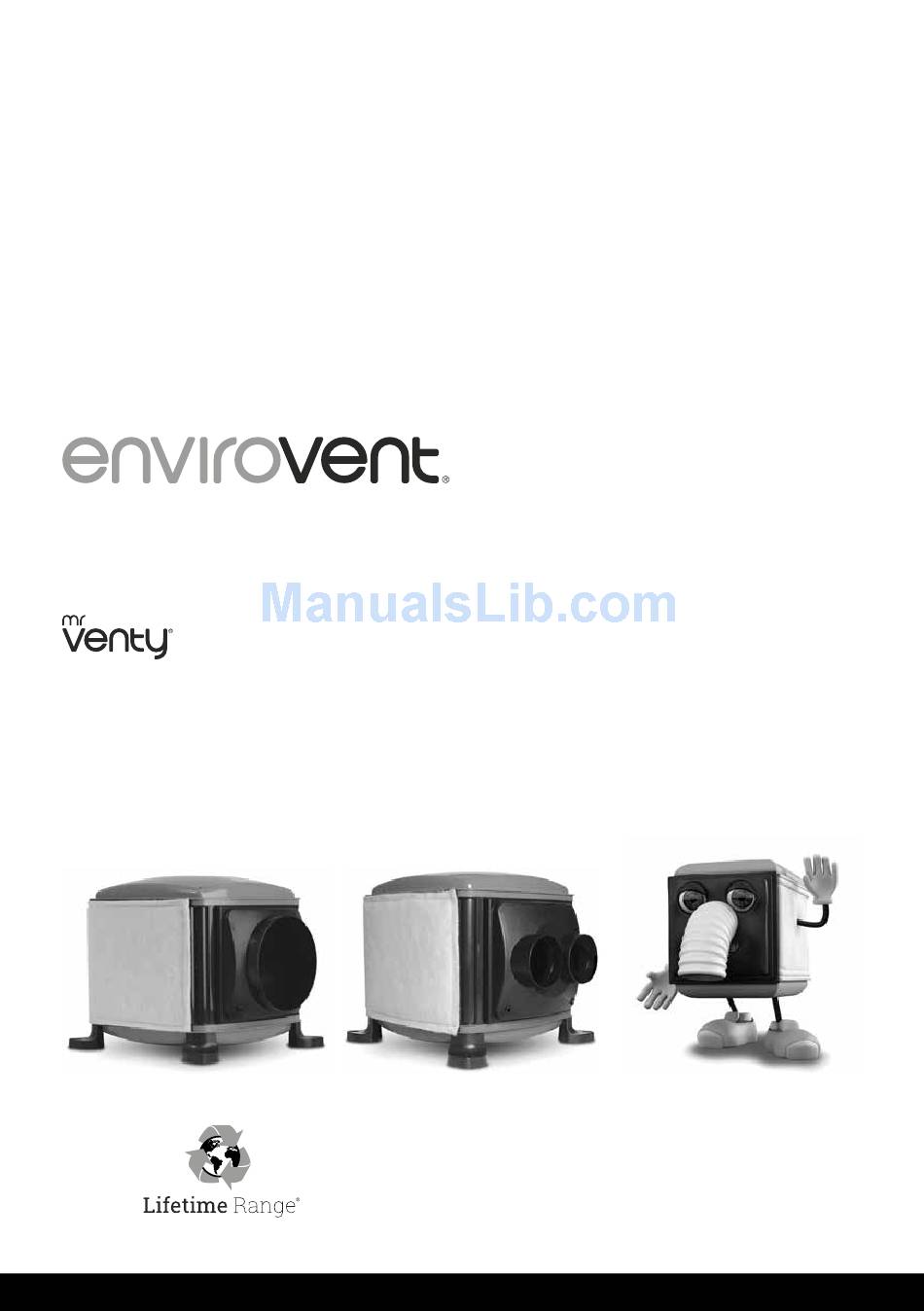

- Page 1 Loft & ECO Twin INSTALLATION GUIDE FOR ENGINEER / INSTALLER...
- Page 2 SHOULD YOU ENCOUNTER ANY PROBLEMS 0345 27 27 810 INSTALLING THIS UNIT, CALL US ON: Loft & ECO Twin...
-
Page 3: Safety And Recommendations
Safety IMPORTANT SAFETY AND RECOMMENDATIONS Be sure to have read and understood • All wiring must comply with Building these instructions before beginning Regulations and the current I.E.E. the installation process. Wiring Regulations (BS7671) or the equivalent standards for your Smoke Detectors country. - Page 4 Made in Harrogate UK Thank you for choosing EnviroVent The fastest growing ventilation company in the UK. You are about to install a product that is designed to outlast the life-cycle of the building. Once installed the unit will operate continuously for 5 years and beyond without a major service.
-
Page 5: Pre-Installation Checklist
Pre-Installation Checklist FIXING KIT Check that the loft has adequate cross flow ventilation. Check that all party walls are intact, seek Description Item advice if the wall is missing or broken. Check that any flue which passes through 8 X FOAM PADS the loft is not damaged, seek advice if the flue is in a poor state of repair. -
Page 6: Installation Diagrams
Installation Diagrams Contents for unit Additional contents for unit with heater 1 x Cardboard template STANDARD INSTALLATION 1 x Diffuser 1 x Heater enable switch 1 x Fixing kit (page 4) Also see page 8 for ECO Twin installation 1 x Unswitched fused spur method, and page 9 for installations in 3 storey 1m x Ø200mm Flexi duct properties. -
Page 7: Installation Instructions
Installation Instructions FIRST STAGE THIRD STAGE Position a dustsheet beneath the site you have Push ducting through the hole in the ceiling. chosen for cutting the hole for the diffuser. Protect Return to the hallway and connect the ducting your lungs with a mask. Enter the loft space with onto the neck of the diffuser using rest of the the ECO Loft and check there are no obstructions... - Page 8 Installation Instructions SIXTH STAGE cont. - Wireless units only On commission the unit will Press button once, to indicate default to the trickle flow rate current fan speed and heater with heater enable on status. LEDs stay on constant for a few seconds To pair additional remote control switches: To change speed setting 1.
- Page 9 (when it is pressed) the control will need to be reprogrammed. Call your maintenance company or EnviroVent for advice. (Green) AFTER INSTALLING THIS UNIT, DO NOT THROW AWAY PLEASE PASS ONTO END USER...
-
Page 10: Twin Installation

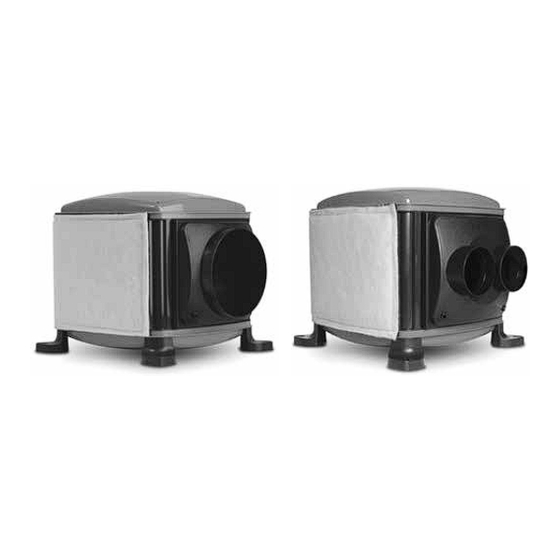

Twin Installation Instructions Twin Spigot This addition to the fixing instructions explains the methodology of installing the twin spigot system. This variation to the ECO Loft is necessary where: The hallway is very small, particularly when there is limited heating in the house The loft hatch fills the hallway ceiling Air is required to be diffused into a remote zone, such as a bedroom Cut two 105mm holes in the ceiling in the positions chosen where air is required to be delivered. - Page 11 Twin For installations in 3 storey dwellings, it is necessary to fit an ECO Twin with a fire kit, EnviroVent part number: KIT-PIV-SMOKE. AFTER INSTALLING THIS UNIT, DO NOT THROW AWAY...
- Page 12 Your feedback is important to us as we strive to improve our and improvement EnviroVent reserves the products, services, and overall customer experience. Please email right to alter products specification and us to help us serve you better: feedback@envirovent.com appearance without notice.
Need help?
Do you have a question about the Mr Venty ECO2 Loft and is the answer not in the manual?
Questions and answers
We have a ECO 2 LOFT UNIT that is 7 years old however in March 2023 the unit was checked and a new filter fitted by an Envirovent engineer. My question is what is the expected life expectancy of this product and when do you recommend to have it replaced.
The Envirovent Mr Venty ECO2 Loft unit does not have a specified overall life expectancy in the provided information. However, it requires no maintenance within the first five years. After five years, the loft filter must be replaced to ensure maximum efficiency.
