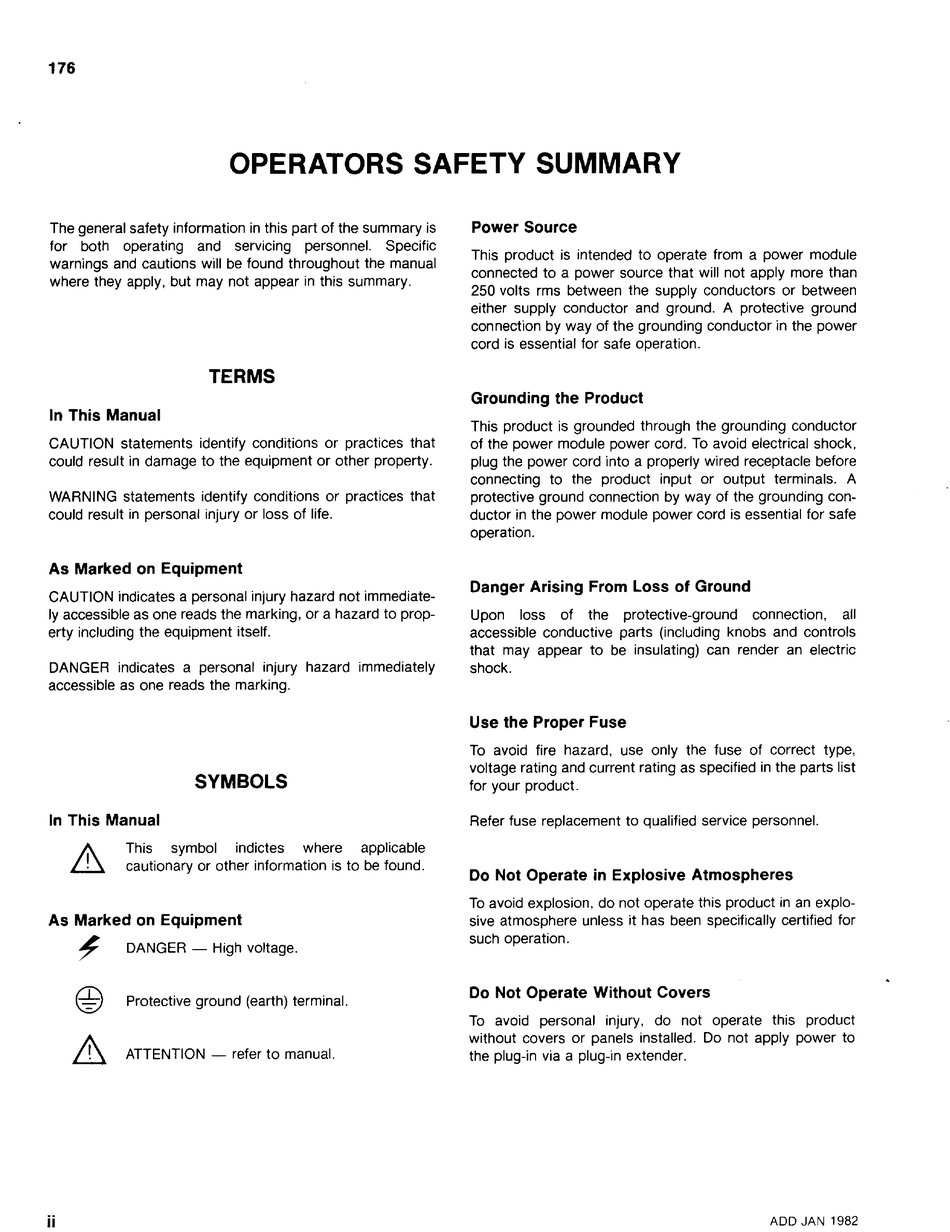

Tektronix 176 Instruction Manual page 4

176
OPERATORS SAFETY SUMMARY
The general safety information in this part of the summary is
for both operating and servicing personnel. Specific
warnings and cautions will be found throughout the manual
where they apply, but may not appear in this summary.
TERMS
In This Manual
CAUTION statements identify conditions or practices that
could result in damage to the equipment or other property.
WARNING statements identify conditions or practices that
could result in personal injury or loss of life.
As Marked on Equipment
CAUTION indicates a personal injury hazard not immediate-
ly accessible as one reads the marking, or a hazard to prop-
erty including the equipment itself.
DANGER indicates a personal injury hazard immediately
accessible as one reads the marking.
SYMBOLS
In This Manual
This symbol indictes where applicable
cautionary or other information is to be found.
As Marked on Equipment
ii
~
DANGER - High voltage.
@
Protective ground (earth) terminal.
.&
ATTENTION - refer to manual.
Power Source
This product is intended to operate from a power module
connected to a power source that will not apply more than
250 volts rms between the supply conductors or between
either supply conductor and ground. A protective ground
connection by way of the grounding conductor in the power
cord is essential for safe operation.
Grounding the Product
This product is grounded through the grounding conductor
of the power module power cord. To avoid electrical shock,
plug the power cord into a properly wired receptacle before
connecting to the product input or output terminals. A
protective ground connection by way of the grounding con-
ductor in the power module power cord is essential for safe
operation.
Danger Arising From Loss of Ground
Upon loss of the protective-ground connection, all
accessible conductive parts (including knobs and controls
that may appear to be insulating) can render an electric
shock.
Use the Proper Fuse
To avoid fire hazard, use only the fuse of correct type,
voltage rating and current rating as specified in the parts list
for your product.
Refer fuse replacement to qualified service personnel.
Do Not Operate in Explosive Atmospheres
To avoid explosion, do not operate this product in an explo-
sive atmosphere unless it has been specifically certified for
such operation.
Do Not Operate Without Covers
To avoid personal injury, do not operate this product
without covers or panels installed. Do not apply power to
the plug-in via a plug-in extender.
ADD JAN 1982
