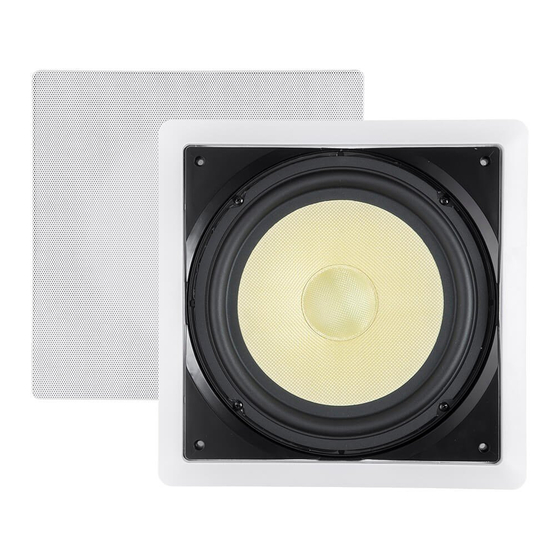

- Page 1 Caliber In-Wall 10-inch Fiber Subwoofer P/N 30486 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES This speaker is intended for indoor use only. Do not expose this speaker to water or moisture of any kind. If operating this speaker in a humid environment, ensure that no condensation occurs. Condensation could cause damage to the speaker cone and voice coil. ... -
Page 3: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-... -
Page 4: Package Contents
PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x Caliber in-wall 10-inch fiber subwoofer 1x Metal bracket... - Page 5 SPEAKER WIRE PREPARATION Before attempting to make any connections it is best to look at the situation, get all the necessary materials together, and then make all the connections at once. First, look at the back of your amplifier or receiver to determine what options it offers for making connections.
- Page 6 In many cases, the mark is a single stripe on the jacket of one of the connectors. In this case the side with the stripe is generally considered the positive side, but it really does not matter as long as you are consistent and always using the stripe as positive or always using it as negative.
-
Page 7: Installation
INSTALLATION Perform the following steps to install the speaker in the wall. 1. Determine where you will be installing the speaker. Use a stud finder to ensure that there is sufficient space between the desired location and the adjacent studs. Be sure and check for horizontal framing members, as well. - Page 8 11. If you have not already done so, prepare your speaker wire in accordance with the Speaker Wire Preparation guidelines in the section above. Important! Because the speaker wire will necessarily be routed through your walls, you must use in-wall rated speaker wire. 12.
-
Page 9: Technical Support
Congratulations, your speaker is installed and ready for use! TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. - Page 10 Model 30486 Speaker Type Passive subwoofer Driver Size 10" Driver Type Aramid fiber cone Maximum Input Power (RMS) 150 watts Maximum Input Power (Peak) 300 watts Frequency Response 33 ~ 230 Hz Impedance 8 ohms Sensitivity 88dB Crossover -10dB @ 230Hz 34.628 Hz...
