CNR-BTU5 Bluetooth Dongle
A.
Package Contents
∗
Bluetooth USB Adapter
∗
Bluetooth software and driver CD
∗
Multi-language user manuals in CD
1. Installing Bluetooth software for windows
1. Insert the Installation Software CD into CD-ROM drive. If the Auto-Run function
of CD-ROM is disabled, you can utilize the Windows Explorer to browse CD content
and run CNR-BTU3_v2.0 driver/ Setup.exe manually.

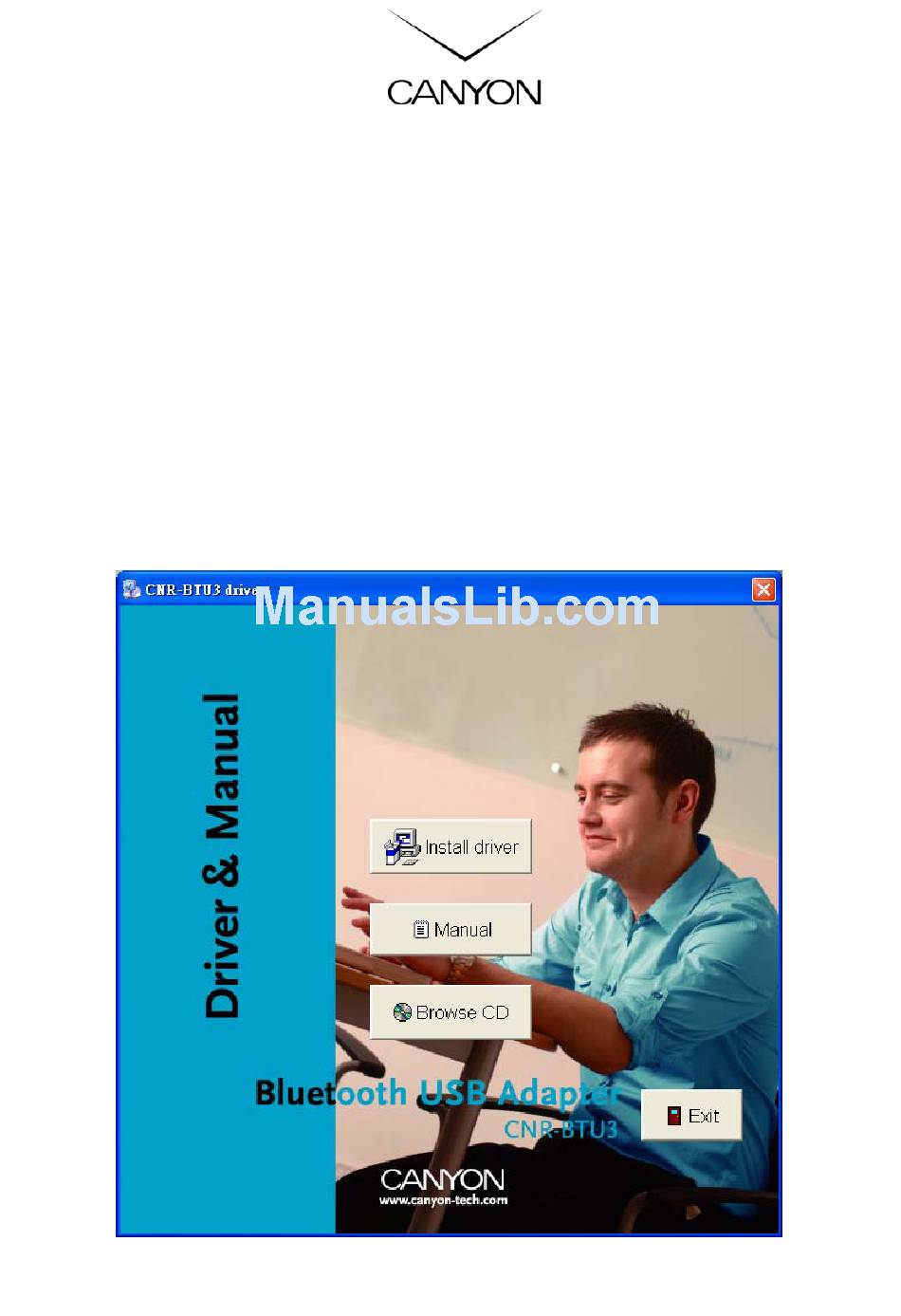

If the Auto-Run function of CD-ROM is enabled (in Windows, this function is
usually enabled as a default setting), a CD menu will be displayed automatically,
and then click "Install driver" button to install driver.
EN -1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Canyon CNR-BTU5
Summary of Contents for Canyon CNR-BTU5
- Page 1 CNR-BTU5 Bluetooth Dongle Package Contents ∗ Bluetooth USB Adapter ∗ Bluetooth software and driver CD ∗ Multi-language user manuals in CD 1. Installing Bluetooth software for windows 1. Insert the Installation Software CD into CD-ROM drive. If the Auto-Run function of CD-ROM is disabled, you can utilize the Windows Explorer to browse CD content and run CNR-BTU3_v2.0 driver/ Setup.exe manually.
- Page 2 2. Select the Language you want to install from the drop down box, and then press “OK” to continue. 3. Please click “Next” several times as instructed to continue the software installation. In the License Agreement window, please read through license agreement carefully, and then click “I accept”...
- Page 3 4. Designate the location where Bluetooth Software is to be stored at; if you do not change the default settings, it will be stored under C:\Program Files\IVT Corporation\BlueSoleil\. Click “Next” to continue. 5. The Installation Wizard will start installing the software and copying files to your hard disk.
- Page 4 6. There are two new Bluetooth icons appearing on the desktop and the windows task bar respectively when logged in to Windows operating system. For more information on the BlueSoleil, please refer to Chapter 2. 7. Now you can plug-in / install your USB Bluetooth Dongle into your computer. 8.
- Page 5 9. Please remove the Software CD after the installation is completed. 2. Initiating the Bluetooth Device The Bluetooth Dongle needs to be plugged into the USB port of your computer. Initiate the Bluetooth Dongle service for ready to use. 1. If Bluetooth Dongle is not plugged in, the system tray bar will show the Bluetooth function being not available.
- Page 6 3. Stopping the Bluetooth Device Remove the Bluetooth Dongle from the USB port. The tray bar icon will show the BlueSoleil being not available. Figure 1-26: The Bluetooth Device is not available. 4. Starting Bluetooth 1. Insert the USB dongle to your computer. 2.
- Page 7 5. Establishing Bluetooth Connection A connection is normally initiated from the client. On the server side, start the service. On the client side, initiate the connection. Start Service on Server If BlueSoleil provides service, please proceed to initiate: 1. Change to Service Window. 2.
- Page 8 A. If the device requires pairing, the Bluetooth Icon in the system tray will show a warning massage that the Bluetooth connection requires pairing number input. B. Input the same pairing number as you input in the other Bluetooth device. Then click “OK”...
