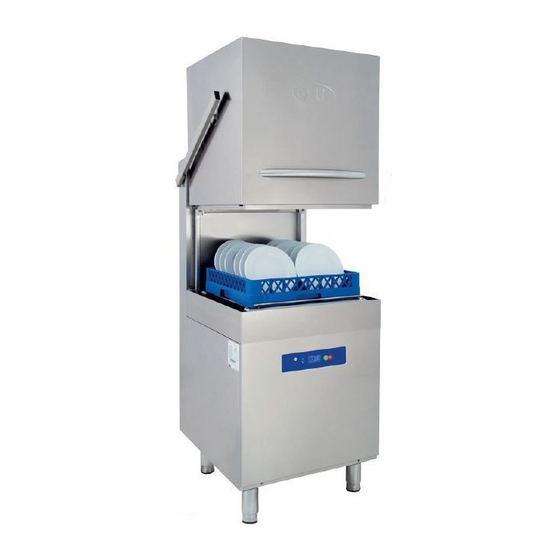

DISHWASHERS
PRODUCTION YEAR:
MANUFACTURER
PRODUCTION SITE : Beylikdüzü Eski Hadımköy Yolu No:8 Büyükçekmece İstanbul/TÜRKİYE
Our website:
: ÖZTİRYAKİLER MADENİ EŞYA SAN. VE TİC A.Ş.
Phone : 0090 212 886 78 00 (8 Hat-Lines) Fax : 0090 212 886 66 29
www.oztiryakiler.com.tr
ozti
USER'S MANUAL
Models:
1-)OBM 1080 D
2-)OBM 1080 DS
3-)OBM 1080 D PLUS
e-mail: export@oztiryakiler.com.tr
SERIAL NO :
1/19
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OZTI OBM 1080 D
Summary of Contents for OZTI OBM 1080 D
- Page 1 DISHWASHERS USER’S MANUAL Models: 1-)OBM 1080 D 2-)OBM 1080 DS 3-)OBM 1080 D PLUS PRODUCTION YEAR: SERIAL NO : : ÖZTİRYAKİLER MADENİ EŞYA SAN. VE TİC A.Ş. MANUFACTURER PRODUCTION SITE : Beylikdüzü Eski Hadımköy Yolu No:8 Büyükçekmece İstanbul/TÜRKİYE Phone : 0090 212 886 78 00 (8 Hat-Lines) Fax : 0090 212 886 66 29 Our website: www.oztiryakiler.com.tr...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TOPICS PAGE COVER PAGE TABLE OF CONTENTS INTRODUCTION TECHNICAL DATA WARNING SIGNS SAFETY Detaıls 6 - 7 TRANSPORTING AND MOVING 9-10-11 INSTALLATION AND ELECTRICAL CIRCUIT DIAGRAM 12-13-14 OPERATION OF THE MACHINE 15-16 CLEAN-UP AND MAINTENANCE USER’S RESPONSIBILITIES TROUBLESHOOTING TERMS OF GUARANTEE CAUTION... -
Page 3: Introduction
INTRODUCTION Dear User, Thank you for purchasing our device and for your reliance upon our company. Our devices have been used within our customers kitchen, your kitchen in 75 countries. Our devices are produced in compliance with international standards. Important notice: Please read or ensure that the users read this user’s manual in order to achieve the desired performance in line with your expectations and to use your device for long years. -
Page 4: Technical Data
TECHNICAL DATA Technical Data OBM 1080 D OBM 1080 DS OBM 1080 D PLUS TOTAL ELECTRICAL INPUT (KW) 9,66 9,66 9,66 SUPPLY VOLTAGE (VAC) WORKING FREQUENCY (Hz.) POWER SUPPLY CABLE (Number of cores x mm²) 5 x 4 5 x 4... -
Page 5: Warning Signs
WARNING SIGNS POWER NETWORK GROUNDING GROUNDING POWER OVERHEAT POWER SUPPLY CONNECTIONS 400 V 3NPE / 50 Hz VOLTAGE : 400 V NETWORK CONNECTION: TRIPHASE GROUNDED FREQUENCY : 50 Hz 5/19... -
Page 6: Safety Detaıls
SAFETY DETAILS The machine should never be exposed to direct sunlight. The machine should never be left in water and its outer surface should never be cleaned with high pressure water. This machine is designed for industrial use and should only be operated by personnel trained according to this manual. - Page 7 SAFETY DETAILS The machine is designed to operate with softened water at a French water hardness level of (0 -10). Excess calcium in water supply may damage moving parts of the machine and decrease washing performance of the machine. For this reason daily maintenance as described in the section (CLEAN-UP AND MAINTENANCE Page -14) should be carried out regularly.
-
Page 8: Transporting And Moving
TRANSPORTING AND MOVING TRANSPORTING; The machine should be placed vertically on a palette by manpower. Transportation should be carried out by inserting the forklift forks under the machine. If the transported distance is far, the machine should be moved slowly and fixed to the palette or supported by another personnel to prevent jolt, if necessary. - Page 9 INSTALLATION DIAGRAM AND INSTALLATION OF THE MACHINE 1500 1420 (1860) 9/19...
-
Page 10: Electrical Circuit Diagram
ELECTRICAL CIRCUIT DIAGRAM V.07.1 CIRCUIT DIAGRAM OF THE DEVICE IS LOCATED UNDERNEATH THE COVER OF POWER BOARD 10/19... - Page 11 ELECTRICAL CIRCUIT DIAGRAM FRONT PANEL V.07.1 CIRCUIT DIAGRAM OF THE DEVICE IS LOCATED UNDERNEATH THE COVER OF POWER BOARD 11/19...
-
Page 12: Operation Of The Machine
OPERATION OF THE MACHINE AREAS OF USAGE : This product is used in tourism facilities, industrial kitchens, work sites, patisseries, catering companies for washing dishes. Only preparation equipment, dishes (plates, forks, spoons, knives, glasses, service trays etc.), service utensils (ladles, skimmers, spatulas, tongs, etc.) should be washed in the machine. - Page 13 OPERATION OF THE MACHINE When adding detergent manually, 1 tea spoon full of foamless dishwasher detergent should be mixed into water tank of the machine after “Boiler Warning Lamp” and “Storage Warning Lamp” go off and 1 tea spoon full of foamless dishwasher detergent should be added to the water tank for every 10 baskets of washing batch.
- Page 14 OPERATION OF THE MACHINE CAUTION! : The device should be installed and operated as described in this user’s manual. If any failure is encountered please contact our nearest authorized service dealer. WHEN THE DEVICE HAS A FAILURE ONLY AUTHORIZED ………….. SERVICE DEALERS ARE ALLOWED TO HANDLE THE DEVICE.
-
Page 15: Clean-Up And Maintenance
CLEAN-UP AND MAINTENANCE Daily maintenance should be carried out by people informed about the safety instructions as following, after disconnecting power supply and water connections. DAILY MAINTENANCE: Daily maintenance should be carried by the user. In order to clean up the machine within the day following should be carried out periodically after the washing operation: Wash and rinse arms should be disconnected and... - Page 16 CLEAN-UP AND MAINTENANCE PERIODIC MAINTENACE SHOULD BE CARRIED OUT BY THE USER Periodic maintenance should be carried out by the user at least once in a month, after the cleanup and maintenance that must be conducted after each washing operation is completed. This should be done when the machine is ready for operation and before the dishes are set up in the machine.
-
Page 17: User's Responsibilities
USER RESPONSIBILITIES The power network of the facility where the machine will be connected should be installed by the user complying with “INDOOR ELECTRICAL INSTALLATION” regulations. PRODUCER COMPANY CANNOT BE HELD RESPONSIBLE FOR any consequence of currency leakage from the machine, electrical shocks, failure of the machine or frequent faults, arising from the main power supply of the facility. -
Page 18: Troubleshooting
TROUBLESHOOTING CHECK THE FOLLOWING BEFORE CALLING FOR SERVICE: 1- Is the power supply connected properly ? 2 - Does the machine have power? Is the fuse undamaged ? 3- Is the cover of the machine closed properly ? 4 - Is fresh water supplied from the network? Is the water valve open? 5- Does the detergent dosing pump work? Are the detergent reservoirs filled? If the answers to the questions asked above are all “YES”, please do contact the nearest authorized ………………………………service dealer. -
Page 19: Terms Of Guarantee
TERMS OF GUARANTEE 1- Documents without sales date, factory and sales company approval on, are not valid. In order to benefit from the guarantee, guarantee document should be presented. 2- If the device is installed and operated following the instructions in the installation, maintenance and user's manual, it is warranted for failures resulting from failures resulting from workmanship and material failures.
