Before you begin - Read these instructions completely and carefully.

IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.

Note to Installer – Be sure to leave these instructions with the Consumer.

Note to Consumer – Keep these instructions with your Owner's Manual for future reference.

Tools Needed

• Blade-type screwdriver

• Phillips head screwdriver

• 1/4" and 5/16" Nut drivers

Parts Included

• Lateral duct adapter

• Transition duct assembly

• Metal seal strip

• Clips (2)

• Thumb screws (2)

Important Notes

• This instruction describes how to modify an existing

duct installation to be used with the

new rounded room cabinet front (AZ45 and AZ65

series). No changes are required on the existing

lateral duct extension when this RAK7013 is used.

• There are a number of parts on the existing lateral

duct adapter that will be required to complete

the RAK7013 installation. Save all parts until the

installation is complete. It is important that these

parts not be discarded.

GE is a trademark of the General Electric Company. Manufactured under trademark license.

Installation Instructions

for your new

RAK7013

Duct adapter

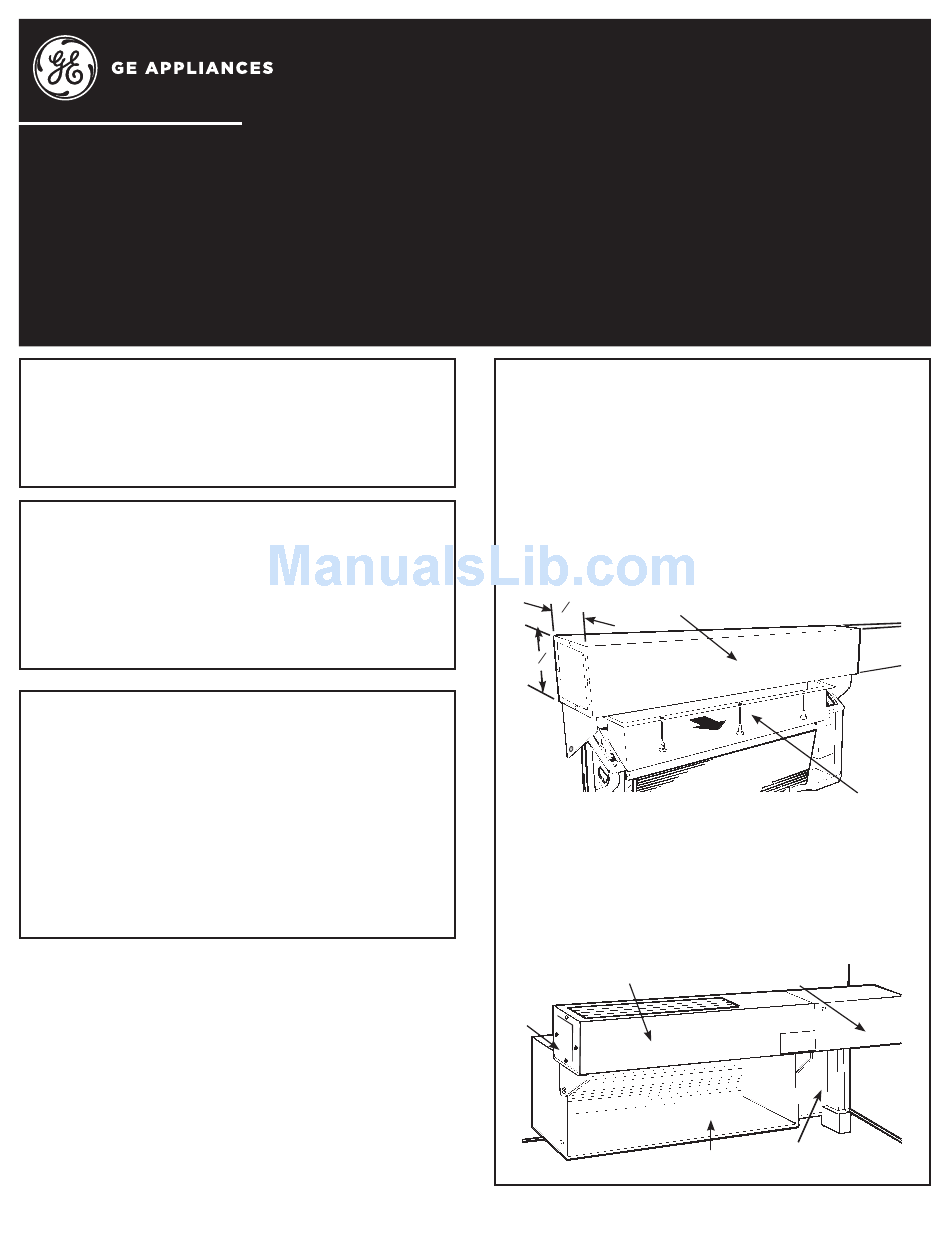

STEP 1

Removal of the adapter from the

case and lateral duct extension

1. Disconnect the power to the unit.

2. Remove the three screws securing the transition

duct to the bottom of the lateral duct adapter.

3. Carefully slide the transition duct forward and

remove.

4. Remove the room cabinet front from the unit.

Lateral duct adapter

1 2

3 8

5. Remove the chassis-to-case screws (two on each

end) and carefully slide the chassis from the case.

6. Place a support under the existing duct

extension to prevent the duct extension from

sagging downward when the primary duct is

disconnected and removed.

Lateral duct adapter

End

cap

Pub No. 31-30813

Transition duct

Duct

extension

Support

Case

07-16 GEA
