STEP 1

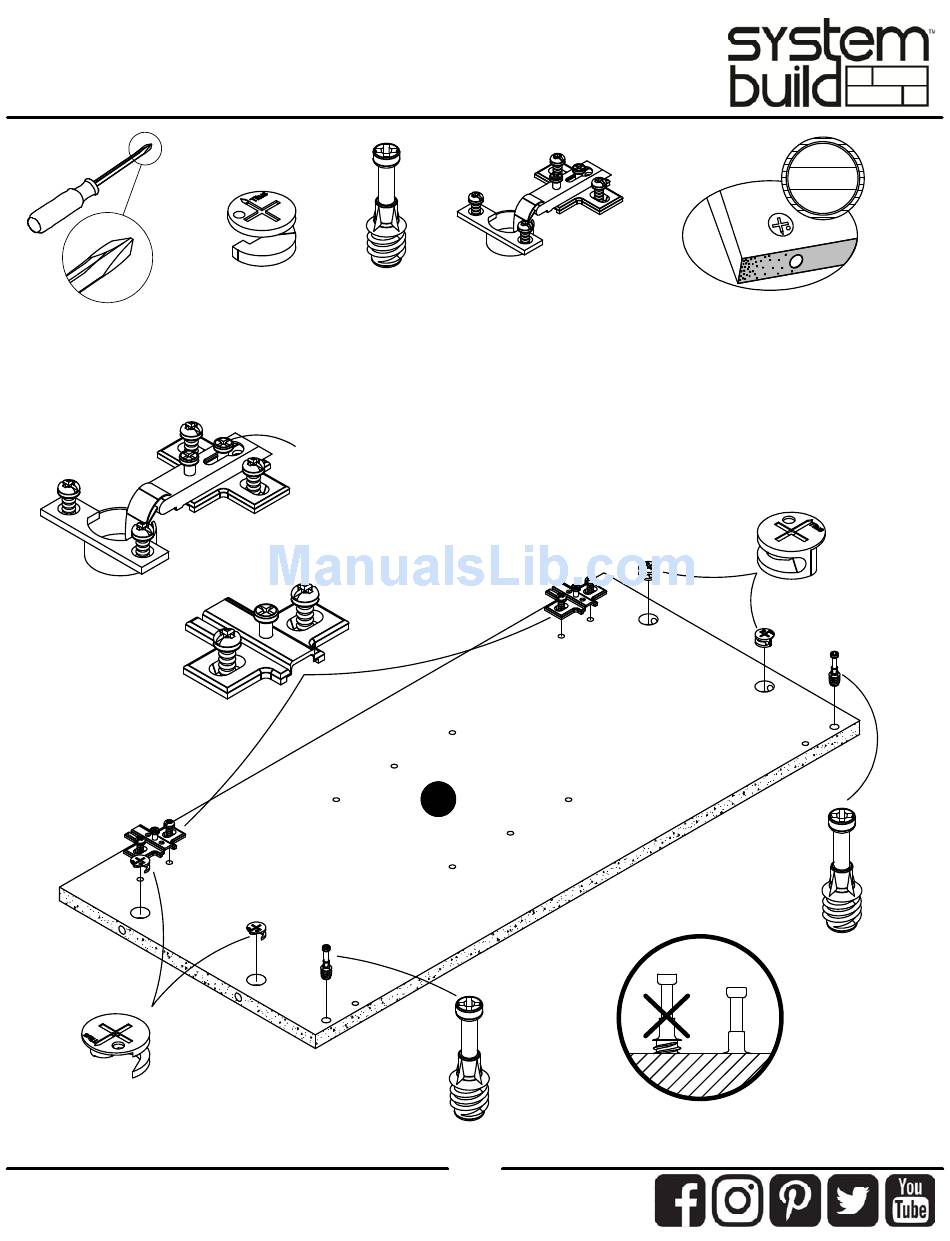

Insert four cam locks and screw two cam bolts into both side panels (A) as shown. Loosen screw
in hinge and separate hinge plate from hinge. Mount two hinge plates to both side panels (A) as
shown.
systembuild.com
(x8)
(x4)
#A22570
#A22510
Loosen screw to separate hinge and hinge plate.
(x4)
#A65615
x2
A
7
Quick
Assembly
Tip
Proper orientation of CAM LOCK
* raw edges are shaded
