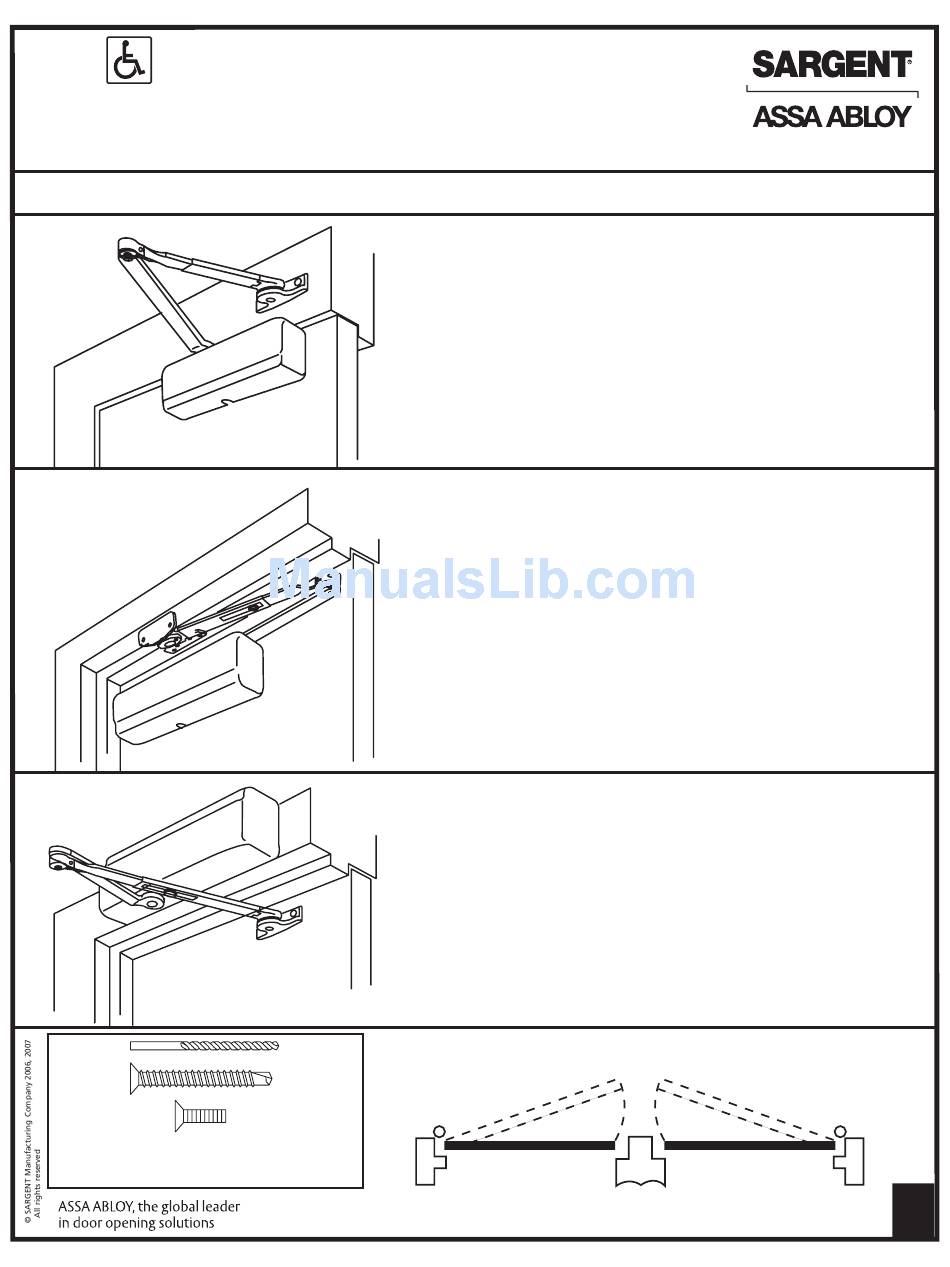

1431
Door Closer with Hold Open Arms
INSTALLATION INSTRUCTIONS
1431 SERIES ADJUSTABLE FROM SIZE 1 THRU 6
Installation Instructions based on Application and Arm type
+
or
IMPORTANT NOTICE
PRE-DRILL 3/32" HOLES FOR SELF-TAPPING SCREWS
OR TAP #12-24 FOR MACHINE SCREWS

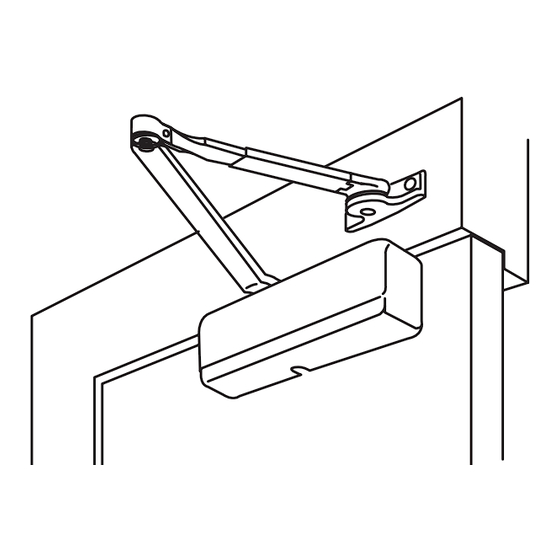

Standard Mounting Application -
H arm
For Standard Application - the Door Closer is mounted
on the hinge side of door (see page 2)
Parallel Arm Application -
PH9 Arm
For Parallel Arm Application - the Door Closer is mounted
on the stop side of door (see page 4)
H, HZ & HZA Arm
For Top Jamb Application - the Door Closer is mounted on the
frame on the stop side of the door (see page 6)
LEFT
HAND DOOR
FOR ASSISTANCE, CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com
HINGE SIDE
HINGE SIDE
STOP SIDE
RIGHT
HAND DOOR
STOP SIDE
PAGE
1
Advertisement
Table of Contents
Related Manuals for Sargent 1431 series
Summary of Contents for Sargent 1431 series
- Page 1 1431 Door Closer with Hold Open Arms INSTALLATION INSTRUCTIONS 1431 SERIES ADJUSTABLE FROM SIZE 1 THRU 6 Installation Instructions based on Application and Arm type Standard Mounting Application - H arm For Standard Application - the Door Closer is mounted...
-
Page 2: Rails To
Attach hold open foot to frame with adjusting nut facing down for left hand door or up for right hand door, as illustrated below NUT FACES UP FRAME FRAME NUT FACES DOWN RIGHT HAND LEFT HAND DOOR SHOWN DOOR SHOWN PAGE A7140E FOR ASSISTANCE, CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com... -
Page 3: A7140E
Use this application for exterior doors to keep the closer inside of building; Also may be used to obtain full 180° door opening MORTISE NUTS FOR BOLTING THRU THE DOOR ARE FURNISHED WHEN ORDERED PAGE A7140E FOR ASSISTANCE, CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com... - Page 4 MAXIMUM DOOR OPENING A7140E FOR ASSISTANCE, CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com...
-
Page 5: Note: Left Hand Doors -Align Index Mark With The
May be used when closer is mounted on TOP RAIL IS TOO NARROW a narrow rail to improve appearance when closer is viewed through glass MORTISE NUTS FOR BOLTING THRU THE DOOR ARE FURNISHED WHEN ORDERED PAGE A7140E FOR ASSISTANCE, CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com... -
Page 6: Door Will Open
( SEE PAGE 8 FOR MORTISE NUTS) C OF HINGE PIVOT ⁄ " (BUTT HINGE shown) C OF CLOSER MOUNTING SCREWS MAIN ARM ⁄ " FOOT & ROD ASSY DEPTH OF REVEAL PAGE DOOR A7140E FOR ASSISTANCE, CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com... - Page 7 A7140E FOR ASSISTANCE, CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com...
- Page 8 LONG COVER SCREW SHORT COVER SCREW RIGHT HAND ILLUSTRATED SHORT COVER SCREW PLASTIC SUPPORT AND LONG COVER SCREW INSERT IS REMOVABLE. PLACE IN UNUSED OPENING INSERT IS REMOVABLE. PLACE IN UNUSED OPENING A7140E FOR ASSISTANCE, CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com...
