Summary of Contents for Proxima M1010X
-

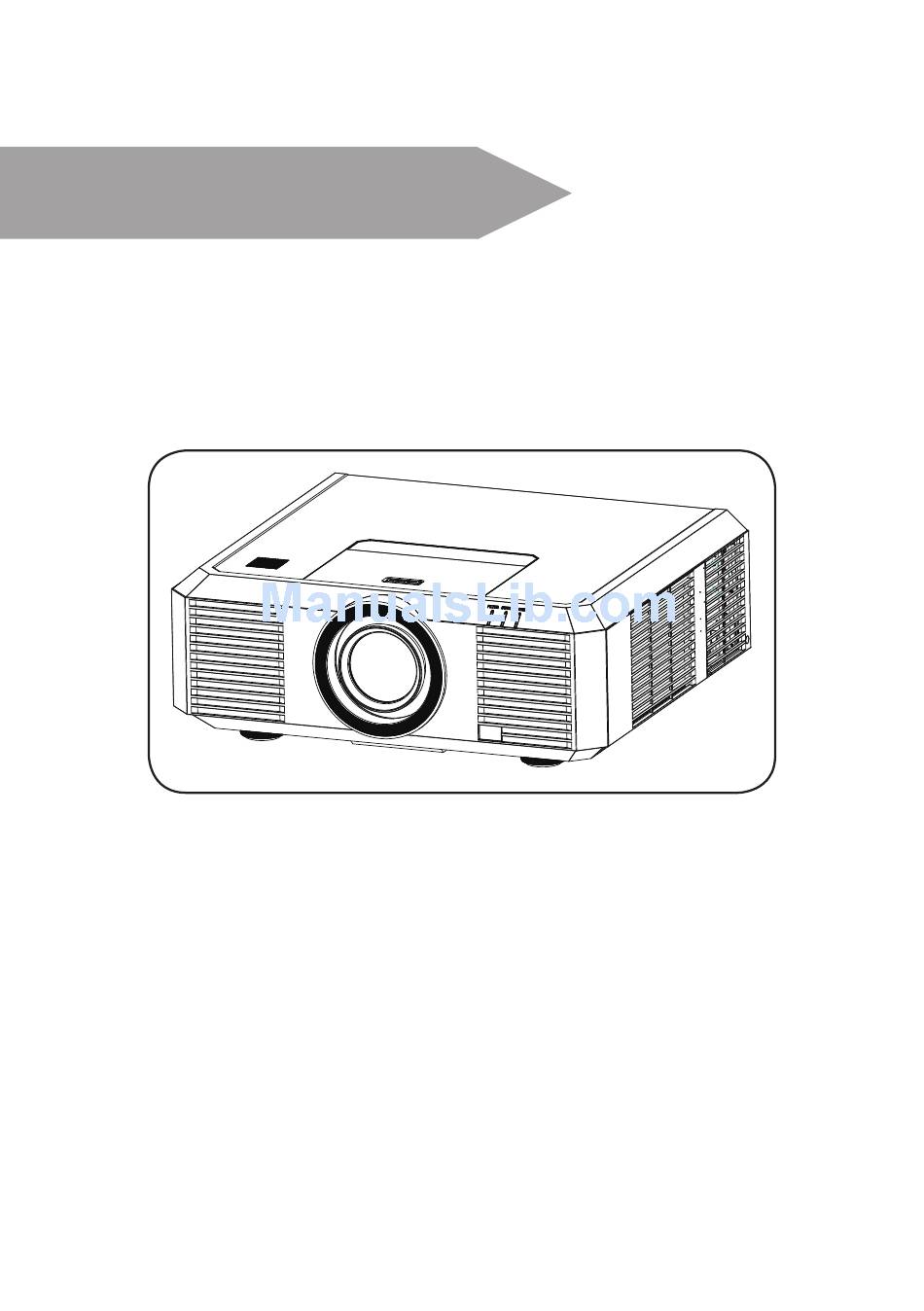

Page 1: User Manual
Model: M1010X M1020W Note: – OSD options and pictures shown in this document may differ slightly from your product. – Changes to this manual may be made without notice. Manufacture: PROXIMA DISPLAYS INC. Address:1250,E 223rd Ste 114, Carson, CA 90745... -
Page 2: Safety Operation Guideline
Safety operation guideline Safety instructions This document and your projector employ certain symbols to illustrate how to use your projector safely. They are described below: Please get yourself familiar with them before going through this document. Ignoring messages indicated by this symbol may lead to personal injuries Warning or deaths due to human errors. -
Page 3: Safety Precautions
Safety operation guideline Notes Warning Safety precautions: ● GROUND your projector. ● Lens of your projector projects strong light. DO NOT look at the light beam directly. You may get your eyesight hurt. This is especially the case with children. ●... - Page 4 Safe operation guideline Note Precautions on location of your projector: ● Place your projector in a proper location or it may result in fire. ● DO NOT expose your projector in rain or high humidity environments or it may result in fire or electric shock.
- Page 5 Safe operation guideline Note: Precautions on using your projector: ● DO NOT project the same image for long time as residual images may be left in the panel. This is a property of LCD panel. ● Use power as indicated in tags attached to your projector. If you have doubts over available power type, consult your dealer or local power company first.
- Page 6 Safe operation guideline Air ventilation Openings in the casing are designed for ventilation and overheating prevention. DO NOT block or cover these openings to keep your projector in normal operation and from overheating. Note Heat exhaust at the air outlet Keep the following in mind when using or installing your projector: –...
- Page 7 Safety operation guideline Place your projector correctly Use your projector at specified location in correct way. Invalid projector location may shorten life- cycle of lamps or even lead to severe incidents or fire. Your projector may project upward or down- ward at location perpendicular to the horizon.
- Page 8 Safety operation guideline Moving your projector: When moving your projector close its adjustment legs as they may damage the lens and casing. Keep your projector in suitable box when it is not to be used for a long time. Note: Precautions on moving or shipping your projector: ●...
- Page 9 Safety operation guideline Precautions on dealing with your projector: DO NOT lift or move your projector by holding the lens or projecting decoration ring as it may dam- age the lens and your projector. Be careful when handling your projector. DO NOT drop it, subject it to external forces, or place ob- jects atop it.
-
Page 10: Table Of Contents
Table of contents Safety operation guideline ......2 Setting ............45 Language ..........45 Overview OSD Setting ..........45 Auto Setup ..........46 Name and function of individual component Keystone ...........47 of your projector .........12 Blue Back..........47 Front/top ...........12 Display ............47 Rear ............13 Logo screen ..........48 Terminal ............14 Ceiling mount ..........48 Remote controller ........15... -
Page 11: Overview
Overview This chapter presents names and functions of individual component. -
Page 12: Name And Function Of Individual Component Of Your Projector
Name and function of individual component of your projector Front/top Projection lens Air outlet with filter POWER light indicator – The power light indicator turns steady red when your projector is in standby mode – It turns steady green when your projector is in normal operation –... -
Page 13: Rear
Name and function of individual component of your projector Rear DVI-D P/PR B/PB H/HV MONITOR OUT VIDEO S-VIDEO AUDIO AUDIO AUDIO RS-232C AUDIO VOL- VOL+ 360.2 ON/SRAND-BY key LENS SHIFT key Power on or off your projector Enter the lens moving mode Arrow ENTER/GEOMETRY key –... -
Page 14: Terminal
Name and function of individual component of your projector Terminal LAN port MONO(L/R) port Connect network cable to this port for con- Connect audio signal from to this port. trolling and operating your projector with land AUDIO IN1/AUDIO IN2 port network. -
Page 15: Remote Controller
Name and function of individual component of your projector Remote controller VGA key Select VGA input source ② ① VIDEO key Select VIDEO input source RGBHV key ⑥ ⑦ ③ Select RGBHV input source ④ ⑧ S-VIDEO key ⑤ ⑨ Select S-VIDEO input source ⑩... -
Page 16: Remote Controller Operation Range
Name and function of individual component of your projector ② ① LENS SHIFT key Enter the lens moving mode FREEZE key ⑥ Freeze projected images ⑦ ③ KEYSTONE key ④ ⑧ Keystone calibration ⑤ ⑨ ⑩ INFO. key ① Display current image data of your projector ①... -
Page 17: Install Battery Of Remote Controller
Name and function of individual component of your projector Install battery of remote controller Open the battery compartment cover. Insert a new battery in it. Two AA batteries Place your battery with its anode and cathode (+ and -) in correct direction. -
Page 18: Installation
Installation Lens installation Please follow steps given below to install lens after its replacement or when optional ones are employed. Please consult your dealers for details on optional lenses. Lens release button Remove the lens Installing lens 1 Center the lens with its movement func- 1 Turn the lens counterclockwise and tion. -
Page 19: Lens Movement Adjustment
Installation Lens movement adjustment The electric lens movement function may adjust your lens in all four directions. This function enables easy image position adjustment. The projection location of your image may be Move lens to it top moved upward a distance up to 50% of the position length of the image. -
Page 20: Set Up Your Projector
Installation Set up your projector ● Ambient brightness may affect your projection image quality. For the optimal image effect, it is recommended to control brightness in your environment. ● Values shown in figure below are approximates only. They may differ from the actual ones. 300"... -
Page 21: Connect The Ac Power Cord
Installation Connect the AC power cord Standard voltage employed by your projector is AC 100-240V. It adapts to different input voltage automatically. Your projector employs 2-phase power cord with neutral ground wire. Do not use any other type of power cords or you may face the risks of electric shock. -
Page 22: Connection To Equipment
Connection to equipment Connection to computer Wires for connection: ● VGA wire ● DVI wire* ● BNC wire* ● HDMI wire* (* This wire is optional. ) Ports on your projector Connection wire Equipment DVI-D(HDCP) DVI wire HDMI HDMI wire R(PR) / G(Y) / BNC wire B(PB) / H(HV) / V... -
Page 23: Connection To Audio Equipment
Connection to equipment Connection to audio equipment Wires for connection: Audio wire* ● (* This wire is optional.) Ports on your projector Connection wire Equipment MONO L/R Audio wire AUDIO IN Audio wire AUDIO IN / OUT Audio wire AUDIO DVI-D REMOTE IN/OUT Audio wire Unplug power cord of your projector and all external equipment before connecting... -
Page 24: Operation
Operation This chapter introduces you to basic operation of your projector. -
Page 25: Basic Operation
Basic operation Power on your projector DVI-D Power key P/PR B/PB H/HV MONITOR OUT VIDEO S-VIDEO AUDIO AUDIO AUDIO RS-232C AUDIO VOL- VOL+ Power key 360.2 1. Connect all external equipment to your projector (e.g. computer or camera) before powering it on. 2. -
Page 26: Power Off Your Projector
Basic operation Power off your projector Power P/PR B/PB H/HV 1. Press the power key at the rear control MONITOR OUT panel or the remote controller, the “Power VIDEO S-VIDEO AUDIO AUDIO AUDIO RS-232C VOL- VOL+ off?” message displays. Message. 2. -
Page 27: Zoom /Focus Function
Basic operation DVI-D P/PR B/PB H/HV Auto setup MONITOR OUT INPUT VIDEO S-VIDEO AUDIO AUDIO AUDIO RS-232C AUDIO VOL- VOL+ ZOOM/FOCUS FOCUS key ZOOM LENS SHIFT LENS SHIFT 360.2 Zoom /focus function Zoom / focus 1. Press the ZOOM / FOCUS key on the rear control panel or remote controller for zooming and focusing. -
Page 28: Adjustment Pad
Basic operation Adjustment pad You may use the adjustment leg to raise your pro- jector up to 5.0 degree. Turn the pad to tilt your projector to desired height. To raise your projector, turn both pads clockwise. To lower down your projector or close the pad, turn both pads counterclockwise. -
Page 29: Menu Item Overview
Basic operation Menu item overview ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ Main menu 设置 PC Adjust Auto PC Adjust Phase Total Dots Horizontal position Vertical position Submenu Clamp function Display area H Dispaly area V Reset Mode free Save PC Adjust menu Select PC Adjust, Phase, Total Dots, Horizontal and Vertical position, Clamp function,... -
Page 30: How To Use The Osd
Basic operation How to use the OSD Main menu 设置 PC Adjust Auto PC Adjust Phase Total Dots Horizontal Position Vertical Position Submenu Clamp function Dispaly area H Display area V Reset Mode free Store Menu operation 1. Press the MENU key on the rear control panel or remote controller and the OSD P/PR B/PB... -
Page 31: Remote Controller Operation
Basic operation Remote controller operation Use your remote controller for common operations. Screen size selection key (SCREEN) Press the SCREEN key on remote controller to select desired screen size mode. Digital Zoom key (D.ZOOM+/-) Press the D.ZOOM+/- key on remote controller to enter the Digital Zoom mode. -
Page 32: Input Signal Source (Computer)
Input signal source (computer) Basic operation Press the INPUT key on the control panel to select one of the following input: VGA , RGBHV , HDMI or DVI. Alternatively, you may press the VGA , RGBHV , HDMI, DVI key on remote control- ler to select individual source directly. -
Page 33: Input Source Selection (Vga / Rgbhv)
Input signal source (computer) Input source selection (VGA / RGBHV) Select input VGA if a PC is connected to the VGAIN port with a VGA cable. RGBHV Select input RGBHV if a PC is connected to the BNC terminal with a BNCx5 cable. Input source selection (HDMI / DVI) HDMI Select input HDMI if a device is connected to... -
Page 34: System Selection
Input signal source (computer) System selection If a PC is selected as the source of input, your projector will detect and adapt to its signal format automatically. Correct image can be displayed without any setup operation. Your projector will display one of the following: If your projector failed to identify Auto VGA system menu... -
Page 35: Auto Pc Adjusting
Input signal source (computer) Auto PC Adjusting The Auto PC Adjusting function may get Total Dots, Horizontal and Vertical position, Display area H, and Display area V aligned with computer input. Auto PC Adjusting 1 Press the MENU key on remote controller 设置... -
Page 36: Manual Computer Adjustment
Input signal source (computer) Manual computer adjustment The scan system of your projector may fail to detect signal format used by certain computers as they opted some special signal format. The manual computer adjustment function of your projector enables you to adjust individual parameter to align with most special signal format. Your projector comes with up to storage area to keep parameters manually adjusted by you. -
Page 37: Image Mode Selection
Input signal source (computer) Image mode selection Direct operation Press the Image Select key on remote controller to select desired image mode. Menu operation 1 Press the MENU key on remote controller and the OSD displays. Press key select image mode icon , press arrow key 2 Press arrow Dynamic... -
Page 38: Image Adjust
Input signal source (computer) Image Adjust 1 Press the MENU key on remote controller and the OSD displays. Press key to select the Screen Adjust icon, press 2 Press arrow key to select item for adjustment, press arrow selection. The adjustment dialog box prompts. Press arrow key to adjust settings. -
Page 39: Screen Size Adjustment
Input signal source (computer) Screen size adjustment Your projector comes with screen size adjustment function for you to display desired image size. 1 Press the MENU key on remote controller and the OSD displays. Press arrow key to se- lect Screen icon, press 2 Press arrow Normal This function keeps aspect ratio of the projected... -
Page 40: Input Signal Source (Video Signal)
Input signal source (VIDEO signal) Basic operation Press the INPUT key on control panel to select Component, S-Video, or VIDEO. Press COMPO- NENT, S-VIDEO or VIDEO key on remote controller to select individual item directly. DVI-D P/PR B/PB H/HV MONITOR OUT Component INPUT- OK key... -
Page 41: Video System Selection
Input signal source (VIDEO signal) Video system selection 1 Press the MENU key on remote controller and the OSD displays. Press key to point to the Input icon, press or OK to confirm your selection. 2 Press key to select Component, VIDEO, or S-Video, and then press OK key. 3 Press key to select system, and then press OK key. -
Page 42: Image Mode Selection
Input signal source (VIDEO signal) Image mode selection 1 Press the MENU key on remote controller and the OSD displays. Press key to select the Image icon, press then press OK key. 2 Press key to point to desired item, then press OK key. 设置... -
Page 43: Image Adjust
Input signal source (VIDEO signal) Image Adjust 1 Press the MENU key on remote controller and the OSD displays. Press key to select the Image Adjust icon, press 2 Press key to point to desired item, press 3 Press key to adjust settings, then press OK key; or press key to adjust settings in the popup adjustment menu. -
Page 44: Screen Size Adjustment
Input signal source (VIDEO signal) Screen size adjustment Your projector comes with screen size adjustment function for you to display desired image size. 1. Press the MENU key on remote controller and the OSD displays. Press arrow key to se- lect Screen icon, press 2. -
Page 45: Setting
Setting Select the Setting menu to set up other functions of your projector. 1. Press the MENU key on remote controller and the OSD displays. Press key to select Set- ting, press or OK to enter the submenu. 2. Press arrow key to point to desired item, press arrow key tion. -
Page 46: Auto Setup
Setting Auto Setup Press the AUTO key on your remote controller to execute functions including Auto Searching, Auto PC Adjusting, and Auto Keystone. These function settings may convert according to steps shown below: Input Search Select this function to auto detect input signal. Stop searching after valid signal was found. -
Page 47: Keystone
Setting Keystone Select this function to save or reset keystone adjustment of projection after your projector is dis- connected from AC power. Press arrow key to navigate available options. Keystone....store/reset H/V Keystone..Press key to ad- 设置 Setting just vertical and horizontal Keystone keystone. -
Page 48: Logo Screen
Setting Logo screen Logo (including Logo and Logo PIN Code lock setup) You may use this function to select Logo 设置 Setting screen, Logo PIN Code lock, change power on Logo screen password, and set up default logo screen. Logo Select Default Logo PIN Code lock Close... -
Page 49: Rear
Setting Rear side of projection screen. Lamp Remote Control 设置 Setting Remote Control Remote Control Remote Control Select this function to prevent one remote con- Sensor for the remote controller troller from interfering multiple projectors. Your projector comes with 10 remote controller code (0-9) with default code at “0”. -
Page 50: On Start
Setting 设置 Setting ⑫ On Start open ⑬ Standby Mode ⑭ Closed caption ⑮ Lamp Control ⑯ Test Pattern ⑰ Security ⑱ Cooling Fast Close ⑲ High Land Close ⑳ Filter Counter Warning Log Factory Default On Start Set this option to On to power on your projector automatically when it is connected to an AC power source. -
Page 51: Security
Setting Security Security: This option provides Key Lock and PIN Code Lock to ensure your projector’s 设置 Setting operation safety. Security Key Lock Key Lock PIN Code Lock Close Logo PIN Code change Select this function to lock the control panel or remote controller keypad to prevent unauthorized personnel from operating your projector. -
Page 52: High Land
Setting High Land You may set up fan control function in the Setting menu. Set up fan speed according to the altitude your projector is operating. Off ..Normal speed Set this function to Off when your projector is in use in environment of low altitude. -
Page 53: Information
Information Select this function to detect projection image signal and operation status of your projector. Press arrow key to select the Message icon. The Information menu displays. See below for messages shown in the menu. 设置 Information ① Input Video Auto - - - - ②... -
Page 54: Maintenance
Maintenance This chapter describes the regular maintenance procedure of your projector to ensure its optimal operation status for long. -
Page 55: Regular Maintenance
Regular maintenance Status light indicator The status light indicator shows status of projector protection function. Check status and POWER light indicator for good maintenance operation. Note Unplug the AC power cord in case of any abnormality as it may lead to fire or electric shock. -
Page 56: Clean The Lens
Regular maintenance Clean your projector when it is contaminated by foreign matter or its display effects are getting worse. Note Unplug the AC power cord before any cleaning operation. Clean the lens Wipe the lens with clean cloth dampened with non-abrasive camera lens cleaner or clean it with lens cleaning paper or air blower. -
Page 57: Lamp Replacement
Regular maintenance 1 Press MENU key and the OSD displays. Press arrow key to select Setup menu, press arrow key or OK. 2 Press arrow key to select "Filter Count- 设置 Setting er", press arrow key or OK. Press arrow Filter counter Filter counter 1hour... - Page 58 Regular maintenance Follow steps below to replace the lamp: 1. Power off your projector and unplug the AC power cord. Let it cool down for at least 45 min- utes. 2. Open the lamp cover after removing screws holding the cover. 3.
-
Page 59: Appendix
Appendix... -
Page 60: Appendix
Appendix Troubleshooting Check the following before calling your dealer or service center: Troubleshooting Solution Power on failure – Plug the power cord of your projector in an AC socket. – Make sure the POWER light indicator turns red. – Restart your projector until the POWER light indicator turns red. It indicates your projector is ready for power on again. - Page 61 Appendix No image displays – Check for the connection between your projector and computer or image equipment. – Check for correct input signal from computer. Connection with certain notebook computer may mandate changes to its display output settings. See the user manual included with the computer for details on settings.
- Page 62 Appendix Light indicator turns on or – Check status of your projector according to the light indicator status. Exclamation mark – Invalid operation, please operate your projector correctly. displays Control panel does not – Remove key lock on control panel in the Safety option of the Setup function menu.
-
Page 63: Light Indicator Status
Appendix Light indicator status Check light indicator to learn status of your projector. Light indicator Status of your projector POWER STATUS FILTER Your projector is in Off status (without AC power supply). Your projector is in standby status. Press Standby key to turn it on. Your projector is in normal status. -
Page 64: Compatible Computer Screen
Appendix Compatible computer screen Your projector is designed to accept every analog computer signal below DCLK 160MHz and digital computer signal below DCLK 140MHz. See table below for details on resolution and relevant frequency. Signal Frequency Signal Frequency Input Resolution Input Resolution format... - Page 65 Appendix Terminal configuration VGA IN / MONITIOR OUT Terminal (D-sub 15) Red (Input/output) ----- Green(Input/output) Grounding (field synchronizing) Blue(Input/output) Grounding ----- DDC data Grounding Horizontal synchronizing (line synchronizing) (compound sync.)input/output Vertical synchronizing input/ Grounding(red) output Grounding(green) DDC Clock Grounding(blue) SERIAL Terminal(D-SUB 9) ----- ----- -----...
-
Page 66: Description On Network
Description on network control operation... -
Page 67: Description On Network Control Operation
Description on network control operation Network control operation Function: This function is designed to remote control computer in the same LAN. Preparation 1 Required equipment: Projector, connection, network cable 2 Connection: Connect your projector to a router or switch in the LAN with normal or jumper network cable. - Page 68 Description on network control operation 4. In the network menu, select network setting status, press OK, check network IP address. 5. Open a browser program, e.g. IE, on any computer in the LAN. Enter the IP address you just 6. Set up options in the page including home page, network control settings, projector status and control, reminder email settings and safety settings.
- Page 69 Description on network control operation Projector status and control: Check projector’s current status and change its settings. Reminder email settings: Set up your email address to get reminder email in case of projector failure. Safety settings: Users may change login password. (Default value is without password.)
- Page 70 Aver ssement A en on pour la sécurité: Brancher le projecteur à la terre ● Interdire de fixer le regard sur l’objec f du projecteur pour éviter la nuisance sur les yeux ● entraînée par la lumière forte. Il interdit surtout les enfants de fixer les yeux sur les faiseaux. Si le projecteur n’était pas u lisé...
