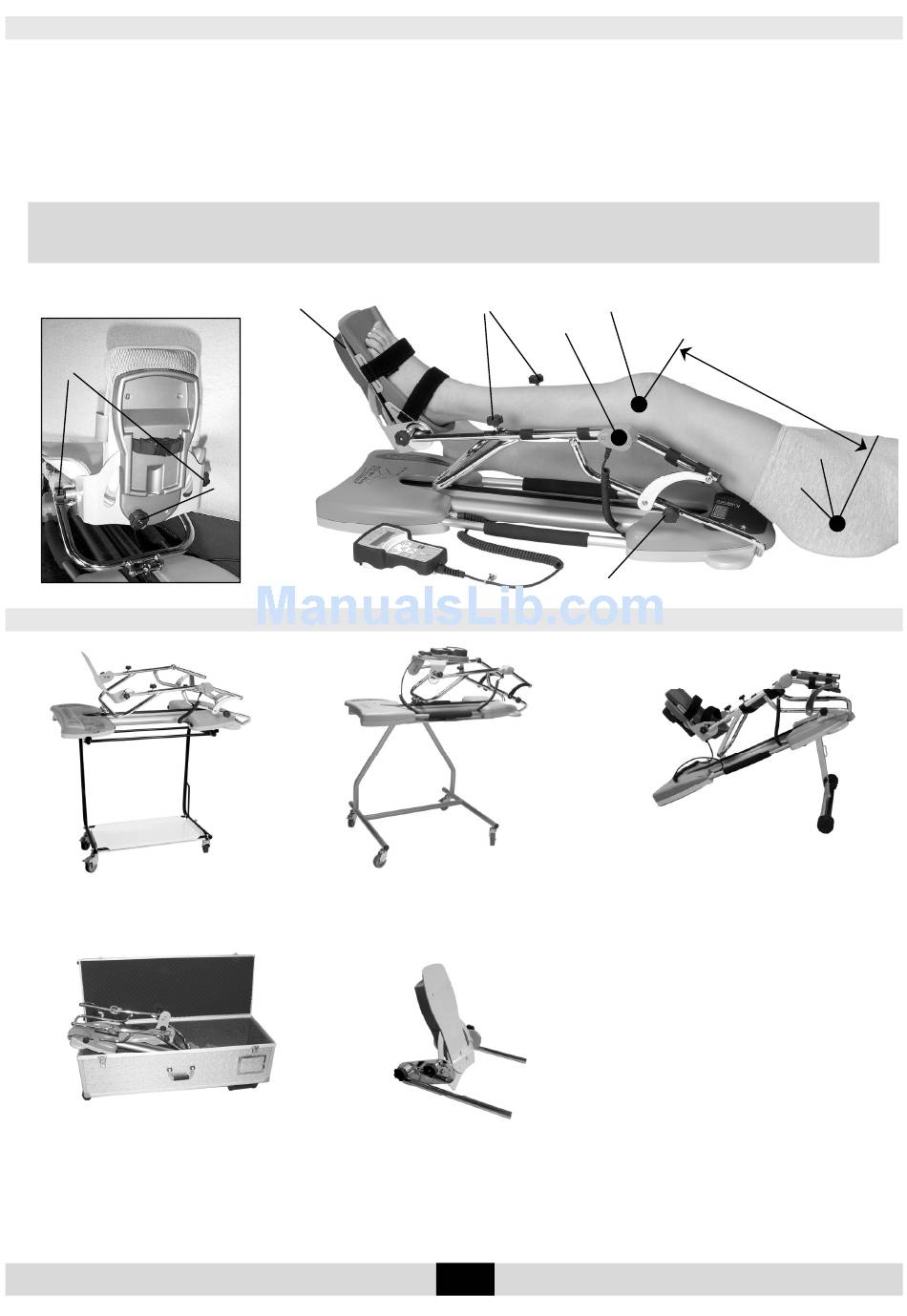

Setting up the patient
Place the KINETEC Spectra Essential machine in a position that will be comfortable for the patient.
- Measure in cm or inches the length of the patient's femur (L); adjust the thigh support to this
measurement using knobs (5)
- To install the patient on the KINETEC Spectra Essential machine.
- Push the foot plate (3) up to the patient and tighten the knobs (6).
- Adjust the plantar flexion (40°) or the dorsal flexion (30°) of the foot, with the knobs (7).
- Adjust the internal (30°) or external (30°) flexion of the foot, with the knob (20).
Adjust the axis of the patient's hip (21) with the axis rotation (22) of the KINETEC Spectra Essential machine,
and the axis of the patient's knee (23) with the axis rotation (24) of the KINETEC Spectra Essential machine.
7
Options
Trolley for all CPM
Part number to order:
4655001053
Transport box
Part number to order:
4640001927
Spectra Essential
3
20
Cart for bed use
Part number to order:
4665003297
Paediatric foot plate
Part number to order:
4670023777
IMPORTANT
6
24
EN
23
5
Seat Adaptor
Part number to order:
4670024098
L
22
21
