Compliance:
KINETEC Spectra Essential complies with the standards of Directive 93/42/EEC, and bears the CE mark.
KINETEC Spectra Essential complies with the standards in force (IEC 601.1.2) concerning the
electromagnetic compatibility of medical devices.
KINETEC Spectra Essential complies with the standards of Directives Machine n°2006/42/CE.

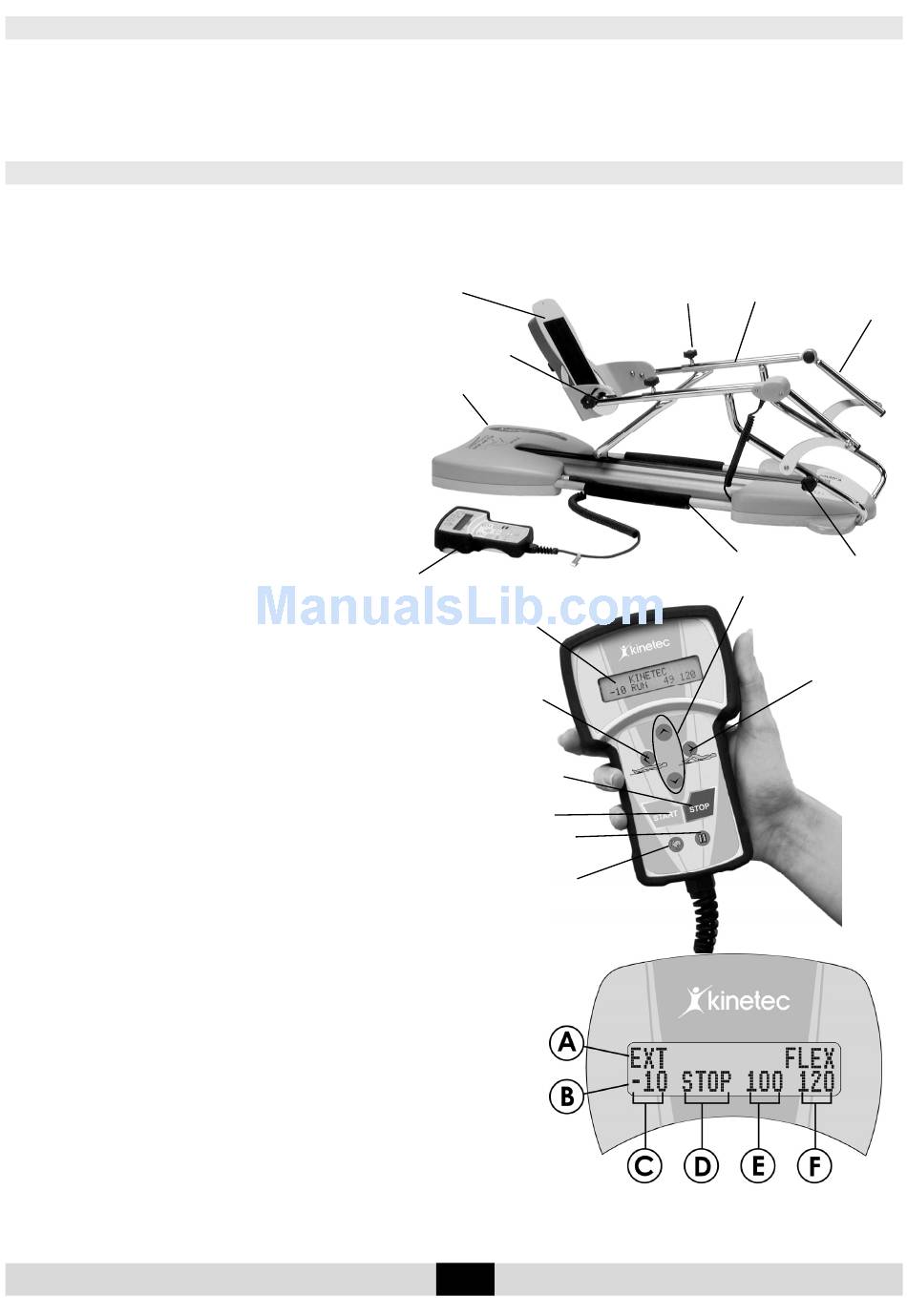

Description
The KINETEC Spectra Essential machine consists of the following components:
1 • Lower limb support.
2 • Thigh support.
3 • Foot support and hand control location for
transport.
4 • Hand control.
5 • Thigh support setting lock.
6 • Lower limb support setting lock.
7 • Foot support positioning setting lock.
8 • Transport handle.
9 • ON/OFF switch and fuses.
10 • Liquid-crystal display
(2 lines of 16 characters).
11 • Increase / decrease keys.
12 • EXTENSION setting key.
13 • FLEXION setting key.
14 • STOP key.
15 • START key.
16 • PAUSE key.
17 • SPEED key.
Display Details:
A • 16-character line, used to display various messages
when starting up the machine; then the display does
not change while the machine is being used.
B • 16-character line, used to display various messages
when starting up the machine; then it displays the
operational parameters.
C • 3-character area showing the extension limit.
D • 4-character area showing various messages: RUN,
STOP, EXT, FLEX.
E • 3-character area showing the real-time angle of the
knee; this value changes in line with the movement.
F • 3-character area showing the flexion limit.
Spectra Essential
3
7
9
4
10
12
14
15
16
17
EN
1
6
8
11
13
2
5
