Summary of Contents for TECHVIEW QV-3162

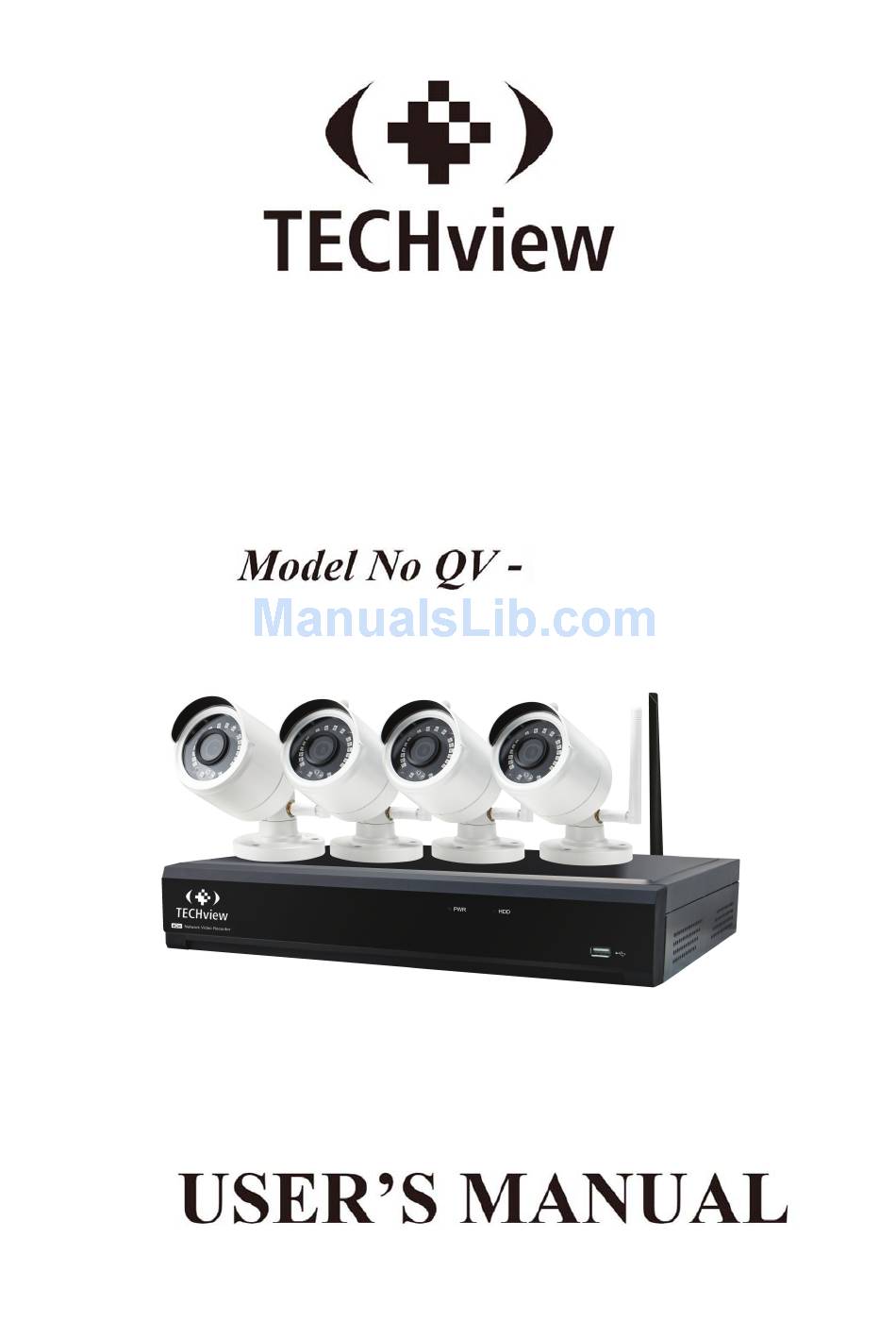

- Page 1 USER MANUAL 4CH 1080P WIFI NVR With 4pcs WIFI IP Camera kit 3162...
-
Page 2: Table Of Contents
USER MANUAL CHAPTER 1 SAFETY INSTRUCTION............... 4 CHAPTER 2 PRODUCT OVERVIEW................5 ......................... 5 1.1 R ANEL 1.2 R )..............6 EMOTE ONTROLLER EFERENCE CHAPTER 3 WIRELESS NVR COMMON OPERATIONS........7 ..................7 3.1 U SING THE UPPLIED OUSE ..................7 3.2 U SING THE IRTUAL EYBOARD... - Page 3 USER MANUAL 5.8.4 Cloud Storage....................42 ........................43 5.9 S YSTEM 5.9.1 General......................43 5.9.2 DST........................ 44 5.9.3 NTP........................ 45 5.9.4 Users......................46 5.9.5 Info........................47 5.9.6 Log........................48 ....................... 49 5.10 A DVANCED 5.10.1 Maintain....................... 49 5.10.2 Events......................50 ......................51 5.11 S HUTDOWN CHAPTER 6 REMOTE ACCESS VIA WEB CLIENT..........
-
Page 4: Chapter 1 Safety Instruction
USER MANUAL Chapter 1 Safety Instruction Please carefully read the following safety instruction so as to avoid personal injuries and prevent the equipment and other connection devices from being damaged. 1. Power sources (note: please use the power supply attached or specified by the manufacturer) Never operate the equipment by using unspecified power supply. -
Page 5: Chapter 2 Product Overview
Chapter 2 Product Overview 1.1 Rear Panel Physical interface connection A terminal to connect a separate ground cable. Ground connection * Make sure to add a ground cable in order to use the equipment safely. Antenna Receive signal from wireless camera. WAN:(RJ45) Connect with WAN,Ethernet cable. -
Page 6: Remote Controller (For Reference Only)
USER MANUAL 1.2 Remote Controller (For Reference Only) Icon Description Numeric keys Press to display channel 1~8 9、0 Numeric keys Press to display all channels Multiple display mode Menu Press to enter or exit the Main Menu Mute Mute On/off (not support this function) Submenu Go to submenu Up arrow key;... -
Page 7: Chapter 3 Wireless Nvr Common Operations
USER MANUAL Chapter 3 WIRELESS NVR Common Operations 3.1 Using the Supplied Mouse Left Button of Mouse Right Button of Mouse Click once to choose an item in the menus and confirm your Click once to open the pop-up selection. menu on the Live Viewing screen and to exit from the Click once upon a channel on Live Viewing screen to open... -
Page 8: Chapter 4 Wireless Nvr Starting Up
USER MANUAL Chapter 4 WIRELESS NVR Starting up 4.1 Startup Wizard After WIRELESS NVR startup is completed, the Startup Wizard will be displayed. Wizard setting menu includes: Set Admin Password ,Homepage, HDD Management, Network Configuration, Email Configuration , Record Schedule and General System Configuration. 1).Set Admin Password: Please create a user name and password for your device. - Page 9 USER MANUAL 2) Homepage and HDD Management You can click “Cancel” to skip Start Wizard. Tick “Don't show this window next time" if you don’t want to display Start Wizard when system start-up. If the HDD is installed in the WIRELESS NVR for the first time, it will be needed to be format. Select the HDD which you want to format, and then click “Format HDD”...
- Page 10 USER MANUAL 3) Network Configuration This menu allows you to configure network parameters, such as PPPoE, DHCP, Static. The most common types are DHCP or Static. Most probably your network type is DHCP, unless the network is manually addressed (usually called- Static). If you need an authentication user name and password to the Internet, then choose PPPoE.
- Page 11 USER MANUAL 5) Record Schedule This menu allows you to specify when the WIRELESS NVR records video and define the recording mode for each channel. The recording schedule lets you set up a schedule like, daily and hourly by Normal (continuous) recording, Motion recording. To set the recording mode, click first on the mode radio button (Normal, Motion), then drag the cursor to mark the slots.
-
Page 12: Live Viewing Screen
USER MANUAL 4.2 Live Viewing Screen Camera Time and Camera name Status Icons Camera Quick Toolbar Pop-up Menu Bar Status Icons This indicates that the WIRELESS NVR is currently recording. The motion icon in Green indicates that the WIRELESS NVR is detecting motion from the camera but not recording. - Page 13 USER MANUAL Camera Quick Toolbar Click to enter pairing Click to adjust the channel color settings Click to zoom in the channel Click to playback the recent 5 minutes recording Click to start recording the channel manually Click this to manually capture an image Pop-up Menu Bar Click to open the Main Menu Click to lock/unlock the screen operation...
-
Page 14: Chapter 5 Wireless Nvr Menu
USER MANUAL Chapter 5 WIRELESS NVR Menu 5.1 Overview Alarm – To set the motion detection function. Network - To configure the WIRELESS NVR’s access parameters to the network, configure email settings, DDNS parameters, etc. – Image capture configuration Capture –... -
Page 15: Display
USER MANUAL 5.2 Display 5.2.1. Wireless Camera This menu allows you to configure channel parameters. Channel: Select the channel you want to modify. Camera version: Camera firmware Version . Pair: Click the channel button to do pairing. Wireless Band selection: Auto or Manual optional. -
Page 16: Live
USER MANUAL 5.2.2. Live This menu allows you to configure channel parameters. Channel: Select the channel you want to modify. Alias: Enter the name of the channel. Signal Strength:Set Enable or Disable Date Format：Set date format such as m/d/y, y/m/d or d/m/y. Time Format: 12 hour or 24 hour. -
Page 17: Output
USER MANUAL 5.2.2. Output This menu allows you to configure video output parameters Video Output: This is the monitor that you use for live view display. Sequence Mode: Choose your favorite layout from the drop-down menu for viewing channels in a sequence on live view. -
Page 18: Private Zone
USER MANUAL 5.2.3 Private Zone This menu allows you to create Privacy Zone(s) if you want to partially cover up part of the image. You can create up to four privacy zones in any size and location on the channel view. These zone(s) appear as “red box rectangle areas”. -
Page 19: Record
USER MANUAL 5.3 Record 5.3.1 Record This menu allows you to configure the channel recording parameters. Channel: Select the channel to set its recording parameters. Record Switch: Enable in order to allow the video to be recorded to the HDD. Stream Mode: Choose the recording resolution. -
Page 20: Record Schedule
USER MANUAL 5.3.2 Record Schedule This menu allows you to specify when the WIRELESS NVR records video and define the recording mode for each channel. The recording schedule lets you set up a schedule like, daily and hourly by normal (continuous) recording, motion recording. To set the recording mode, click first on the mode radio button (Normal, Motion), then drag the cursor to mark the slots. -
Page 21: Capture
USER MANUAL 5.4 Capture This menu allows you to configure the snapshot capturing parameters. Channel: Select the channel to set its capture parameters. Auto Capture: Enable or disable automatic capturing on the channel. When this feature is enabled, you can select the snapshot capturing interval. NOTE: When the Auto Capture is enabled, you can select the image capturing interval. - Page 22 USER MANUAL Capture Schedule Channel: Select the channel to set its snapshot capturing schedule. Normal: When the time slot is marked green, this indicates the channel is capturing snapshots based on the Normal Interval. Motion: When the time slot is marked yellow, this indicates the channel is capturing snapshots based on Alarm Interval only when a motion is detected.
-
Page 23: Network
USER MANUAL 5.5 Network This menu allows you to configure Network parameters, E-mail setup, DDNS, RTSP & FTP. 5.5.1 Network This menu allows you to configure network parameters, such as PPPoE, DHCP, Static. The most common types are DHCP or Static. Most probably your network type is DHCP, unless the network is manually addressed (usually called- Static). - Page 24 USER MANUAL Client Port: This is the port that the WIRELESS NVR will use to send information through. If the default port 9000 is already taken by other applications, please change it. Address: The IP address identifies the WIRELESS NVR in the network. It consists of four groups of numbers between 0 to 255, separated by periods.
-
Page 25: E-Mail
USER MANUAL 5.5.2 E-mail This menu allows you to configure email settings. Please complete these settings if you want to receive the system notifications on your email when a motion is detected, HDD becomes full, HDD is in error state, or Video Loss occurs. Email: Enable this feature. -
Page 26: E-Mail Schedule
USER MANUAL To make sure all settings are correct, click Test Email. The system sends an automated email message to your inbox. If you received the test email, it means the configuration parameters are correct. 5.5.3 E-mail Schedule The color codes on email schedule have the following meanings: Green: Slot for Motion. -
Page 27: Ddns
USER MANUAL 5.5.4 DDNS This menu allows you to configure DDNS settings. The DDNS provides a static address to simplify remote connection to your WIRELESS NVR. To use the DDNS, you first need to open an account on the DDNS service provider’s web page DDNS: Enable the DDNS service. -
Page 28: Rtsp
USER MANUAL 5.5.5 RTSP The WIRELESS NVR can be remotely viewed via RTSP protocol. RTSP Enable: Enable/Disable Verify: Enable/Disable RTSP Port: Default is 554, if the default port 554 is already taken by other applications, please change it. Instruction: rtsp://IP:Port/chA/B A: 01(ch1), 02(ch2)…. -
Page 29: Ftp
USER MANUAL Note: RTSP user name and password is same with DVR user name, password and permissions. Follow the instruction to input IP and port to preview video. 5.5.6 FTP This menu allows you to enable FTP function to view and load captured snapshots from WIRELESS NVR to your storage device over FTP. -
Page 30: Alarm
USER MANUAL 5.6 Alarm In these section, you can configure the Motion Detection. 5.6.1 Motion This menu allows you to configure motion parameters. The motion detection is pretty straight forward, the WIRELESS NVR simply compares one frame to another. A sufficient amount of difference is interpreted as motion. - Page 31 USER MANUAL Area: To setup motion area, click Setup. By default, the whole screen is marked for motion detection (red blocks). If you want to disable the motion detection on an area, you need to click the grid cursor and then drag the mouse to highlight the scope to unmark the area (transparent block).
-
Page 32: Record Search & Backup
USER MANUAL 5.7 Record Search & Backup This section allows you to search and playback the recorded videos based on recording type, channel, date and time parameters. You can also view and backup events and captured images. 5.7.1 General Select the channel & the recording type (All / Normal / Motion). Determine the recording date. -
Page 33: Events
USER MANUAL 5.7.2 Events This section is used to check the recording file lists and make backup. Select the recording Date & Time. Select the Channel and Type (All / Normal / Motion). Click Search. If you want to make backup for all recording files you had searched, click Quick Backup. If you want to make backup for individual files, select the recording list(s) from the table. -
Page 34: Picture
USER MANUAL Note: Please make sure you have inserted your USB flash device to the WIRELESS NVR USB port before you want to make backup. If you want to Lock the recoding files, tick the checkbox after the files. The locked files will be protected and unable to be overwritten if you had enable the HDD Overwrite function. -
Page 35: Playback Video Recordings
USER MANUAL 5.7.4 Playback Video Recordings ○ ○ ⑧ ○ ○ ○ ⑦ ○ 1. Recording Calendar: Dates marked with orange triangles have recordings. 2. Playback Type: Select the playback type among General, Events, Picture 3. Channels: Check the channels to playback. 4. - Page 36 USER MANUAL 5.7.4.1 Trim Video Use this function if you need to backup just a certain section of the video recording. 1) Connect a USB flash drive to the WIRELESS NVR. 2) Double-click on the channel (to display in full screen during video playback) that you wish to backup.
-
Page 37: Time Frame
USER MANUAL 5.7.4.2 Time Frame During video playback, the time bar is displayed in 24 Hours (00:00~24:00) by default. You can shorten the time bar to be displayed in 2 Hours, 1 Hour or 30 Minutes in order to make an accurate position to the time bar. - Page 38 USER MANUAL 3) Copy the backup files to your computer. 4) Click “+” or “Open File” button to add files. It supports to play avi, mp4, 264 files. Function Description: Play: Click to play file Pause: Click to pause. Stop: Click to stop playback. Frame Forward: step forward by frame Slow forward : Click to play at 8x,4x,2x,1x,1/2,1/4,1/8,1/16 speed.
- Page 39 USER MANUAL Adjust volume Window Division 1/4/9/16 channels optional. Add folder or file. Playback mode, Single, Order, Repeat one, Repeat ALL are optional Delete all files in the list. Search File Language/Settings Basic Settings: Set on-top mode...
- Page 40 USER MANUAL Capture Settings: Set the path to save images...
-
Page 41: Device
USER MANUAL 5.8 Device In this section, you can configure the internal HDD. 5.8.1 HDD This menu allows you to check & configure the internal HDD that the WIRELESS NVR uses for saving the recordings. You need to format the HDD only at the first startup and if you replace the HDD. -
Page 42: Cloud Storage
USER MANUAL 5.8.4 Cloud Storage This menu allows you to see what is happening on your camera site anytime, It can upload the captured pictures to Dropbox at normal time, or when motion detection happens. Cloud Storage: Enable to allow cloud settings Channel: Select the channels where you want to upload the snapshots to Dropbox Cloud Type: Only Dropbox cloud storage is supported currently... -
Page 43: System
USER MANUAL be sent. Click the link in the email and then log in to your dropbox account, and click permit. DVR cloud storage function will be activated. If you have logged in your dropbox account before Cloud storage activation, then no need to relogin. Just click Permit to complete the activation. -
Page 44: Dst
USER MANUAL Video Format: Choose the video format between NTSC and PAL. If the WIRELESS NVR’s picture is flickering or has only black screen, it may be that the video format is not correct. Menu Timeouts: Set the time out the WIRELESS NVR will exit the menus when they are not in use. -
Page 45: Ntp
USER MANUAL 5.9.3 NTP NTP stands for Network Time Protocol. This feature allows you to synchronize the date and time automatically on the WIRELESS NVR over Internet. Therefore the WIRELESS NVR needs to be connected to the Internet. NTP: Enable if you want the WIRELESS NVR to update the date and time automatically. Server Address: Select the NTP (Network Time Protocol) server. -
Page 46: Users
USER MANUAL 5.9.4 Users This menu allows you to configure the user login information. Edit: To enable/disable the user account, modify the user name and password, click on the user account you wish to edit, then click Edit. -
Page 47: Info
USER MANUAL Permission: To modify user access permissions, click on the user account you wish to modify, then click Permission. The user in Admin level has all permissions to the system. After modify the permissions, click Save to save the modifications. 5.9.5 Info This menu allows you to view the summary of the system, channel information &... -
Page 48: Log
USER MANUAL Device Name: Enter the desired name for your WIRELESS NVR. The name can include both letters and numbers. Device ID: Enter the desired ID for your WIRELESS NVR. The device ID is used to identify the WIRELESS NVR, and can only be composed of numbers, and cannot be the same with other IDs when multiple WIRELESS NVR are connected in the same network. -
Page 49: Advanced
USER MANUAL 5.10 Advanced This menu allows you to configure automatic system maintenance, load factory defaults, update the firmware settings, upgrade the IPC, etc. 5.10.1 Maintain Default User: If you want to log in to the WIRELESS NVR automatically for live view after each startup, then only administrator user account can be set for auto login. -
Page 50: Events
USER MANUAL 5.10.2 Events This menu allows you to set the type of events that you want the WIRELESS NVR to inform you. Event Type: Select the event type. Options are: - Disk Full: When HDD is full. - Disk Error: If HDD is not detected properly. - Video Loss: If camera is not detected properly. -
Page 51: Shutdown
USER MANUAL 5.11 Shutdown Manually turn off or reboot the WIRELESS NVR. You will need to input your user name and password to complete the operation. -
Page 52: Chapter 6 Remote Access Via Web Client
USER MANUAL Chapter 6 Remote Access via Web Client Use the Web Client to remotely access your WIRELESS NVR at any time via a PC. Before you access the Web Client, you need to ensure that the network settings of the WIRELESS NVR are configured properly. -
Page 53: Web Plugin Download And Installation
USER MANUAL Web Plugin Download and Installation To access the Web Client, do the following: IE/Chrome/Firefox: 1) Launch the explorer on your PC and enter the WIRELESS NVR static IP address or DDNS domain name (Host Name) you have set on WIRELESS NVR in the URL box. 2) For the first time you run the web client, system will require to install the web client plugin. - Page 54 USER MANUAL 3) After installing the plug-in, close & launch again your browser and repeat step 1 to open the login page. Input your user name and password to login the web client. Note : If you use Google Chrome, please use Version V41 or below. If you use V42 to V44, you need to enable NPAPI plugins.
- Page 55 USER MANUAL For Mac SAFARI: 1) Launch the Safari on your Mac, and enter the WIRELESS NVR static IP address or DDNS domain name (Host Name) you have set on WIRELESS NVR in the URL box. 2) Download the plug-in "SurveillanceClient.dmg", locate the downloaded file and double click it. 3) Click on "Continue"...
-
Page 56: Web Client Manager
USER MANUAL 6.2 Web Client Manager The web client supports to full control the WIRELESS NVR with administrator account. Please make sure to protect your user name & password for preventing illegal login. 6.2.1 Live Interface This is the first screen that opens after you have logged in to the Web Client. Here you can open or close live preview, record video to local computer manually, take snapshots of the screens, color adjustment, etc. - Page 57 USER MANUAL : Open the images on Live window. : Stretch. : Original proportions. : Click to maximize the current window to full screen. Right click to popup menu option and select Exit Full Screen. 2. Video Control Hue: Adjust the chromaticity of video Bright: Adjust the brightness of video Contrast: Adjust the contrast of video Saturation: Adjust the saturation of video...
-
Page 58: Playback
USER MANUAL 6.3.2 Playback You can search & play recorded files stored on the HDD inside the WIRELESS NVR, and save the result to the local directory on your PC. Click to enter into Playback interface to remotely view the records in WIRELESS NVR HDD. - Page 59 USER MANUAL 1. Record Search Record playback procedure Firstly, select the date you want to check and tick 1 to 4 channels. Any record files in current channel at current date will be displayed in the status bar of the interface. Secondly, select record type (Normal record, Motion record) and channels, and then click “...
- Page 60 USER MANUAL 2. Playback Control Playback control bar. Detailed brief description is shown as below list Description Description Play Pause Slow playing 1/2,1/4, 1/8, Fast Stop playing 1/2/4/8 By frame Digital ZOOM Record Clip Original proportions Snap Stretch Download Full Screen Open all the Stop playing all the playback playback channels...
- Page 61 USER MANUAL Record file download Click download icon “ ” on the control bar to display all the matched record file according to the search conditions of channels. Tick-select the record file you want to download and click [Start download] .System will download the record file in sequence and save to local PC.
-
Page 62: Local Setting
USER MANUAL 6.3.3 Local Setting Record Path: Set the path to save manual recordings on your PC’s local drive. Download Path: Set the path on your PC’s local drive where you want to download recordings from the WIRELESS NVR. Snapshot Path: Set the path to save manual snapshots on your PC’s local drive. Save: Click Save to save the modifications. -
Page 63: Chapter 7 Appendix
USER MANUAL Chapter 7 Appendix 7.1 Troubleshooting Q: What can I do if the system does not detect the HDD? A: Check if the power supply system is properly connected and data cord and power cables are securely connected, and if something wrong with the HDD interface. Or you may check if your HDD is supported by referring to the specifications or descriptions. -
Page 64: Usage Maintenance
USER MANUAL 12. Q: Why doesn’t dynamic detection work? A: Please check if the motion detection time and motion detection regional setting are correct and if the sensitivity is set too low. Q: Why doesn’t alarm work? A: Please check if the alarm setting, alarm connection and alarm input signals are correct. Q: Why does buzzer keep alarming? A: Please check the alarm setting, check if motion detection function is enabled and object motion is detected all the time and if I/O alarm is set as Always Off. -
Page 65: Accessories (For Reference Only)
USER MANUAL 7.3 Accessories (For reference only) Remote Controller Power Adapter Warranty Card USB mouse... - Page 66 USER MANUAL The material in this document is the intellec tual property of our department . No p art this manual rep roduced , copied, translated, transmitted, or pub lished in any form or by any means without our department prior written permis sion. Our products are under continual improvement and we reserve the rig ht to make changes without noti ce.
