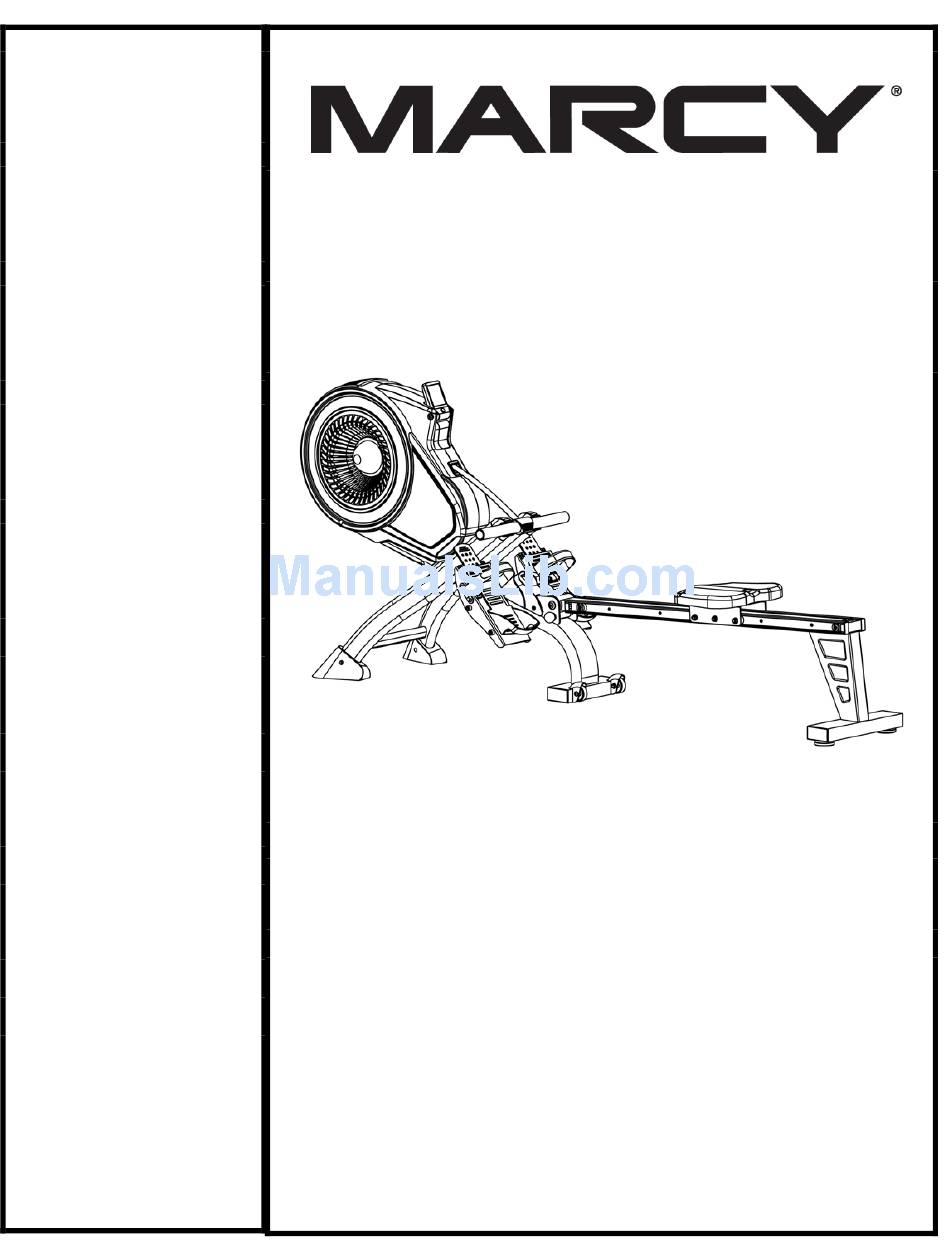

NOTE:
Please read all instructions
carefully before using this
product
TURBINE ROWER
Table of Contents
Safety Notice
NS-6050RE
Hardware Pack
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
NS-6050RE
Retain This
Manual for
Reference
151208
®
IMPEX
INC.
2801 S. Towne Ave, Pomona, CA 91766
Tel: (800) 999-8899 Fax: (626) 961-9966
ASSEMBLY &
www.impex-fitness.com
OWNER'S
support@impex-fitness.com
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-6050RE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marcy NS-6050RE

Summary of Contents for Marcy NS-6050RE

  • Page 1 NOTE: Please read all instructions carefully before using this product TURBINE ROWER Table of Contents Safety Notice NS-6050RE Hardware Pack Assembly Instruction Parts List Warranty Ordering Parts Model NS-6050RE Retain This Manual for Reference 151208 ® IMPEX INC. 2801 S. Towne Ave, Pomona, CA 91766 Tel: (800) 999-8899 Fax: (626) 961-9966 ASSEMBLY &...

  • Page 2: Table Of Contents

    WARRANTY....................……. 18 ORDERING PARTS..................……. 18 BEFORE YOU BEGIN ® Thank you for selecting the MARCY Turbine Rower NS-6050RE by IMPEX INC. For your safety and benefit, read this manual carefully before using the bike. As a manufacturer, we are committed to provide you complete customer satisfaction. If you have any questions, or find there are missing or damaged parts, we guarantee you complete satisfaction through direct assistance from our factory.

  • Page 3: Important Safety Notices

    IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1.

  • Page 4: Warning Label Placement

    WARNING LABEL PLACEMENT The Warning Labels shown here has been placed on the Rear Support. If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the labels in location shown. © IMPEX INC. www.impex-fitness.com...

  • Page 5: Hardware Pack

    HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size. © IMPEX INC. www.impex-fitness.com...
  • Page 6 COMPONENTS FOR ASSEMBLY © IMPEX INC. www.impex-fitness.com...

  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTION • Tools Required For Assembling the Machine: One Crossing Wrench and two Allen Wrenches provided by manufacturer. • NOTE: It is strongly recommended that two or more people assemble this machine to avoid possible injury. STEP-1 A.) Attach the two Roller Wheels (#3) to the Main Frame (#1). B.) Secure each Roller Wheel (#3) with one M8 x 1 ¾”...
  • Page 8 STEP-2 A.) Pull out the Lock Pin (#35). Attach the Rowing Rail (#45) to the bracket on Main Frame (#1). B.) Insert a Rowing Rail Axle (#41) through the pivot on Rowing Rail. Secure the pivot to the bracket with one M8 x ¾” Allen Bolt (#34) and one Ø ⅝” Lock Washers (#37) and Washers Ø 1(#38) to each end of the Axle.
  • Page 9 STEP-3 A.) Slide the Seat(#53) onto Rowing Rail (#45) and slowly down to the bottom. B.) Attached one Bumper Stopper (#36) onto each Rail Track. Secure each Bumper Stopper with one M8 x ¾” Allen Bolt (#34). C.) Attach the Rear Support (#54) to the Rowing Rail (#45). Secure it with two M8 x 1 ⅝” Allen Bolts (#42), one M8 x ⅝”...
  • Page 10 STEP-4 A.) Flip down the Rowing Rail to floor. B.) Attach the Front Post (#9) to the Main Frame (#1) and secure it with four M8 x ⅝” Allen Bolts (#19). C.) Attach the Left & Right Front Post Floor Cap (#8L/R) to Front Post. Secure each Cap with two ST5 x ¾”...
  • Page 11 STEP-6 A.) Plug the Left & Right Rowing Bar Holder (#11L/R) into the Front Post. B.) Attach the Left Pedal (#14L) to the pivot on Main Frame (#1). Secure it with two M12 x 5 ½” Socket Head Allen Bolt (#13). Repeat the same step to install Right Pedal (#14R). STEP-7 A.) Flip up the Computer (#24) for user reading data from Compute screen during exercising.

  • Page 12: Exploded Diagram

    EXPLODED DIAGRAM © IMPEX INC. www.impex-fitness.com...

  • Page 13: Parts List

    NS-6050RE PARTS LIST PART DESCRIPTION SPEC. QUANTITY Main Frame Nylon Nut Roller Wheel M8 x 1 ⅜” Allen Bolt 3 ⅛” x 1 ⅝” End Cap Anti-slip Pad ST4 x ⅜” Self Tapping Screw 8L/R Front Post Floor Cap Front Post Self Tapping Screw ST5 x ¾”...

  • Page 14: Care, Maintenance And Storage

    Rowing Rail 46L/R Rail Track Self Tapping Screw Seat Roller Wheel Axle Seat Roller Wheel M5 x ⅝” Phillips Screw Allen Bolt M6 x ¾” Seat Bracket Seat Rear Support Rear Leverage Knob Foot Strap CARE, MAINTENANCE AND STORAGE 1. Inspect and tighten all parts each time you use the machine. Replace any worn parts immediately.

  • Page 15: Operating Notes

    OPERATING NOTES ADJUSTMENT Use the Tension Knob on Main Frame to adjust the exercising resistance. FOLD UP Pull out the Lock Pin (#35), and then fold up the Rowing Rail (#45) to vertical position. Inert back the Lock Pin to lock the Rowing Rail in position. TRANSPORT The Rower has a pair of roller wheels on Main Frame.

  • Page 16: Computer

    COMPUTER AUTO START / STOP When exercise starts, the monitor will automatically turn on and display the progress. When exercise stops, the monitor will automatically turn off after 4 minutes to save energy. MODE- 1. Press “MODE” key, will automatically scan Time, Speed, Distance, Calories, Count and RPM for every 5 seconds.

  • Page 17: Exercise Guidelines

    EXERCISE GUIDELINES Using your ROWER will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with calorie controlled diet help you lose weight. 1. The Warm Up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury.

  • Page 18: Weight Loss

    3. The Cool Down Phase This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now be repeated, again remembering not to force or jerk your muscles into the stretch.

  • Page 19: Warranty

    ® IMPEX INC. LIMITED WARRANTY ® IMPEX Inc. ("IMPEX ") warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the Frame from the date of purchase. This warranty extends only to the original purchaser.
