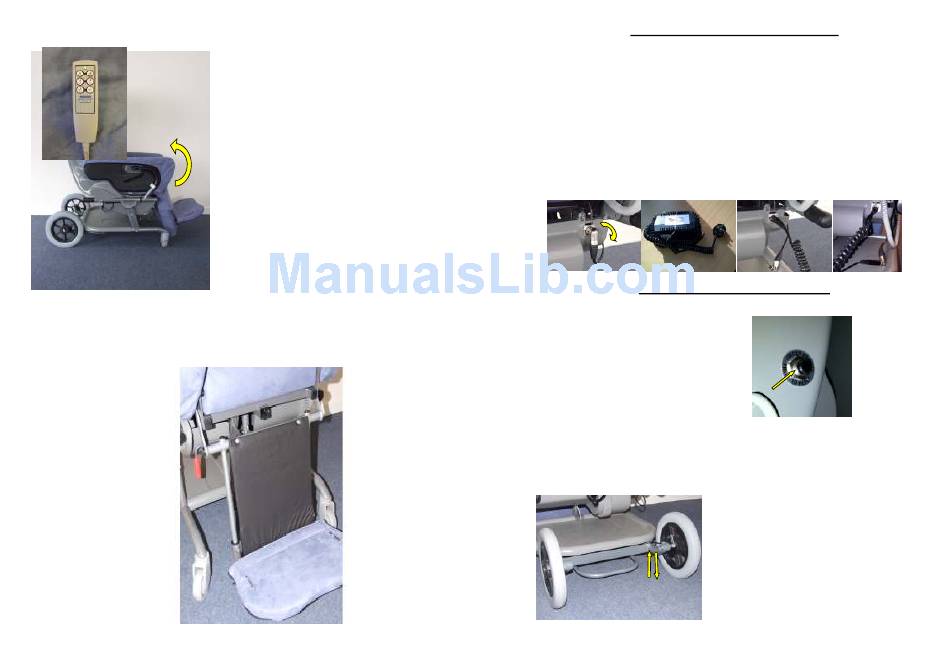

Helping Hand Symmetrikit Medium Instruction Manual page 8

3) Leg rest angle (Power)
The angle of elevation of the leg rest
can easily be altered.
On the power chair simply push the
button on the handset to raise or
lower the user's legs.
Ensure the area around the leg rest
actuator shaft is clear of obstruction
before and during operation
Check that the footplate height is still correct after adjusting
the angle
4) Leg rest angle
(Manual)
To raise the manual leg
rest simply lift to the
required angle. To
lower it locate the
handle behind the
cushion on the left side
of the chair. Shown
here in red. Lift the leg
rest slightly whilst
pulling the lever and
then lower to the
required angle. It will
lock when the lever is
released.
PAGE 8
Power the chair off the mains:-
Together with a battery charger, you will also receive a chair transformer.
This is the unit with the curly wire shown below.
The transformer allows you to use the chair if the battery is flat or if you
wish to use the chair while the battery is charging.
To use the transformer, marry up the three pins from the transformer to
the three pins in the chair and plug in. Then plug the transformer into
your electrical supply and use the handset as usual.
If you wish to charge the battery and use the chair powered from the
transformer please see the image on the far right side
Re-setting the battery fuse:-
If the chair does not operate after
charging . The battery fuse may need to
be reset.
Simply press the reset button on the side
of the chair below the right hand arm. It
may be necessary to raise the fabric
valance to see it.
ACCESSORIES
A) Big Wheel Kit
For those who require the security of extra
stability while sitting in your chair, we
provide a big wheel kit option.
The breaking system differs to the smaller
castors.
To engage the brake, press your foot
down on the brake plate.
Sliding your foot under the brake plate
and lifting will release the brake.
PAGE 17
