Helping Hand Symmetrikit Medium Instruction Manual page 7

Should it be necessary to change
the pommel head size or adjust
the height of the pommel first
locate screw 1. Once this is
loosened, the pommel head and
the upper bracket can then be
moved up, down or removed
altogether.
Once in the correct position simply
tighten the screw.
PAGE 18

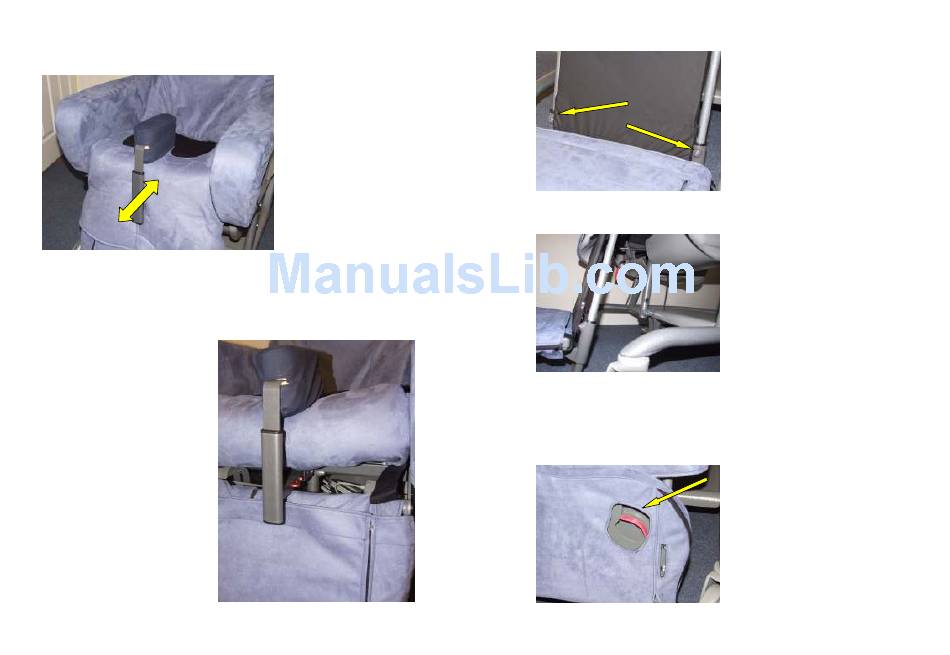

B) Pommels
There are two alternative
pommels available for the
chair. These vary in width
to allow for the
requirements of different
users.
The pommel is fitted by
sliding the lower tube into
the socket provided in the
seat frame. To remove it
simple depress the red
knob illustrated below.
It may be necessary to adjust the angle of the footplate to get the user's
foot fully supported. The lever to adjust the footplate is underneath the
plate and is show in red below.
PAGE 7
Inside the zips you will find the
adjuster screws (arrowed) loosen
these with the 4mm Hex key
supplied. The footplate can now
slide to the required height.
When the height is correct all of the
underside of the user's thigh should
be in contact with the seat cushion.
Their feet must be flat on the foot
plate and not hanging above it.
Ensure the area between the
base tilt plate is clear of
obstruction before and during
operation
To adjust the angle, hold the front
of the plate with your right hand
and reach underneath to the handle.
Pull the handle back whilst moving
the footplate to the required angle.
It is locked when the handle is
released.
