PART 2 HARDWARE

2.1 Mounting

2.1.1 Mounting the Wall Mount iServer

Position unit where required. Mark and drill holes as required.
If unit is to be mounted on a flat surface, you may take the bottom rubber feet off
the unit.
It is recommended that you ground your unit by wrapping a wire around the
mounting tab screw and tightening a lock washer so that it embeds itself into the
metal of the mounting tab.

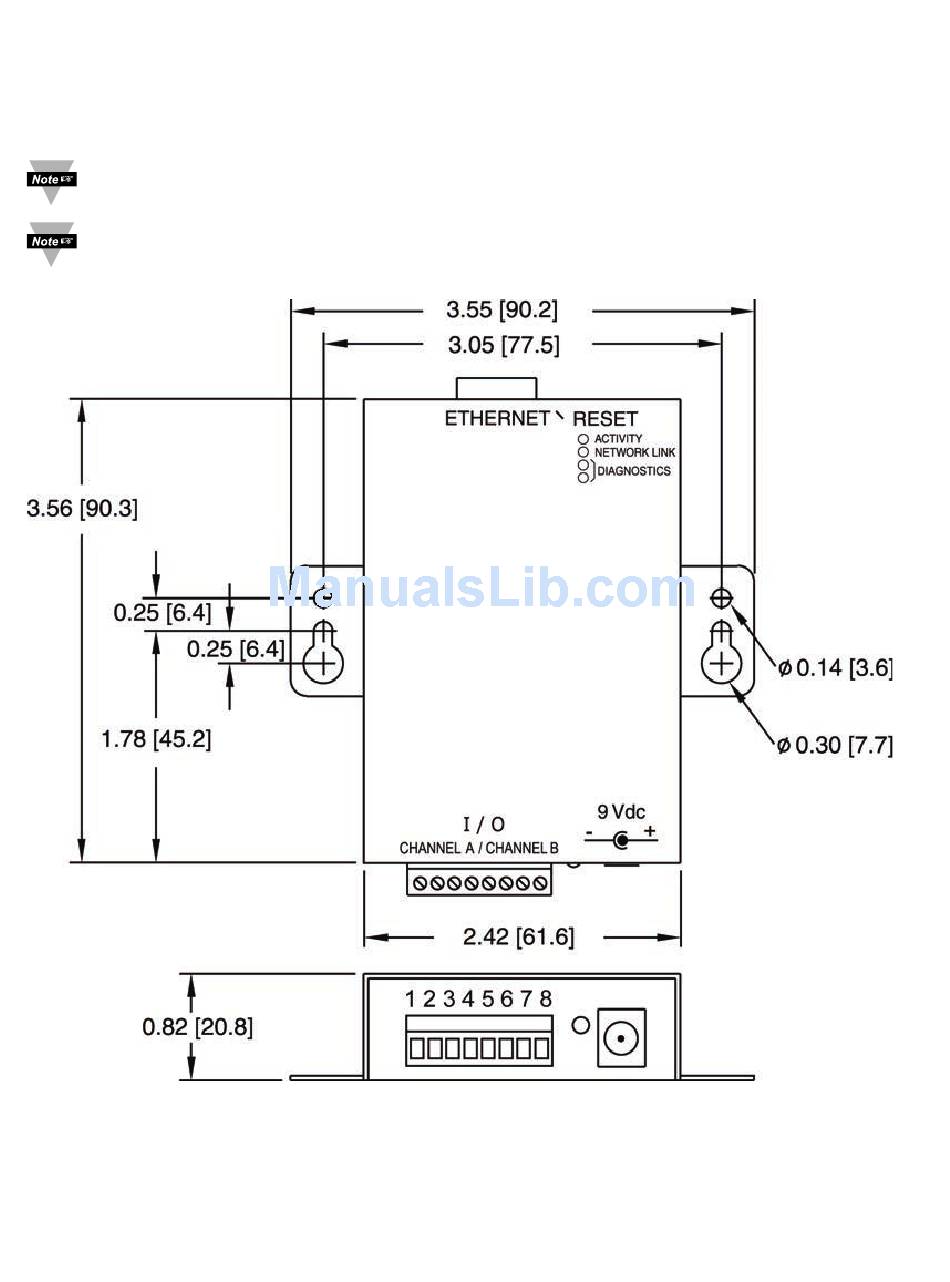

Figure 2.1 Mounting - Wall Mount iServer

3
