Revision
A
06/16/2011
FOR TECHNICAL SUPPORT
PLEASE CONTACT:
support@diamondsystems.com

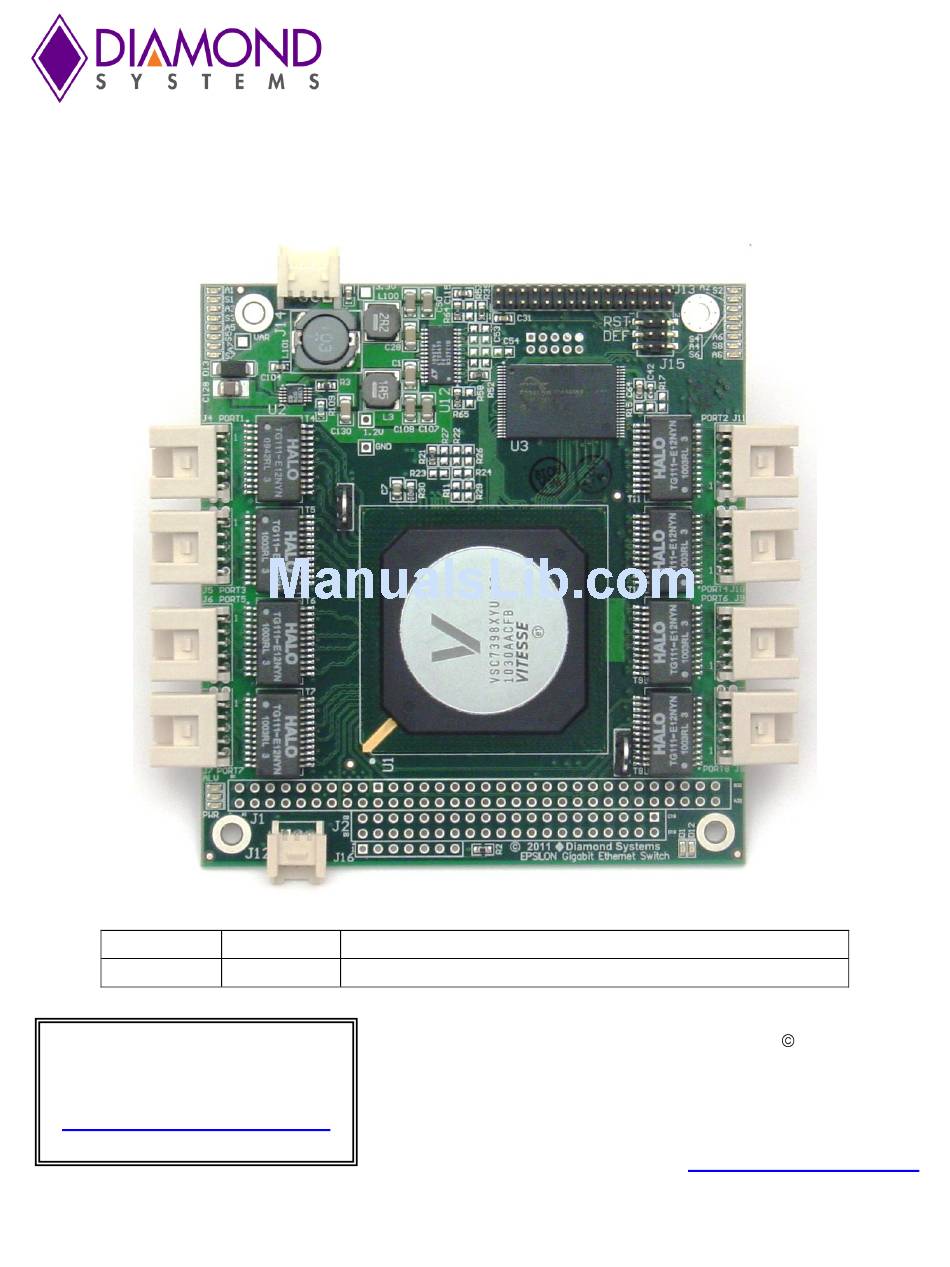

Epsilon User Manual
Managed 8-Port Gigabit Ethernet Switch
Date
Comment
Initial Release
Copyright 2011
Diamond Systems Corporation
555 Ellis Street
Mountain View, CA 94043 USA
Tel 1-650-810-2500
Fax 1-650-810-2525
www.diamondsystems.com
Advertisement
Table of Contents
Related Manuals for Diamond Systems Epsilon
Summary of Contents for Diamond Systems Epsilon
- Page 1 Epsilon User Manual Managed 8-Port Gigabit Ethernet Switch Revision Date Comment 06/16/2011 Initial Release Copyright 2011 FOR TECHNICAL SUPPORT Diamond Systems Corporation PLEASE CONTACT: 555 Ellis Street Mountain View, CA 94043 USA support@diamondsystems.com Tel 1-650-810-2500 Fax 1-650-810-2525 www.diamondsystems.com...
-
Page 2: Table Of Contents
VLAN configuration ..........................30 7.11.2 User Group Configuration ........................30 Web Interface ..............................31 Thermal Solutions............................32 Heatspreader .............................. 32 Heatsink ..............................33 10. Specifications ..............................34 Appendix A Default values ..........................35 www.diamondsystems.com Epsilon User Manual Revision A Page 2... -
Page 3: Important Safe Handling Information
This creates many opportunities for accidental damage during handling, installation and connection to other equipment. The list here describes common causes of failure found on boards returned to Diamond Systems for repair. This information is provided as a source of advice to help you prevent damaging your Diamond (or any vendor‟s) boards. -
Page 4: Introduction
RS-232 port or one of the Ethernet ports. Wide Power DC/DC Power Supply Epsilon can be powered through a wide voltage +7-36V DC/DC power supply input or a regulated +5VDC input. +5VDC power may also be provided through the PC/104 connector. -
Page 5: Mechanical And Environmental
6981052 Ethernet cable (1 per port) 6981050 Serial cable 6981051 Power cable PC/104™ and PC/104-Plus™ are trademarks of the PC/104 Embedded Consortium. All other trademarks are the property of their respective owners. www.diamondsystems.com Epsilon User Manual Revision A Page 5... -
Page 6: Functional Overview
Power can be provided through the +7-36VDC wide-range DC power supply built into the board, enabling use with industrial power sources. Epsilon can also be powered from a +5VDC input source, using either the main power connector or an optional connection to the PC/104 bus or PC/104-Plus (PCI) bus. -
Page 7: Board Outline And Layout
BOARD OUTLINE AND LAYOUT 4.1 Epsilon Board Drawing The following diagram shows the locations for all connectors and jumpers which are described in the next sections. Figure 2. Epsilon Top (Connectors and Jumpers) www.diamondsystems.com Epsilon User Manual Revision A Page 7... -
Page 8: Connector And Jumper List
Jumpers (see Jumper Block (J15) JTAG 5.2 Jumper Block (J15) The following table summarizes the functions of Epsilon‟s jumper block, J15. Refer to the drawing in Section 4 for the locations of J15 on Epsilon. Jumper Function J15 Pins 1&2 Reset: Install jumper to reset the switch 3&4... -
Page 9: Connector Pinout And Pin Description
6.1 PC/104 Connectors (J1 and J2) - Optional Connectors J1 and J2 are a special order option to provide a passthrough ISA bus which allows Epsilon to be incorporated into a PC/104 stack. Epsilon can also be powered from the ISA bus when these connectors are installed. -
Page 10: Pci Power (J3) - Optional
Connector J3 is a special order option to supply power via the PCI bus. In the pinout below, the pins are noted as Epsilon pin number / PCI standard pin number. The function are also listed as Epsilon signal/PCI standard signal, with only one name when the function is common (i.e., +5V or ground). -
Page 11: Led Status Signals (J13)
An on-board DC power supply converts the wide range +7-36VDC input, if present, down to +5VDC. 6.7 JTAG (J16) – Factory Use Only This connector provides a scan capability that is for factory use only. www.diamondsystems.com Epsilon User Manual Revision A Page 11... -
Page 12: Command Line Interface
The password is configurable. The password check may be disabled by setting the password to an empty string “”, in which case any password entered during login will be accepted. You may logout at any time and at any context level using the exit command. www.diamondsystems.com Epsilon User Manual Revision A Page 12... -
Page 13: Help Utility
Debug - Debug commands > console <enter> Console> ? <enter> Commands at Console level: Console Configuration Console Password [<password>] Console Timeout [<timeout>] Console Prompt [<prompt string>] ------ Console> password ? Syntax: Console Password [<password>] Description: www.diamondsystems.com Epsilon User Manual Revision A Page 13... -
Page 14: Entering Commands
The range is 1 to 5/8/12/16/24. <shared secret> A text string, with the purpose to ensure integrity for communication between a RADIUS server and the 802.1X switch authenticator. www.diamondsystems.com Epsilon User Manual Revision A Page 14... -
Page 15: Changing The Ip Address
Port MaxFrame [<portlist>] [<framesize>|reset] Port Statistics [<portlist>] [clear] Port Excessive Collisions Drop [enable|disable] Port VeriPHY [<portlist>] [full|anomaly|termination] MAC Configuration MAC Add <macaddress> <portlist>|none [<vid>] MAC Delete <macaddress> [<vid>] MAC Lookup <macaddress> [<vid>] MAC table <vidlist> www.diamondsystems.com Epsilon User Manual Revision A Page 15... - Page 16 QoS DiffServ [<portlist>] [<dscplist>] [low|high] QoS Userprio [<portlist>] [<tagprio>] QoS Storm Control [<traffic type>] [enable|disable] [<rate>] Mirror Configuration Mirror Port [<port>] Mirror Source [<portlist>] [enable|disable] IP Configuration IP Status IP Setup [<ipaddress> [<ipmask> [<ipgateway>]]] [<vid>] www.diamondsystems.com Epsilon User Manual Revision A Page 16...
-
Page 17: Detailed Command Description
Example 2, omitted parameter interpreted as default value (VLAN ID 1): Syntax: MAC Add <macaddress> <portlist> [<vid>] >mac add 010203ABCDEF 16 <enter> The following sections list the individual commands by showing the syntax and a description of each command. 7.10.1 System Commands www.diamondsystems.com Epsilon User Manual Revision A Page 17... - Page 18 [<community string>]: New community string. (default: Show current value). 7.10.1.9 SYSTEM TRAPCOMMUNITY Syntax: Trapcommunity [<community string>] Description: Set or show SNMP trap community string. [<community string>]: New community string. (default: Show current value). www.diamondsystems.com Epsilon User Manual Revision A Page 18...
-
Page 19: Console Commands
10hdx : 10 Mbit/s, half duplex. 10fdx : 10 Mbit/s, full duplex. 100hdx : 100 Mbit/s, half duplex. 100fdx : 100 Mbit/s, full duplex. 1000fdx: 1 Gbit/s, full duplex. auto : Auto negotiation of speed and duplex. www.diamondsystems.com Epsilon User Manual Revision A Page 19... -
Page 20: Mac Table Commands
(default: full). 7.10.4 MAC Table Commands 7.10.4.1 MAC CONFIGURATION Syntax: MAC Configuration Description: Show the permanently stored MAC table and the MAC ageing timer. www.diamondsystems.com Epsilon User Manual Revision A Page 20... -
Page 21: Vlan Commands
[<portlist>]: Port list (default: All ports). 7.10.5.2 VLAN ADD Syntax: VLAN Add <vidlist> [<portlist>] Description: Add VLAN entry and include ports in member set. <vidlist> : VLAN ID list. [<portlist>]: Port list (default: All ports). www.diamondsystems.com Epsilon User Manual Revision A Page 21... -
Page 22: Aggregation/Trunking Commands
7.10.6.1 AGGREGATION CONFIGURATION Syntax: Aggr Configuration Description: Shows the aggregation groups and the aggregation mode. 7.10.6.2 AGGREGATION ADD Syntax: Aggr Add <portlist> Description: Add link aggregation group including ports. <portlist>: Aggregation port list. www.diamondsystems.com Epsilon User Manual Revision A Page 22... -
Page 23: Lacp Commands
RSTP is a protocol that prevents loops in the network and dynamically reconfigures which physical links in a switch should forward frames. 7.10.8.1 RSTP CONFIGURATION Syntax: RSTP Configuration [<portlist>] Description: Show the RSTP Configuration. www.diamondsystems.com Epsilon User Manual Revision A Page 23... - Page 24 Description: Set or show the RSTP path cost for the designated ports. [<portlist>]: Port list (Default: All ports). [<pathcost>]: Number between 1 - 200000000. Auto means autogenerated pathcost Pathcost is normally reverse proportional to the physical (or aggregated) link speed. www.diamondsystems.com Epsilon User Manual Revision A Page 24...
-
Page 25: User Group Commands
Description: Show the configured QoS mode, IP ToS Precedence priority mapping, VLAN user priority map- ping, default priority, default VLAN user priority, L4 default priority, L4 match priority and UDP/ TCP entries for the port. [<portlist>] : Port list (default: All ports). www.diamondsystems.com Epsilon User Manual Revision A Page 25... -
Page 26: Mirror Commands
[<rate>] : Unit is 1982 frames per second. Allowed values are 1982, 2*1982, 3*1982, … 127*1982 7.10.11 Mirror Commands 7.10.11.1 MIRROR CONFIGURATION Syntax: Mirror Configuration Description: Show the mirror destination port and mirror mode for source ports. www.diamondsystems.com Epsilon User Manual Revision A Page 26... -
Page 27: Ip Commands
Syntax: IP Arp Description: Show the current content of the ARP table. 7.10.12.7 IP DHCP Syntax: IP Dhcp [enable|disable] Description: Activate or deactivate the DHCP Protocol. [enable|disable]: Enable/disable DHCP (default: Show DHCP mode). www.diamondsystems.com Epsilon User Manual Revision A Page 27... -
Page 28: Dot1X Commands
[<portlist>]: Port list (default: All ports). [now]: if specified, force re-authentication immediately. 7.10.13.9 DOT1X PARAMETERS Syntax: Dot1X Parameters [<parameter>] [<value>] Description: Set up advanced 802.1X parameters. [<parameter>]: Parameter to change. [<value>]: New value for the given parameter. www.diamondsystems.com Epsilon User Manual Revision A Page 28... -
Page 29: Igmp Snooping Commands
Description: Set or show forwarding mode for unregistered (not-joined) IP multicast traffic. Will flood when enabled, and forward to router-ports only when disabled (default: Show current mode) 7.10.15 Debug Commands The Debug commands are for factory use only. www.diamondsystems.com Epsilon User Manual Revision A Page 29... -
Page 30: Examples
The following CLI session does the above setup on a 8-port switch provided the initial configuration is the default configuration: >user group # Go to user group level User Group>delete 1 # Delete default user group 1 www.diamondsystems.com Epsilon User Manual Revision A Page 30... -
Page 31: Web Interface
The web interface offers an alternate user interface to the CLI. The web interface is in-band and requires use of one of the Ethernet ports. This port provides simultaneous web management and normal usage. The same commands with the same functionality can be accessed via either interface. Refer to Section 7: www.diamondsystems.com Epsilon User Manual Revision A Page 31... - Page 32 Example on enabling the WEB interface via the command line interface: >ip setup 10.10.129.189 255.255.252.0 10.10.128.14 1 >ip mode enable The web interface and any Ethernet traffic to the internal microcontroller is limited to a size of 1472 bytes. www.diamondsystems.com Epsilon User Manual Revision A Page 32...
-
Page 33: Thermal Solutions
For the full temperature range (-40°C to +85°C) the recommended solution is the conduction cooling heatspreader plate shown in Figure 3. The plate attaches to Epsilon using the four #4-40 holes in the corner that are also used to attach the board to another PC/104 board. The four #6-32 holes in the plate are used to attach it to the enclosure wall. -
Page 34: Heatsink
Figure 4. The heatsink has a lower profile and is better adapted to removing heat from the board when there is airflow. Figure 4. Epsilon Heatsink www.diamondsystems.com Epsilon User Manual Revision A Page 34... -
Page 35: Specifications
Time for all ports to start passing data after power-on, power cycle, or reboot <30 sec. (typical 24-26 sec.) Time for all ports to start passing data after restoring factory defaults 8 sec. www.diamondsystems.com Epsilon User Manual Revision A Page 35... -
Page 36: Appendix Adefault Values
Agetime: 300 VLAN Configuration: Port Aware PVID Ingress Filtering Frame Type disabled disabled disabled disabled disabled disabled disabled disabled disabled disabled disabled disabled disabled disabled disabled disabled Entries in permanent table: 1,2,3,4,5,6,7,8 www.diamondsystems.com Epsilon User Manual Revision A Page 36... - Page 37 Epsilon User Manual Revision A Page 37...
- Page 38 ForceAuthorized 802.1X Disabled ForceAuthorized 802.1X Disabled ForceAuthorized 802.1X Disabled RADIUS Configuration: Server: 0.0.0.0 UDP Port: 1812 Secret: IGMP Configuration: Mode: disabled IGMP Snooping Querier enabled enabled Router ports: None Unregistered Flood: enabled www.diamondsystems.com Epsilon User Manual Revision A Page 38...
