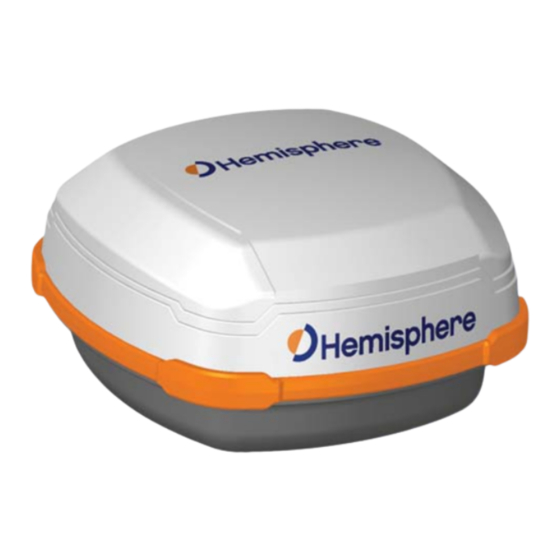

Hemisphere GPS A222 User Manual

Hemisphere GPS A222 User Manual

Smart antenna

Advertisement

875-0364-0
User Guide
Revision: A1
August 01, 2017
A222™
Smart Antenna

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A222 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hemisphere GPS A222

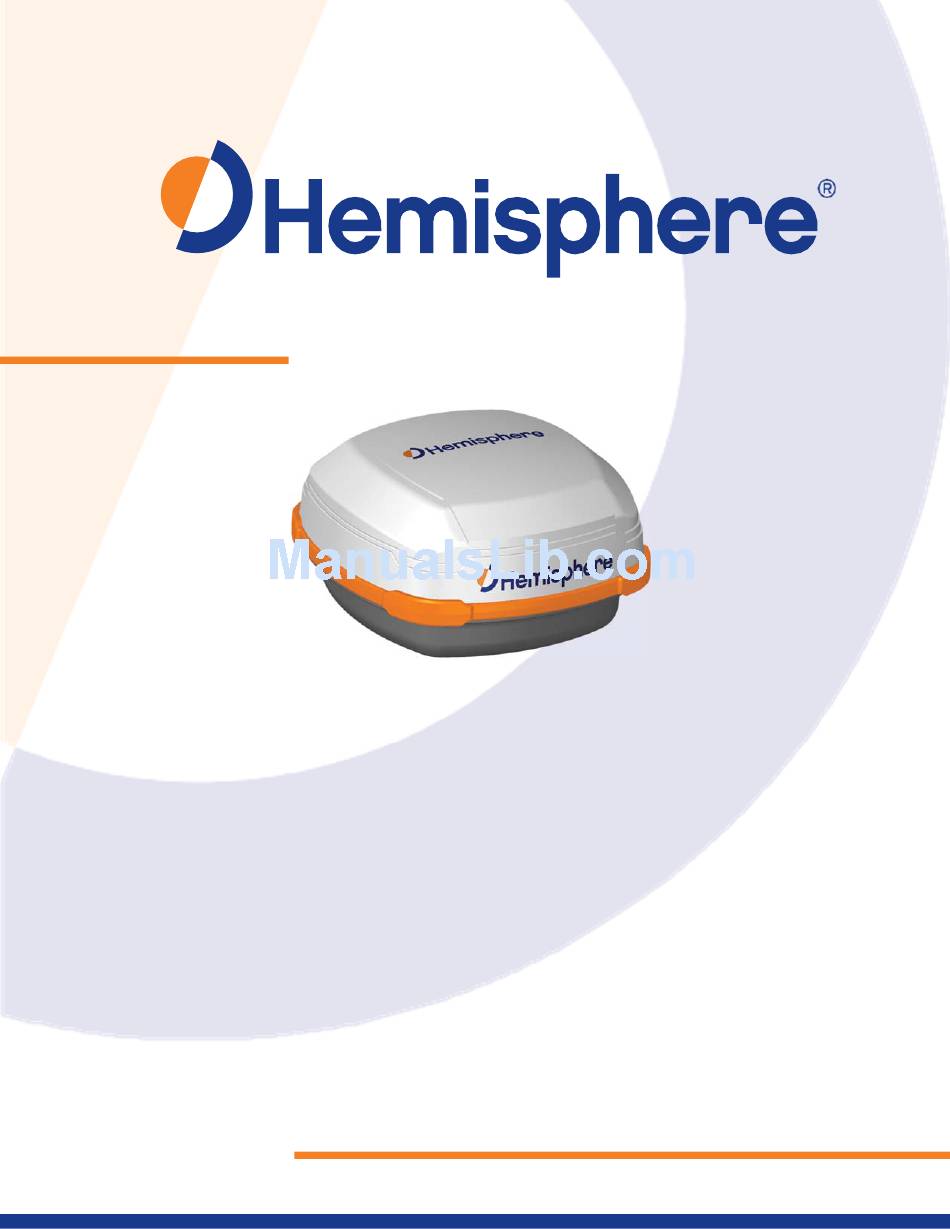

  • Page 1 875-0364-0 A222™ Smart Antenna User Guide Revision: A1 August 01, 2017...
  • Page 2: Trademarks

    This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 3: Table Of Contents

      Power Considerations ..........................10   Connecting to a Power Source ......................10   Power/Data Connector ........................... 10   Chapter 3: Using A222 ..............................12   Using A222 ................................... 13   GNSS Operation ................................. 13   Automatic Tracking ..........................13  ...
  • Page 4 Auto-Seed .............................. 14   Appendix A: Troubleshooting ............................15   Appendix B: Technical Specifications .......................... 17  ...
  • Page 5: Chapter 1: Introduction

    Chapter 1: Introduction Overview Key Features Parts List Product Support A222 User Guide Chapter 1 - Introduction Page 1 of 20...
  • Page 6: Introduction

    The A222 is a multi-GNSS RTK, high accuracy GNSS receiver that allows you to work quickly and accurately. Built on Hemisphere GNSS’ Eclipse™ platform, A222 boasts the latest GNSS patented technology and offers quick startup and reacquisition times.
  • Page 7: Key Features

    Power/data cable (single DB9), 3 m 051-0129-002 Power/data cable (unterminated), 4.6 m 051-0169-000 Product Support If you have questions regarding the setup, configuration, or operation of A222, contact your local dealer. For additional support information see “Technical Support”. A222 User Guide...
  • Page 8: Chapter 2: Installation

    Chapter 2: Installation Display, Mounting, and Connectors LED Display Mounting A222 Powering A222 A222 User Guide Chapter 2 – Installation Page 4 of 20...
  • Page 9: Installation

    1” standard, adaptable to 5/8”. The second allows for flush mounting the unit. Power, data port (12- External power/data cable; allows you to supply power to A222 as pin) well as communicate with external devices via NMEA 0183 serial, and binary.
  • Page 10: Led Display

    LED Display A222 uses a single LED (see Figure 2-1) that provides system information based on the color of the LED as follows: • Blinking Red - Power on • Blinking Amber - GNSS position available, including RTK float and Atlas •...
  • Page 11: Surface Mount

    Surface Mount You can surface-mount A222 with four machine screws (no. 8-32). Figure 2-2: A222 Top/Bottom A222 User Guide Chapter 2-Installation Page 7 of 20...
  • Page 12 3. Mark the mounting hole centers on the mounting surface. 4. Place A222 surface mount over the marks to ensure the planned hole centers align with the true hole centers (adjusting as necessary).
  • Page 13: Pole Mount

    Pole Mount The center thread on the bottom of A222 is 1-14 UNS. The mounting assembly included with A222 includes a 5/8-11 UNC adapter. Simply thread the riser/pole into the antenna until snug. Figure 2-4: Pole Mount Hand-tighten only (screws 10-12 in-lbs; pole 35-40 in-lbs.) . Damage resulting from over-tightening is not covered by the warranty.
  • Page 14: Powering A222

    Powering A222 Power Considerations A222 accepts an input voltage of 8-32 VDC. For best performance use a clean and continuous power supply. When applying 12 VDC, A222 will draw approximately 3.2W. Connecting to a Power Source A222 uses a single cable for power and data input/output.
  • Page 15 Black Speed out Green Note: For successful communication, the baud rate of the A222 serial ports (Port A and Port B) must be set to match that of the connected devices. A222 User Guide Chapter 2-Installation Page 11 of 20...
  • Page 16: Chapter 3: Using A222

    Chapter 3: Using A222 GNSS Operation Differential Operation Default Parameters Configuring the A222 A222 User Guide Chapter 3 – Using A222 Page 12 of 20...
  • Page 17: Using A222

    The A222 works by finding four or more GNSS satellites in the visible sky and uses information from the satellites to compute a position within 2.4 m. Since there is some error in the GNSS data calculations, the A222 also tracks a differential correction.
  • Page 18: Default Parameters

    NMEA 2000 data message to output on the dual serial ports and the update rate of each message Note: Use the $JSAVE command to save changes you make to the A222’s configuration for the changes to be present in subsequent power cycles.
  • Page 19: Appendix A: Troubleshooting

    Appendix A: Troubleshooting A222 User Guide Appendix A- Troubleshooting Page 15 of 20...
  • Page 20 Appendix A: Troubleshooting Table A-1 provides a list of issues with possible solutions to help you troubleshoot anomalous A222 operation. Table A-1: Troubleshooting Issue Possible Solution Receiver fails to power Verify polarity of power leads  Check integrity of power cable connections ...
  • Page 21: Appendix B: Technical Specifications

    Appendix B: Technical Specifications A222 User Guide Appendix B-Technical Specifications Page 17 of 20...
  • Page 22 Appendix B: Technical Specifications Table B-1 through Table B-7 provides the GNSS sensor, horizontal accuracy, L-Band sensor, communication, power, environmental, and mechanical specifications for the A222.   Table B-1: GNSS Sensor Specifications Item Specification Receiver type GNSS L1, G1 (Standard) GNSS L2, L-band, RTK (optional)
  • Page 23 Table B-7: Mechanical Specifications Item Specification Dimensions 15.8 L x 15.8 W x 7.9 H (cm) 6.2 L x 6.2 W x 3.2 H (in) Weight <1.05 kg (<2.30 lbs) Appendix B-Technical Specifications A222 User Guide Page 19 of 20...
  • Page 24 Depends on multipath environment, number of satellites in view, satellite geometry and ionospheric activity Depends also on baseline length Requires a subscription for Atlas Receive only, does not transmit this format Appendix B-Technical Specifications A222 User Guide Page 20 of 20...
  • Page 25     End User License Agreement  IMPORTANT ‐ This is an agreement (the "Agreement") between you, the end purchaser ("Licensee") and Hemisphere GNSS Inc. ("Hemisphere") which permits Licensee to use the  Hemisphere software (the "Software") that accompanies this Agreement. This Software may be licensed on a standalone basis or may be embedded in a Product. Please read and ensure  that you understand this Agreement before installing or using the Software Update or using a Product.    In this agreement any product that has Software embedded in it at the time of sale to the Licensee shall be referred to as a "Product". As well, in this Agreement, the use of a Product shall  be deemed to be use of the Software which is embedded in the Product.    BY INSTALLING OR USING THE SOFTWARE UPDATE OR THE PRODUCT, LICENSEE THEREBY AGREES TO BE LEGALLY BOUND BY THE TERMS OF THIS AGREEMENT. IF YOU DO NOT AGREE TO  THESE TERMS, (I) DO NOT INSTALL OR USE THE SOFTWARE, AND (II) IF YOU ARE INSTALLING AN UPDATE TO THE SOFTWARE, DO NOT INSTALL THE UPDATE AND PROMPTLY DESTROY IT.    HEMISPHERE PROVIDES LIMITED WARRANTIES IN RELATION TO THE SOFTWARE. AS WELL, THOSE WHO USE THE EMBEDDED SOFTWARE DO SO AT THEIR OWN RISK. YOU SHOULD  UNDERSTAND THE IMPORTANCE OF THESE AND OTHER LIMITATIONS SET OUT IN THIS AGREEMENT BEFORE INSTALLING OR USING THE SOFTWARE OR THE PRODUCT.    LICENSE. Hemisphere hereby grants to Licensee a non‐transferable and non‐exclusive license to use the Software as embedded in a Product and all Updates (collectively the  "Software"), solely in binary executable form.  RESTRICTIONS ON USE. Licensee agrees that Licensee and its employees will not directly or indirectly, in any manner whatsoever:  install or use more copies of the Software than the number of copies that have been licensed;  use or install the Software in connection with any product other than the Product the Software was intended to be used or installed on as set out in the documentation that  accompanies the  S oftware.  copy any of the Software or any written materials for any purpose except as part of Licensee's normal backup processes;  modify or create derivative works based on the  S oftware;  sub‐license, rent, lease, loan or distribute the Software;  permit any third party to use theSoftware;  use or operate Product for the benefit of any third party in any type of service outsourcing, application service, provider service or service bureau capacity;  reverse engineer, decompile or disassemble the Software or otherwise reduce it to a human perceivable form;  Assign this Agreement or sell or otherwise transfer the Software to any other party except as part of the sale or transfer of the wholeProduct.  UPDATES. At Hemisphere's discretion Hemisphere may make Updates available to Licensee. An update ("Update") means any update to the Software that is made available to  Licensee including error corrections, enhancements and other modifications. Licensee may access, download and install Updates during the Warranty Period only. All Updates  that Licensee downloads, installs or uses shall be deemed to be Software and subject to this Agreement. Hemisphere reserves the right to modify the Product without any  obligation to notify, supply or install any improvements or alterations to existing Software.  SUPPORT. Hemisphere may make available directly or through its authorized dealers telephone and email support for the Software. Contact Hemisphere to find the authorized  dealer near you. As well, Hemisphere may make available user and technical documentation regarding the Software. Hemisphere reserves the right to reduce and limit access to  such support at anytime.  BACKUPS AND RECOVERY. Licensee shall back‐up all data used, created or stored by the Software on a regular basis as necessary to enable proper recovery of the data and ...
  • Page 26   exclusion may not apply to Licensee and Licensee may also have other legal rights which may vary from jurisdiction to jurisdiction.  BASIS OF BARGAIN. Licensee agrees and acknowledges that Hemisphere has set its prices and the parties have entered into this Agreement in reliance on the limited warranties,  warranty disclaimers and limitations of liability set forth herein, that the same reflect an agreed‐to allocation of risk between the parties (including the risk that a remedy may fail  of its essential purpose and cause consequential loss), and that the same forms an essential basis of the bargain between the parties. Licensee agrees and acknowledges that  Hemisphere would not have been able to sell the Product at the amount charged on an economic basis without such limitations.  PROPRIETARY RIGHTS INDEMNITY. Hemisphere shall indemnify, defend and hold harmless Licensee from and against any and all actions, claims, demands, proceedings, liabilities,  direct damages, judgments, settlements, fines, penalties, costs and expenses, including royalties and attorneys' fees and related costs, in connection with or arising out of any actual  infringement of any third party patent, copyright or other intellectual property right by the Software or by its use, in accordance with this Agreement and documentation, PROVIDED  THAT: (a) Hemisphere has the right to assume full control over any action, claim, demand or proceeding, (b) Licensee shall promptly notify Hemisphere of any such action, claim,  demand, or proceeding, and (c) Licensee shall give Hemisphere such reasonable assistance and tangible material as is reasonably available to Licensee for the defense of the  action, claim, demand or proceeding. Licensee shall not settle or compromise any of same for which Hemisphere has agreed to assume responsibility without Hemisphere's prior  written consent. Licensee may, at its sole cost and expense, retain separate counsel from the counsel utilized or retained by Hemisphere.  INFRINGEMENT. If use of the Software may be enjoined due to a claim of infringement by a third party then, at its sole discretion and expense, Hemisphere may do one of the  following: (a) negotiate a license or other agreement so that the Product is no longer subject to such a potential claim, (b) modify the Product so that it becomes non‐ infringing,  provided such modification can be accomplished without materially affecting the performance and functionality of the Product, (c) replace the Software, or the Product, with  non‐infringing software, or product, of equal or better performance and quality, or (d) if none of the foregoing can be done on a commercially reasonable basis, terminate this  license and Licensee shall  s top using the Product and Hemisphere shall refund the price paid by Licensee less an amount on account of amortization, calculated on a straight‐line  basis over a deemed useful life of three (3) years.  The foregoing sets out the entire liability of Hemisphere and the sole obligations of Hemisphere to Licensee in respect of any claim that the Software or its use infringes any third  party rights.    INDEMNIFICATION. Except in relation to an infringement action, Licensee shall indemnify and hold Hemisphere harmless from any and all claims, damages, losses, liabilities, costs  and expenses (including reasonable fees of lawyers and other professionals) arising out of or in connection with Licensee's use of the Product, whether direct or indirect, including  without limiting the foregoing, loss of data, loss of profit or business interruption. TERMINATION. Licensee may terminate this Agreement at any time without cause. Hemisphere  may terminate this Agreement on 30 days notice to Licensee if Licensee fails to materially comply with each provision of this Agreement unless such default is cured within the 30  days. Any such termination by a party shall be in addition to and without prejudice to such rights and remedies as may be available, including injunction and other equitable  remedies. Upon receipt by Licensee of written notice of termination from Hemisphere or termination by Licensee, Licensee shall at the end of any notice period (a) cease using the  Software; and (b) return to Hemisphere (or destroy and provide a certificate of a Senior Officer attesting to such destruction) the Software and all related material and any  magnetic or optical media provided to Licensee. The provisions of Sections 6), 7), 8), 9), 10), 15), 21), 26) and 27) herein shall survive the expiration or termination of this Agreement  for any reason.  EXPORT RESTRICTIONS. Licensee agrees that Licensee will comply with all export control legislation of Canada, the United States, Australia and any other applicable country's laws  and regulations, whether under the Arms Export Control Act, the International Traffic in Arms Regulations, the Export Administration Regulations, the regulations of the United  States Departments of Commerce, State, and Treasury, or otherwise as well as the export control legislation of all other countries.  PRODUCT COMPONENTS. The Product may contain third party components. Those third party components may be subject to additional terms and conditions. Licensee is required to  agree to those terms and conditions in order to use the  P roduct.  FORCE MAJEURE EVENT. Neither party will have the right to claim damages as a result of the other's inability to perform or any delay in performance due to unforeseeable ...
  • Page 27: Warranty Notice

      Warranty Notice COVERED PRODUCTS: This warranty covers all products manufactured by Hemisphere GNSS and purchased by the end purchaser (the "Products"), unless otherwise specifically and  expressly agreed in writing by Hemisphere GNSS.  LIMITED WARRANTY: Hemisphere GNSS warrants solely to the end purchaser of the Products, subject to the exclusions and procedures set forth below, that the Products sold to such  end purchaser and its internal components shall be free, under normal use and maintenance, from defects in materials, and workmanship and will substantially conform to Hemisphere  GNSS's applicable specifications for the Product, for a period of 12 months from delivery of such Product to such end purchaser (the ”Warranty Period”). Repairs and replacement  components for the Products are warranted, subject to the exclusions and procedures set forth below, to be free, under normal use and maintenance, from defects in material and  workmanship, and will substantially conform to Hemisphere GNSS's applicable specifications for the Product, for 90 days from performance or delivery, or for the balance of the original  Warranty Period, whichever is greater.  EXCLUSION OF ALL OTHER WARRANTIES. The LIMITED WARRANTY shall apply only if the Product is properly and correctly installed,  c onfigured, interfaced,  m aintained, stored,  a nd operated in  accordance with Hemisphere GNSS's relevant User’s Manual and Specifications, AND the Product is not modified or misused. The Product is provided “AS IS” and the implied warranties of  MERCHANTABILITY and FITNESS FOR A PARTICULAR PURPOSE and ALL OTHER WARRANTIES,  express, implied or arising by statute, by course of dealing or by trade usage, in connection with the design, sale, installation, service or use of any products or any component thereof,  are EXCLUDED from this transaction and shall not apply to the Product. The LIMITED WARRANTY is IN LIEU OF any other warranty, express or implied, including but not limited to, any  warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE, title, and non‐infringement.  LIMITATION OF REMEDIES. The purchaser’s EXCLUSIVE REMEDY against Hemisphere GNSS shall be, at Hemisphere GNSS's option, the repair or replacement of any defective Product  or components thereof. The purchaser shall notify Hemisphere GNSS or a Hemisphere GNSS's approved service center immediately of any defect. Repairs shall be made through a  Hemisphere GNSS approved service center only. Repair, modification or service of Hemisphere GNSS products by any party other than a Hemisphere GNSS approved service center  shall render this warranty null and void. The remedy in this paragraph shall only be applied in the event that the Product is properly and correctly installed, configured, interfaced,  maintained, stored, and operated in accordance with Hemisphere GNSS's relevant User’s Manual and Specifications, AND the Product is not modified or misused. NO OTHER REMEDY  (INCLUDING,  B UT NOT LIMITED TO,  S PECIAL,  I NDIRECT,  I NCIDENTAL, CONSEQUENTIAL OR CONTINGENT DAMAGES FOR LOST PROFITS, LOST SALES, INJURY TO PERSON OR PROPERTY, OR ANY  OTHER INCIDENTAL OR CONSEQUENTIAL LOSS) SHALL BE  A VAILABLE  TO PURCHASER, even if Hemisphere GNSS has been advised of the possibility of such damages. Without limiting the foregoing, Hemisphere GNSS shall not be liable for any ...
