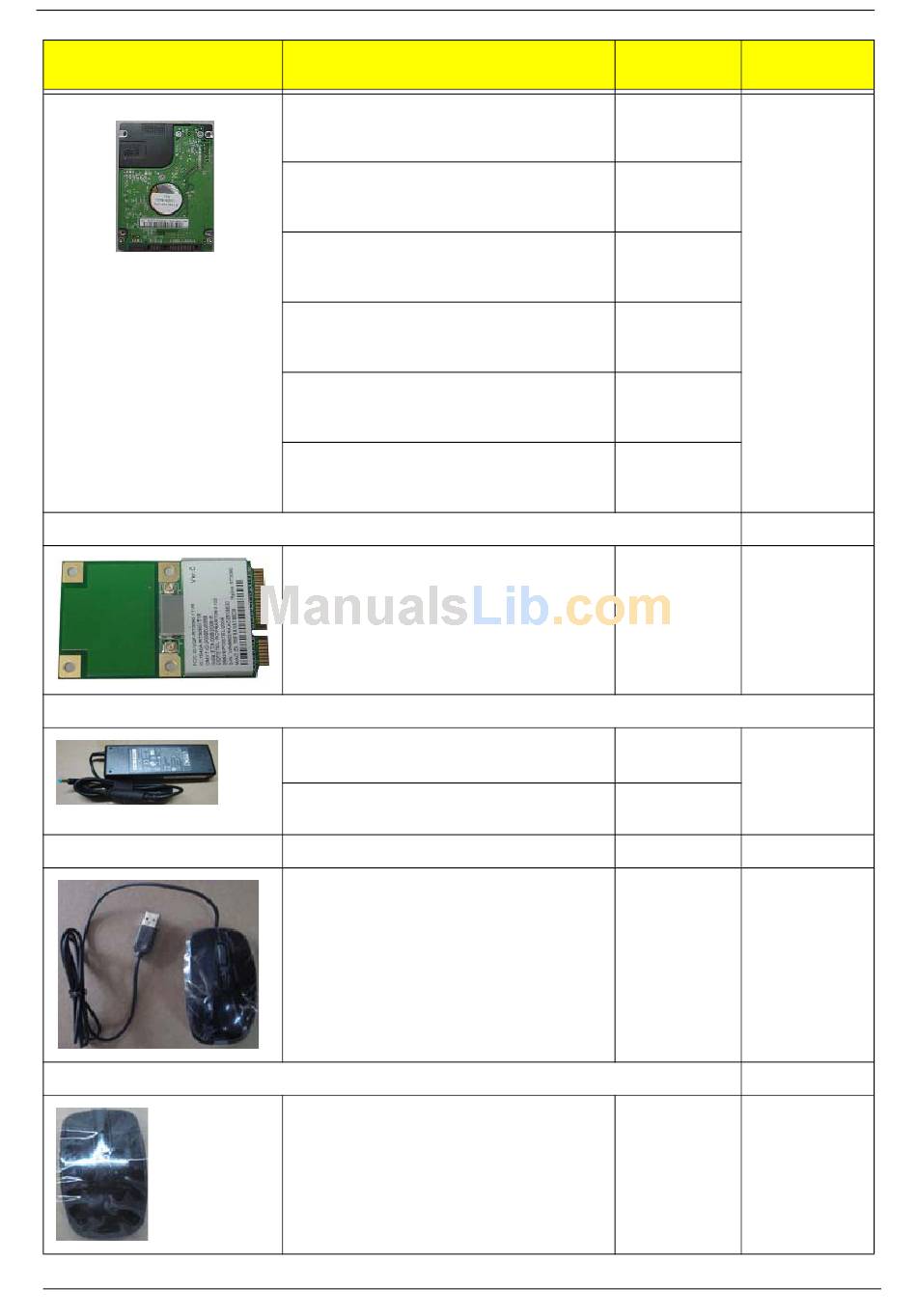

Acer Aspire R3700 Service Manual page 62

Category
Wireless LAN (mini-card)
Adapter
USB Mouse
RF Mouse
56
Description
"HDD HGST 2.5"" 5400rpm 160GB
HTS545016B9A300 Panther B SATA LF F/
W:C60F Disk imbalance criteria = 0.0"
"HDD WD 2.5"" 5400rpm 160GB
WD1600BEVT-22A23T0 , WD, ML320S SATA
8MB LF F/W:01.01A01 "
"HDD HGST 2.5"" 5400rpm 250GB
HTS545025B9A300 Panther B SATA LF F/
W:C60F Disk imbalance criteria = 0.0"
"HDD HGST 2.5"" 5400rpm 320GB
HTS545032B9A300 Panther B SATA LF F/
W:C60F Disk imbalance criteria = 0.0"
"HDD WD 2.5"" 5400rpm 320GB
WD3200BEVT-22A23T0,ML320S,WD SATA
8MB LF F/W:01.01A01 "
"HDD HGST 2.5"" 5400rpm 500GB
HTS545050B9A300 Panther B SATA LF F/
W:C60F Disk imbalance criteria = 0.0 "
Lite-On WN6602R, Ralink RT3090 WLAN Lite-
On WN6602R, Ralink RT3090, 802.11b/g/n
1x1 WLAN (mini-card) Full Size
ADP-65JH DBA (LV5)
Adapter HIPRO 65W 19V 1.7x5.5x11 Yellow
HP-A0652R3B 2LF, LV5 (for DT) LED LF
Logitech optical mouse USB M-U0005 Black
black mouse RF2.4 MGR0919 with Receiver
Exploded
Part Number
Diagram Item
KH.16007.026 N/A
KH.16008.027
KH.25007.016
KH.32007.008
KH.32008.019
KH.50007.010
NI.10200.035 N/A
AP.06501.026 N/A
AP.0650A.014
MS.11200.057 N/A
MS.11200.059 N/A
Chapter 6
