4. Installation

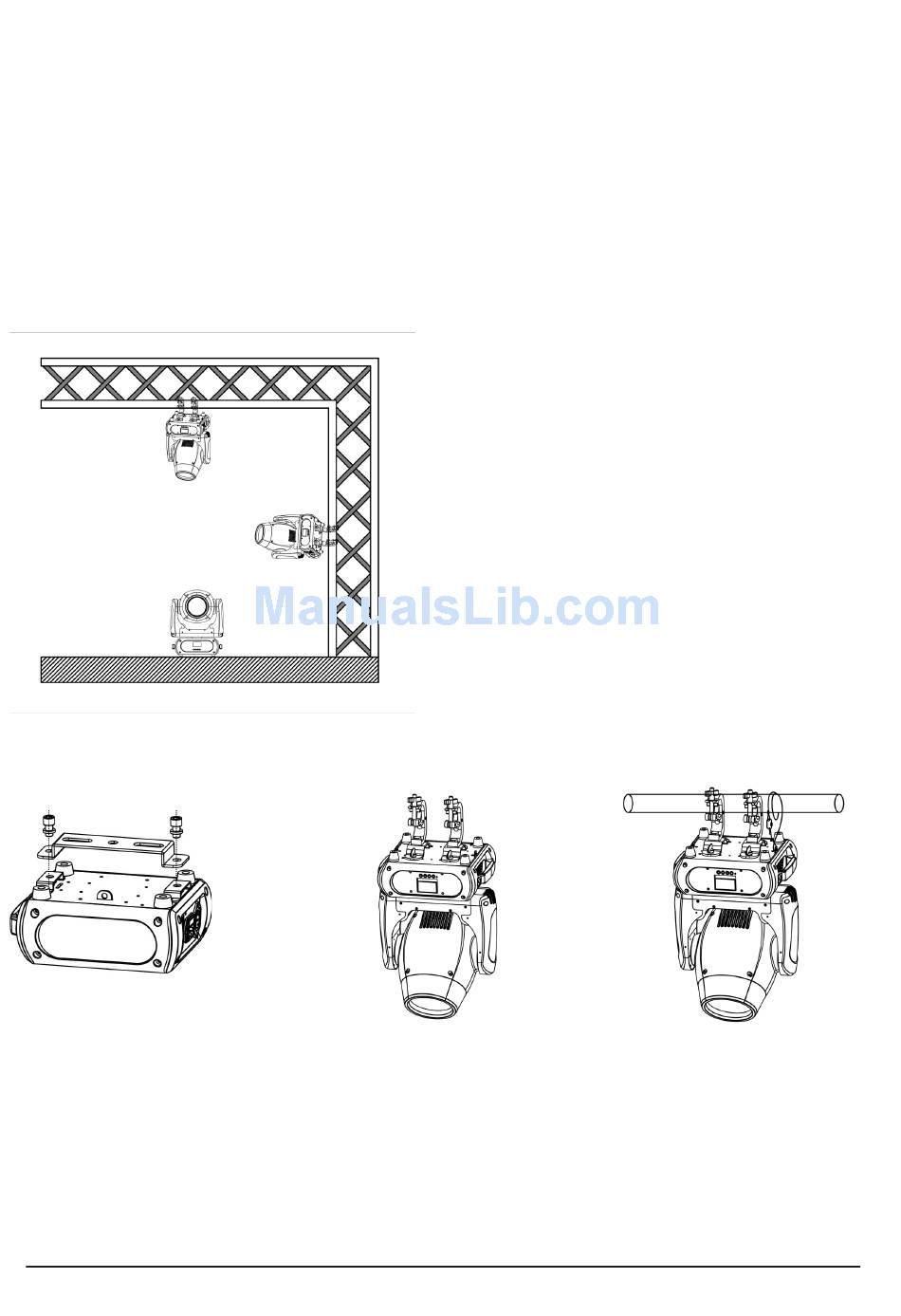

The device could be either put on a solid and even Surface,
or mounted upside down or sideways like left picture.
The mounting place must be sufficient stable and be able
to support a weight of 10 times of the unit's weight. When
the fixture is hanged, always additionally secure the device
with the safety chain, fasten the safety rope at a suitable po-
sition so that the maximum fall of the projector will be 20 cm
How to do mounting installation
Step one: Installation the clamp onto the bracket;
Step two: Install the clamp and bracket on the bottom of
panel, fasten the quick-locks;
Step three: Install the whole device onto appropriate
truss and fasten the clamps, tight the safety rope with the
truss or other fixing point at a suitable position that drop
down distance not exceed 20 cm.
ENGLISH VERSION
P. 9
ION 280F
