Chapter 4
Hardware installation
4.2. Chassis Frame Installation
Remove the protective cover and
prepare the items:

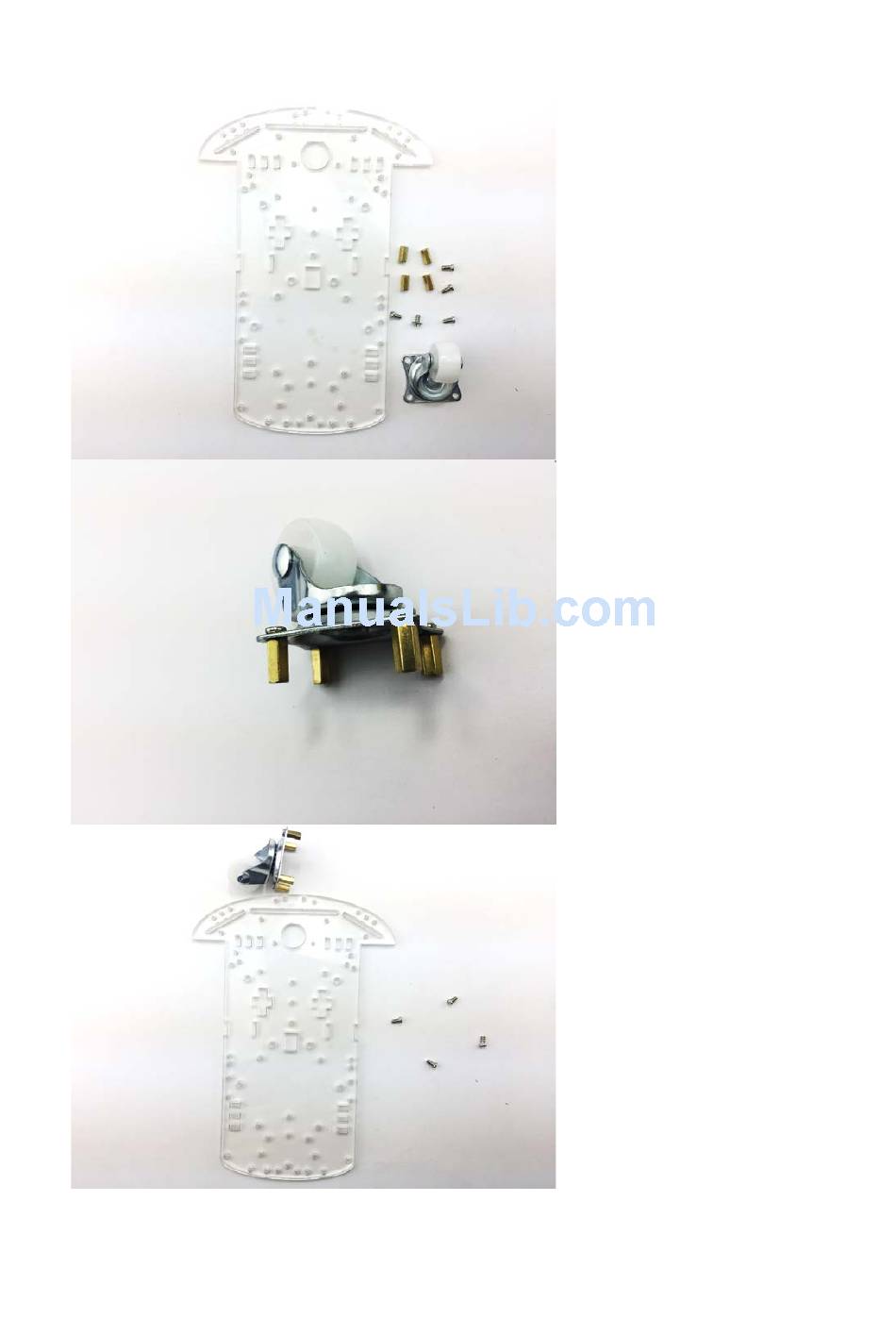

Assemble the M3*10 spacers and
M3*6 screws onto the Metal Pivot
Wheel
6
1. 4 x M3 6mm Screws
2. 4 x M3 10mm Spacers
3. 4 x M3 6mm screws
4. Metal Pivot Wheel
