Chapter 4
Hardware installation

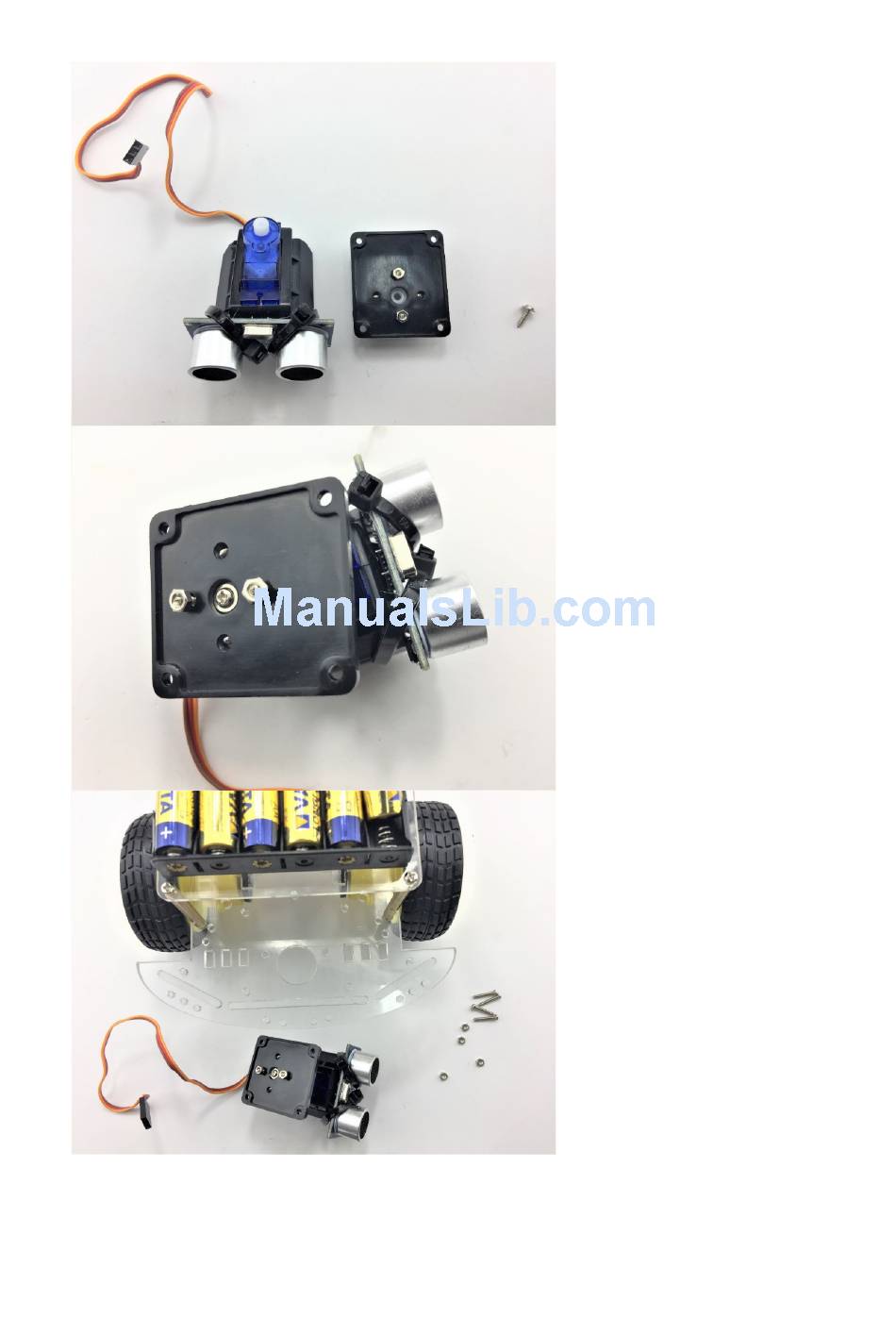

Prepare the Self-tapping screw
in the Servo package and tighten
the sensor part with servo rack
It should look like this
Gather four M2.5 screws and
corresponding nuts in the FPV
package to secure to the bottom
chassis
