Chapter 4
Hardware installation
4.3. Arduino Installation
Let's fix the Arduino UNO and Sensor shield in the following steps.

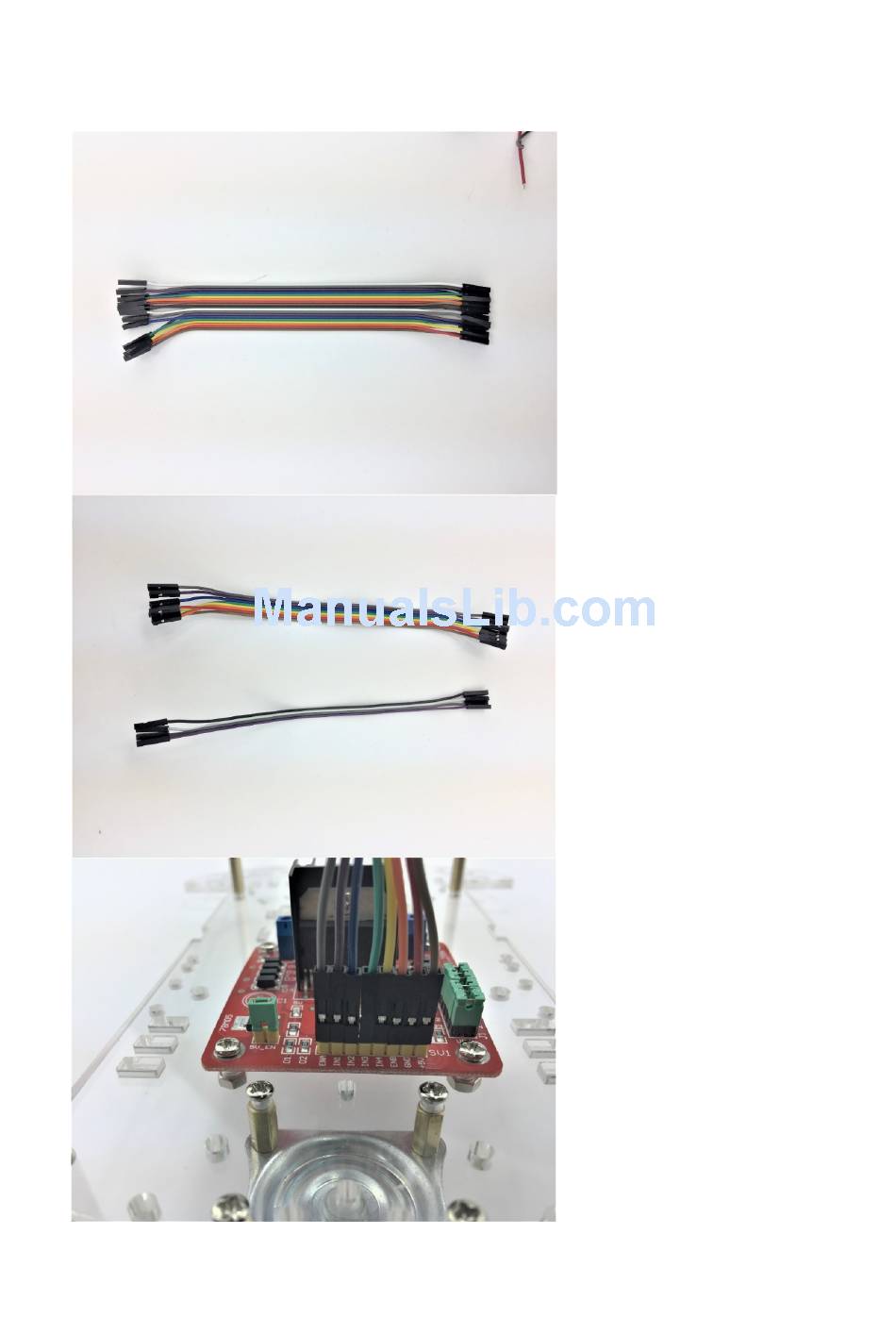

Prepare the jumper cables
Separate the jumper cable set
into four and eight
configurations
Connect the 8 jumpers with
L289N board as shown.
Please Note: The 8 Jumper
cables will eventually attach to
the Sensor Expansion Board
from the L289N board a few
steps from now. Please leave the
opposite side free for the
following steps.
12
