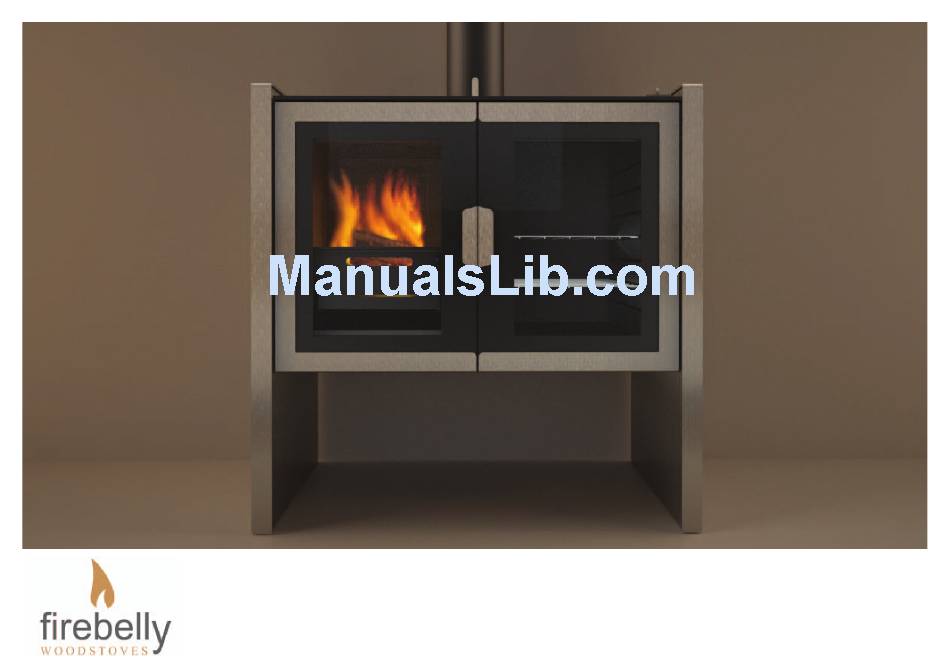

Page 1: Operating Instructions
Operating Instructions Razen CS1 Cookstove... - Page 2 General notes • All local regulations, including those referring to national and European standards need to be complied with when installing this cookstove. • Check all parts are fitted correctly including firebricks and hotplate before lighting the cookstove. • On first lighting the stove may produce some fumes as the stove paint cures. Open windows as necessary to allow the fumes to clear.
- Page 3 Controls Clearances from combustible materials Any adjacent combustible material should be far enough away from the cooking stove so as not to rise 60°C above the room temperature when the cooking stove is in operation. The minimum required clearance to combustible material is: at the sides 500mm at the back...
- Page 4 Lighting and operation Open the air inlet control fully and move the selector switch to point to the hotspot. Open the fire door and light a small fire at the back of the firebox using paper and kindling and close the door. As the fire takes hold add more wood gradually.
- Page 5 Cleaning The hotplate should be wiped down with cooking oil beofre each time it is used for the first few times. This will help to season the hotplate and prevent any food spillages sticking. Cooking oil will also prevent rust forming on the hotplate if it is to be unused for a long period.
- Page 6 Fault finding Symptom: Low flue draught. The cookstove is difficult to light and smoke comes into the room. Possible cause Solution Obstruction in the stove or chimney Clear the chimney and flue ways, check position of firebricks Cold chimney Insulate or line the chimney Chimney too short Extend the chimney Down Draught...
- Page 7 BS EN 12815:2001 Maximum log length mm Requirements to maintain nominal heat output of 10.6kW: Refuelling period hrs Mass of wood per refuel (test fuel beech) kg Flue draught Pascals Firebelly Stoves Ltd Unit 16, Slaithwaite, Huddersfield, West Yorkshire, HD7 5HA, UK...
