Summary of Contents for Schumacher Electric OBD-L

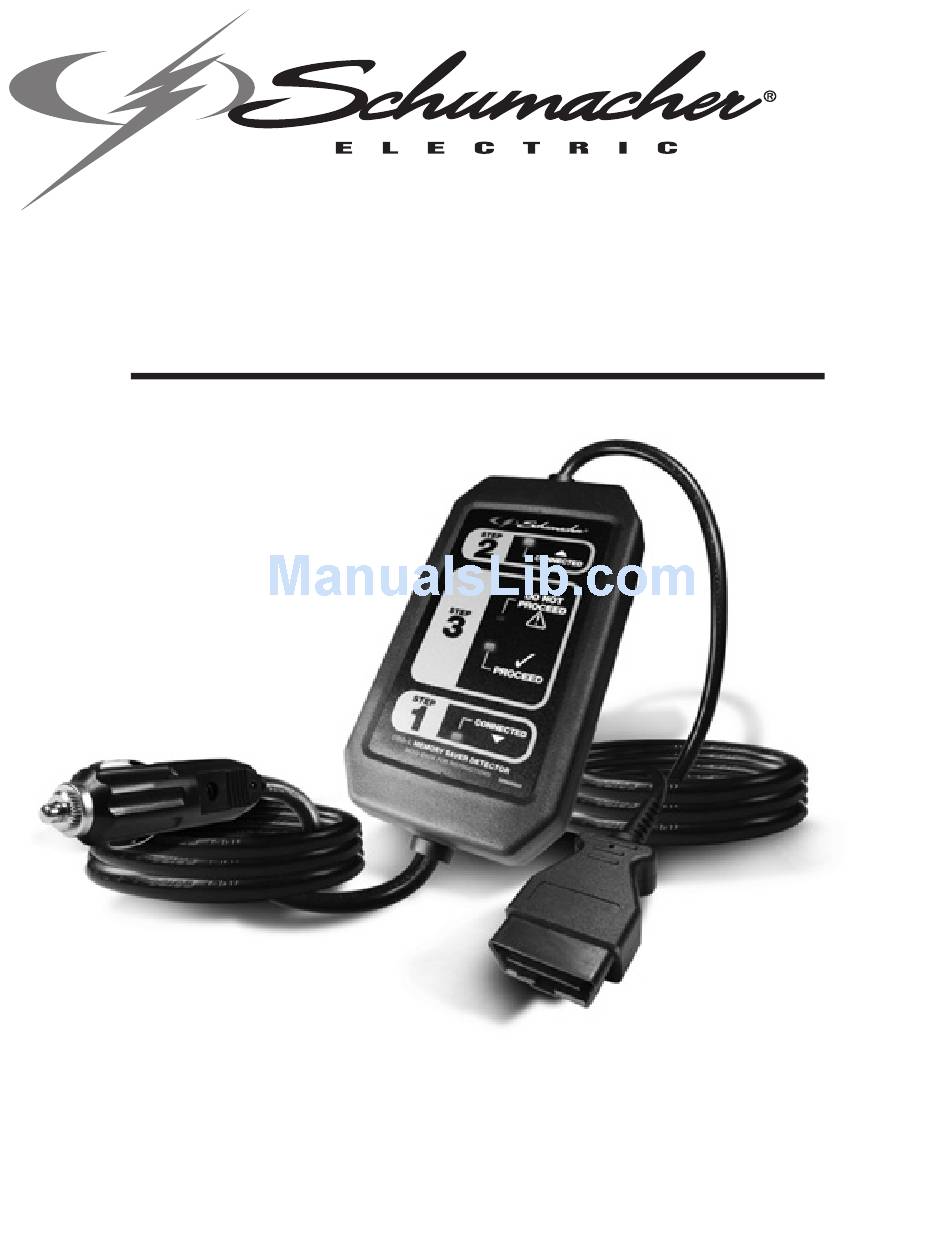

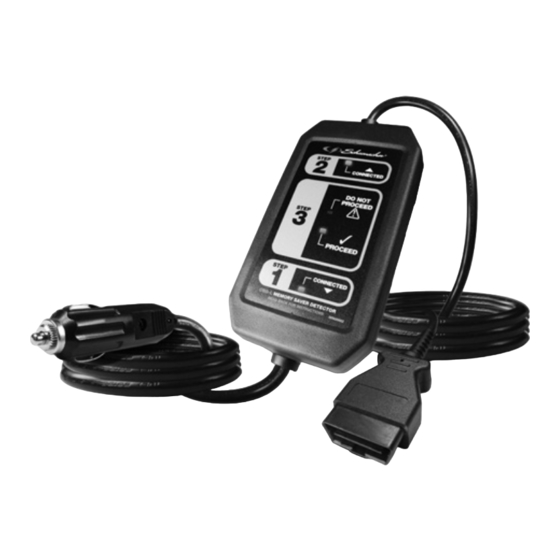

- Page 1 OBD-L Model: On-Board-Diagnostics II Memory Saver Detector OWNERS MANUAL...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS – This manual will show you how to use your memory saver detector safely and effectively. Please read, understand and follow these instructions and precautions carefully, as this manual contains important safety and operating instructions. WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. - Page 3 Headlights must be in OFF position, not AUTO position. To prevent overloading of a vehicle fuse, OBD-L fuse or other vehicle damage, do not use the memory saver through the OBDII port if the vehicle’s current draw is 4 amps or more when the vehicle is in a KEY OFF condition (use an amp clamp to measure the amperage draw).
-
Page 4: Fuse Replacement
6. Disconnect the vehicle’s battery cables and cover the positive and negative cables with an insulator, such as electrical tape. This prevents the connectors from touching metal, each other, or the chassis and causing a short circuit, due to the vehicle’s electrical system receiving power through the OBD connection. -
Page 5: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION The yellow CONNECTED Make sure that the OBD-L’s 12V accessory LED in box #1 does not power plug is fully engaged with the power come on. source connector socket. Check the fuse. The yellow CONNECTED Make sure that the OBD-L’s diagnostics LED in box #2 does not connector is fully engaged with the vehicle’s...
