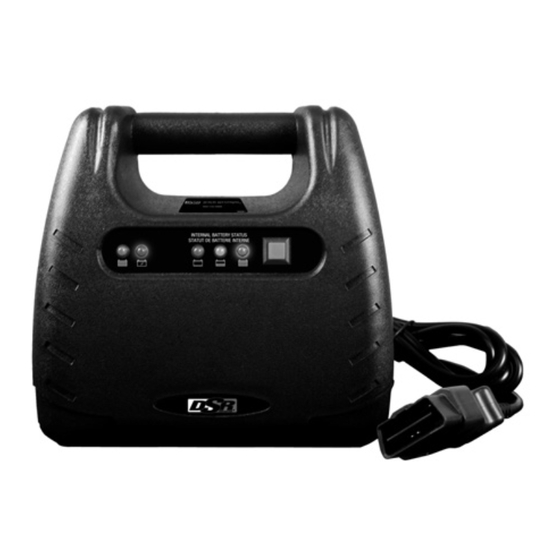

INC-7A-OBD
Model
READ THE ENTIRE MANUAL BEFORE USING THIS PRODUCT.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH.
WARNING: Possible explosion hazard. Contact with battery acid may cause
severe burns and blindness. Keep out of reach of children.
CONTAINS SEALED NON-SPILLABLE LEAD-ACID BATTERY.
MUST BE DISPOSED OF PROPERLY.
Memory Saver
OWNERS MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Schumacher Electric INC-7A-OBD
Summary of Contents for Schumacher Electric INC-7A-OBD
- Page 1 OWNERS MANUAL INC-7A-OBD Model Memory Saver READ THE ENTIRE MANUAL BEFORE USING THIS PRODUCT. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH. CONTAINS SEALED NON-SPILLABLE LEAD-ACID BATTERY. MUST BE DISPOSED OF PROPERLY. WARNING: Possible explosion hazard. Contact with battery acid may cause...
- Page 2 IMPORTANT: READ AND SAVE THIS SAFETY AND INSTRUCTION MANUAL. SAVE THESE INSTRUCTIONS. Charge the memory saver’s internal battery immediately after purchase, after every use and every 30 days. This manual will show you how to use your memory saver safely and effectively. Please read, understand and follow these instructions and precautions carefully, as this manual contains important safety and operating instructions.
- Page 3 PERSONAL PRECAUTIONS RISK OF EXPLOSIVE GASES. A SPARK NEAR THE BATTERY MAY CAUSE A BATTERY EXPLOSION. TO REDUCE THE RISK OF A SPARK NEAR THE BATTERY: NEVER smoke or allow a spark or flame in the vicinity of a battery or engine. Remove personal metal items such as rings, bracelets, necklaces and watches when working with a lead-acid battery.
- Page 4 FEATURES 1. Charging Status Lights 2. Internal Battery Status Lights 3. Internal Battery Status Test Switch 4. OBD (On Board Diagnostic) Connector with a 6 Foot Cable 5. Internal Battery Charger Plug 6. 12V DC Power Outlet (On Back, Not Shown) 7.
- Page 5 3. The CHARGING (red) LED will light, indicating charging. 4. The CHARGED (green) LED will light when the battery has reached full charge. This could take up to 72 hours, depending on the age and condition of the battery. The charger will automatically go into maintain mode and maintain the battery at full charge without damaging it.
- Page 6 POWERING A 12V DC DEVICE: The memory saver is a power source for all 12V DC accessories that are equipped with a 12V accessory plug. Use it for power outages and fishing or camping trips. Do not power a 12V device with the memory saver while using the OBD connector to power the on-board diagnostic computer.
- Page 7 SPECIFICATIONS Internal Battery Type Maintenance-Free AGM Lead-Acid Nominal Voltage 12V DC Capacity 7 Ah Connector OBDII DC Power Outlet Max Continuous Load 12V DC, 9A Dimensions (H x W x D) 7.5" x 8" x 5.5" Weight 7.85 lbs. • 7 •...
