700a capacitor power pack
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

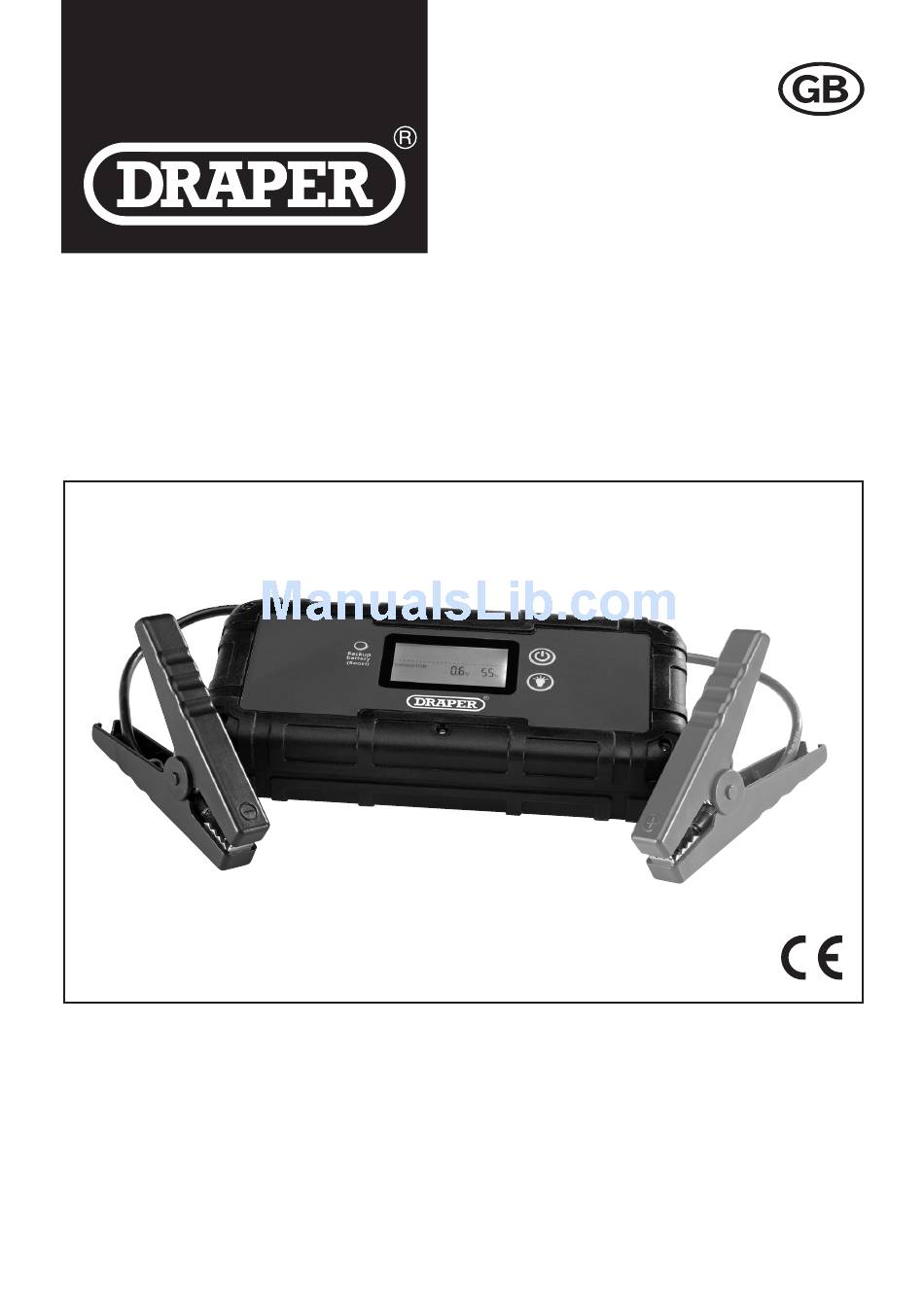

700A Capacitor
POWER PACK
82957
IMPORTANT: Please read these instructions carefully to ensure the safe and effective use of this product and save
these instructions for future reference. This manual has been compiled by Draper Tools and is an integrated part of the
product with which it is enclosed and should be kept with it for future references.
This manual describes the purpose for which the product has been designed and contains all the necessary information
to ensure its correct and safe use. We recommend that this manual is read before any operation or, before performing
any kind of adjustment to the product and prior to any maintenance tasks. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper Tools policy
of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 82957 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draper 82957

Summary of Contents for Draper 82957

  • Page 1 IMPORTANT: Please read these instructions carefully to ensure the safe and effective use of this product and save these instructions for future reference. This manual has been compiled by Draper Tools and is an integrated part of the product with which it is enclosed and should be kept with it for future references.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    2. CONTENTS 2.1 CONTENTS ................Page content Page TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY ..................2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE ..................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE...................... 4 INTRODUCTION SCOPE........................ 5 SPECIFICATION....................5 HANDLING & STORAGE..................5 HEALTH &...

  • Page 4: Guarantee

    3. GUARANTEE 3.1 GUARANTEE Draper tools have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship. Should the tool develop a fault, please return the complete tool to your nearest distributor or contact Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF.

  • Page 5: Introduction

    4. INTRODUCTION 4.1 SCOPE This product is designed for the starting of petrol and diesel engines with flat batteries. 4.2 SPECIFICATION Stock no........................82957 Part no........................CJS800 Recommended maximum capacity: Petrol........................6.0L Diesel ........................3.0L Input Voltage ................. 5V@2A and 12V@10A Output: Voltage ........................

  • Page 6: Health & Safety Information

    WARNING: Please read the following instructions carefully, failure to do so could lead to serious personal injury. IMPORTANT: Draper Tools Limited recommends that this machine should not be modified or used for any application other than that for which it was designed. If you are unsure of its relative applications do not hesitate to contact us in writing and we will advise you.

  • Page 7: Rechargeable Batteries

    5. HEALTH & SAFETY INFORMATION 5.2 RECHARGEABLE BATTERIES: - The battery must be removed from the appliance before it is scrapped. - The appliance must be disconnected from the supply mains when removing the battery. - The battery must be disposed of safely - Charge the battery using the specified charger under the charging conditions specified.
  • Page 8 5. HEALTH & SAFETY INFORMATION - Do not apply organic solvents such as paint thinner, petrol or liquid detergents to the battery. If these are brought into contact with the battery case, it may crack, causing leakage. - The car’s battery contains electrolyte (diluted sulphuric acid) a very toxic substance. If the battery leaks and the liquid inside spills on the skin or clothing, immediately wash it off with plenty of clean water.

  • Page 9: Identification

    6. IDENTIFICATION On/Off switch. 5V 2A input port. LED torch button. LED torch. Backup battery boost button. Insulated cables. LCD display screen Heavy duty toothed copper clamps (+/-). 12V DC output port.

  • Page 10: Unpacking & Checking

    Carefully remove the product from the packaging and examine it for any sign of damage caused during shipping. Lay the contents out and check them. If any part is damaged or missing, do not attempt to use the tool and contact the Draper Helpline immediately (see back page for details).

  • Page 11: Operating Instructions

    8. OPERATING INSTRUCTIONS 8.1 LCD DISPLAY (FIG.1) NOTE: Battery must be charged for 24 hours prior to first use. The Power pack was precharged during production. FIG. 1 Car battery inner Car battery voltage resistance Backup battery percentage Capacitor voltage 8.2 BUTTON INSTRUCTIONS (FIG.2) Switch button: Press switch button , the LCD screen will illuminate.

  • Page 12: Charging And Jump Starting

    8. OPERATING INSTRUCTIONS 8.3 CHARGING AND JUMP STARTING (FIGS.3 & 4) To charge the machines internal battery you can use the supplied USB cable to connect to a 2.0A USB socket and charging will take around 4 hours or alternatively you can use the 12V DC charging lead to connect to any 12V DC 10A socket and charging will complete in around 50 minutes.

  • Page 13: Car Battery Detection

    9. OPERATING INSTRUCTIONS 8.4 CAR BATTERY DETECTION (Fig.5) Connect the "positive" clamp to the "positive" terminal and the "negative" clamp to the "negative" terminal to check the voltage and inner resistance as to whether the car battery requires charging or replacing. FIG.

  • Page 14: Maintenance

    (5A) and type (glass) - Draper Stock No.41307. - NOTE: Do not lose the spring located behind the fuse. Stock No. Description 89424 12V DC charge lead For more details please refer to your local Draper Stockist.

  • Page 15: Explanation Of Symbols

    11. EXPLANATION OF SYMBOLS 11.1 EXPLANATION OF SYMBOLS Class II construction (Double insulated). Automatic overload protection. Isolating transformer. Conforms to all relevant safety standards. WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish * Waste Electrical & Electronic Equipment.

  • Page 16: Disposal

    12. DISPOSAL 12.1 DISPOSAL - The sealed lead-acid battery in this appliance has a normal working life of many years. When the battery expires, it should be removed from the appliance for recycling. - Please contact your local solid waste authority for recycling information. - CAUTION: This appliance has a sealed lead acid battery that should be kept at full charge.
  • Page 17 NOTES...
  • Page 18 NOTES...
  • Page 19 NOTES...
  • Page 20 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd. DBMC0317...
