BodiMetrics O2 Vibe User Manual

Sleep & fitness monitor
Hide thumbs Also See for O2 Vibe:

Advertisement

Quick Links

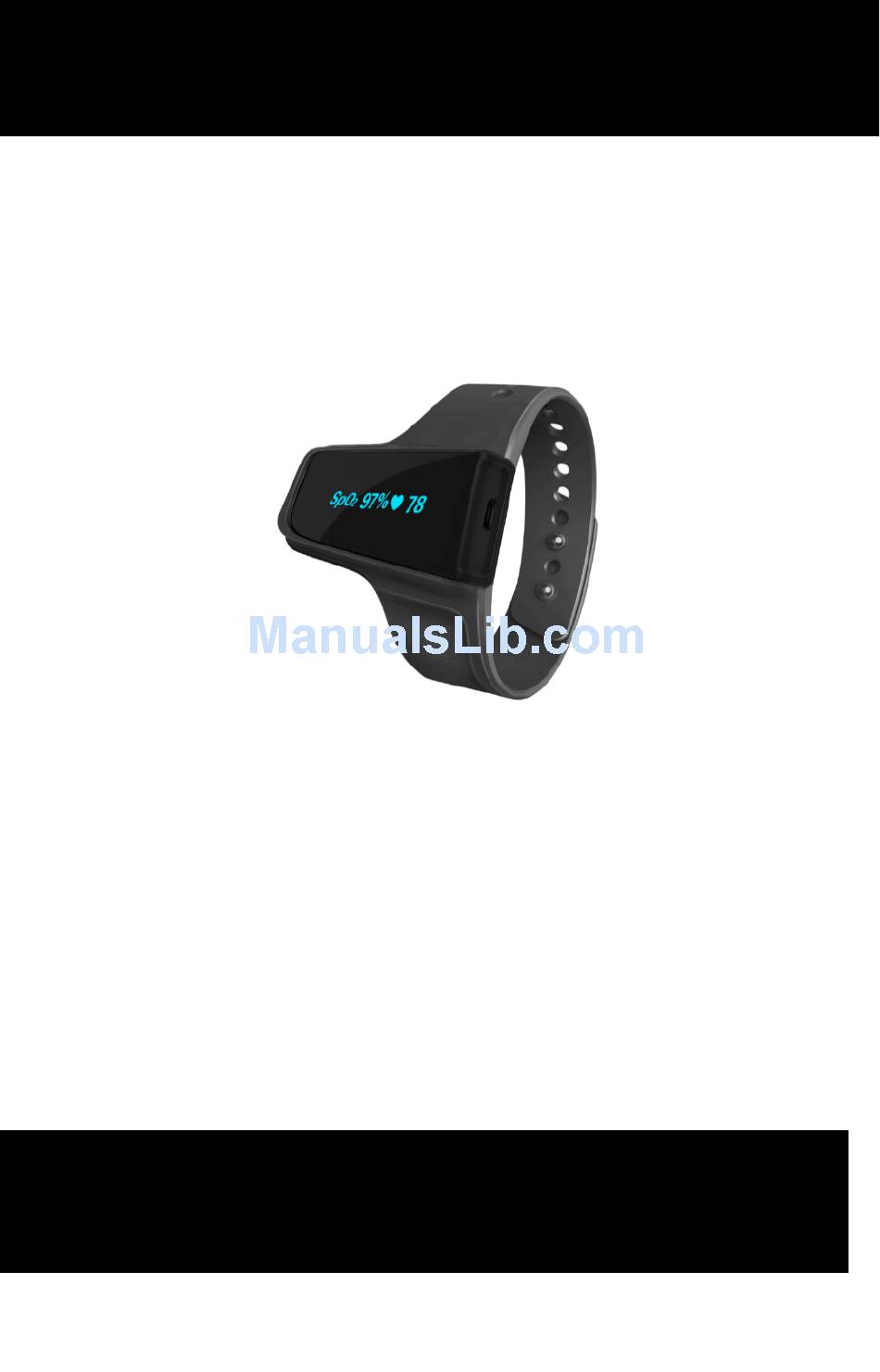

O
Vibe Sleep & Fitness Monitor
2
1.
Introduction and Intended Use . ............................................................... 1
2. Getting Started . ........................................................................................ 4
3.
Using O2 Vibe Sleep & Fitness Monitor ................................................... 6
4.
O2 Vibe Care and Maintenance ............................................................. 10
5.
Troubleshooting ..................................................................................... 12
6.
Limited Warranty ................................................................................... 13
7.
Specifications ......................................................................................... 13
Tracking Your Oxygenation in a Smart Way
User's Manual
BodiMetrics
TM

Advertisement

loading
Need help?

Need help?

Do you have a question about the O2 Vibe and is the answer not in the manual?

Questions and answers

Related Manuals for BodiMetrics O2 Vibe

Summary of Contents for BodiMetrics O2 Vibe

  • Page 1: Table Of Contents

    User’s Manual BodiMetrics Vibe Sleep & Fitness Monitor Introduction and Intended Use ..............1 2. Getting Started ..................4 Using O2 Vibe Sleep & Fitness Monitor ........... 6 O2 Vibe Care and Maintenance ............. 10 Troubleshooting ..................12 Limited Warranty ................... 13 Specifications ..................13 Tracking Your Oxygenation in a Smart Way...

  • Page 2: Introduction And Intended Use

    Do not self-diagnose on the basis of this device data and Ÿ reporting without consulting your doctor. Specifically, do not start or modify any treatment plan prescribed by a physician. Use only USB cables and sensors or other accessories provided Ÿ with your O2 Vibe or purchased directly from BodiMetrics. Prolonged continuous SpO2 monitoring may increase the risk of Ÿ undesirable changes in skin characteristics such as irritation, reddening, blistering or burns on your fingers or wrist. Discontinue use immediately if any of these changes occur.
  • Page 3 Check the thumb ring sensor site every 6-8 hours to determine Ÿ the positioning, circulation and skin sensitivity of the area. User sensitivity may vary depending on user’s health or skin condition. For users with poor peripheral blood circulation or sensitive skin please inspect wrist band and sensor sites more frequently. This device is designed to determine the arterial oxygen Ÿ saturation percentage of functional hemoglobin. Factors that may degrade pulse oximeter performance or affect the accuracy of the measurement include the following: excess ambient light excessive motion blood flow restrictors - i.e.
  • Page 4 MRI unsafe, Presents hazards in all MR environments as device contains strongly ferromagnetic materials. Indicate separate collection for electrical and electronic equipment (WEEE). Against ingress of solid foreign objects ≥12.5mm diameter, IP22 Against dripping (15° tilted) Follow operating instructions Caution! SpO2 Percent oxygen saturation Heart rate – Sleep mode Heart rate – Fitness mode Sleep mode Fitness mode Bluetooth connected to O2 Vibe APP Insert the ring sensor plug into the device Slide your thumb or finger into the ring sensor Serial number – found on the underside of the device No alarm system...

  • Page 5: Getting Started

    Getting Started 2.1 Model O2 Vibe – What’s in the box? The model O2Vibe package includes the following items: 1 Model O2Vibe 1 Pulse Oximeter ring sensor 1 USB micro D charging cable 1 Model O2Vibe User’s manual Confirm that the items listed are included in the package. If any item on this list is missing or damaged, contact your distributor. 2.2 Turning your O2 Vibe ON/OFF/Changing Modes Press and hold the button for 1 second to power ON the device or change screens. Press and hold button for 3 seconds to power OFF the device. You change screens and modes as well using this button by pressing quickly for new menus or functions. ON/OFF/Menu Wrist Band Button Multi-functional USB Connector for External SpO2 Cable and Charging Cable Main Unit Clasp Note: To reset your O2 Vibe device, please hold ON/OFF button down for 8 seconds continuously. 2.3 Charging Caution The O2 Vibe device cannot be used for any measurement during charging. Please fully charge the battery for three hours before first use. Fully discharging the battery before recharging your battery fully will extend the overall life of your O2 Vibe battery.
  • Page 6 Note: Manufacturer recommends ONLY charging your device using a personal computer and NOT directly to an AC outlet. 2.4 O2 Vibe requires a companion O2 Mobile APP Before using the O2 Vibe for the first time, please download and install the O2 Vibe APP from iTunes or Google Play APP Stores (do not download BodiMetrics or BodiMetrics Plus apps as they support other products). O2 Vibe does not work with Windows Mobile devices. Android app users only; if a PIN is requested, please use default “8888”. Note: The O2 Vibe does not work with Windows based mobile devices. 2.5 Pairing O2 Vibe to O2 Vibe mobile APP via Bluetooth The O2 Vibe device has a built in Bluetooth radio that connects with your O2 Vibe mobile APP to store Sleep or Fitness recordings; Update device...

  • Page 7: Using O2 Vibe Sleep & Fitness Monitor

    recording time is 5 hours before you will need to recharge your O2 Vibe battery. 2.6 How to Set-up your O2 Vibe Device Settings After Bluetooth is paired, follow the instructions in the APP to set your target number of step or Goal, switch ON/OFF Vibration, adjust the vibration Intensity and the lowest SpO2 Threshold (default is 90%) to set up your O2 Vibe Wrist Pulse Oximeter.
  • Page 8 accuracy of the measurements. Field strengths from fixed transmitters, such as base stations for Ÿ radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast towers, and TV broadcast towers may affect accuracy. 3.2 How to Wear O2 during Recording or Displaying Connect the external SpO sensor to the multi- functional connector port on the side of your O2 Vibe device. Slide the SpO ring sensor onto your left hand finger as pictured. Thumb finger...
  • Page 9 Normal recording time >10 hours >5 hours After approximately 5 seconds your measurement results will begin showing if you do not perform any action. If you O2 Vibe is not measuring results, the pulse rate symbol will flash; try adjusting the ring sensor on your thumb. While in Sleep Mode, if the sensor ring plug is disconnected from your device or the sensor slips from your finger, you will see the O2 device begin a countdown from 10 seconds and icons showing you to reinsert the ring sensor into your device or readjust the ring sensor on your finger.
  • Page 10 your phone automatically. You may need to sync the clock under these conditions: For the first use; No use for a long time; After firmware updated. 3.4 How Sleep & Fitness Modes Work The device has 2 operating modes, Sleep Mode and Fitness Mode, pressing the button on the side of your O2 Vibe will switch between these 2 modes. Function Sleep Mode Fitness Mode SpO2, HR, SpO2, HR, Parameters Movement Movement, Steps Every 5 to 10 secs Data measuring interval Every 10 secs self-adapting Bluetooth radio...

  • Page 11: O2 Vibe Care And Maintenance

    With proper care, maintenance and following usage instructions the expected useful life of your O2 Vibe device is 5 years and ring sensor is 2 years. A one year limited warranty is provided by the manufacturer so check the limited warranty document at www.bodimetrics.com and register your warranty. Clean the device weekly by carefully swabbing the device surface with •...
  • Page 12 Do not attempt to disassemble the device. Do not store the device in the following locations: locations where device is exposed to direct sunlight locations with high temperatures or levels of moisture locations in combustible environments or heavy contamination locations near sources of water or fire; or locations that are subject to strong electromagnetic influences.

  • Page 13: Troubleshooting

    Troubleshooting Problem Possible Cause Possible Solution Device does not Battery may be Charge battery for at least 1 turn ON low hour and try again Device may be Please contact your local damaged distributor or BodiMetrics at (844) 744-8800, option 2 The APP cannot The O2 Vibe Press the button for 8 find O2 Vibe device is not seconds to reset your device. device communicating or Sync device to O2 APP within close enough to a 2 minutes after powering ON smartphone, iPad or after measurement is or tablet O2 APP complete. Make sure your O2 APP is within reasonable range of your O2 Vibe device. or heart Sensor positioned Reposition sensor on your rate does not incorrectly thumb or try another finger display starting with Index finger.

  • Page 14: Limited Warranty

    Repairs or parts replaced by unauthorized service centers will invalidate your warranty. Contact BodiMetrics toll free (844) 744-8800, option 2 for warranty repairs or replacement. Specifications Classifications...
  • Page 15 Standards Meet standards of ISO 80601-2-61 Measurement accuracy verification: The SpO accuracy has been verified in human experiments by comparing with arterial blood sample reference measured with a CO- oximeter. The pulse rate accuracy has been verified by ECG Signal Emulator. Pulse oximeter measurement are statistically distributed and about two-thirds of the measurements are expected to come within the specified accuracy range compared to CO-oximeter measurements.
  • Page 16 O2 Vibe Sleep & Fitness Monitor Distributed in USA by BodiMetrics, LLC www.bodimetrics.com PN：255-00917-00 Version: A Contents of this manual are subject to changes without prior notice. ©Copyright 2016 Shenzhen Viatom Technology Co., Ltd. All rights reserved. Tracking Your Oxygenation in a Smart Way Knowing and Tracking Your Health...
