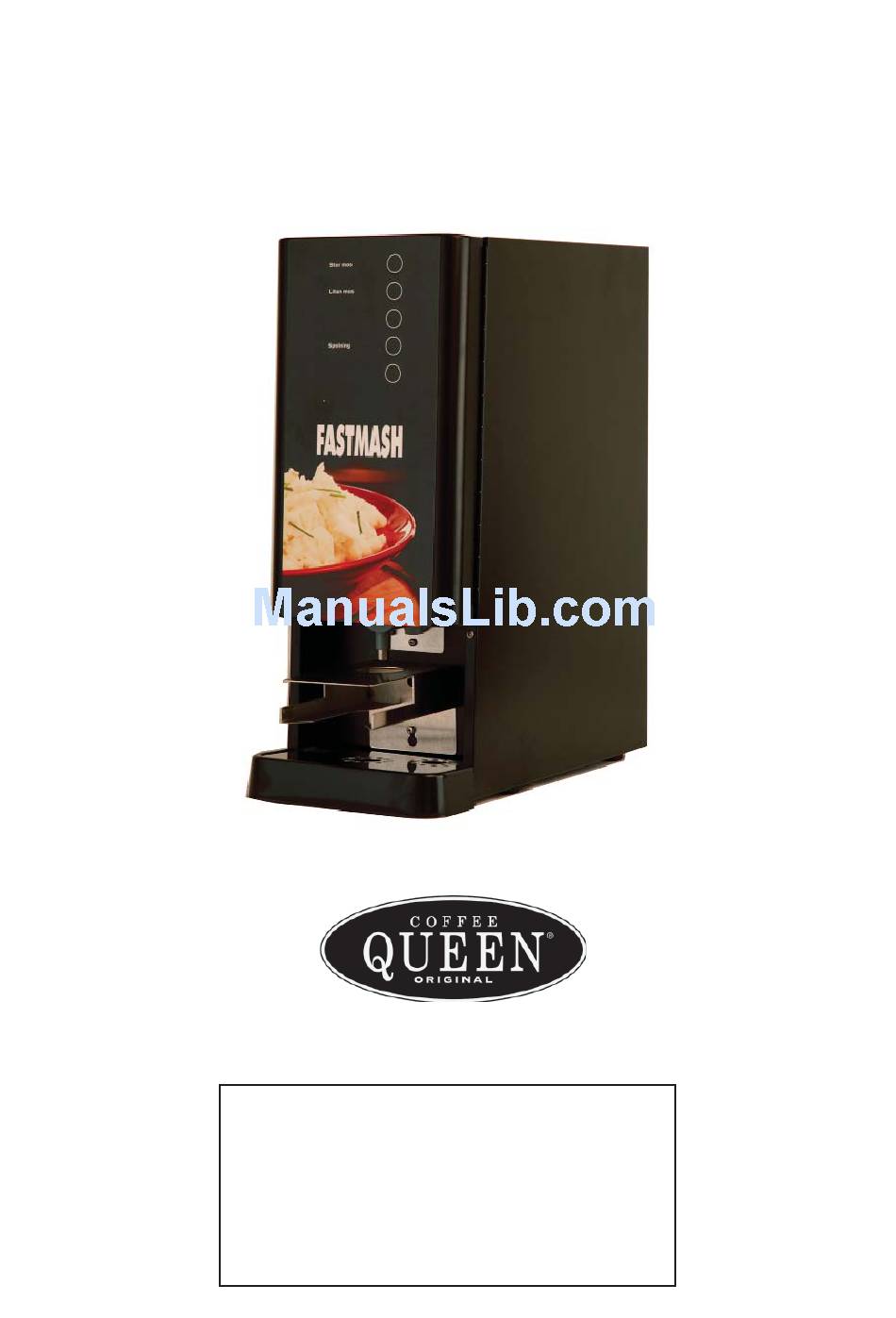

Page 1: User Guide
User Guide FAST MASH NEW U / EN Your Dealer ................Rev. 120127 ................ -
Page 2: Table Of Contents
1. Contents Fast Mash New Contents page General Component overview, front Component overview, inside Component overview, programming electronics Component overview, function buttons SERVICE: Installation and Start-up Position machine Hook up water to machine Start the mash machine Fill ingredients in container... -
Page 3: General
2. General Fast Mash New Thank you for choosing a Fast Mash mash machine. We hope you enjoy it! The machine must be connected correctly for your own safety. Read the user guide before using the machine. The guide contains important instructions for proper and safe use of the machine. -
Page 4: Component Overview, Front
3. Component view, front. Fast Mash New Selection buttons for mash Tap for mash Holder for mash scoop Drip tray insert Drip tray Service plug Connection of Emptying of water tank power cord Water hook-up... -
Page 5: Component Overview, Inside
3. Component view, inside Fast Mash New Cleaning button Concentrate container for mash Concentrator Condensation trap Blender cups ON/OFF switch 4 Amp fuse... - Page 6 3. Component overview, electronics Fast Mash New Programming electronics The programming electronics is placed behind the concentrate container.
-
Page 7: Component Overview, Function Buttons
3. Component overview, function. Fast Mash New Function buttons Large mash. Small mash. Rinsing. (Use the rinse function regularly) Clean blender system. Ready lamp The lamp stops blinking when the machine is ready. The lamp blinks when a drink is being dispensed. -
Page 8: Service: Installation And Start-Up
4. Service. Installation and start-up Fast Mash New Place the machine on a fl at Connect the plug to an waterproof surface. earthed 230V 10A wall outlet. Note: Make sure air is able to circulate freely behind the machine. Connect the factory-supplied tube to the cold water feed using a ½” R- connection piece. -
Page 9: Fill Ingredients In Container
4. Service. Installation and start-up Fast Mash New Fill ingredients in container Remove the concentrate container to avoid spilling the concentrate in the machine) and fi ll with ingredients. Twist the concentrate tube up out of the blender cup. Lift the front edge of the concentrate container and pull out. -
Page 10: Operation Portion Preparation
5. OPERATION; Portion preparation. Fast Mash New Portion preparation: Place the mash scoop in the holder (A). PRESS the button Large or Small Mash once. The potato mash machine will make one portion of potato mash of the size set. -
Page 11: Cleaning Every Day
6. CLEANING: Cleaning every day. Fast Mash New Rinsing the blender system: Cleaning of valves and blender system. The blender cup can be cleaned easily using the cleaning button. We recommend you clean/rinse the entire blender system at least once a day. -
Page 12: Remove Blender System
6. CLEANING: Cleaning every day. Cleaning every day. Disassemble blender system. 3. Loosen the wish, pull straight out D. 4. Loosen the fi tting plate, turn 1. Begin by loosening 2. Loosen the whisk housing clockwise following image C. the condensation trap and the following image steps 4 and blender cup following image steps 1, 2, 3... -
Page 13: Error Message
7. Error message. Error message If the mash machine is maintained and cleaned as recommended, it will work faultlessly. If problems occur despite this: • No potato mash comes after pressing the button "Large mash" or "Small mash" - open the door and ensure that potato mash has not stuck in the blender cup and caused a stop. -
Page 14: Programming
8. Programming. Fast Mash New PROGRAMMING use code, adjust the recipe value To open the menu, follow the instructions below. The pin code is 1000. Remember to always confi rm your selection by pressing button 1. Press button 2. Press button until the display shows. - Page 15 8. Programming. Fast Mash New PROGRAMMING use code. 7. Press button and the second digit shows 0. PIN code= I00I 8. Confi rm by pressing button 9. Press button and the second digit shows 0. PIN code= I000 10. Confi rm by pressing button The display reads PIN ok.
- Page 16 8. Programming. Fast Mash New PROGRAMMING: adjust the recipe value Select drink = 1 13. Select drink by pressing button or button Select drink 1 Select drink 2 Select drink 3 Select drink 4 Confi rm the selected drink to be adjusted by pressing button Set and adjust the recipe value, see chart on pages 17 and 18.
- Page 17 8. Programming. Chart Fast Mash New PROGRAMMING: adjust the recipe value Serving portion Basic setting. Large Mash 1 Start 1 Stop 1 Start 2 Stop 2 240 gr 180 ml Ingred 1 Ingred 2 Mixer 1 Mixer 2 Small mash 2...
- Page 18 8. Programming. Chart recipe Fast Mash New PROGRAMMING: RINSING Button 4 Start 1 Stop 1 Start 2 Stop 2 Ingred 1 Ingred 2 Blender 1 Blender 2...
-
Page 19: Reset The Cup Counter
9. Reset the cup counter. Fast Mash New Cup counter: The machine has a built-in Cup Counter that can be reset. Reset the cup counter: Remove the concentrate container. The display shows number of cups. To reset the counter: Press button to position Reset Counters. -
Page 20: Storage And Transportation
10. Storage / Transportation. Fast Mash New Long-term storage and transportation Switch off the machine, unplug it and close the water tap. The machine must not be stored in freezing temperatures, and all water must removed before long-term storage. Emptying the water tank. -
Page 21: Dimension Sketch
11. Dimension sketch. Fast Mash New... -
Page 22: Cleaning And Care
12. Cleaning and care. Fast Mash New To clean the outside of the machine, use a soft cloth and a non-abrasive liquid detergent. - Page 23 FOR SERVICE Please contact your dealer Your Dealer ................................................Crem International AB Box 960, 671 29 ARVIKA, Sweden Phone +46 570 477 00, Fax: +46 (0)570-47719 E-mail: info.se@creminternational.com www.creminternational.com Item no. 1730096-02...
