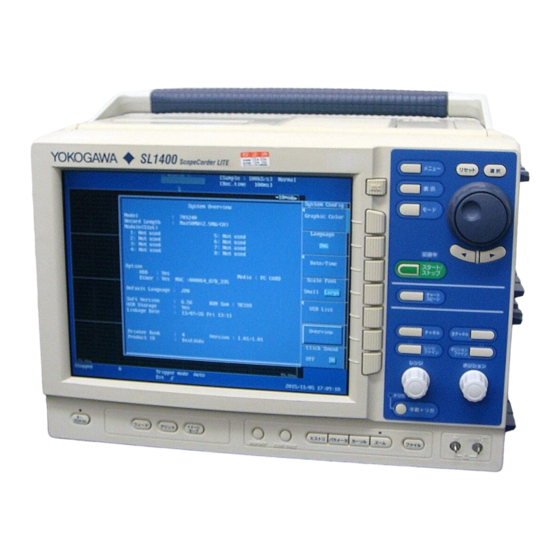

YOKOGAWA SL1400 User Manual

YOKOGAWA SL1400 User Manual

Scopecorder lite

Hide thumbs Also See for SL1400:

Operation manual (41 pages)

,

User manual (230 pages)

Table Of Contents

Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual

SL1400

ScopeCorder LITE

IM 701240-01E

4th Edition

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the SL1400 and is the answer not in the manual?

Questions and answers

Summary of Contents for YOKOGAWA SL1400

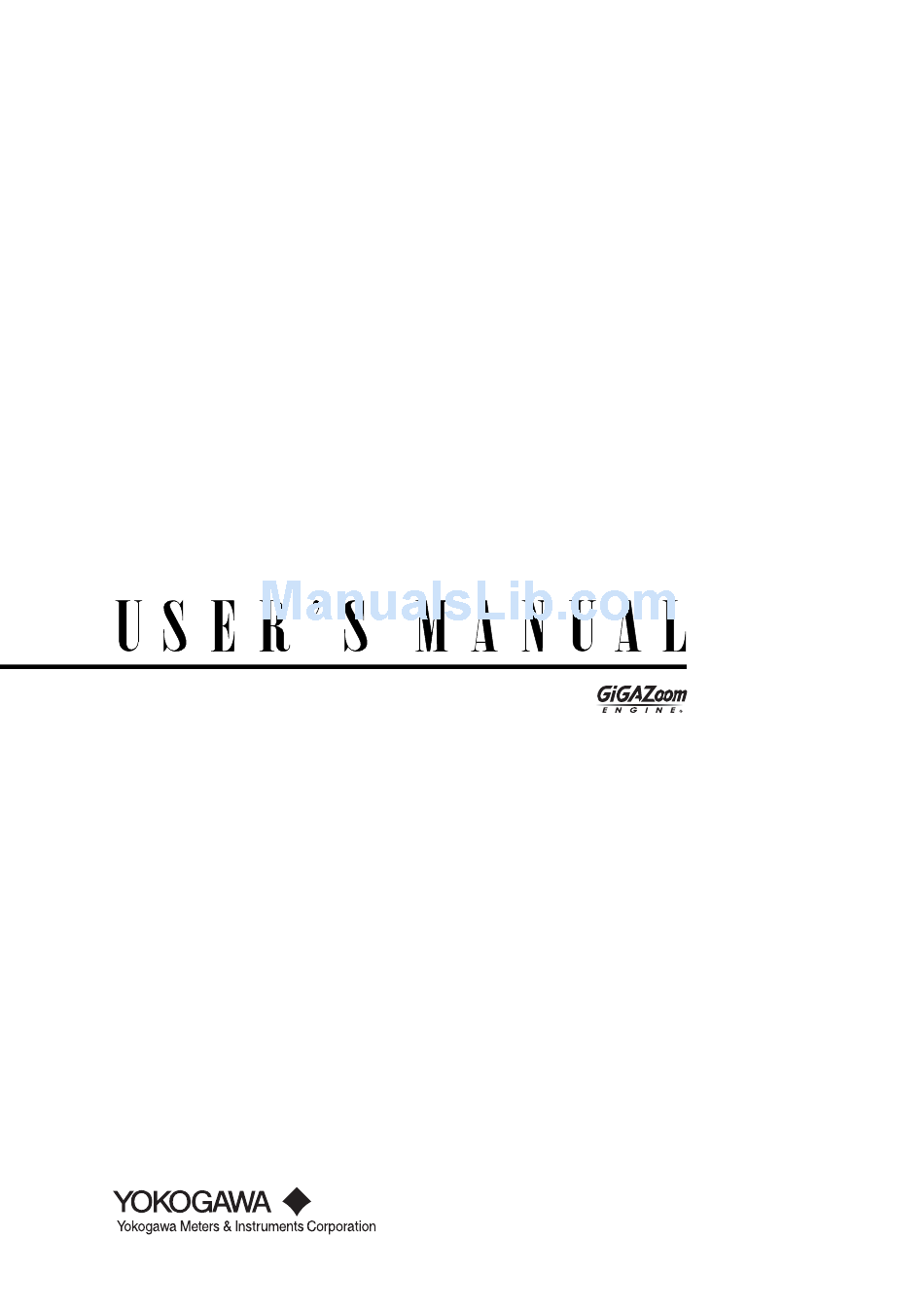

Page 1 SL1400 ScopeCorder LITE IM 701240-01E 4th Edition...
Page 2: Product Registration
Product Registration Thank you for purchasing YOKOGAWA products. YOKOGAWA provides registered users with a variety of information and services. Please allow us to serve you best by completing the product registration form accessible from our homepage. http://tmi.yokogawa.com/ PIM 103-03E...
Page 3 After reading the manual, keep it in a convenient location for quick reference whenever a question arises during operation. The following manuals are provided for the SL1400. Please read all of them. Manual Title Manual No.
Page 4 Revisions • 1st Edition: June 2006 • 2nd Edition: October 2006 • 3rd Edition: May 2009 • 4th Edition: September 2013 IM 701240-01E...
Page 5 “Monitoring and Control instrumentation” product. Do not dispose in domestic household waste. When disposing products in the EU, contact your local Yokogawa Europe B. V. office. New EU Battery Directive New EU Battery Directive, DIRECTIVE 2006/66/EC (This directive is valid only in the EU.)
Page 6 SL1400 Check that the model name and suffix code given on the name plate on the left side panel of the SL1400 match those on your order. MODEL SUFFIX MODEL...
Page 7: Standard Accessories
Checking the Contents of the Package Standard Accessories The standard accessories below are supplied with the instrument. Check that all contents are present and undamaged. Front panel protection Power Cord (one of the following power cords cover (transparent) is supplied according to the instrument’s suffix codes)* Printer roll B8023EA paper...
Page 8 The actual voltage that can be used is the lower voltage of the specifications of the SL1400 and the cable. Be sure to connect the GND lead provided with the 700924 to the functional ground terminal of the SL1400. A measurement of 1400 Vpeak is possible by connecting the GND lead to the SL1400.
Page 9 Checking the Contents of the Package Isolated probe Current probe Current probe Current probe 10:1 passive probe 700929 701930 701931 701933 701940 Differential probe 1:1 BNC safety Measurement lead Alligator clip Safety mini-clip 700924 adapter lead 758933* (dolphin type) (hook type) 701901* 701954 701959...
Page 10: Safety Precautions
The general safety precautions described herein must be observed during all phases of operation. If the instrument is used in a manner not specified in this manual, the protection provided by the instrument may be impaired. YOKOGAWA assumes no liability for the customer’s failure to comply with these requirements.
Page 11 To prevent the possibility of electric shock or fire, be sure to use the power cord supplied by YOKOGAWA. The main power plug must be plugged into an outlet with a protective earth terminal. Do not invalidate this protection by using an extension cord without protective earth grounding.
Page 12 • Be sure to connect the GND lead of the differential probe (700924) to the functional ground terminal of the SL1400. High voltage may appear at the BNC connector of the differential probe. Be sure to connect the GND lead to the SL1400 before connecting the probe to the parameter to be measured.
Page 13 Conventions Used in This Manual Markings The following markings are used in this manual. Improper handling or use can lead to injury to the user or damage to the instrument. This symbol appears on the instrument to indicate that the user must refer to the users manual for special instructions.
Page 14 The figure below provides an overview of the flow of operations described in this manual. For a description of each item, see the relevant chapter or section. Preparations for Measurements Preparations for Measurements Install the SL1400 Section 3.2 Install the modules Section 3.3 Connect the power supply and turn it ON/OFF Section 3.4...
Page 15 Flow of Operation From the previous page Setting the Trigger Setting the Trigger • Trigger type* (simple/enhanced) Sections 6.5 to 6.17 * Simple trigger • Input signal trigger Sections 6.5 and 6.9 • Trigger source, trigger slope, • External trigger Section 6.6 trigger level, etc Sections 6.5 to 6.17...
Page 16 Flow of Operation From “Acquiring Waveforms” on the previous page Computing, Analyzing, and Searching Waveforms Computing, Analyzing, and Searching Waveforms • Waveform computation Sections 10.1 to 10.4 • History search Sections 11.2 and 11.3 • Cursor measurement Section 11.4 • Automated measurement of waveform parameters Section 11.5 •...
Page 17 Flow of Operation Ethernet interface and other operations do not have to be configured in order from previous chapter. They can be configured independently. Ethernet Communication (Option) • Connect the SL1400 to the PC* Section 15.1 • Set the TCP/IP Section 15.2 •...
Page 18: Table Of Contents
Contents Checking the Contents of the Package ..................iv Safety Precautions ........................viii Conventions Used in This Manual ....................xi Flow of Operation ........................xii Chapter 1 Names and Functions of Parts Panels ..........................1-1 Panel Keys and Knobs ....................1-5 Display Screens ......................
Page 19 Contents Chapter 5 Horizontal and Vertical Axes Voltage Measurement (Input Module 701250, 701251, 701255, 701267, 701261, 701262, 701265, or 701275) Turning Channels ON/OFF .................... 5-1 Setting the Record Time and Sample Rate ..............5-2 Setting the Voltage Range ..................... 5-4 Setting the Vertical Position of the Waveform ...............
Page 20 Contents Frequency (Number of Rotations, Period, Duty Cycle, Power Supply Frequency, Pulse Width, Pulse Integration, and Velocity) Measurement (Input Module 701280) Turning Channels ON/OFF .................... 5-1 Setting the Record Time and Sample Rate ..............5-2 Setting the Vertical Position of the Waveform ............... 5-6 Zooming Vertically by Setting the Zoom Rate .............
Page 21 Contents Chapter 8 Waveform Display and Information Display Changing the Display Format ..................8-1 Setting the Display Interpolation Method ............... 8-3 Changing the Graticule ....................8-5 Accumulated Waveform Display ..................8-6 Zooming and Auto Scrolling the Waveform ..............8-8 Displaying X-Y Waveforms ..................8-13 Taking Snapshots and Clearing Traces ...............
Page 22 Setting up the Network Printer (LPR Client Function) ..........15-11 15.5 Sending Periodic Mail or Action Mail (SMTP Client Function) ........15-13 15.6 Accessing the SL1400 from a PC or Workstation (FTP Server Function) ....15-17 15.7 Using the Web Server Function ................. 15-20 15.8 Setting the Time Difference from GMT (Greenwich Mean Time)/SNTP ....
Page 23 Contents Chapter 17 Troubleshooting, Maintenance, and Inspection 17.1 Troubleshooting ......................17-1 17.2 Messages and Corrective Actions ................17-2 17.3 Self Test ........................17-12 17.4 Checking the System Conditions (Overview) ............17-15 17.5 Recommended Replacement Parts ................17-16 Chapter 18 Specifications 18.1 Input Section ........................
Page 24: Chapter 1 Names And Functions Of Parts
Vent holes model (DL750) is installed here. Stores batteries used to back up the contents of It is not used on the SL1400. the acquisition memory when the power is OFF. For the procedure to install the batteries, see section 7.7.
Page 25 1.1 Panels Right Side Panel Input module installation slot A total of eight slots in the top and bottom rows. For the installation and removal procedure of input modules, see section 3.3. Input channel arrangement Slot Acquisition memory backup ON/OFF Turns ON/OFF the battery power for backing up the acquisition memory.
Page 26 1.1 Panels Input Modules The following 11 input modules are available. High-Speed 10 MS/s, 12-Bit High-Speed High-Resolution High-Speed 10 MS/s, 12-Bit Isolation Module 1 MS/s, 16-Bit Isolation Module Non-Isolation Module HS10M12 (model: 701250) HS1M16 (model: 701251) NONISO_10M12 (model: 701255) Input terminal Input terminal Input terminal (2ch)
Page 27: Left Side Panel
External start/stop input connector Main power switch Used to externally control the For the power ON/OFF start/stop of the SL1400. operation, see section 3.4. For a description on how to use the terminal, see section 14.5. Power connector For details on connecting the power, see section 3.4.
Page 28 Panel Keys and Knobs • MENU Key (explained by function in each chapter and section) MENU MENU RESET RESET SELECT SELECT Displays a setup menu for measurement conditions (sections 5.2, 5.20, 7.2, 7.3, and DISPLAY DISPLAY 7.5), record conditions (chapter 9), triggers (chapter 6), waveform computation (chapter 10), store and recall of setup parameters (section 13.1), screen image data MODE MODE...
Page 29: Panel Keys And Knobs
1.2 Panel Keys and Knobs • POSITION Knob (Section 5.4) Sets the vertical display position of the waveform. You select the target channel with the CH key before you turn this knob. • MANUAL TRIG Key (Section 6.19) Press the key to forcibly activate a trigger. •...
Page 30: Display Screens
Z2 Acquisition Mode Display Normal: Normal mode Env: Envelope mode Avg: Average mode BoxAvg: Box average mode Note In some cases, the LCD on the SL1400 may include few defective pixels. For details, see section 18.4. Index IM 701240-01E...
Page 31 1.3 Display Screens Screen When Displaying Zoom Waveforms Display position of zoom waveform Z1 on the normal waveform Display position of zoom waveform Z2 on the normal waveform T/div (time per division) of Z1 Zoom range of Z1 Zoom range of Z2 T/div (time per division) of the normal waveform display...
Page 32: Chapter 2 Explanation Of Functions
(MO, Zip drive, etc.) Built-in HDD (option) • External clock input USB mouse • External trigger input USB PERIPHERAL • Video signal output interface SL1400 • Trigger output Screen data USB printer Device under measurement Signal input • FTP server •...
Page 33: Block Diagram
ASIC (ACQ-ASIC), passes through the graphic controller, and shown on the SVGA TFT color display. The SL1400 can acquire simultaneously up to 16 analog input channels and 16-bit logic data. IM 701240-01E...
Page 34 The sampling timing can also be controlled by a clock signal applied externally. External clock signals are input through the external clock input terminal on the left panel facing the SL1400. This external clock input is useful for observing a signal whose period varies or for observing waveforms by synchronizing to the clock signal of the signal being measured.
Page 35 (see appendix 1). The following equation holds: record length = record time × sample rate. The maximum record length of the SL1400 is 50 MW. The measured waveform signal of a single channel can be acquired up to the maximum record length of 50 MW when only a single channel is displayed.
Page 36: Setting The Horizontal And Vertical Axes
2.2 Setting the Horizontal and Vertical Axes Dot Display By default, the display interpolation function works automatically. However, you can also disable the display interpolation in which case the waveform is displayed using dots. In this setting, up to 100100 points (100 kpoints) of the acquired data are displayed without using P-P compression.
Page 37 Ground mark Measurement Range and Display Range The measurement range of the SL1400 is ±10 divisions (20 divisions of absolute width (span) around 0 V. The display range of the screen is ±5 divisions (10 divisions of span). The following functions can be used to move the displayed waveform and display the waveform outside the display range by expanding/reducing the displayed waveform.
Page 38 2.2 Setting the Horizontal and Vertical Axes Vertical Position of Waveforms «For procedures, see section 5.4.» Since the SL1400 can display the waveforms of the analog input channels (CH1 to CH16) and computation waveforms (Math1 to Math8), the waveforms may overlap making them difficult to be observed.
Page 39 2.2 Setting the Horizontal and Vertical Axes Input Coupling «For procedures, see section 5.5.» If you want to measure just the amplitude of an AC signal, it is best to remove the DC component from the input signal. On the other hand, there are times when you want to check the ground level or measure the entire input signal (both the DC and AC components).
Page 40 • Inputs the signal with no distortion. • Expands the measurable voltage (current) range of the SL1400. When using a probe, the attenuation setting on the SL1400 must be set equal to the probe attenuation or current-to-voltage conversion ratio so that the measured voltage (current) can be read directly.
Page 41 2.2 Setting the Horizontal and Vertical Axes Inversion «For procedures, see section 5.12.» When measuring voltage or strain, the waveform can be displayed with the vertical axis inverted around the vertical position as shown below. Inverted display Normal display Vertical position mark Pulse/Rotate «For procedures, see section 5.20.»...
Page 42 2.2 Setting the Horizontal and Vertical Axes RMS Measurement «For procedures, see section 5.13.» If the module of the selected channel is a 701267 (HV (with RMS)), the rms value of the input signal can be observed. AC-RMS This setting is used when you want to observe only the rms values of the AC signal, eliminating the DC components from the input signal.
Page 43 500 (µSTR) → 0.5×500(µSTR/1000) = 0.25 (mV/V) Gauge Factor (K) when mV/V Is Selected You can set the gauge factor to an arbitrary value on the SL1400. However, if there are no specifications on the strain gauge transducer, set K to 2.
Page 44 2.2 Setting the Horizontal and Vertical Axes Shunt Calibration The 701271 (STRAIN_DSUB) supports shunt calibration. * Shunt calibration refers to the act of correcting the gain of the strain measurement by connecting a known resistance (shunt calibration resistance) to the strain gauge in parallel. For a description of the basic defining equation of strain, see appendix 9.
Page 45 2.2 Setting the Horizontal and Vertical Axes Duty Cycle Duty cycle (%) = T (s)/T (s) or Duty (%) = T (s)/T high high Pulse Width Pulse width (s) = T (s) or Pulse width (s) = T high high Power Supply Frequency Power supply frequency (Hz) = 1/T Pulse Integration (Distance/Flow Rate)
Page 46 2.2 Setting the Horizontal and Vertical Axes Deceleration Prediction and Stop Prediction The 701280 (FREQ) automatically performs internal computation and displays waveforms by predicting the deceleration curve and stop point even when the input pulse is suddenly cut off. This function allows the measurement of waveforms of deceleration behavior that is close to the actual physical phenomenon in applications in which the deceleration behavior of an object that have inertia is measured such as in the brake test of automobiles.
Page 47 2.2 Setting the Horizontal and Vertical Axes • When using the offset function (see this page) and making measurements by expanding near 100 kHz Original waveform •Value/div: 200 Hz/div •Upper display limit: 101 kHz •Lower display limit: 99 kHz When using the smoothing filter Filter order: 50 ms The accuracy improves when the smoothing filter is used.
Page 48 Setting the Trigger Trigger Type «For procedures, see chapter 6.» The trigger used on the SL1400 can be classified into two main types: simple trigger and enhanced trigger. Simple Trigger This function activates a trigger on a single trigger source.
Page 49 2.3 Setting the Trigger Enhanced Trigger A −>B(N) Trigger A trigger is activated the N time condition B becomes true after condition A has become true. True True N times Trigger Condition A Condition B CH1 to CH16 Low level High level Don't care LogicA/LogicB...
Page 50: Setting The Trigger
2.3 Setting the Trigger Edge on A Trigger A trigger is activated when an edge trigger is detected on any of the channels set to edge trigger while condition A is true. True Edge Trigger detection Condition A CH1 to CH16 Low level High level Don't care...
Page 51 2.3 Setting the Trigger B > Time Trigger, B < Time Trigger, and B TimeOut Trigger A trigger is activated on the falling or rising edge of the pulse when the pulse width (width over which condition B is met) exceeds (or drops below) a preset time. In the case of a timeout trigger, a trigger is activated when a preset time elapses.
Page 52 2.3 Setting the Trigger Period Trigger A trigger is activated by measuring the pulse period (period from the time condition T is met to the next time when condition T is met). CH1 to CH16 Low level High level Don’t care LogicA/LogicB Disable: Do not use logic input Enable: Use logic input...
Page 53 2.3 Setting the Trigger • T < T1, T2 < T A trigger is activated when condition B is met the second time, if the time (T) when condition B is met the second time is outside a specified time range (T1 to T2). When condition B: CH1=H, Time1=6 µs, and Time2=10 µs µ...
Page 54 2.3 Setting the Trigger Wave Window Trigger This trigger is used to monitor the power supply waveform. It detects abnormalities in the power supply (disruption, sag, surge, frequency fluctuation, voltage drop, etc.). A reference waveform (realtime template) is created by setting a tolerance (window width) to a waveform derived by averaging 1 to 4 cycles of waveforms before the target cycle of the current waveform.
Page 55 2.3 Setting the Trigger Trigger Mode «For procedures, see section 6.1.» The trigger mode sets the conditions for updating the displayed waveforms. The following six trigger modes are available. Auto Mode If a trigger occurs within a specified amount of time (approximately 50 ms, referred to as the timeout period), the displayed waveforms are updated.
Page 56 2.3 Setting the Trigger Trigger Delay «For procedures, see section 6.3.» Normally, the waveform around the trigger point is displayed. However, by setting a trigger delay, you can display the waveform that is acquired a specified time after the trigger point. T (Trigger position) Delay Trigger point...
Page 57 2.3 Setting the Trigger Trigger Hysteresis «For procedures, see sections 6.5, and 6.10 to 6.16.» If there is insufficient trigger level width such as when noise is present in the trigger source, the trigger point fluctuates each time a trigger is activated. This causes the displayed waveforms to be unstable.
Page 58 2.3 Setting the Trigger Manual Trigger «For procedures, see section 6.19.» You can activate a trigger regardless of the specified trigger condition by pressing the MANUAL TRIG key on the front panel. Index 2-27 IM 701240-01E...
Page 59: Setting Waveform Acquisition Conditions And Display Conditions
(the same time in relation to the trigger point). The SL1400 takes the simple or exponential average of the waveform data and writes the results to the acquisition memory. The averaged data is then used to generate the display.
Page 60 2.4 Setting Waveform Acquisition Conditions and Display Conditions Box Average Mode This mode is valid on the 701250 (HS10M12) and 701255 (NONISO_10M12). The rolling average of the data sampled at the maximum sample rate is determined. The resultant data is stored in the acquisition memory and used to generate the display. Box averaging is effective in eliminating small amounts of noise from the input signal.
Page 61 2.4 Setting Waveform Acquisition Conditions and Display Conditions History Memory «For procedures, see section 11.1.» If the record length is set short on the SL1400, the memory is divided into blocks, and waveform data is saved to the individual blocks each time a trigger occurs. If N represents the maximum number of blocks determined by the record length, the oldest waveform data block is cleared when the number of activated triggers exceeds N.
Page 62 2.4 Setting Waveform Acquisition Conditions and Display Conditions Realtime Recording to the Internal Hard Disk (Option) «For procedures, see section 7.5.» The data can be recorded in realtime to the internal hard disk (option). The stored data can be recalled. The realtime recording area is allocated on the internal hard disk in advance (the default value is 50% of the entire capacity of the internal hard disk).
Page 63 Backing Up the Acquisition Memory «For procedures, see section 7.7.» If the ACQ MEMORY BACKUP switch on the right side panel of the SL1400 is turned ON, the history memory data in the acquisition memory is backed up even when the power supply is cut off.
Page 64 2.4 Setting Waveform Acquisition Conditions and Display Conditions Display Interpolation «For procedures, see section 8.2.» In areas where less than 1000 points of data exist in the 10 divisions along the time axis (referred to as interpolation areas), a continuous waveform cannot be displayed because there is not enough sampled points.
Page 65 2.4 Setting Waveform Acquisition Conditions and Display Conditions Zooming in on the Waveform Horizontally «For procedures, see section 8.5.» The displayed waveform can be expanded along the time axis. This function is useful when the waveform acquisition time is set long and you want to observe a particular section of the waveform closely.
Page 66 2.4 Setting Waveform Acquisition Conditions and Display Conditions X-Y Waveform «For procedures, see section 8.6.» The voltage relationship between signals can be observed by assigning the voltage of the input signal of the specified channel on the horizontal axis (X-axis) and the voltage of another input signal (signal that has the display turned ON) on the vertical axis (Y-axis).
Page 67 2.4 Setting Waveform Acquisition Conditions and Display Conditions Scale Values «For procedures, see section 8.9.» The upper and lower limits (scale values) of the vertical and horizontal axes of each channel can be displayed. Waveform Labels «For procedures, see section 8.10.» A waveform label can be assigned arbitrarily to the input waveform of each channel using up to eight characters.
Page 68: Recording In Recorder Mode
Recording in Recorder Mode The SL1400 is equipped with an A-4 size printer. If Chart Recorder mode is selected in the menu that appears when MODE is pressed and waveform acquisition is started, T-Y waveforms (T-Y waveform recording) or numeric values can be recorded in realtime. In...
Page 69 Recording stops when the shot record length of measured values is recorded. Then, the SL1400 enters the trigger-wait state. The most recent shot record length of measured data is saved to the internal memory.
Page 70 2.5 Recording in Recorder Mode Saving Data in the Internal Memory In Chart Recorder mode, up to 1000 divisions of the recorded data are automatically saved in the internal memory. The required section of the data that has been cleared from the screen can be redisplayed after the recording is finished by using functions such as zoom (limited to the data in the range defined by “Number of Data Points That Can Be Saved”...
Page 71 2.5 Recording in Recorder Mode X-Y Recorder Mode «For procedures, see section 9.6.» X-Y Waveform Recording: In X-Y waveform recording, the X-Y waveform display starts when waveform acquisition is started. If reprint is executed from the Reprint Setup menu after the record length of waveform (fixed to 1 MW) is acquired or after stopping waveform acquisition, the X-Y waveform acquired up to the point immediately before the measurement was stopped is recorded on paper.
Page 72: Waveform Computation
Waveform Computation Various computations can be performed on up to 800 kW of data on the SL1400. (If a waveform greater than 800 kW is displayed, computation cannot be performed over all the data at once.) The computed results become Math1 to Math8 waveforms.
Page 73 Scaling of Computed Waveforms «For procedures, see chapter 10.» Normally, the SL1400 performs auto scaling when computed waveforms are displayed. However, you can also select manual scaling. When auto scaling, the upper and lower limits suitable for displaying the waveform are determined from the first computed waveform.
Page 74: Waveform Analysis And Search
Waveform Analysis and Search Displaying History Waveforms «For procedures, see section 11.1.» Past waveform data (history waveforms) stored in the acquisition memory can be displayed when waveform acquisition is stopped. You can display a specified history waveform from the data (up to 2000 waveforms, or the number of triggers) stored in the acquisition memory.
Page 75 2.7 Waveform Analysis and Search Cursor Measurement «For procedures, see section 11.4.» The following cursors are available for analyzing the values of each waveform data. H (Horizontal) Cursors Two broken lines (H cursors) are displayed on the X-axis (horizontal axis). The voltage of each H cursor and the voltage difference between the H cursors are measured.
Page 76 2.7 Waveform Analysis and Search Automated Measurement of Waveform Parameters «For procedures, see section 11.5.» Automated measurement can be performed on parameters such as the rise time and pulse width on the specified channel. There are 29 measurement parameters. Up to 24 parameters from the selected parameters of all channels can be displayed.
Page 77 2.7 Waveform Analysis and Search Cyclic Statistical Processing Divides the displayed waveform using a cycle that is automatically calculated and determined and performs statistical processing on the values obtained through the automated measurement of waveform parameters over the determined cycle. Statistical processing is performed from the oldest measured data of the displayed waveform.
Page 78: Communications
The SL1400 comes standard with GP-IB, serial (RS-232), and USB interfaces. The Ethernet interface is available as an option. Through communication functions, you can output waveform data to a PC for data analysis or control the SL1400 using an external controller to carry out waveform measurements. Communication...
Page 79 SL1400 Web Server Function «For procedures, see section 15.7.» The SL1400 can function as a Web server. By using the Web page of the SL1400, file transfer, monitoring of displayed waveforms, basic SL1400 key control, and retrieval of waveform data are possible.
Page 80: Other Useful Functions
Operations Using a USB Mouse «For procedures, see section 4.3.» You can use a USB mouse to operate the SL1400 as you would using the front panel keys. In addition, you can point to a desired item on a menu and click the item. This is analogous to pressing a soft key corresponding to a menu and pressing the SELECT key.
Page 81 2.9 Other Useful Functions Saving and Loading Data on the Storage Medium «For procedures, see chapter 13.» The SL1400 allows various data to be stored to and loaded from the following storage media. • PC card • Internal hard disk (option) •...
Page 82 Connecting the SL1400 and the PC via the SCSI «For procedures, see section 13.19.» You can connect a PC to the SCSI of the SL1400 and download the files on the internal hard disk (option) to the PC. You cannot upload or delete files on the internal hard disk. If you do, the internal hard disk may become unusable.
Page 83: Handling Precautions
If you notice any symptoms of trouble such as unusual odors or smoke coming from the instrument, immediately turn OFF the power switch and unplug the power cord. If these symptoms occur, contact your nearest YOKOGAWA dealer. Handle the Power Cord with Care Do not place objects on top of the power cord and keep it away from any heat sources.
Page 84 3.1 Handling Precautions Carry the Instrument Properly First, remove the power cord and connection cables. Always carry the instrument by the handles as shown below or carry it with both hands. WARNING • When you hold or put away the handle, be careful not to get your hand caught between the handle and the case.
Page 85: Installing The Instrument
• Install the instrument so that you can immediately remove the power cord if an abnormal or dangerous condition occurs. CAUTION If you block the inlet or outlet holes on the SL1400, the SL1400 will become hot and may break down. Installation Conditions...
Page 86 3.2 Installing the Instrument Ambient Temperature and Ambient Humidity Ambient temperature: 5 to 40°C Ambient humidity: 20 to 85%RH (when the printer is not used: no condensation) 35 to 85%RH (when using the printer: no condensation) Note • To ensure high measurement accuracy, operate the instrument in the 23 ± 5°C temperature range and 55 ±...
Page 87: Installing Input Modules
• Be sure to connect the GND lead of the differential probe (700924) to the functional ground terminal of the SL1400. High voltage may appear at the BNC connector of the differential probe. Be sure to connect the GND lead to the SL1400 before connecting the probe to the parameter to be measured.
Page 88 3.3 Installing Input Modules Types of Input Modules There are 11 types of input modules. See page iii. For detailed specifications, see section 18.12. Precautions to Be Taken When Installing or Removing Input Modules Switching the installed input module with a different module and turning ON the power initializes the settings on that channel.
Page 89 The LEDs on the frequency module illuminates in green when pulse is applied and red when the input voltage level is over range. It is independent of the start/stop condition of waveform acquisition of the SL1400. • If the frequency module preset (see section 5.17) is set to “EM Pickup (electromagnetic pickup),”...
Page 90: Connecting The Power Supply And Turning The Power Switch On/Off
OFF. • To prevent electric shock or fire, be sure to use the power cord for the instrument that is supplied by YOKOGAWA. • Make sure to provide protective earth grounding to prevent electric shock. Connect the power cord to a three-prong power outlet with a protective earth terminal.
Page 91 When the power switch is turned on, self testing and calibration start automatically. This lasts for approximately 30 seconds. When the SL1400 starts normally, the waveform display screen appears. Check that the SL1400 has started normally before you use it. If the SL1400 Does Not Start Normally When the Power Is Turned On Turn off the power switch, and check the following items.
Page 92: Loading The Roll Paper For The Built-In Printer
Loading the Roll Paper for the Built-in Printer Printer Roll Paper Use a dedicated roll paper that is provided by YOKOGAWA. Do not use other types of roll paper. When you are using the printer for the first time, use the roll paper that came with the package.
Page 93 3.5 Loading the Roll Paper for the Built-in Printer Procedure Loading the Roll Paper While pressing the knob down on the top side of the printer cover, open the printer cover. Printer cover Move the release lever at the top left side to the Release lever: FREE FREE position (up direction).
Page 94 3.5 Loading the Roll Paper for the Built-in Printer Release lever: HOLD Move the release lever to the HOLD position (down direction). The printing will fail with an error message, if the release arm is in the FREE position during operation. Close the printer cover.
Page 95: Setting The Date And Time
Setting the Date and Time Procedure Press MENU. Press the Next 1/2 soft key. Press the System Config soft key. Press the Date/Time soft key. The Date/Time dialog box opens. Turning ON/OFF the Date/Time display Use jog shuttle+SELECT to set Display to ON or OFF. Setting the Time and Date Manually (Manual) Use jog shuttle+SELECT to set Type to Manual.
Page 96 3.6 Setting the Date and Time Explanation Date (Year/Month/Day) Set the year, month and day. Time (Hour/Minute/Second) Set the time using a 24-hour clock. Setting the Time Using the SNTP Server You can use the SNTP server time to set the date and time on the instrument. This function is available on models with the Ethernet interface installed.
Page 97: Connecting Probes
• Do not apply input voltage exceeding the maximum input voltage, withstand voltage, or allowable surge voltage. • To prevent electric shock, be sure to furnish protective earth grounding of the SL1400. • To prevent electric shock, be sure to fasten the module screws. Otherwise, the electrical protection function and the mechanical protection function will not be activated.
Page 98 Precautions When Using the High Voltage Differential Probes Be sure to connect the GND lead of the differential probe (700924/700925) to the functional ground terminal on the right side panel of the SL1400. Otherwise, high voltage may appear at the BNC connector making it dangerous.
Page 99 Over-Range Indication If over-range is indicated, the SL1400 may be receiving a voltage higher than the observed waveform or measured waveform values. To prevent electric shock, change the vertical scale with the RANGE knob so that the entire amplitude of the waveform is displayed within the waveform display area, and check the input voltage level.
Page 100 Do not use the probe power supply terminals (option) on the right side panel of the SL1400 for purposes other than supplying power to the current probes. Also, be sure to use only the number of probes allowed. Otherwise, the device connected to the probe power supply terminal may break.
Page 101 When connecting the current probe to the probe power supply terminal on the right side panel, make sure that the current does not exceed the range shown below. Otherwise, the SL1400 operation may become unstable due to the activation of the excessive current protection circuit of the power supply.
Page 102 In addition, be sure to connect the GND lead to the functional ground terminal of the SL1400. If necessary, use the auxiliary grounding lead extension. A measurement of 1400 Vpeak is possible by connecting the GND lead to the SL1400.
Page 103: Compensating The Probe (Phase Correction)
Compensating the Probe (Phase Correction) When making measurements using a probe on the following modules, be sure to perform phase correction of the probe first. • High-Speed 10 MS/s, 12-Bit Isolation Module: 701250 (HS10M12) • High-Speed High-Resolution 1 MS/s, 16-Bit Isolation Module: 701251 (HS1M16) •...
Page 104 3.8 Compensating the Probe (Phase Correction) Phase Compensation Signal The probe compensation signal output terminal (COMP terminal) delivers the following rectangular wave signal. Frequency: 1 kHz ± 1% Amplitude: 1 V ± 10% Differences in the Waveform Caused by the Phase Correction of the Probe Over compensated Under compensated Correct waveform...
Page 105: Connecting Measurement Leads
Connecting Measurement Leads Connecting Measurement Leads When you measure voltage using the 701261 (UNIVERSAL), 701262 (UNIVERSAL (AAF)), 701267 (HV (with RMS)), or 701265 (TEMP/HPV), connect the measurement leads of a plug-in type terminal to the input terminal. H (red) For the 701261, 701262, and 701265 For the 701267 L (black) WARNING...
Page 106 (Black) (Black) Over-Range Indication If over-range is indicated, the SL1400 may be receiving a voltage higher than the observed waveform or measured waveform values. To prevent electric shock, change the vertical scale with the RANGE knob so that the entire amplitude of the waveform is displayed within the waveform display area, and check the input voltage level.
Page 107: Connecting Thermocouples
To the thermocouple WARNING Over-Range Indication If over-range is indicated, the SL1400 may be receiving a voltage higher than the observed waveform or measured waveform values. To prevent electric shock, change the vertical scale with the RANGE knob so that the entire amplitude of the waveform is displayed within the waveform display area, and check the input voltage level.
Page 108 3.10 Connecting Thermocouples • Immediately after connecting the thermocouple, the heat balance may be disturbed at the input terminal section and may cause measurement errors. Therefore, wait about 10 minutes before making a measurement. • In an environment where the air from the air conditioning is directly applied to the input terminals or where there are effects from a heat source, the heat balance may be disturbed at the input terminal section and cause measurement errors.
Page 109: Connecting The Bridge Head
3.11 Connecting the Bridge Head Strain is measured by connecting a strain gauge bridge (bridge head) or a strain gauge transducer to the strain module (701270 (STRAIN_NDIS) or 701271 (STRAIN_DSUB)). This section will mainly describe the procedures and precautions related to the connection of the bridge head (Model 701955/701956/701957/701958).
Page 110 (negative bridge voltage sensing) When Using the A1002JC Connector by YOKOGAWA You can create your own cable by using the YOKOGAWA A1002JC connector that is compatible with the strain module and use the cable to connect a strain gauge bridge or a strain gauge transducer to the strain module.
Page 111 3.11 Connecting the Bridge Head Pin Arrangement of the D-Sub Connector When viewed along arrow (1) 1: Floating common 2: Sense– (negative bridge voltage sensing) 3: Shuntcal– (negative shunt signal) 4: Shuntcal+ (positive shunt signal) 5: Sense+ (positive bridge voltage sensing) D-Sub 9-pin 6: Bridge–...
Page 112: Connecting Logic Probes
(two connectors marked Logic A and Logic B). About the Logic Probe Types of Logic Probes The following logic probes are available for connecting to the logic input connector of the SL1400. • 702911 (1 m) and 702912 (3 m) logic probes • 700986 High-Speed Logic Probe •...
Page 113 No. A1190MN) of the logic probe to the logic signal input connector of the SL1400. Turn ON the SL1400. To the logic signal input connector on the left side panel of the SL1400 Note • Each bit is displayed as “L level” when the logic probe is not connected to the instrument.
Page 114: Connecting Acceleration Sensors
(ACCL/VOLT). For a details on acceleration sensors, see the respective manuals. WARNING Over-Range Indication If over-range is indicated, the SL1400 may be receiving a voltage higher than the observed waveform or measured waveform values. To prevent electric shock, change the vertical scale with the RANGE knob so that the entire amplitude of the waveform is displayed within the waveform display area, and check the input voltage level.
Page 115 The acceleration signal (charge signal) that has been converted to a voltage signal by the charge amplifier is applied to the SL1400 using a normal coaxial cable. The SL1400 measures the signal in the voltage measurement mode.
Page 116: Connecting Sensors To The Frequency Module
* For the internal equivalent circuit for “Pull-up 5V,” see page 5-40. WARNING Over-Range Indication If over-range is indicated, the SL1400 may be receiving a voltage higher than the observed waveform or measured waveform values. To prevent electric shock, change the vertical scale with the RANGE knob so that the entire amplitude of the waveform is displayed within the waveform display area, and check the input voltage level.
Page 117 Connecting the Electromagnetic Pickup • The SL1400 allows power-generating electromagnetic pickup to be connected directly. The SL1400 does not support electromagnetic pickups that require external power supply or those that require a terminator at the output. • To connect electromagnetic pickups, use BNC cables. Use cables that are appropriate for the electromagnetic pickups being used.
Page 118: Operations And Functions Of Keys And The Jog Shuttle
Common Operations Operations and Functions of Keys and the Jog Shuttle This section describes the basic operations of the keys and jog shuttle on the SL1400. Basic Key Operations Displaying the Setup Menu of the Panel Keys Press a key. The menu corresponding to the key appears.
Page 119 4.1 Operations and Functions of Keys and the Jog Shuttle Operations on the Setup Dialog Box Show the setup dialog box using basic key operations or other similar means. Turn the jog shuttle to move the cursor to the desired item. Press SELECT.
Page 120: Entering Values And Strings
Entering Values and Strings Entering Values Entering Values Directly Using the Dedicated Knob The dedicated knobs indicated below can be turned to directly enter values. • Range knob • Position knob ALL CH ALL CH RANGE RANGE POSITION POSITION FINE FINE FINE FINE...
Page 121 4.2 Entering Values and Strings Entering Strings The keyboard displayed on the screen is used to enter character strings such as file names and comments. The jog shuttle, SELECT, and arrow keys are used to operate the keyboard to enter the character strings. Operating the Keyboard Turn the jog shuttle to move the cursor to the character to be entered.
Page 122 4.2 Entering Values and Strings • Recalling Strings Note that the string that is displayed in the entry box of the keyboard is overwritten when a string is recalled using the procedure in step 1 below. Every time the soft key is pressed, strings that are temporary stored (strings that have been entered previously) appear in order in the input box of the keyboard.
Page 123: Operating The Sl14000 Using A Usb Keyboard Or A Usb Mouse
You can connect a USB keyboard for entering file names, comments, and other information. In addition, the functions of each key on the front panel of the SL1400 are assigned to the keys on the keyboard (see appendix 7). Thus, the keyboard can be used to carry out operations that are the same as the key operations on the SL1400.
Page 124 ON/OFF state of the SL1400 (supports hot-plugging). Connect the type A connector of the USB cable to the SL1400; connect the type B connector to the keyboard. When the power switch is ON, the keyboard is detected and enabled approximately six seconds after it is connected.
Page 125 Executing Functions Corresponding to the Front Panel Keys of the SL1400 The functions corresponding to the front panel keys of the SL1400 are assigned to the keys on the USB keyboard. Therefore, you can press the key on the keyboard to carry out the corresponding function.
Page 126 4.3 Operating the SL14000 Using a USB Keyboard or a USB Mouse Operations Using a USB Mouse You can use a USB mouse to operate the SL1400 as you would using the front panel keys. In addition, you can click a desired item on a menu. This is analogous to pressing a soft key corresponding to a menu and pressing SELECT.
Page 127 Operations Similar to the Front Panel Keys on the SL1400 (Top Menu) • Displaying the Top Menu Right-click on the screen. The front panel keys on the SL1400 are displayed as the top menu. • Selecting Items on the Top Menu Left-click the item you want to select.
Page 128 4.3 Operating the SL14000 Using a USB Keyboard or a USB Mouse Expanding the Waveform Display Area after Clearing the Top Menu Left-click WIDE SCREEN on the top menu. The top menu is cleared, and the waveform display area is displayed expanded. Select WIDE SCREEN using the pointer and left-click to expand the waveform display area.
Page 129 4.3 Operating the SL14000 Using a USB Keyboard or a USB Mouse Setup Menu Operation (Similar to the Soft Key Operation) • Selecting an Item on the Setup Menu Left-click the item you want to select on the setup menu. If another menu appears when you select an item, move the pointer to the new menu displaying the item you want to select and left-click the item.
Page 130 4.3 Operating the SL14000 Using a USB Keyboard or a USB Mouse Selecting Toggle Box Items on the Dialog Box • Left-click the item you want to select. The item is selected. Click the selected item again to deselect it. •...
Page 131 4.3 Operating the SL14000 Using a USB Keyboard or a USB Mouse Setting the Measurement Range When the waveform of a channel measuring a voltage is displayed, point near the measurement range value displayed at the upper left of the screen. The pointer shape changes to .
Page 132: Initializing Settings
Initializing Settings <For a description of this function, refer to page 2-49.> Procedure Executing Initialization Press MENU. Press the Next 1/2 soft key. Press the INITIALIZE/CAL soft key. Press the Initialize soft key to execute initialization. Canceling Initialization Press the Initialize Undo soft key. The settings return to the conditions that existed immediately before initialization.
Page 133 Turning ON the power switch while holding down RESET also initializes settings related to communications and Ethernet interface and SCSI ID settings. The stored setup data (see section 13.1) is cleared. If you initialize the SL1400 in this fashion, the settings cannot be set back to their original condition.
Page 134: Performing Auto Setup
Performing Auto Setup <For a description of this function, refer to page 2-49.> Procedure Executing Auto Setup Apply the signal to be measured. Press MENU. Press the Next 1/2 soft key. Press the INITIALIZE/CAL soft key. Press the Trace soft key. The channel selection menu appears. The menu does not appear for channels without modules.
Page 135 RMS)), 701261 (UNIVERSAL), 701262 (UNIVERSAL (AAF)), and 701275 (ACCL/VOLT) Canceling Auto Setup Pressing the Auto Setup Undo soft key sets the SL1400 back to the condition that existed immediately before auto setup. However, if you turn OFF the power switch, the settings that existed immediately before auto setup are cleared.
Page 136 4.5 Performing Auto Setup Settings after Auto Setup Waveform acquisition and display conditions START/STOP START Acquisition mode Normal Number of acquisitions Infinite Time base Accumulate mode Zoom target Channels whose display is turned ON Vertical-axis settings Voltage range Value that causes the absolute value of the input waveform to be 1.6 to 4.5 divisions Offset voltage 0 V or the center value between the maximum and...
Page 137: Performing Calibration
Performing Calibration Calibrate the SL1400 when observing voltages. Procedure Executing Calibration Press MENU. Press the Next 1/2 soft key. Press the INITIALIZE/CAL soft key. Press the Cal Exec soft key to execute calibration. Performing Auto Calibration Press the Auto Cal soft key to select ON.
Page 138: Turning Channels On/Off
Chapter 5 Horizontal and Vertical Axes Turning Channels ON/OFF Procedure Press CH. Press one of the soft keys from CH1 to CH16, Logic A, and Logic B. Turning the Display ON/OFF Press the Display soft key to select ON or OFF. CH1 to CH16, Logic A, or Logic B Turn the display The displayed menu varies...
Page 139: Setting The Record Time And Sample Rate
• The maximum sample rate varies depending on the input module. To effectively use the record length provided by the SL1400, we recommend that the sample rate be set less than the maximum sample rate of the input module.
Page 140 (see appendix 1). The following equation holds: record length = record time × sample rate. The maximum record length of the SL1400 is 50 MW. The measured waveform signal of a single channel can be acquired up to the maximum record length of 50 MW when only a single channel is displayed.
Page 141 Setting the Voltage Range <For a description of this function, refer to page 2-6.> Procedure Selecting the Channel Press CH. Press one of the soft keys from CH1 to CH16. For the displayed menus when this operation is executed, see section 5.1. Setting the Voltage Range Turn the RANGE knob to set the voltage range.
Page 142 5.3 Setting the Voltage Range Voltage Range (When Variable Is ON) When Variable is ON, you can adjust the displayed amplitude of the waveform by changing the Upper and Lower values. For the operating procedure, see section 5.9. Even if you change the range using the RANGE knob when Variable is ON, the new range is not applied to the waveform amplitude.
Page 143: Setting The Vertical Position Of The Waveform
Setting the Vertical Position of the Waveform <For a description of this function, refer to page 2-7.> Procedure Selecting the Channel Press CH. Press one of the soft keys from CH1 to CH16, Logic A, and Logic B. For the displayed menus when this operation is executed, see section 5.1. Selecting Variable OFF Press the Variable soft key to select OFF.
Page 144 5.4 Setting the Vertical Position of the Waveform Explanation Selectable Range Set the vertical display position of the waveform for each channel. Selectable range: ±5 divisions from the center position of the waveform display area Resolution: 0.01 division Checking the Vertical Position For input waveforms and computed waveforms, the ground level and vertical position are marked to the left of the waveform display area.
Page 145: Selecting The Input Coupling
Selecting the Input Coupling <For a description of this function, refer to page 2-8.> Procedure Selecting the Channel Press CH. Press one of the soft keys from CH1 to CH16. For the displayed menus when this operation is executed, see section 5.1. Selecting the Input Coupling Press the Coupling soft key.
Page 146 5.5 Selecting the Input Coupling Input Coupling and Frequency Characteristics The frequency characteristics when AC or DC is specified are shown below. Note that low-frequency signals and signal components are not acquired if AC is selected as indicated in the figure below. When “AC”...
Page 147: Selecting The Probe Attenuation Or Current-To-Voltage Conversion Ratio
Selecting the Probe Attenuation or Current-to- Voltage Conversion Ratio <For a description of this function, refer to page 2-9.> Procedure Selecting the Channel Press CH. Press one of the soft keys from CH1 to CH16. For the displayed menus when this operation is executed, see section 5.1. Selecting the Probe Attenuation or Current-to-Voltage Conversion Ratio Press the Next 1/2 soft key.
Page 148: Selecting The Bandwidth Limit
Selecting the Bandwidth Limit Procedure Selecting the Channel Press CH. Press one of the soft keys from CH1 to CH16. For the displayed menus when this operation is executed, see section 5.1. Selecting the Bandwidth Limit Press the Bandwidth soft key. Press the soft key corresponding to the desired bandwidth limit value.
Page 149 5.7 Selecting the Bandwidth Limit For example, bandwidth limits of 400 Hz, 4 kHz, and 40 kHz are available on the 701251 (HS1M16). The frequency characteristics when the bandwidth is limited are shown below. When Full is selected, the maximum bandwidth of the input module is used. –3 dB Approx.
Page 150: Zooming Vertically By Setting The Zoom Rate
Zooming Vertically by Setting the Zoom Rate <For a description of this function, refer to page 2-7.> Procedure Selecting the Channel Press CH. Press one of the soft keys from CH1 to CH16, Logic A, and Logic B. For the displayed menus when this operation is executed, see section 5.1. Selecting Variable OFF Press the Variable soft key to select OFF.
Page 151 5.8 Zooming Vertically by Setting the Zoom Rate Zoom rate: V Zoom The following zoom rates are available. ×0.1, ×0.111, ×0.125, ×0.143, ×0.167, ×0.2, ×0.25, ×0.33, ×0.4, ×0.5, ×0.556, ×0.625, ×0.667, ×0.714, ×0.8, ×0.833, ×1, ×1.11, ×1.25, ×1.33, ×1.43, ×1.67, ×2, ×2.22, ×2.5, ×3.33, ×4, ×5, ×6.67, ×8, ×10, ×12.5, ×16.7, ×20, ×25, ×40, ×50, and ×100 However, the selectable range of zoom rates may be limited as follows: •...
Page 152: Zooming Vertically By Setting The Upper And Lower Limits Of The Display Range
Zooming Vertically by Setting the Upper and Lower Limits of the Display Range <For a description of this function, refer to page 2-7.> Procedure Selecting the Channel Press CH. Press one of the soft keys from CH1 to CH16. For the displayed menus when this operation is executed, see section 5.1. Selecting Variable ON Press the Variable soft key to select ON.
Page 153 5.9 Zooming Vertically by Setting the Upper and Lower Limits of the Display Range Explanation Zooming Vertically According to the Upper and Lower Limitsof the Display Range (Variable) If you turn Variable ON, you can vertically zoom in or out the displayed waveform by setting the upper and lower limits of the display range.
Page 154: Setting The Offset
5.10 Setting the Offset Procedure Selecting the Channel Press CH. Press one of the soft keys from CH1 to CH16 in which the 701280 (FREQ) is installed. For the displayed menus when this operation is executed, see section 5.1. Selecting Variable OFF Press the Variable soft key to select OFF.
Page 155: Using The Linear Scaling Function (Ax+B Or P1-P2)
5.11 Using the Linear Scaling Function (AX+B or P1-P2) <For a description of this function, refer to page 2-9.> The linear scaling function is applied when measuring voltage on the voltage module or strain on the strain module. Procedure Selecting the Channel Press CH.
Page 156 5.11 Using the Linear Scaling Function (AX+B or P1-P2) If P1-P2 Is Selected Use jog shuttle+SELECT to set the values before scaling, P1:X and P2:X. • You can also read the measured value into P1:X by selecting Get Measure P1:X and pressing Exec.
Page 157 5.11 Using the Linear Scaling Function (AX+B or P1-P2) Setting AX+B The selectable range of scaling coefficient A and offset B is as follows: Selectable range of A and B: –9.9999E+30 to +9.9999E+30 Initial value of A: +1.0000E+00, initial value of B: +0.0000E+00 Reading in the Measured Values When the Linear Scaling Method is P1-P2 (Get Measure) Regardless of whether waveform acquisition is started or stopped, the current value...
Page 158: Inverting The Waveforms
5.12 Inverting the Waveforms <For a description of this function, refer to page 2-10.> Procedure Selecting the Channel Press CH. Press one of the soft keys from CH1 to CH16. For the displayed menus when this operation is executed, see section 5.1. Turning Waveform Inversion ON/OFF Press the Next 1/2 soft key.
Page 159: Setting The Rms Measurement
5.13 Setting the RMS Measurement <For a description of this function, refer to page 2-11.> Procedure Selecting the Channel Press CH. Press one of the soft keys from CH1 to CH16 in which the 701267 (HV (with RMS)) is installed. For the displayed menus when this operation is executed, see section 5.1.
Page 160: Setting The Temperature Measurement
5.14 Setting the Temperature Measurement <For a description of this function, refer to page 2-12.> Procedure Selecting the Channel Press CH. Press one of the soft keys from CH1 to CH16 in which the 701261 (UNIVERSAL), 701262 (UNIVERSAL(AAF)), or 701265(TEMP/HPV)) is installed.
Page 161 Reference Junction Compensation (RJC) The SL1400 normally performs reference junction compensation with the built-in RJC circuit when measuring temperature with the thermocouple. The SL1400 allows you to turn ON or OFF the internal reference junction compensation. Normally, turn it ON.
Page 162: Setting The Strain Measurement
5.15 Setting the Strain Measurement <For a description of this function, refer to page 2-12.> Procedure Selecting the Channel Press CH. Press one of the soft keys from CH1 to CH16 in which the 701270 (STRAIN_NDIS) or 701271 (STRAIN_DSUB) is installed. For the displayed menus when this operation is executed, see section 5.1.
Page 163 5.15 Setting the Strain Measurement Setting the Gauge Factor Press the Excitation/Gauge Factor soft key to set the jog shuttle control to Gauge Factor. Turn the jog shuttle to set the gauge factor in the range of 1.90 to 2.20. Selecting the Bridge Voltage Press the Excitation/Gauge Factor soft key.
Page 164 5.15 Setting the Strain Measurement Executing Shunt Calibration (only on the 701271 (STRAIN_DSUB)) To execute shunt calibration, the strain corresponding to the shunt resistor to be used must be calculated in advance. For the calculation procedure, see appendices 9 and 10. Be sure to execute balancing before executing shunt calibration.
Page 165 Gauge Factor (K) If mV/V Is Selected You can set the gauge factor to an arbitrary value on the SL1400. However, if there are no specifications on the strain gauge transducer, set the gauge factor to 2.00. If the gauge factor is not 2.00, e is derived within the SL1400 using the following equation.
Page 166 5.15 Setting the Strain Measurement Bandwidth Limit See section 5.7. Executing Balancing Balancing automatically compensates the unbalanced portion of the bridge resistance. The execution of balancing takes a few seconds. Executable range of balancing: ±10000 µSTR (when set to µSTR) ±5 mV/V (when set to mV/V) Inverting the Waveforms See section 5.12.
Page 167 In addition to the normal shunt calibration (when the shunt calibration relay circuit is ON), the SL1400 allows the setting of a zero point when the relay circuit is OFF. This function is effective when the strain value is not 0 after the execution of balancing.
Page 168: Setting The Acceleration Measurement
5.16 Setting the Acceleration Measurement <For a description of this function, refer to page 2-13.> CAUTION Before connecting the acceleration sensor, check that the bias current to the sensor is OFF (see step 9 below). If you connect the acceleration sensor with the bias current turned ON, damage may occur to the internal circuitry of the acceleration sensor.
Page 169 5.16 Setting the Acceleration Measurement Setting the Bandwidth Limit and Waveform Label For the setup procedure of the bandwidth limit, see section 5.7. For the setup procedure of the waveform label, see section 8.10. Explanation Gain Set the ratio of the output signal with respect to the input signal in the range of ×0.1 to ×100.
Page 170: Frequency, Pulse Width, Pulse Integration, And Velocity) Measurement
5.17 Setting the Frequency (Number of Rotations, Period, Duty Cycle, Power Supply Frequency, Pulse Width, Pulse Integration, and Velocity) Measurement <For a description of this function, refer to page 2-13.> Procedure Selecting the Channel Press CH. Press one of the soft keys from CH1 to CH16 in which the 701280 (FREQ) is installed.
Page 171 5.17 Setting the Frequency (Number of Rotations, Period, Duty Cycle, Power Supply Frequency, Pulse Width, Pulse Integration, and Velocity) Measurement Setting the Input Conditions As necessary, use jog shuttle+SELECT to set the items of the preset (Logic 5V to EM Pickup) that you selected in step 4. If you select User (user-defined), all the setup items can be set arbitrarily.
Page 172 5.17 Setting the Frequency (Number of Rotations, Period, Duty Cycle, Power Supply Frequency, Pulse Width, Pulse Integration, and Velocity) Measurement Frequency The procedure after selecting Frequency in step 8 on page 5-34 is explained below. As necessary, use jog shuttle+SELECT to enter the smoothing filter, pulse average, deceleration prediction, and stop prediction.
Page 173 5.17 Setting the Frequency (Number of Rotations, Period, Duty Cycle, Power Supply Frequency, Pulse Width, Pulse Integration, and Velocity) Measurement Period The procedure after selecting Period in step 8 on page 5-34 is explained below. As necessary, use jog shuttle+SELECT to enter the smoothing filter, pulse average, deceleration prediction, and stop prediction.
Page 174 5.17 Setting the Frequency (Number of Rotations, Period, Duty Cycle, Power Supply Frequency, Pulse Width, Pulse Integration, and Velocity) Measurement Power Supply Frequency The procedure after selecting Power Freq. in step 8 on page 5-34 is explained below. Use jog shuttle+SELECT to select the center frequency of the power supply. As necessary, use jog shuttle+SELECT to set the smoothing filter and pulse average.
Page 175 5.17 Setting the Frequency (Number of Rotations, Period, Duty Cycle, Power Supply Frequency, Pulse Width, Pulse Integration, and Velocity) Measurement Pulse Integration The procedure after selecting Pulse Integ in step 8 on page 5-34 is explained below. Use jog shuttle+SELECT to set the physical amount per pulse (Unit/Pulse). Use jog shuttle+SELECT to select the method for resetting the integrated value of the pulse count.
Page 176 When set to EM Pickup, the LEDs of the frequency module do not illuminate in red even when the range is exceeded. • The SL1400 does not support electromagnetic pickups that require power supply or those that require terminators at the output. For these types of electromagnetic pickup, furnish appropriate measures on the sensor end.
Page 177 5.17 Setting the Frequency (Number of Rotations, Period, Duty Cycle, Power Supply Frequency, Pulse Width, Pulse Integration, and Velocity) Measurement Input Conditions The following nine input conditions are available. Voltage Range (V Range) • Select the voltage range (±FS) from the following: •...
Page 178 5.17 Setting the Frequency (Number of Rotations, Period, Duty Cycle, Power Supply Frequency, Pulse Width, Pulse Integration, and Velocity) Measurement Measurement Items (Functions) The following nine measurement items are available. Frequency Tw (s) Frequency (Hz) = 1/Tw (s) Measurable range: 0.01 Hz to 200 kHz Period Period (s) = Tw (s) Measurable range: 5 µs to 50 s...
Page 179 5.17 Setting the Frequency (Number of Rotations, Period, Duty Cycle, Power Supply Frequency, Pulse Width, Pulse Integration, and Velocity) Measurement Setup Items for Each Measurement Item Number of Rotations Pulse/Rotation (Pulse/Rotate) Set the number of pulses per rotation in the range of 1 to 99999 pulses. Duty Cycle or Pulse Width Measure Pulse Set the polarity of the pulse to be measured to positive or negative.
Page 180 5.17 Setting the Frequency (Number of Rotations, Period, Duty Cycle, Power Supply Frequency, Pulse Width, Pulse Integration, and Velocity) Measurement Velocity Distance/Pulse Set the distance per pulse in the range of –9.9999E+30 to 9.9999E+30. Time Unit Set the time unit to hour, min, or sec. The output is automatically converted to a velocity with respect to the specified time.
Page 181: Setting Logic Waveforms
5.18 Setting Logic Waveforms <For a description of this function, refer to page 2-16.> Procedure Selecting the Channel Press CH. Press the Logic A or Logic B soft key. For the displayed menus when this operation is executed, see section 5.1. Selecting the Input Signal Type Press the Probe soft key.
Page 182 Auto Note If you are observing the logic channel waveforms measured on the SL1400 using a software application such as XViewer or if you are reading the logic channel data using the WAVeform communication command, set the logic probe type of both LogicA and LogicB the same. If they are not the same, correct waveforms may not be displayed or correct data may not be output.
Page 183: Entering Settings On The All Channel Menu
5.19 Entering Settings on the All Channel Menu Procedure Displaying the All Channel Menu Press ALL CH. Press the Display, Range etc. or Lin-Scale, Unit etc. soft key. A setup list of the vertical axis (excluding inversion, linear scale, and unit) or a setup list of inversion, linear scaling, and unit is displayed.
Page 184 5.19 Entering Settings on the All Channel Menu Copying All the Settings of the Vertical Axis (Only to the Same Type of Modules) Press the Copy to Same Module soft key. Use jog shuttle+SELECT to select the copy source. Turn the jog shuttle to move the cursor to Exec and press SELECT. All the settings of the vertical axis are copied only to the same type of modules.
Page 185 5.19 Entering Settings on the All Channel Menu Executing Balancing When Measuring Strain Press the Strain Balance soft key. Use jog shuttle+SELECT to select the channel on which to execute balancing. Select a channel in which a strain module is installed. Turn the jog shuttle to move the cursor to Exec and press SELECT.
Page 186: Selecting The Time Base (Internal Clock Or External Clock)
5.20 Selecting the Time Base (Internal Clock or External Clock) <For a description of this function, refer to page 2-3.> Procedure Press MENU. Press the ACQ soft key. Selecting the Time Base Press the Time Base soft key. Press the Int or Ext soft key. If you select Ext, the Pulse/Rotate menu appears.
Page 187 5.20 Selecting the Time Base (Internal Clock or External Clock) Explanation Time Base Select from the following: Internal clock signal (the specified record time and sample rate are valid) Clock signal applied to the external clock input terminal (the specified record time and sample rate are valid) If Ext Is Selected Apply a clock signal of the following specifications to the TRIG OUT/EXT CLK IN...
Page 188 Maximum Sample Rate of Each Input Module If the sample rate of the SL1400 is set higher than the maximum sample rate of the input module, the data is updated only at the maximum sample rate of the input module.
Page 189: Setting The Trigger Mode
Chapter 6 Triggering Setting the Trigger Mode <For a description of this function, refer to page 2-24.> Procedure Press MENU. Press the TRIGGER soft key. Press the Mode soft key. Press the soft key corresponding to the desired mode to set the trigger mode. If you select Single(N), turn the jog shuttle to set the Single(N) Count.
Page 190 6.1 Setting the Trigger Mode Single(N) Mode When the trigger condition is met, the waveform is acquired the specified number of times and stops. After waveform acquisition is finished, all the waveforms are displayed. This mode is used when acquiring a waveform using the sequential store function. Log Mode In this mode, the trigger settings are disabled.
Page 191: Setting The Trigger Position
Setting the Trigger Position <For a description of this function, refer to page 2-25.> Procedure Press MENU. Press the TRIGGER soft key. Press the Position soft key. Turn the jog shuttle to set the trigger position. Pressing RESET resets the value to 50%.
Page 192 6.2 Setting the Trigger Position Time Reference Mark A ↓ mark is displayed at the time reference position of the acquisition data separately from the trigger position. • When Set to a Mode Other Than Roll Mode Normally, the time reference point and the trigger position are displayed at the same position, because they match.
Page 193: Setting The Trigger Delay
Setting the Trigger Delay <For a description of this function, refer to page 2-25.> Procedure Press MENU. Press the TRIGGER soft key. Press the Delay soft key. Turn the jog shuttle to set the trigger delay. Pressing RESET resets the value to 0.0 µs.
Page 194: Setting The Hold Off Time
Setting the Hold Off Time <For a description of this function, refer to page 2-26.> Procedure Press MENU. Press the TRIGGER soft key. Press the Trigger Cond. Setup soft key. Press the Hold Off soft key. Turn the jog shuttle to set the hold off time. Pressing RESET resets the value to 0.0 µs.
Page 195 6.4 Setting the Hold Off Time Selectable Range of the Hold Off Time 0 to 10 s (resolution: 0.1 µs) Notes for Setting the Hold Off Time • If you are setting the hold off time to 50 ms or greater, set the trigger mode to normal. •...
Page 196: Setting The Edge Trigger (Simple)
Setting the Edge Trigger (SIMPLE) <For a description of this function, refer to page 2-17.> Procedure Press MENU. Press the TRIGGER soft key. Press the Trigger Cond. Setup soft key. Press the Select soft key to select Simple. Setting the Trigger Source Press the Source soft key.
Page 197 6.5 Setting the Edge Trigger (SIMPLE) Explanation This function activates a trigger when the trigger source signal crosses a specified level. Trigger Source Select the trigger source from CH1 to CH16. Note If you set the trigger source to a value other than CH1 to CH16, see the sections below. •...
Page 198 6.5 Setting the Edge Trigger (SIMPLE) When Measuring Temperature Range Resolution K, E, J, T, L, U, N, R, S, B, W 0.1°C Au7Fe 0.1 K Trigger Slope Select how the trigger source is to cross the specified level for activating the trigger from the following three choices.
Page 199: Setting The External Trigger (Simple)
Set the hold off time according to the procedures given in section 6.4. Explanation The external signal that is input through the TRIG IN terminal on the left side panel of the SL1400 can be used to generate triggers. Note For details on the TRIG IN terminal, see section 14.1.
Page 200: Activating Triggers On The Power Signal (Simple)
SL1400. Waveforms synchronized to the commercial power supply frequency (50 Hz or 60 Hz) can be observed. Trigger Source Select Line. The power signal that is being supplied to the SL1400 becomes the trigger source. Hold Off See section 6.4.
Page 201: Setting The Timer Trigger (Simple)
Setting the Timer Trigger (SIMPLE) <For a description of this function, refer to page 2-17.> Procedure Press MENU. Press the TRIGGER soft key. Press the Trigger Cond. Setup soft key. Press the Select soft key to select Simple. Setting the Trigger Source Press the Source soft key.
Page 202 6.8 Setting the Timer Trigger (SIMPLE) Explanation The trigger is activated at specified time intervals from the specified time. Trigger Source Select Time. Reference Date and Time for Activating Triggers Set the date and time for activating the trigger. Time Interval for Activating Triggers The following intervals can be specified.
Page 203: Setting The Logic Trigger (Simple)
Setting the Logic Trigger (SIMPLE) <For a description of this function, refer to page 2-17.> Procedure Press MENU. Press the TRIGGER soft key. Press the Trigger Cond. Setup soft key. Press the Select soft key to select Simple. Setting the Trigger Source Press the Source soft key.
Page 204 6.9 Setting the Logic Trigger (SIMPLE) Explanation This is the edge trigger when the trigger source is set to a logic waveform. Trigger Source Select Logic A or Logic B. Bit to Assign the Trigger Slope (Logic Bit) Select the trigger source from Bit 1 to Bit 8. Trigger Slope Select how the trigger source is to cross the specified level for activating the trigger from the following two choices.
Page 205: Setting The A->B(N) Trigger (Enhanced)
6.10 Setting the A->B(N) Trigger (ENHANCED) <For a description of this function, refer to page 2-18.> Procedure Press MENU. Press the TRIGGER soft key. Press the Trigger Cond. Setup soft key. Press the Select soft key to select Enhanced. Setting the Trigger Type Press the Type soft key.
Page 206 6.10 Setting the A->B(N) Trigger (ENHANCED) Setting the Bit Patterns of Logic A and Logic B (Only when using logic input channels) Press the Logic Pattern soft key. The Logic Pattern setup dialog box appears. Use jog shuttle+SELECT to select the pattern of each bit (Bit A1 to Bit A8 and Bit B1 to Bit B8) from H, L, and X.
Page 207 6.10 Setting the A->B(N) Trigger (ENHANCED) Explanation This function activates a trigger when the N time condition B becomes true after condition A has become true. Condition A and Condition B (Set Pattern) Pattern of each channel: CH1 to CH16, Logic A, or Logic B Select from the following: •...
Page 208: Setting The A Delay B Trigger (Enhanced)
6.11 Setting the A Delay B Trigger (ENHANCED) <For a description of this function, refer to page 2-18.> Procedure Press MENU. Press the TRIGGER soft key. Press the Trigger Cond. Setup soft key. Press the Select soft key to select Enhanced. Setting the Trigger Type Press the Type soft key.
Page 209 6.11 Setting the A Delay B Trigger (ENHANCED) Setting the Bit Patterns of Logic A and Logic B (Only when using logic input channels) Press the Logic Pattern soft key. The Logic Pattern setup dialog box appears. Use jog shuttle+SELECT to select the pattern of each bit (Bit A1 to Bit A8 and Bit B1 to Bit B8) from H, L, and X.
Page 210 6.11 Setting the A Delay B Trigger (ENHANCED) Explanation This function activates a trigger the first time condition B becomes true after condition A has become true and a preset time has elapsed. Condition A and Condition B (Set Pattern) Pattern of each channel: CH1 to CH16, Logic A, and Logic B Select from the following: •...
Page 211: Setting The Edge On A Trigger (Enhanced)
6.12 Setting the Edge on A Trigger (ENHANCED) <For a description of this function, refer to page 2-19.> Procedure Press MENU. Press the TRIGGER soft key. Press the Trigger Cond. Setup soft key. Press the Select soft key to select Enhanced. Setting the Trigger Type Press the Type soft key.
Page 212 6.12 Setting the Edge on A Trigger (ENHANCED) Setting the Bit Pattern/Status of Logic A and Logic B (Only when using logic input channels) Press the Logic Pattern soft key. The Logic Pattern setup dialog box appears. Use jog shuttle+SELECT to select the pattern of each bit (Bit A1 to Bit A8 and Bit B1 to Bit B8) of condition A from H, L, and X.
Page 213 6.12 Setting the Edge on A Trigger (ENHANCED) Explanation This function activates a trigger on the OR logic of the edge trigger of each channel while condition A is true. Conditions A/Edge Or (Set Pattern) Pattern of Each Channel of Condition A: CH1 to CH16, Logic A, and Logic B Select from the following: •...
Page 214 6.12 Setting the Edge on A Trigger (ENHANCED) Trigger Level The trigger level setting applies to both simple and enhanced triggers. See “Trigger Level” in section 6.5. Trigger Hysteresis Sets a width to the trigger level so that triggers are not activated by small changes in the trigger signal.
Page 215: Setting The Or Trigger (Enhanced)
6.13 Setting the OR Trigger (ENHANCED) <For a description of this function, refer to page 2-19.> Procedure Press MENU. Press the TRIGGER soft key. Press the Trigger Cond. Setup soft key. Press the Select soft key to select Enhanced. Setting the Trigger Type Press the Type soft key.
Page 216 6.13 Setting the OR Trigger (ENHANCED) Setting the Status of Each Bit of Logic A and Logic B (Only when using logic input channels) Press the Logic Pattern soft key. The Logic Pattern setup dialog box appears. Use jog shuttle+SELECT to select edge trigger OR status of each bit (Bit A1 to Bit A8 and Bit B1 to Bit B8) from , and –.
Page 217 6.13 Setting the OR Trigger (ENHANCED) Explanation This function activates a trigger on the OR logic of edge triggers. You can set trigger conditions on all channels (CH1 to CH16). For example, a trigger can be activated on the rising edge of CH1 or CH2. Edge Trigger of Each Channel (Set Pattern) Select from the following: •...
Page 218: Setting The B > Time, B < Time, Or B Timeout (Pulse Width) Trigger (Enhanced)
6.14 Setting the B > Time, B < Time, or B Timeout (Pulse Width) Trigger (ENHANCED) <For a description of this function, refer to page 2-20.> Procedure Press MENU. Press the TRIGGER soft key. Press the Trigger Cond. Setup soft key. Press the Select soft key to select Enhanced.
Page 219 6.14 Setting the B > Time, B < Time, or B Timeout (Pulse Width) Trigger (ENHANCED) Setting the Bit Patterns of Logic A and Logic B (Only when using logic input channels) Press the Logic Pattern soft key. The Logic Pattern setup dialog box appears. Use jog shuttle+SELECT to select the pattern of each bit (Bit A1 to Bit A8 and Bit B1 to Bit B8) from H, L, and X.
Page 220 6.14 Setting the B > Time, B < Time, or B Timeout (Pulse Width) Trigger (ENHANCED) Explanation The following three pulse width triggers are available. B > Time: A trigger is activated when condition B goes false after holding true for the preset pulse width.
Page 221 6.14 Setting the B > Time, B < Time, or B Timeout (Pulse Width) Trigger (ENHANCED) Condition B (Set Pattern) Pattern of each channel: CH1 to CH16, Logic A, and Logic B Select from the following: • CH1 to CH16 (Other Than Logic Inputs) H: Above the preset trigger level Below the preset trigger level X: Don’t Care...
Page 222: Setting The Period Trigger (Enhanced)
6.15 Setting the Period Trigger (ENHANCED) <For a description of this function, refer to page 2-21.> Procedure Press MENU. Press the TRIGGER soft key. Press the Trigger Cond. Setup soft key. Press the Select soft key to select Enhanced. Setting the Trigger Type Press the Type soft key.
Page 223 6.15 Setting the Period Trigger (ENHANCED) Setting the Bit Patterns of Logic A and Logic B (Only when using logic input channels) Press the Logic Pattern soft key. The Logic Pattern setup dialog box appears. Use jog shuttle+SELECT to select the pattern of each bit (Bit A1 to Bit A8 and Bit B1 to Bit B8) from H, L, and X.
Page 224 6.15 Setting the Period Trigger (ENHANCED) Explanation The following four period triggers are available. T > Time: A trigger is activated when condition B is met the second time if the time when condition B is met the second time is longer than a specified time.
Page 225: Setting The Window Trigger (Enhanced)
6.16 Setting the Window Trigger (ENHANCED) <For a description of this function, refer to page 2-22.> Procedure Press MENU. Press the TRIGGER soft key. Press the Trigger Cond. Setup soft key. Press the Select soft key to select Enhanced. Setting the Trigger Type Press the Type soft key.
Page 226 6.16 Setting the Window Trigger (ENHANCED) Setting the Status of Each Bit of Logic A and Logic B (Only when using logic input channels) Press the Logic Pattern soft key. The Logic Pattern setup dialog box appears. Use jog shuttle+SELECT to select the status of each bit (Bit A1 to Bit A8 and Bit B1 to Bit B8) from , and –.
Page 227 6.16 Setting the Window Trigger (ENHANCED) Explanation Window Trigger Target You can set trigger conditions on all channels (CH1 to CH16) other than logic waveforms. A trigger occurs if any of the specified trigger conditions (OR condition) is met. Trigger Condition (Set Pattern) •...
Page 228: Setting The Wave Window Trigger (Enhanced)
6.17 Setting the Wave Window Trigger (ENHANCED) <For a description of this function, refer to page 2-23.> Procedure Press MENU. Press the TRIGGER soft key. Press the Trigger Cond. Setup soft key. Press the Select soft key to select Enhanced. Setting the Trigger Type Press the Type soft key.
Page 229 6.17 Setting the Wave Window Trigger (ENHANCED) Selecting the Target Waveform Press the Select CH soft key. The channel selection menu appears. Use jog shuttle+SELECT to select the target channel. Setting the Window Width Press the Width soft key. Turn the jog shuttle to set the window width. Setting the Hold Off Set the hold off time according to the procedures given in section 6.4.
Page 230 6.17 Setting the Wave Window Trigger (ENHANCED) Operating Conditions of the Wave Window Trigger Target waveform: AC waveform or triangular waveform between 40 and 1 kHz. (Rectangular waveforms such as inverter waveforms and waveforms with a fast rising edge are excluded) Sample rate: 10 kS/s to 500 kS/s Acquisition mode: Normal...
Page 231 6.17 Setting the Wave Window Trigger (ENHANCED) The time difference from the abnormal waveform to the trigger point varies depending on the reference cycle as shown below. (When the frequency of the trigger is low the time difference will be 0 cycles in most cases.) Reference Cycle Time Difference 1 cycle...
Page 232 6.17 Setting the Wave Window Trigger (ENHANCED) Window Width The realtime template is created by applying a tolerance width (window width) to the averaged waveform. The selectable range of the window width varies depending on the measured item as follows: When measuring voltage: (Voltage range)/1000 to voltage range When measuring strain:...
Page 233: Setting The Action-On-Trigger
6.18 Setting the Action-on-Trigger <For a description of this function, refer to page 2-26.> Procedure Press MENU. Press the TRIGGER soft key. Press the ACTION soft key. Setting the Action Press the Mode soft key. The Mode setup menu appears. Press the On Trigger soft key.
Page 234 6.18 Setting the Action-on-Trigger Aborting Action-on-Trigger Press START/STOP. Waveform acquisition is stopped, and action-on-trigger is aborted. Explanation Mode A specified action is executed each time a trigger is activated. When action-on-trigger is enabled, the trigger mode is set to Single. Action The following five types of actions are available.
Page 235 (Only up to 512 files can be saved to the root directory of a medium that has been formatted using the SL1400.) • The maximum number of files that can be created in a single directory is 5000. Do not place files in the save destination folder before starting the action-on-trigger operation.
Page 236: Activating Manual Triggers
6.19 Activating Manual Triggers <For a description of this function, refer to page 2-27.> Procedure Press START/STOP. The waveform acquisition starts. Press MANUAL TRIG to manually activate the trigger. Explanation You can manually activate the trigger by pressing the MANUAL TRIG key on the front panel.
Page 237 Chapter 7 Waveform Acquisition Starting/Stopping Waveform Acquisition Procedure Starting/Stopping Waveform Acquisition Press START/STOP. Waveform acquisition starts or stops. Waveform acquisition is in progress when the RECORD indicator above the START/ STOP key is illuminated. Setting the Waveform Acquisition Mode at Power ON Press MENU.
Page 238: Chapter 7 Waveform Acquisition
OFF: Does not start the waveform acquisition at power on. Response Time of the START/STOP Key You can set whether the SL1400 responds immediately when START/STOP is pressed or when the key is held down for at least 1 second.
Page 239: Setting The Acquisition Mode
Setting the Acquisition Mode <For a description of this function, refer to page 2-28.> Procedure Press MENU. Press the ACQ soft key. Setting the Acquisition Mode Press the Mode soft key. Press the Normal, Envelope, Average, or Box Average soft key. You may not be able to select some modes depending on the trigger mode setting.
Page 240 7.2 Setting the Acquisition Mode Explanation Acquisition Mode The acquisition modes below are available. The default setting is Normal. • Normal Mode Sampled data is stored in the acquisition memory without special processing. • Envelope Mode The maximum and minimum values are determined every acquisition interval from the data sampled at 10 MS/s.
Page 241 • If you stop the waveform acquisition by pressing START/STOP, the averaging process also stops. Averaging restarts from the beginning when acquisition resumes. • If you are using simple averaging, the SL1400 terminates acquisition automatically when the specified number of acquisitions (acquisition count) is completed.
Page 242: Acquiring Data Using Box Average
Acquiring Data Using Box Average <For a description of this function, refer to page 2-29.> Procedure Press MENU. Press the ACQ soft key. Selecting Box Average Mode Press the Mode soft key. Press the Box Average soft key. Explanation This function is valid only on the 701250 (HS10M12) and 701255 (NONISO_10M12) input modules.
Page 243 7.3 Acquiring Data Using Box Average Number of Data Points on Which Moving Average Is Computed Sample Rate (S/s) Number of Data Points 10 M* 1 point 2 points 4 points out of 5 points 8 points out of 10 points 500 k 16 points out of 20 points 200 k...
Page 244: Acquiring Data Using The Sequential Store Function (Single (N) Mode)
Acquiring Data Using the Sequential Store Function (Single (N) Mode) <For a description of this function, refer to page 2-29.> Procedure Press MENU. Press the TRIGGER soft key. Press the Mode soft key. Press the Single(N) soft key to set the trigger mode to Single (N). Press the Single(N) Count soft key.
Page 245: Realtime Recording To The Internal Hard Disk (Option)
* A memory device connected to a USB connector such as an MO disk drive, hard disk, or flash memory. • The Real Time drive is a working area on the SL1400 internal hard disk for realtime recording. Never delete files from the drive or add files to the drive from an external PC such as by using the FTP server function.
Page 246 7.5 Realtime Recording to the Internal Hard Disk (Option) Note If you stop the waveform acquisition by pressing START/STOP, realtime recording is aborted even if it is within the specified recording time. Explanation The data can be recorded in realtime to the internal hard disk (option). The internal hard disk consists of the following drives.
Page 247 7.5 Realtime Recording to the Internal Hard Disk (Option) Auto Naming File names are automatically created during realtime recording. You can also enter comments. The following three auto naming modes are available. The file is assigned the name specified by File Name (up to 16 characters). Numbering Automatically creates files by attaching a four-digit number, 0000 to 4999, to the file name.
Page 248 128. If the number of files reaches 128, delete unneeded files by operating the SL1400. You can also copy the files to an area outside the realtime recording area of the internal hard disk or to other storage media.
Page 249: Setting The Action When Waveform Display Is Updated (Action-On-Stop)
Setting the Action When Waveform Display Is Updated (Action-on-Stop) <For a description of this function, refer to page 2-32.> Procedure Press MENU. Press the TRIGGER soft key. Press the ACTION soft key. Setting the Action Press the Mode soft key. The Mode setup menu appears. Press the On Stop soft key.
Page 250 7.6 Setting the Action When Waveform Display Is Updated (Action-on-Stop) Aborting Action-on-Stop Press START/STOP. Waveform acquisition is stopped, and action-on-stop is aborted. Explanation Mode The specified record length of data is acquired when measurement is started, and the waveform is displayed. Then, the specified action is executed. In addition, the specified action is also executed when measurement is stopped.
Page 251 (Only up to 512 files can be saved to the root directory of a medium that has been formatted using the SL1400.) • The maximum number of files that can be created in a single directory is 5000. Do not place files in the save destination folder before starting the action-on-stop operation.
Page 252: Backing Up The Acquisition Memory
When using the nickel hydride rechargeable batteries, be sure to charge them before use. (The SL1400 does not have a charge function.) • You cannot check the battery level on the SL1400. Use a commercially sold battery level checker or the like. •...
Page 253: Chapter 8 Waveform Display And Information Display
Chapter 8 Waveform Display and Information Display Changing the Display Format <For a description of this function, refer to page 2-32.> Procedure Press DISPLAY. Setting the Display Format Press the Format soft key. Press one of the soft key from 1 Zone to 16 Zone to select the format. Setting the Waveform Mapping Press the Next 1/2 soft key.
Page 254 8.1 Changing the Display Format Explanation You can select the number of zones into which the analog waveform display window is divided. The position of the waveform of each channel varies depending on the display format. Display Format 1 Zone 2 Zone 3 Zone 4 Zone...
Page 255 If you leave interpolation off, these points will appear as discrete dots (so that the display will show gaps between dots or vertical lines). If you set interpolation on, the SL1400 will connect the points. Three following interpolation methods are available.
Page 256 8.2 Setting the Display Interpolation Method Number of Data Points Used for Waveform Display When the area is not an interpolation area on the T-Y waveform display and Interpolation is set to Sine or Line, the aforementioned P-P compressed values are displayed. However, if Interpolation is set to OFF or if X-Y waveforms are being displayed, the acquisition data is decimated, and data that has been picked up at certain intervals are displayed.
Page 257: Changing The Graticule
Changing the Graticule <For a description of this function, refer to page 2-33.> Procedure Press DISPLAY. Press the Graticule soft key to select the graticule. If the display mode is X-Y or T-Y&X-Y, press the Next 1/2 soft key to display the Graticule menu.
Page 258: Accumulated Waveform Display
Accumulated Waveform Display <For a description of this function, refer to page 2-33.> Procedure Press DISPLAY. Setting the Accumulate Mode Press the Accumulate soft key. The accumulate mode selection menu appears. Press the OFF or Persist soft key to select the accumulate mode. If you select Persist, proceed to step 4.
Page 259 8.4 Accumulated Waveform Display Notes on Accumulation • Automated measurement of waveform parameters is performed on the most recent waveform. • When printing accumulated waveforms using the built-in printer, they are printed using two tones. • If the waveform acquisition is forcibly stopped by pressing START/STOP, the accumulation is temporarily suspended.
Page 260: Zooming And Auto Scrolling The Waveform
Zooming and Auto Scrolling the Waveform <For a description of this function, refer to page 2-34.> Procedure Press ZOOM. Zooming on the Waveform Selecting the Display Mode Press the Mode soft key. The display mode selection menu appears. Press the soft key corresponding to the desired mode. If you select Main, you cannot carry out the following operations.
Page 261 8.5 Zooming and Auto Scrolling the Waveform When Mode Is Set to Main&Z1, Main&Z2, Z1 Only, and Z2 Only in Step 3 Change the Range of the Automated Measurement of Waveform Parameters Press the Next 1/2 soft key. Press the Fit Meas Range to Z1 or Fit Meas Range to Z2 soft key. The range of the automated measurement of waveform parameters is set to the zoom range of Z1 or Z2.
Page 262 8.5 Zooming and Auto Scrolling the Waveform Auto Scroll Press the Auto Scroll soft key. Selecting the Scroll Direction Press the Direction soft key to set the scroll direction. Setting the Display Position of the Search Result Window (When Mode Is Set to Main&Z1&Z2 or Z1&Z2 in Step 3) Press the Result Window soft key to select Z1 or Z2.
Page 263 8.5 Zooming and Auto Scrolling the Waveform Explanation Zooming on the Waveform Zoomed waveforms of two locations can be displayed simultaneously (dual zoom). You can also specify which channels to zoom. Zooming is not possible if the number of displayed points on the screen is less than or equal to 10 (less than or equal to 50 for FFT waveforms).
Page 264 8.5 Zooming and Auto Scrolling the Waveform Zoom Position (Z1Position and Z2Position) • The zoom position can be set by specifying the zoom center position (center of the zoom box) in the range of –5 to +5 divisions with the center of the waveform display area set to 0 division.
Page 265 Displaying X-Y Waveforms <For a description of this function, refer to page 2-35.> Procedure Press DISPLAY. Selecting the Display Mode Press the Mode soft key. The mode selection menu appears. Press one of the soft keys from T-Y, X-Y, and T-Y&X-Y to set the mode. Selecting the X Axis Mode (When Mode Is Set to X-Y or T-Y&X-Y) Press the X Axis soft key to select Single or Quad.
Page 266 8.6 Displaying X-Y Waveforms Setting the Display Range Press the Start Point/End Point soft key to set the jog shuttle control to Start Point. Turn the jog shuttle to set the start point of the X-Y waveform display. Likewise, press the Start Point/End Point soft key to set the jog shuttle control to End Point and set the end point of the X-Y waveform display.
Page 267 8.6 Displaying X-Y Waveforms Number of Data Points to Be Used for Waveform Display Same as “Number of Data Points to Be Used for Waveform Display” described in section 8.2. See section 8.2. X-Y Waveform Display Range (Start Point/End Point) The X-Y display shows the range selected on the T-Y waveform.
Page 268: Taking Snapshots And Clearing Traces
Taking Snapshots and Clearing Traces <For a description of this function, refer to page 2-35.> Procedure Snapshot Press SNAPSHOT to take a snapshot of the screen. Clear Trace Press CLEAR TRACE while the waveform acquisition is stopped. The waveform is cleared.
Page 269: Turning On/Off The Translucent Display
Turning ON/OFF the Translucent Display <For a description of this function, refer to page 2-35.> Procedure Press DISPLAY. Press the Next1/2 soft key. Press the Translucent soft key to select ON or OFF. Explanation When this is turned to ON, the popup menu becomes translucent. The contents underneath the popup menu can be seen.
Page 270: Turning The Scale Value Display On/Off
Turning the Scale Value Display ON/OFF <For a description of this function, refer to page 2-36.> Procedure Press DISPLAY. Press the Next 1/2 soft key. Press the Scale Value soft key to select ON or OFF. Scale value Explanation You can turn ON/OFF the upper and lower limits of the vertical and horizontal axes of each channel and the scale value display corresponding to the upper and lower limits.
Page 271 8.10 Setting Waveform Labels <For a description of this function, refer to page 2-36.> Procedure Setting the Waveform Label Press CH. Press one of the soft keys from CH1 to CH16, Logic A, and Logic B. For the displayed menus when this operation is executed, see section 5.1. Press the Next 1/2 soft key.
Page 272: Turning The Extra Window On/Off
8.11 Turning the Extra Window ON/OFF <For a description of this function, refer to page 2-36.> Procedure Press DISPLAY. Press the Extra Window soft key. The extra window selection menu appears. Press the ON or OFF soft key. If you select ON, use the jog shuttle to set the height of the extra window in the range of 0 to 8.
Page 273: Turning The Extra Window On/Off
8.11 Turning the Extra Window ON/OFF Number of Points Displayed Vertically When Extra Window Is ON When the extra window is turned ON, the vertical axis size of the waveform display window is reduced according to the Height setting. The vertical resolution does not change, but the number of displayed points varies as follows.
Page 274: Turning The Level Indicator Display On/Off
8.12 Turning the Level Indicator Display ON/OFF <For a description of this function, refer to page 2-36.> Procedure Press DISPLAY. Press the Next 1/2 soft key. Press the Level Indicator soft key to select ON or OFF. Explanation Level Indicator The level of each waveform is displayed using an indicator to the right of the waveform display area.
Page 275: Displaying Channel Information/Displaying Waveforms On A Full Screen (Expanding The Waveform Display Area)
8.13 Displaying Channel Information/Displaying Waveforms on a Full Screen (Expanding the Waveform Display Area) <For a description of this function, refer to page 2-36.> Procedure Displaying the Channel Information Press ESC while the setup menu is displayed. The setup menu displayed on the right side of the screen disappears, and the key information about the channel (CH1 to CH16) whose display is turned ON is displayed.
Page 276 Each time you press the ESC key, the display switches cyclically as follows: channel information display → numeric monitor display → full screen display of waveforms full → channel information display. • When the SL1400 receives communication commands, the screen switches to channel information display. Explanation Displaying the Channel Information Pressing ESC once when the setup menu is displayed clears the channel information of the channel (CH1 to CH16) whose display is turned ON.
Page 277: Chapter 9 Recording In Recorder Mode
Chapter 9 Recording in Recorder Mode Selecting the Recorder Mode <For a description of this function, refer to page 2-37.> Procedure Note If you change the recorder mode by carrying out the procedure in this section, the acquired waveform data is cleared. Be sure to save data that you need before changing the recorder mode.
Page 278 9.1 Selecting the Recorder Mode SL1400 Settings in Chart Recorder Mode If you select Chart Recorder mode, the SL1400 settings change as follows: Menu Soft key Setting Record Length Fixed to 2.5 MW Mode Envelope* Time Base RealTime Out DISPLAY...
Page 279: Setting The Record Conditions Of T-Y Waveform Recording
Setting the Record Conditions of T-Y Waveform Recording <For a description of this function, refer to page 2-37.> Procedure Before carrying out the procedure below, select Chart Recorder mode according to the procedures in section 9.1. Selecting the Chart Speed Press CHART SPEED.
Page 280 9.2 Setting the Record Conditions of T-Y Waveform Recording Setting the Acquisition Mode By default, the acquisition mode in Chart Recorder mode is set to envelope. If you want to select the acquisition mode between normal and envelope, carry out the steps below.
Page 281 Starts recording when the trigger conditions are met after starting the waveform acquisition. Recording stops when the shot record length of waveform data is recorded. Then, the SL1400 enters the trigger-wait state. This operation is repeated until the waveform acquisition is stopped.
Page 282: Setting The Recording Format Of T-Y Waveform Recording
Setting the Recording Format of T-Y Waveform Recording Procedure Before carrying out the procedure below, select Chart Recorder mode according to the procedures in section 9.1. The settings specified here are not applied to the print settings of the A4 print in Memory Mode (see page 12-3).
Page 283 9.3 Setting the Recording Format of T-Y Waveform Recording When Setup of Flexible Zone is selected Setting the Details Setting the Print Interval of Scale Values Use jog shuttle+SELECT to select the print interval of the scale. Setting the Print Interval of Channel Label Use jog shuttle+SELECT to select the print interval of the channel label (Ch Label).
Page 284 9.3 Setting the Recording Format of T-Y Waveform Recording Explanation Set the recording format for printing the T-Y waveform to the built-in printer. For a T-Y waveform recording print example on the built-in printer, see the next section. Selecting the Display (Recording) Format Select the number of divisions of the recording area for recording to the built-in printer.
Page 285 9.3 Setting the Recording Format of T-Y Waveform Recording Dark/Light Set the graticule dark/light setting to Light or Dark. Width of the Vertical Graticule (Width) Select how to set the vertical graticule width. 1Div: Grid that divides the recording area into 10 areas 10mm: mm graticule type Graticule lines that are printed...
Page 286 9.3 Setting the Recording Format of T-Y Waveform Recording Annotation Channel information, channel messages, or measured values (Ch Data) is printed. Use Annotation to select the print interval from OFF, 200 mm, 400 mm, and 800 mm. Use Type to set the type of annotation to be printed from below. •...
Page 287: Recording T-Y Waveforms
Recording T-Y Waveforms Procedure Before carrying out the procedure below, set the recording conditions and recording format of T-Y waveform recording according to the procedures in sections 9.2 and 9.3. Starting the T-Y Waveform Recording Press START/STOP. Waveform acquisition starts, and T-Y waveform recording starts.
Page 288: Recording T-Y Waveforms
9.4 Recording T-Y Waveforms Print Example of the T-Y Waveform Recording Format: Triad Graticule Type: Width: 10 mm Time Chart speed T/div Gauge Scale value Scale value V/div (Value/div) Channel label Arrow indicating the ground position Scale value Scale value Annotation (channel information) 9-12 IM 701240-01E...
Page 289 Recording Numeric Values <For a description of this function, refer to page 2-37.> Procedure Before carrying out the procedure below, select Chart Recorder mode according to the procedures in section 9.1. Press MENU. Press the RECORD COND soft key. Press the Print Style soft key to select Numeric. Press the Print Setup soft key.
Page 290 9.5 Recording Numeric Values Displayed only when Output Device is set to File Note Up to 10000 lines are output to the file. When 10000 lines are exceeded, writing stops. However, the waveform acquisition continues. Setting the Trigger Mode Carry out the procedure in “Setting the Trigger Mode” on page 9-3. Setting the Acquisition Mode Carry out the procedure in “Setting the Acquisition Mode”...
Page 291 9.5 Recording Numeric Values Trigger Mode You can select Auto or Log in numeric value recording. Each trigger mode operation is the same as with the T-Y waveform recording. For details, see page 2-37 and section 9.2. Acquisition Mode The acquisition mode is the same as with the T-Y waveform recording. For details, see page 2-28 and section 9.2.
Page 292: Recording T-Y Waveforms
Recording X-Y Waveforms <For a description of this function, refer to page 2-40.> Procedure Before carrying out the procedure below, select X-Y Recorder mode according to the procedures in section 9.1. Press MENU. Press the RECORD COND soft key. Setting the Sample Rate Press the Sample Rate soft key.
Page 293: Recording X-Y Waveforms
9.6 Recording X-Y Waveforms Setting Whether to Print the Scale Use jog shuttle+SELECT to turn the scale ON or OFF. Setting Whether to Display the Pointer Use jog shuttle+SELECT to turn the pointer ON or OFF. If you select ON, a pointer indicating the most recent recording position appears on the screen.
Page 294 The most recent 1 MW of data that are acquired during the X-Y waveform recording are saved to the internal memory of the SL1400. The data can be used in the automated measurement of waveform parameters* (see section 11.5) and cursor measurements (excluding the marker cursor.
Page 295 9.6 Recording X-Y Waveforms Print Example of the X-Y Waveform Recording Graticule Type: Width: 10 mm Time Sample rate Y-axis scale value Y-axis scale value X-axis scale value X-axis scale value Index 9-19 IM 701240-01E...
Page 296: Reprinting On The Built-In Printer
Reprinting on the Built-in Printer <For a description of this function, refer to page 2-40.> Procedure Reprinting the Waveform Recorded in Chart Recorder Mode (T-Y Recording) Before carrying out the procedure below, record the T-Y waveform in Chart Recorder mode according to the procedures in sections 9.1 to 9.4. This section explains the procedure from the point when the RECORD COND menu is displayed.
Page 297 9.7 Reprinting on the Built-in Printer Displaying the Preview (Only If Continue Is Selected in Step 5) Press the Preview soft key. Turn the jog shuttle to select the page you want to preview. Press the Quit soft key to close the preview display. Executing the Reprint Operation Press the Print Exec soft key.
Page 298 9.7 Reprinting on the Built-in Printer Length Continue: Prints the range specified by Window Mag/Window Pos and Start Point/End Point using the magnification specified by Print Mag. A4 Print: Prints the range specified by Window Mag/Window Pos to A4 size. The magnification changes automatically so that the display range fits on an A4 size paper.
Page 299 9.7 Reprinting on the Built-in Printer Reprint Example of the T-Y Waveform Recording Format: Triad Graticule Type: Width: 10 mm Gauge Time T/div Scale value Measurement range Arrow indicating the ground position Scale value Channel label Annotation (channel information) Time Time Index 9-23...
Page 300: Creating A Pdf File Of The Reprint Image
Creating a PDF File of the Reprint Image <For a description of this function, refer to page 2-40.> Procedure Before carrying out the procedure below, record the T-Y waveform in Chart Recorder mode according to the procedures in sections 9.1 to 9.4 or record the X-Y waveform in X-Y Recorder mode according to the procedures in section 9.6.
Page 301 9.8 Creating a PDF File of the Reprint Image Setting the PDF File Press the PDF Setup soft key. The PDF setup dialog box appears. Setting the Paper Size Use jog shuttle+SELECT to select the paper size. Setting the Orientation (If You Select A3, A4, or A5 in Step 13) Use jog shuttle+SELECT to select the orientation.
Page 302 9.8 Creating a PDF File of the Reprint Image Explanation Print to When creating a PDF file of the waveform recorded in Chart Recorder mode (T-Y recording) or X-Y Recorder mode (X-Y recording), set the print destination to PDF. Selecting the Section to Be Output to the PDF File (Window Mag/Window Pos and Start Point/End Point) Can be specified only in Chart Recorder mode.
Page 303 9.8 Creating a PDF File of the Reprint Image File Setup Set the auto naming, file name, and file output destination of the PDF file. These settings are the same as those of normal files. For details, see section 13.8. Executing the PDF File Generation The PDF file is created using the specified conditions.
Page 304 9.8 Creating a PDF File of the Reprint Image PDF File Example Chart Recorder mode (Paper Size: A4) Date/Time T/div File name Gauge Page Scale value of the vertical axis Measurement range Scale value of Annotation the vertical axis (channel information) Scale value of the time axis Scale value of the time axis X-Y Recorder mode (Paper Size: A5)
Page 305 Chapter 10 Waveform Computation 10.1 Adding, Subtracting, Multiplying, and Dividing Waveforms <For a description of this function, refer to page 2-41.> Procedure Press MENU. Press the MATH soft key. Press the Mode soft key to select ON. Setting the Computation Start and End Points Press the Start Point/End Point soft key to set the jog shuttle control to Start Point.
Page 306 10.1 Adding, Subtracting, Multiplying, and Dividing Waveforms Setting the Upper and Lower Limits of Waveform Display (When Scale Is Set to Manual) Use jog shuttle+SELECT to set the upper limit. Likewise, set the lower limit. Note If you select Auto, you cannot set Upper and Lower. Setting the Unit Use jog shuttle+SELECT to set the Unit using up to four characters according to the procedure given in section 4.2.
Page 307 10.1 Adding, Subtracting, Multiplying, and Dividing Waveforms Explanation Addition, subtraction, multiplication, and division can be performed between channels. Computation Target Channels CH1 to CH16, Math1 to Math7 Computation range: Start Point/End Point By default, the measurement range is ±5 divisions of the display frame on the time axis. You can limit this range.
Page 308: Performing Binary Computation
10.2 Performing Binary Computation <For a description of this function, refer to page 2-41.> Procedure Press MENU. Press the MATH soft key. Press the Mode soft key to select ON. Setting the Computation Start and End Points Press the Start Point/End Point soft key to set the jog shuttle control to Start Point.
Page 309 10.2 Performing Binary Computation Setting the Upper and Lower Limits of Waveform Display (When Scale Is Set to Manual) Use jog shuttle+SELECT to set Upper. Likewise, set Lower. Note If you select Auto, you cannot set Upper and Lower. Setting the Unit Use jog shuttle+SELECT to set the Unit using up to four characters according to the procedure given in section 4.2.
Page 310 10.2 Performing Binary Computation Explanation This function converts CH1 to CH16 or Math1 to Math7 waveform to a digital signal (1s and 0s) according to the specified threshold level. Upper Lower Computation range: Start Point/End Point By default, the measurement range is ±5 divisions of the display frame on the time axis. You can limit this range.
Page 311 10.3 Performing Power Spectrum Computation (FFT) <For a description of this function, refer to page 2-41.> Procedure Press MENU. Press the MATH soft key. Press the Mode soft key to select ON. Setting the Computation Start and End Points Press the Start Point/End Point soft key to set the jog shuttle control to Start Point.
Page 312 10.3 Performing Power Spectrum Computation (FFT) Setting the Unit Use jog shuttle+SELECT to set the Unit using up to four characters according to the procedure given in section 4.2. Setting the Label Use jog shuttle+SELECT to set the Label according to the procedure given in section 4.2.
Page 313 10.3 Performing Power Spectrum Computation (FFT) Explanation This function displays the power spectrum of CH1 to CH16 and Math1 to Math7 waveforms. Computation range: Start Point/End Point By default, the measurement range is ±5 divisions of the display frame on the time axis. You can limit this range.
Page 314 10.3 Performing Power Spectrum Computation (FFT) Displaying the Overall Value (Only When Measure Is Set to ON) If the channels (Math1 to Math8) on which power spectrum computation (PS) is selected are in the middle of the automated measurement of waveform parameters (MEASURE: ON) and Rms is ON, the screen shows “Rms = overall value.”...
Page 315 10.4 Shifting the Phase <For a description of this function, refer to page 2-42.> Procedure Press MENU. Press the MATH soft key. Press the Mode soft key to select ON. Setting the Computation Start and End Points Press the Start Point/End Point soft key to set the jog shuttle control to Start Point.
Page 316 10.4 Shifting the Phase Setting the Unit Use jog shuttle+SELECT to set the Unit using up to four characters according to the procedure given in section 4.2. Setting the Label Use jog shuttle+SELECT to set the Label according to the procedure given in section 4.2.
Page 317 10.4 Shifting the Phase Explanation The phase of CH1 to CH16 and Math1 to Math7 waveforms can be displayed with the phase shifted. Computation can also be performed on phase-shifted waveforms. Computation range: Start Point/End Point By default, the measurement range is ±5 divisions of the display frame on the time axis. You can limit this range.
Page 318 10.4 Shifting the Phase Linear Scaling When performing computation on a channel that has linear scaling set, the computation is performed on the scaled value. Notes on Computation Computation is not executed when you change Start Point or End Point while the computation is stopped.
Page 319: Chapter 11 Waveform Analysis/Search
Chapter 11 Waveform Analysis/Search 11.1 Displaying History Waveforms <For a description of this function, refer to pages 2-30 and 2-43.> Procedure Displaying the Waveform Data of a Selected Record Press HISTORY. Press the Select Record soft key. Turn the jog shuttle to set the record No. you want to recall. Set the record No. in the range of Start Record to End Record.
Page 320 11.1 Displaying History Waveforms Average Display of Selected Waveform Data Press the Start Record/End Record soft key to set the jog shuttle control to Start Record. Turn the jog shuttle to set the first record No. to be averaged. Likewise, set the last record No. (End Record) to be averaged. Press the Display Mode soft key to select Ave.
Page 321 11.1 Displaying History Waveforms Explanation The acquisition memory retains waveform data of the last specified number of triggers. If a trigger is activated beyond the number of triggers that can be held, the oldest waveform data is cleared. Selected Record No. The selectable range is 0 to –(the number of retained waveforms –...
Page 322 11.1 Displaying History Waveforms Notes When Recalling Data Using the History Memory Function • You cannot use the history memory function while waveform acquisition is in progress. • You cannot restart the waveform acquisition when the HISTORY menu is displayed. •...
Page 323 11.2 Searching History Memory Data Using Zones (History Search Function) <For a description of this function, refer to page 2-43.> Procedure Press HISTORY. Press the Search Mode soft key. The search mode menu appears. Press the Zone soft key. Setting the Search Zone Press the Search Setup soft key.
Page 324 11.2 Searching History Memory Data Using Zones (History Search Function) Setting the Search Window Press the Upper/Lower soft key to set the jog shuttle control to Upper. Turn the jog shuttle to set the top of the search range. Pressing RESET resets the value to default.
Page 325 11.2 Searching History Memory Data Using Zones (History Search Function) Explanation You can search for a waveform that matches the specified conditions from the past waveforms in the acquisition memory and display it. Select Zone Four types of search zones can be registered in Zone1 to Zone4. You can set the channel that is to be searched, the search condition, and the search range for each search zone.
Page 326: Searching History Memory Data Using Parameters (History Search Function)
11.3 Searching History Memory Data Using Parameters (History Search Function) <For a description of this function, refer to page 2-43.> Procedure Press HISTORY. Press the Search Mode soft key. The search mode menu appears. Press the Parameter soft key. Setting the Search Zone Press the Search Setup soft key.
Page 327 11.3 Searching History Memory Data Using Parameters (History Search Function) Setting the Range for Judging the Measured Values of Waveform Parameters Press the Upper/Lower soft key to set the jog shuttle control to Upper. Turn the jog shuttle to set the top of the search range. Pressing RESET resets the value to default.
Page 328 11.3 Searching History Memory Data Using Parameters (History Search Function) Explanation You can search for a waveform that matches the specified conditions from the past waveforms in the acquisition memory and display it. Search Parameter (Select Param) Four types of search parameters can be registered in Parameter1 to Parameter4. You can set the channel that is to be searched, the search condition, and the search range for each search parameter.
Page 329: Measuring Waveforms Using Cursors
11.4 Measuring Waveforms Using Cursors <For a description of this function, refer to page 2-44.> Procedure For H (Horizontal) Cursors (When Not Displaying the X-Y Waveform) Press CURSOR. Selecting the Cursor Type Press the Type soft key. The cursor type selection menu appears. Press the Horizontal soft key.
Page 330 11.4 Measuring Waveforms Using Cursors For V (Vertical) Cursors (When Not Displaying the X-Y Waveform) Press CURSOR. Selecting the Cursor Type Press the Type soft key. The cursor type selection menu appears. Press the Vertical soft key. Selecting the Waveform to Be Measured Press the Trace soft key.
Page 331 11.4 Measuring Waveforms Using Cursors For Marker Cursors (When Not Displaying the X-Y Waveform) Press CURSOR. Selecting the Cursor Type Press the Type soft key. The cursor type selection menu appears. Press the Marker soft key. Selecting the Marker Press the Select soft key to select the desired marker from M1 to M4. Selecting the Waveform to Be Measured Press the Trace soft key.
Page 332 11.4 Measuring Waveforms Using Cursors For Angle (Degree) Cursors (When Not Displaying the X-Y Waveform) Press CURSOR. Selecting the Cursor Type Press the Type soft key. The cursor type selection menu appears. Press the Degree soft key. Selecting the Waveform to Be Measured Press the Trace soft key.
Page 333 11.4 Measuring Waveforms Using Cursors For H&V Cursors (When Not Displaying the X-Y Waveform) Press CURSOR. Selecting the Cursor Type Press the Type soft key. The cursor type selection menu appears. Press the H&V soft key. Selecting the Waveform to Be Measured Press the Trace soft key.
Page 334 11.4 Measuring Waveforms Using Cursors Cursor Jump (When the Cursor is Vertical, Marker, or Angle and When Not Displaying the X-Y Waveform) Follow steps 1-3 on the previous pages to set the Type to Vertical, Marker, or Degree. Setting Jumps Press the Cursor Jump soft key.
Page 335 11.4 Measuring Waveforms Using Cursors For Horizontal (H) Cursors (When Displaying the X-Y Waveform) Press CURSOR. Selecting the Cursor Type Press the Type soft key. The cursor type selection menu appears. Press the Horizontal soft key. Selecting the Waveform to Be Measured Press the Trace soft key.
Page 336 11.4 Measuring Waveforms Using Cursors For Vertical (V) Cursors (When Displaying the X-Y Waveform) Press CURSOR. Selecting the Cursor Type Press the Type soft key. The cursor type selection menu appears. Press the Vertical soft key. Selecting the Waveform to Be Measured Press the Trace soft key.
Page 337 11.4 Measuring Waveforms Using Cursors For H&V Cursors (When Displaying the X-Y Waveform) Press CURSOR. Selecting the Cursor Type Press the Type soft key. The cursor type selection menu appears. Press the H&V soft key. Selecting the Waveform to Be Measured Press the Trace soft key.
Page 338 11.4 Measuring Waveforms Using Cursors For Marker Cursors (When Displaying the X-Y Waveform) Press CURSOR. Selecting the Cursor Type Press the Type soft key. The cursor type selection menu appears. Press the Marker soft key. Selecting the Waveform to Be Measured Press the Trace soft key.
Page 339 11.4 Measuring Waveforms Using Cursors • V (Vertical) Cursor Measures the X-axis value at the cursor position. The X-axis value at Cursor1 The X-axis value at Cursor2 ∆X The difference between the X-axis values at Cursor1 and Cursor2 1/∆X The inverse or the difference between the X-axis values at Cursor1 and Cursor2 The Y-axis value at Cursor1 The Y-axis value at Cursor2 ∆Y...
Page 340 11.4 Measuring Waveforms Using Cursors • V (Vertical) Cursor Measures the X-axis value at the cursor position. The X-axis value at V Cursor1 The X-axis value at V Cursor2 ∆X The difference between the X-axis values at V Cursor1 and V Cursor2 •...
Page 341 11.4 Measuring Waveforms Using Cursors • Combining of the Bit Data The data of LogicA and LogicB can be combined and handled as 16-bit data. • Handling of the OFF Bit • In binary notation, a dash is displayed at the bit. •...
Page 342 11.4 Measuring Waveforms Using Cursors Cursor Jump (When Not Displaying the X-Y Waveform) For V cursors, marker cursors, and angle cursors, you can move M1 to M4, Cursor1, and Cursor2 to the center of the zoom window. The cursors can be jumped in the following manner.
Page 343 11.5 Automated Measurement of Waveform Parameters <For a description of this function, refer to page 2-45.> Procedure Press MEASURE. Press the Mode soft key , and press the ON soft key. Selecting the Measurement Parameter Press the Item Setup soft key. The measurement parameter setup dialog box appears.
Page 344 11.5 Automated Measurement of Waveform Parameters Setting the Delay Press the Delay Setup soft key. The Delay Setup dialog box appears. • Selecting the Waveform to Be Measured Press the Trace soft key. The trace selection menu appears. Use jog shuttle+SELECT to select waveform to be measured. •...
Page 345 11.5 Automated Measurement of Waveform Parameters Setting the 1 Cycle Mode Press the 1Cycle Mode soft key to select ON or OFF. Setting the Measurement Range Press the Time Range1/Time Range2 soft key to set the jog shuttle control to Time Range1.
Page 346 11.5 Automated Measurement of Waveform Parameters Explanation Limitations Automated measurement of waveform parameters cannot be performed on the following waveforms. • Snapshot waveforms • Accumulated waveforms other than the most recent waveform. Measurement Parameters (Item Setup) You can select among the 28 types of measurement parameters shown below and delay between channels.
Page 347 11.5 Automated Measurement of Waveform Parameters Automated measurement of various waveform parameters are performed on the data stored to the acquisition memory. Up to 48000 data points among the parameters that are automatically measured can also be saved to a file. For details, see section 13.11. Burst1, Burst2: Burst Width [S] Set the measurement range (T-Range) to match the burst width of the signal being measured.
Page 348 11.5 Automated Measurement of Waveform Parameters 1 Cycle Mode This mode is used to compute items related to the voltage axis or the area over one cycle after determining the cycle. This mode is suited to items such as Rms and Avg that produce errors depending on the measurement range.
Page 349 11.5 Automated Measurement of Waveform Parameters Selecting the High and Low Setting (High/Low Mode) High indicates the 100% level in measurements such as the rise or fall time. And, Low indicates the 0% level. Select the assignment method of High and Low from the following two methods.
Page 350: Performing Statistical Processing
11.6 Performing Statistical Processing <For a description of this function, refer to page 2-45.> Procedure Setting Normal Statistical Processing Press MEASURE. Press the Mode soft key to select Statistics. Press the Item Setup soft key. The measurement parameter dialog box and the measurement channel menu appear.
Page 351 11.6 Performing Statistical Processing Setting Cyclic Statistical Processing Press MEASURE. Press the Mode soft key to select Cycle Statistics. Press the Item Setup soft key. The measurement parameter dialog box and the measurement channel menu appear. Press the Trace soft key and use jog shuttle+SELECT to select the measurement channel.
Page 352 11.6 Performing Statistical Processing Setting Statistical Processing of History Data Press MEASURE. Press the Mode soft key to select History Statistics. Press the Item Setup soft key. The measurement parameter dialog box and the measurement channel menu appear. Press the Trace soft key and use jog shuttle+SELECT to select the measurement channel.
Page 353 11.6 Performing Statistical Processing Displaying the Results of Statistical Processing Press the Show Result soft key to display a list of the results of statistical processing. Press the arrow key to scroll the list horizontally. Turn the jog shuttle to scroll the list vertically. Press the Max/Min Item1 to Max/Min Item6 soft keys to move the cursor to the maximum and minimum values of each waveform parameter.
Page 354 11.6 Performing Statistical Processing Normal Statistical Processing (Statistics) Statistical processing is performed on all acquired waveforms while acquiring waveforms. If you stop the waveform acquisition and start it again, statistical processing continues from the statistical processing result obtained up to the previous stop. Statistical processing is performed on the selected parameters for automated measurement that are not displayed.
Page 355 11.6 Performing Statistical Processing Statistical Processing of History Data Performs automated measurement of waveform parameters on the waveform that is acquired using the history memory function and performs statistical processing. Statistical processing is performed from the oldest waveform. The range on which the statistics are measured is the waveform that is displayed on Show Map.
Page 356: Chapter 12 Printing The Screen Image
Chapter 12 Printing the Screen Image 12.1 Printing on the Built-in Printer <For a description of this function, refer to page 2-49.> Procedure Press MENU. Press the PRINT soft key. Selecting the Printer Press the Print to soft key. The printer selection menu appears. (Net Print appears only when the Ethernet interface option is installed.) Press the Printer soft key.
Page 357 12.1 Printing on the Built-in Printer Fine Print (When Fine Is Selected in Step 6) Setting the Magnified Print Press the Print Mag soft key, and use the jog shuttle to set the magnification along the time axis for the printing. The top section of the menu shows the record time corresponding to 10 divisions.
Page 358 12.1 Printing on the Built-in Printer A4 Print (When A4 Print Is Selected in Step 6) Proceed to step 11. Specifying the Print Settings Setting the Print Format Press the Print Setup soft key. Use jog shuttle+SELECT to select the format from 1 Zone to 16 Zone. Note The print format setting is linked with the DISPLAY menu >...
Page 359 12.1 Printing on the Built-in Printer Setting the Flexible Zone (Can be set when you select 1 Zone in step 12 on page 12-3) Use jog shuttle+SELECT to select Setup in Flexible Zone. Use jog shuttle+SELECT to set Mode to OFF or ON. Use jog shuttle+SELECT to set Upper/Lower of the waveform to be recorded.
Page 360 12.1 Printing on the Built-in Printer Setting the Annotation Use jog shuttle+SELECT to set the print interval of annotations in the right column of Annotation to OFF, 200mm, 400mm, or 800mm. Use jog shuttle+SELECT to set the type of annotation to be printed in the right column of Type to Ch Information, Ch Message, or Ch Data.
Page 361 12.1 Printing on the Built-in Printer Explanation Output Format: Format Select from four types: Normal, Fine, Zoom Print, and A4 Print. Normal Prints using normal size. Fine The print range on the waveform displayed on the screen (Time Range1 and Time Range2) is specified, and the print range is printed magnified.
Page 362 12.1 Printing on the Built-in Printer Printing Using Normal Output Format Comment A comment string of up to 20 characters can be printed at the top section of the print area. Fine Print, Zoom Print, and A4 Print Print Magnification (Print Mag) Set the print magnification only during fine print and zoom print.
Page 363 12.1 Printing on the Built-in Printer Flexible Zone The flexible zone can be set only when the format is 1 Zone and the extra area is OFF. The position in the print area (20 cm) where each waveform is to be recorded is set with Upper and Lower (%).
Page 364 12.1 Printing on the Built-in Printer • Annotation Channel information, channel messages, or measured values are printed. Use Annotation to select the print interval from OFF, 200 mm, 400 mm, and 800 mm. Use Type to select the type of annotation to be printed from Ch Information, Ch Message, and Ch Data.
Page 365 12.1 Printing on the Built-in Printer Examples of Fine Print and Zoom Print Trigger time T/div Comment 12-10 IM 701240-01E...
Page 366 12.2 Printing on a USB Printer <For a description of this function, refer to page 2-49.> Procedure Connect the SL1400 and a USB printer using a USB cable. For details, see the explanation on page 12-13. Selecting the Printer Press MENU.
Page 367 12.2 Printing on a USB Printer Setting the Output Format Press the Format soft key. The output format selection menu appears. Select the soft key corresponding to the output format from ESC-P to BJ. Setting the Color Press the Color soft key to select ON or OFF. Setting a Comment Press the Comment soft key.
Page 368 You can print the screen image to a USB printer via the USB PERIPHERAL interface. USB PERIPHERAL Connector To connect a USB printer to the SL1400, connect a USB cable to the USB PERIPHERAL connector. There are two USB PERIPHERAL connectors (ports).
Page 369 PC card (see section 13.12). Then, load and print the data on the PC. Note The SL1400 does not detect “out of paper” and printer errors on the USB printer. If an error occurs, press PRINT again to stop the printing. 12-14...
Page 370 12.3 Printing on a Network Printer (Option) <For a description of this function, refer to page 2-49.> Procedure Configuring the Network Configure the TCP/IP and network printer according to the procedures given in section 16.2 and 16.4. Selecting the Printer Press MENU.
Page 371 12.3 Printing on a Network Printer (Option) Executing the Print Operation Press PRINT. The screen image data is printed on the network printer. To abort printing, press PRINT while printing is in progress. While printing is in progress, is indicated at the upper left corner of the screen.
Page 372: Chapter 13 Saving And Loading Data
Chapter 13 Saving and Loading Data 13.1 Storing and Recalling the Setup Data CAUTION Do not remove the storage medium (disk) or turn OFF the power when the access indicator or the PC card or internal hard disk (option) icon is blinking. Doing so can damage the storage medium or destroy the data on the medium.
Page 373 13.1 Storing and Recalling the Setup Data Recalling the Data Turn the jog shuttle to select the memory number (No.) of the storage destination. Note Select a memory number in which setup data was stored by the procedure described in “Storing the Setup Data”...
Page 374: Pc Cards
PC Cards That Can Be Used The SL1400 supports flash ATA cards (PC card TYPE II) and compact flash (using the PC card TYPE II adapter). In addition, some of the Flash ATA HDD cards can be used.
Page 375: Internal Hard Disk (Option)
Press the HDD Motor soft key to select ON or OFF. Explanation You can turn ON/OFF the motor rotation of the internal hard disk on the SL1400. If you turn OFF the internal hard disk motor, the internal hard disk cannot be accessed.
Page 376: Connecting A Usb Storage Device (Mo Disk Drive, Hard Disk, Or Flash Memory) To The Usb Peripheral Interface
USB PERIPHERAL SL1400 USB storage Compatible USB Storage Devices The SL1400 can use HD drives, MO drives, and flash memories that support USB (USB Mass Storage Class). Note • Do not connect USB devices other than a USB keyboard, USB mouse, USB printer, or USB storage device to the USB PERIPHERAL connector.
Page 377 13.4 Connecting a USB Storage Device (MO Disk Drive, Hard Disk, or Flash Memory) to the USB PERIPHERAL Interface CAUTION • Do not remove the USB storage device or turn OFF the power when the USB storage device is being accessed. If you do, the data on the USB storage device may be destroyed.
Page 378: Connecting A Scsi Device
• The SL1400 has a built-in SCSI terminator. When using multiple SCSI devices, connect the SL1400 to the end of the chain. The terminator is always ON when the power is ON. • Do not connect an external SCSI device with the same ID as that specified by pressing the MENU key >...
Page 379: Formatting The Storage Medium
• If the SL1400 cannot recognize a formatted medium, format the disk again on the SL1400. Note that all the data on the disk are cleared when the disk is formatted. Make sure to back up important data beforehand.
Page 380 13.6 Formatting the Storage Medium Selecting the PC Card, or USB Storage Device Format Press the Format soft key. The format selection menu appears. No setting is necessary in formatting the PC card, or USB storage device. Proceed to step 11. Selecting the Number of Partitions of the SCSI Device Press the Format soft key.
Page 381 13.6 Formatting the Storage Medium Executing/Aborting the Format Operation Press the Exec soft key. An Alert dialog box appears. Turn the jog shuttle to select OK or cancel. Select OK and press SELECT to execute the format operation. Select Cancel and press SELECT to cancel the format operation. While the medium is being formatted, an icon corresponding the medium ( PC card, external SCSI device,...
Page 382 It takes approximately 30 s to 1 minute to format the internal hard disk (option). • Do not format a disk while the SL1400 and a PC is connected via a SCSI cable. • If an error message is displayed after the format operation, the target medium may be damaged.
Page 383: Changing The Scsi Id Number
• If you do not execute Initialize SCSI after changing Own ID or Internal ID, the new ID is not activated until the SL1400 is powered up the next time. • To save the data after executing Initialize SCSI, select the destination medium and directory.
Page 384 SCSI chain. Make sure not to use duplicate ID numbers on any of the connected devices. Selectable Range of Own ID Number Own ID (the ID number of the SL1400) can be set in the range of 0 to 7. The default value is 6. Selectable Range of Internal ID Number Internal ID (ID number of the internal hard disk (option) can be set in the range of 0 to 7.
Page 385: Saving And Loading Waveform Data
13.8 Saving and Loading Waveform Data CAUTION Do not remove the storage medium (disk) or turn OFF the power when the access indicator or the PC card or internal hard disk (option) icon is blinking. Doing so can damage the storage medium or destroy the data on the medium. Procedure Saving the Waveform Data Press FILE.
Page 386 If P-P Comp is turned ON when saving waveform data, only the maximum and minimum values of the multiple data points existing at the same time position are saved. Consequently, the file size is reduced. However, the SL1400 cannot load the saved data.
Page 387 13.8 Saving and Loading Waveform Data Selecting Save Destination Medium Press the File List soft key. The File List window appears. Turn the jog shuttle to select the save destination medium (indicated by [ ]). Press SELECT to confirm the new medium. Select the Save Destination Directory (Perform this operation when directories are present on the medium.) Turn the jog shuttle to select the save destination directory (indicated by <...
Page 388 13.8 Saving and Loading Waveform Data Setting the Name of the File to Be Saved and Comment Press the File Name soft key. The file name setup menu appears. Turn the jog shuttle to set Auto Naming. Press SELECT to select OFF, Numbering, or Date. Turn the jog shuttle to select File Name.
Page 389 Abort soft key. Note • Waveform data on modules whose information differs from the current module information of the SL1400 cannot be loaded. • Realtime recorded waveform data (.WDF extension)) can also be loaded. Aborting the Load Operation Press the Abort soft key to abort the load operation. At the same time, the Abort soft key changes to the Load Exec soft key.
Page 390 If the saved data is loaded, the accumulate setting is always turned OFF. • A header file that is used when analyzing the waveform on a PC is automatically created. The header file cannot be opened on the SL1400. For details on the header file format, see appendix 5.
Page 391 Select the range (region) of the waveform from the choices below. Only the data that has been saved by selecting Binary in the aforementioned section “Selecting the Data Type” can be loaded in the SL1400. • Main The range of the normal (Main) waveform. It is the range defined by the displayed record length (range displayed on the screen).
Page 392 13.8 Saving and Loading Waveform Data Selecting the Storage Medium and Directory Storage media on which saving and loading are possible are displayed on the File List window. • Display Examples of Storage Media [PC Card]: PC card [HD]: Hard disk [SCSI5]: SCSI device with the ID number set to 5* [SCSI5-1]:...
Page 393 13.8 Saving and Loading Waveform Data Property Displays the following information about the selected file: filename.extension, the file size, the date/time the file was saved, the attribute, the comment, the module configuration when the file was saved, the conditions for saving, etc. Note •...
Page 394: Saving/Loading The Setup Data
13.9 Saving/Loading the Setup Data CAUTION Never remove the storage medium (disk) or turn OFF the power while the access indicator or the PC card or internal hard disk (option) icon is blinking. Such acts can damage the storage medium or destroy the data on the medium. Procedure Saving the Setup Data Press FILE.
Page 395 13.9 Saving/Loading the Setup Data Setting the File Name and Comment Press the File Name soft key. The file name setup menu appears. Turn the jog shuttle to select Auto Naming. Press SELECT to select OFF, Numbering, or Date. Turn the jog shuttle to select File Name. Enter the file name using up to 16 characters according to the procedure given in section 4.2.
Page 396 Path=..At the same time, the Load Exec soft key changes to an Abort soft key. Note If the module information of the setup data and the current module information of the SL1400 differ, the setup data cannot be loaded. Aborting the Load Operation Press the Abort soft key.
Page 397 13.9 Saving/Loading the Setup Data Explanation Setup Parameters That Are Saved The setup parameter of each key existing at the time of the save operation can be saved. However, setup parameters such as the date and time, communications, and SCSI ID numbers are not saved. Data Size Approx.
Page 398 Web server function. • Files that do not have an archive attribute are not displayed in the File List window. Do not remove the archive attribute of the files saved by the SL1400 using your PC. Index 13-27...
Page 399: Saving/Loading Snapshot Waveforms
13.10 Saving/Loading Snapshot Waveforms CAUTION Never remove the storage medium (disk) or turn OFF the power while the access indicator or the PC card or internal hard disk (option) icon is blinking. Such acts can damage the storage medium or destroy the data on the medium. Procedure Saving Snapshot Waveforms Press FILE.
Page 400 13.10 Saving/Loading Snapshot Waveforms Setting the File Name and Comment Press the File Name soft key. The file name setup menu appears. Turn the jog shuttle to select Auto Naming. Press SELECT to select OFF, Numbering, or Date. Turn the jog shuttle to select File Name. Enter the file name using up to 16 characters according to the procedure given in section 4.2.
Page 401 13.10 Saving/Loading Snapshot Waveforms Loading Snapshot Waveforms Press FILE. Press the File Item soft key. The File Item setup menu appears. Press the Snap soft key. Selecting the Load Source Medium/Directory Press the Load soft key. The load setup menu and File List window appear. Select the load source directory according to steps 4 to 9 in “Saving Snapshot Waveforms.”...
Page 402 13.10 Saving/Loading Snapshot Waveforms Explanation You can take snap shots of the waveform and save the image to the file. You can also load the snapshot waveform. Data Size Approx. 60 KB Data Extension The extension is .SNP. The selection of the medium and directory, file name, auto naming function, comments, specification of the files to be displayed in the File List window, and properties are the same as those for saving/loading normal waveform data.
Page 403: Saving The Results Of The Automated Measurement Of Waveform Parameters
13.11 Saving the Results of the Automated Measurement of Waveform Parameters CAUTION Never remove the storage medium (disk) or turn OFF the power while the access indicator or the PC card, internal hard disk (option), or USB storage device icon is blinking. Such acts can damage the storage medium or destroy the data on the medium.
Page 404 13.11 Saving the Results of the Automated Measurement of Waveform Parameters Setting the File Name and Comment Press the File Name soft key. The file name setup menu appears. Turn the jog shuttle to select Auto Naming. Press SELECT to select OFF, Numbering, or Date. Turn the jog shuttle to select File Name.
Page 405 13.11 Saving the Results of the Automated Measurement of Waveform Parameters Explanation The results of the automated measurement of waveform parameters can be saved in CSV format (.CSV extension) to a PC card, an external SCSI device, the internal hard disk (option), or the USB storage device.
Page 406: Saving Screen Image Data
13.12 Saving Screen Image Data <For a description of this function, refer to page 2-50.> Procedure Press MENU. Press IMAGE soft key. Selecting the Output Format Press the Format soft key. Press the soft key corresponding to the desired output format from PNG, JPEG, BMP, and Post Script.
Page 407 13.12 Saving Screen Image Data Selecting the Destination Directory (Perform this operation when directories are present on the medium.) Turn the jog shuttle to select the save destination directory (indicated by < >). Press SELECT to confirm the new directory. The selected medium/directory is displayed in “Path=..”...
Page 408 13.12 Saving Screen Image Data Explanation The screen image data can be stored to a specified storage medium. You can select the storage medium from the PC card, external SCSI device, internal hard disk (option), and network drive (when the Ethernet interface option is installed). For details on saving data to the network drive, see section 15.3.
Page 409 13.12 Saving Screen Image Data Setting the File Name You can specify the file name using up to 16 characters. (However, the setup menu displays only up to 15 characters.) The characters that can be used are 0-9, A-Z, %, _, (, and ).
Page 410: Displaying Thumbnails Of The Saved Screen Image Data
13.13 Displaying Thumbnails of the Saved Screen Image Data <For a description of this function, refer to page 2-50.> Procedure Thumbnail Display from the IMAGE Menu Press MENU. Press IMAGE soft key. Press the Format soft key. The save format selection menu appears. Press the soft key corresponding to the save format of the screen image data of which you want to display the thumbnails from PNG to PostScript.
Page 411 13.13 Displaying Thumbnails of the Saved Screen Image Data • Listing the Thumbnails of the Specified Format Press the File List soft key. The File List window appears. Turn the jog shuttle to select the directory that you want to display the thumbnails.
Page 412 13.13 Displaying Thumbnails of the Saved Screen Image Data Thumbnail Display from the FILE Menu Press FILE. Press the File Item soft key. Press the Image soft key. Press the Format soft key. Select the format you want to display thumbnails from PNG to PostScript. Press the Utility soft key.
Page 413 13.13 Displaying Thumbnails of the Saved Screen Image Data Explanation Thumbnails of the screen image data that are saved on a storage medium can be displayed. Thumbnail Display from the IMAGE Menu • Thumbnail Screen Thumbnails are displayed for the screen image data files (files with .png, .jpg, .bmp, and .ps extensions) in the directory selected by File List of the IMAGE menu.
Page 414: Creating Pdf Files Of The Printed Image
13.14 Creating PDF Files of the Printed Image Procedure Press MENU. Press the PRINT soft key. Selecting the Print Destination Press the Print to soft key. The print destination selection menu appears. (Net Print appears only when the Ethernet interface option is installed.) Press the PDF soft key.
Page 415 13.14 Creating PDF Files of the Printed Image Specifying the Print Settings Press the Print Setup soft key. The print setup dialog box opens. When displaying T-Y waveforms, proceed to step 10. When displaying X-Y waveforms, proceed to steps 15 to 18 and then 24. Setting the Print Format Use jog shuttle+SELECT to select the format from 1 Zone to 16 Zone.
Page 416 13.14 Creating PDF Files of the Printed Image Setting Details • Setting the Scale Value (Only When Displaying the X-Y Waveform) Use jog shuttle+SELECT to turn the scale OFF or ON. • Setting Whether to Print the Time (Only When Displaying the T-Y Waveform) Use jog shuttle+SELECT to set the time to OFF, 200mm, 400mm, or 800mm.
Page 417 13.14 Creating PDF Files of the Printed Image Setting the PDF File Press the PDF Setup soft key to display the PDF setup dialog box. Setting the Paper Size Use jog shuttle+SELECT to set the paper size to Built-in Printer, A3, A4, or A5. Setting the Orientation (If A3, A4, or A5 was selected in step 25 (Only When Displaying the T-Y Waveform)) Use jog shuttle+SELECT to set the orientation to Landscape or Portrait.
Page 418 13.14 Creating PDF Files of the Printed Image Executing the PDF File Generation Press PRINT. A PDF file is created using the conditions set in steps 5 to 34. Pressing PRINT again aborts the save operation. While the data is being saved, an icon corresponding the save destination medium ( PC card, external...
Page 419 13.14 Creating PDF Files of the Printed Image Setting the PDF File Paper Size Select the paper size from built-in printer size, A3, A4, and A5. If the built-in printer size is selected, a PDF file is created of an image similar to the printed output on the built-in printer (A4 size).
Page 420 13.14 Creating PDF Files of the Printed Image PDF File Example When Displaying the T-Y Waveform (Paper Size: A4) Date/Time T/div File name Gauge Page Scale value of the vertical scale Measurement range Scale value of the Annotation vertical scale (Ch information) Scale value of the time axis Scale value of the time axis...
Page 421: Loading/Converting Realtime Recorded Waveforms
13.15 Loading/Converting Realtime Recorded Waveforms <For a description of this function, refer to page 2-31.> Procedure Loading the Realtime Recorded Waveform Data Press FILE. Press the File Item soft key. The File Item setup menu appears. Press the Waveform soft key. Selecting the Data Type Press the Data Type soft key.
Page 422 Note If the module information of the realtime recorded waveform data and the current module information of the SL1400 differ, the realtime recorded waveform data cannot be loaded. Aborting the Load Operation Press the Abort soft key. The load operation is aborted. At the same time, the Abort soft key changes to a Load Exec soft key.
Page 423 13.15 Loading/Converting Realtime Recorded Waveforms Explanation Selecting the Data Type Real Time • Data saved using realtime recording. • The data that is realtime recorded can be loaded to display the waveform and compute numeric data. • The extension is .WDF. Data Size The maximum data size is as follows: The unit of the record length is word.
Page 424: Changing The File Attributes And Deleting Files
13.16 Changing the File Attributes and Deleting Files CAUTION Never remove the storage medium (disk) or turn OFF the power while the access indicator or the PC card or internal hard disk (option) icon is blinking. Such acts can damage the storage medium or destroy the data on the medium. Procedure Press FILE.
Page 425 13.16 Changing the File Attributes and Deleting Files Selecting the File to Be Deleted One at a Time Turn the jog shuttle to select the file. Press the Set/Reset soft key. An asterisk (*) is displayed to the left of the selected file to indicate that it will be deleted.
Page 426 13.16 Changing the File Attributes and Deleting Files Selecting the File Attribute: Attr (excluding Net Drive) Select the file attribute of each file from the following list of choices. • R/W Read and write possible. • R Read only. Cannot write to the file or delete the file. Selecting the Files to Be Deleted You can delete all files that have an asterisk to the left of the file name.
Page 427: Copying Files
13.17 Copying Files CAUTION Never remove the storage medium (disk) or turn OFF the power while the access indicator or the PC card, internal hard disk (option), or USB storage device icon is blinking. Such acts can damage the storage medium or destroy the data on the medium.
Page 428 13.17 Copying Files Selecting the Copy Source Files at Once Turn the jog shuttle to select the file, directory, or medium. Press the All set soft key. Asterisks (*) are displayed to the left of every file in the directory containing the selected file or directory to indicate that they will be copied.
Page 429 13.17 Copying Files Explanation Selecting the Copy Source Files You can copy all files that have an asterisk to the left of the file name. There are two methods in selecting the files to be copied. • Selecting the Files One at a Time: Set/Reset Place an asterisk to the left of the file names one at a time, using the Set/Reset soft key.
Page 430: Changing The Directory/File Name Of The Storage Medium And Creating Directories
13.18 Changing the Directory/File Name of the Storage Medium and Creating Directories CAUTION Never remove the storage medium (disk) or turn OFF the power while the access indicator or the PC card, internal hard disk (option), USB storage device icon is blinking. Such acts can damage the storage medium or destroy the data on the medium.
Page 431 13.18 Changing the Directory/File Name of the Storage Medium and Creating Directories Creating a Directory Press FILE. Press the Utility soft key. The Utility setup menu and the File List window appear. Press the Function soft key. The file function selection menu is displayed. Press the Make Dir soft key.
Page 432 13.18 Changing the Directory/File Name of the Storage Medium and Creating Directories Selecting the File Attribute: Attr (Excluding Net Drive) Select the file attribute of each file from the following list of choices. • R/W Read and write possible. • R Read only.
Page 433: Connecting A Pc To The Sl1400 Via Scsi
13.19 Connecting a PC to the SL1400 via SCSI You can connect a PC to the SCSI of the SL1400 and access the internal hard disk (option) from the PC. Supported PC OSs Windows 2000 and Windows XP (updating of the files on the SL1400 cannot be detected due to the limitation on the OS.)
Page 434 The waveforms that can be used on the PC are saved on this drive. Newly Created File During Connection If a file is created with the SL1400 while it is connected to the PC, the new file is not recognized by the PC.
Page 435 13.19 Connecting a PC to the SL1400 via SCSI • Drive Letter If the PC to which the SL1400 is connected has multiple hard disks or if the hard disk is partitioned, connecting the SL1400 will cause the internal hard disk of the SL1400 to be assigned drive letters after the hard disks on the PC.
Page 436: External Trigger Input (Trig In)
CAUTION Only input signals that meet the specifications below. Otherwise, undesirable signal such as excessive voltage may damage the SL1400. External Trigger Input Terminal This terminal is used when an external signal is used as a trigger source (see section 6.6).
Page 437: Trigger Output (Trig Out)
CAUTION Do not short the TRIG OUT terminal or apply external voltage to it. Doing so may damage the SL1400. External Trigger Output Terminal A TTL level signal is output when a trigger is activated. The signal level is normally high and goes low when a trigger is activated.
Page 438: External Clock Input (Ext Clk In)
SL1400. External Clock Input Terminal Use this terminal if you want to operate the SL1400 using an external clock signal. This terminal is shared with the trigger output terminal (TRIG OUT). Specifications...
Page 439: Video Signal Output (Video Out (Svga))
SL1400. Video Signal Output Terminal VIDEO OUT (SVGA) The SL1400 display can be output to a monitor through the video signal output. Connectable monitors are multi-sync monitors capable of displaying SVGA. Specifications Connector type: 15-pin D-SUB...
Page 440 Press the MENU soft key. Press the Next 1/2 soft key. Press the Others soft key. Press the Video Out soft key to select ON. The screen of the SL1400 is displayed on the monitor. Select OFF to stop the display on the monitor.
Page 441: External Start/Stop Input
14.5 External Start/Stop Input The SL1400 start/stop can be controlled externally. External Start/Stop Input Terminal Specifications Modular jack (RJ-11). Use the optional accessory 366973 (sold separately) for the cable. Pin No. Signal Name NC (no connection) START IN Start on the low edge...
Page 442: Chapter 15 Ethernet Interface (Option)
Chapter 15 Ethernet Interface (Option) 15.1 Connecting the SL1400 to the Network Ethernet Interface Specifications A 100BASE-TX port is provided on the left side panel of the SL1400. Item Specifications Number of communication ports Electrical and mechanical specifications Conforms to IEEE802.3...
Page 443: Connection Procedure
When using a UTP cable or STP cable (straight cable), be sure to use only a category 5 cable. • Avoid connecting the PC or workstation directly to the SL1400 without going through the hub or router. Operations are not guaranteed for communications using direct connection. 15-2...
Page 444: Setting Up The Tcp/Ip
• To set up the DNS, proceed to step 12. • If you do not want to set up the DNS, check the network cable connection and restart the SL1400. The IP address, subnet mask, and default gateway are automatically configured.
Page 445 Likewise, set the secondary domain suffix in Domain Suffix2. Turning ON/OFF the Power To apply the new settings, the SL1400 must be power cycled. After all the settings are complete, turn the power to the SL1400 OFF, then back ON again. 15-4...
Page 446 When DHCP is turned ON, different settings may be assigned each time the power is turned ON. When using the FTP server function (see section 15.6), be sure to check the IP address and other settings of the SL1400 using a PC or workstation each time you turn ON the SL1400.
Page 447 On the SL1400, you can specify the host by name instead of by IP address when using the FTP client function (see section 15.3) or network printer function (see sections 15.4 and 12.3).
Page 448 15.2 Setting up the TCP/IP 5. Set the parameters such as the IP address according to the table on the previous page and click OK. Index 15-7 IM 701240-01E...
Page 449: Saving/Loading Data To A Network Drive (Ftp Client Function)
15.3 Saving/Loading Data to a Network Drive (FTP Client Function) <For a description of this function, refer to page 2-47.> Procedure Press MENU. Press the Next 1/2 soft key. Press the Network soft key. Press the Net Drive Setup soft key. The Net Drive setup menu appears. Setting the FTP Server Use jog shuttle+SELECT to select FTP Server.
Page 450 15.3 Saving/Loading Data to a Network Drive (FTP Client Function) Saving/Loading the Screen Image, Waveform, and Setup Data Saving/Loading the screen image data Press MENU. Press the IMAGE soft key. Press the File List soft key. The File List window appears. Use the jog shuttle to select [Network] in the File List window.
Page 451 15.3 Saving/Loading Data to a Network Drive (FTP Client Function) Note • An FTP server software must be running on the PC or workstation to which the SL1400 is to be connected. In addition, the following points need attention regarding the server program settings.
Page 452: Setting Up The Network Printer (Lpr Client Function)
15.4 Setting up the Network Printer (LPR Client Function) <For a description of this function, refer to page 2-47.> Procedure Press MENU. Press the Next 1/2 soft key. Press the Network soft key. Press the Net Print Setup soft key. The Net Print setup menu appears. Setting the LPR Server Use jog shuttle+SELECT to select LPR Server.
Page 453 15.4 Setting up the Network Printer (LPR Client Function) Explanation As with the built-in printer, you can print the screen image on a network printer via the Ethernet network. Net Print Setup LPR Server Specify the IP address of the network printer server. On networks supporting DNS, you can specify the host and domain by name instead of the IP address.
Page 454: Sending Periodic Mail Or Action Mail (Smtp Client Function)
15.5 Sending Periodic Mail or Action Mail (SMTP Client Function) <For a description of this function, refer to page 2-48.> Procedure Sending Periodic E-mail Messages Press MENU. Press the Next 1/2 soft key. Press the Network soft key. Press the Mail Setup soft key. The Mail setup menu appears. Setting the Mail Server Use jog shuttle+SELECT to select Mail Server.
Page 455 15.5 Sending Periodic Mail or Action Mail (SMTP Client Function) Note • The sender (From) address of the e-mail messages sent by the SL1400 is the same as the specified recipient address. • If the transmitted contents indicate error logs, the most recent error is at the top of the error log.
Page 456 15.5 Sending Periodic Mail or Action Mail (SMTP Client Function) Explanation Mail Server Specify the IP address of the network mail server. On networks supporting DNS, you can specify the host and domain by name instead of the IP address. Mail Address Enter the recipient address using up to 40 characters.
Page 457 15.5 Sending Periodic Mail or Action Mail (SMTP Client Function) Periodic Mail The SL1400 status can be sent periodically to a specified mail address on the network. SL1400 Information That Is Transmitted • Acquisition Condition Start/Stop, trigger condition, and acquisition counter •...
Page 458: Accessing The Sl1400 From A Pc Or Workstation (Ftp Server Function)
15.6 Accessing the SL1400 from a PC or Workstation (FTP Server Function) <For a description of this function, refer to page 2-48.> Procedure This section describes the FTP server function when a general FTP client software (such as WS_FTP or FFFTP) is used. To use FTP through the Web browser, see section 15.7.
Page 459 To apply new settings, the SL1400 must be power cycled. • The files that can be uploaded to the SL1400 are those with the following extensions. .WVF, .HDR, and .SET However, do not upload files to the realtime recording area.
Page 460 ASCII characters on the keyboard. Time Out The connection to the network is automatically closed if there is no access to the SL1400 for the specified time. The default value is 5 s. Set the timeout to a long value when using an FTP client (such as FFFTP).
Page 461: Using The Web Server Function
<For a description of this function, refer to page 2-48.> You can use the Web server function on the SL1400 to display the screen image of the SL1400 on the Web browser window on your PC and perform file operations on the SL1400 using the keys displayed on the Web browser window.
Page 462 15.7 Using the Web Server Function System Requirements PC Environment PC running Microsoft Windows 2000 Professional or Microsoft Windows XP Professional. Microsoft Windows 2000 Professional or Microsoft Windows XP Professional. Internal Memory 64 MB or more recommended. Communication Port Ethernet communication port that supports 10BASE-T or 100BASE-TX. Use this communication port to connect the PC to the network.
Page 463 Set the communication interface to Network. For the procedure, see “Setting the Communication Interface to the Network” (page 15-23). User Account Set the user account used to access the SL1400 from the PC. For the procedure, see section 15.6. Time Difference from the Greenwich Mean Time When using the Web server function, set the time difference from the GMT.
Page 464 Connect the PC and the SL1400 to the network. For the connection procedure, see section 15.1. Preparations on the SL1400 Setting the Communication Interface to Network Turn ON the power to the SL1400. After the SL1400 boots up normally, carry out the following procedure. Press MENU. Press Next 1/2 soft key.
Page 465 Logging into the Web Server (SL1400) Start Internet Explorer. Enter the IP address of the SL1400 (for example, 192.168.0.101) or the host name of the SL1400 (for example, SL1400) if a DNS server is available on the network. Enter the IP address http://192.168.0.101/...
Page 466 15.7 Using the Web Server Function Installing Files Required for the Web Server • Using the SL1400 and the PC While Connected to the Internet When you use the Web server function for the first time, the files required for the Web browser are installed automatically from the Microsoft Web site.
Page 467 15.7 Using the Web Server Function • Using the SL1400 without Connecting to the Internet If the three files, Msvbvm60.dll, cmdlgjp.dll, and comdlg32.ocx, are not installed in the PC when using the Web server function for the first time, install the files beforehand according to the following procedure.
Page 468 15.7 Using the Web Server Function Click Custom Level. The Security Settings dialog box opens. Set the security settings as shown in the following table. Item Security Level Run ActiveX controls and plug-ins Enable Script ActiveX controls marked safe for scripting Enable Download signed ActiveX controls Prompt...
Page 469 Using the Web Server Function Using the FTP Server Function (On the Web Browser) Before using this function, check that the communication interface of the SL1400 is set to Network (see page 15-23). Click the FTP icon on the Web server window. A window for viewing the storage media of the SL1400 (storage media view window) appears.
Page 470 FTP server function), or realtime recording, the Web server function cannot be used. • To use the FTP server on a Web browser, a network user account on the SL1400 must be configured. For the procedure of setting user accounts, see steps 1 to 9 in section 15.6. •...
Page 471 15.7 Using the Web Server Function Displaying and Saving the Screen Image (Image Control) The screen image of the SL1400 can be displayed on the PC screen and saved. • Updating the Screen Image (Monitor & Capture) Play Click Play to illuminate the update indicator in green and start the updating of the screen image at the specified display update interval (see below).
Page 472 15.7 Using the Web Server Function Saving Data in the PC and Loading Setup Data from the PC into the SL1400 (Data Control) • Saving Data in the PC (Capture) Data Type Select the type of data to be saved from Waveform Binary, Waveform ASCII, Waveform Float, Setup, and Measure.
Page 473 • If you execute the data save operation when there is no waveform data or waveform parameter, an error is displayed on the SL1400 screen, and a 0-byte file is saved. Controlling the SL1400 (Instrument Control) You can use the PC to set the display format and the data save conditions of the SL1400.
Page 474 Setting the history data display when there is no history data results in error. • The timeout time on the PC when controlling the SL1400 is 30 s. Depending on the SL1400 condition, a timeout may occur preventing you from controlling the SL1400.
Page 475 Microsoft Excel 97 or later must be installed on the PC. • Set the record time setting of the SL1400 to 1 s or less (shorter). This function cannot be used on record time settings that exceed 1 s.
Page 476 Select the number of measured values (measured values retrieved from the SL1400 into the PC) to be displayed in the cells of Excel from the following: If the number of measured values exceeds the selected number, the values are cleared from the oldest values to display the most recent measured values.
Page 477 Click Update to update the Marker Position and Range that are set on the control Panel of the measurement trend window to match the most recent setup conditions of the SL1400. Starting/Stopping the Trend Display of the Measured Values of the Waveform Parameters •...
Page 478 15.7 Using the Web Server Function Display Example of Measured Values, Trend Graphs, and Statistics Trend graph (Graph1) Statistics Newest measured value Trend graph (Graph2) List of measured values Statistics Newest measured value Index 15-37 IM 701240-01E...
Page 479 15.7 Using the Web Server Function Using the Control Script Before using this function, check that the communication interface of the SL1400 is set to Network (see page 15-23). Click the Control Script icon on the Web server window. The Control Script window used to send communication commands (see the Communication Interface User’s...
Page 480 Displaying the Responses from the SL1400 (*Response) The responses from the SL1400 against the commands (queries) sent to the SL1400 using the control script function can be received and displayed. • Clearing the Responses (Clear Response Area) Click Clear Response Area to clear all the responses received from the SL1400 that are displayed in the response display area.
Page 481 15.7 Using the Web Server Function Displaying the Log Before using this function, check that the communication interface of the SL1400 is set to Network (see page 15-23). Click the Log icon on the Web server window. The Log window that can display the past log of errors that occurred on the SL1400, and action-on-trigger appears.
Page 482 Note • When the SL1400 is printing, operating files (file operation from the front panel key or file transfer using the FTP server function), or realtime recording, files cannot be saved on the PC. In addition, other Web server functions cannot be used while saving files.
Page 483 15.7 Using the Web Server Function Displaying the Instrument Information Before using this function, check that the communication interface of the SL1400 is set to Network (see page 15-23). Click the Information icon on the Web server window. The Information window that...
Page 484 Web Server Window Web Page Display If the language of the SL1400 is set to English, the English Web page is displayed; if the message language is set to Japanese, the Japanese Web page is displayed; if the message language is set to Chinese, the Chinese Web page is displayed. For the setup procedure for the language, see section 16.1.
Page 485: Setting The Time Difference From Gmt (Greenwich Mean Time)/Sntp
15.8 Setting the Time Difference from GMT (Greenwich Mean Time)/SNTP Procedure Press MENU. Press the Next 1/2 soft key. Press the Network soft key. Press the Others soft key. The Others setup menu appears. Setting the Time Difference from GMT Use jog shuttle+SELECT to set the Time Hour of Time Difference From GMT in the range of –12 to 13.
Page 486 Hour to 9 and Minute to 00. Checking the Standard Time Check the standard time for the region where the SL1400 is to be used using one of the following methods. • Check the date and time settings on your PC.
Page 487: Checking The Presence Of The Ethernet Interface And The Mac Address
• Ether:Yes: The Ethernet interface is installed. • Ether:No: The Ethernet interface is not installed. MAC Address MAC address is a unique address that is pre-assigned to the SL1400. It is necessary for transmitting data between nodes. 15-46 IM 701240-01E...
Page 488: Setting The Ftp Passive Mode And Lpr/Smtp Timeout
It prevents intrusion from the outside into the network system.) Setting the LPR Time Out The SL1400 closes the connection to the printer if there is no response from the printer for a certain period of time (timeout time) when it accesses the printer. You can set the timeout value in the range of 0 to 3600 s.
Page 489: Using The Instrument As A Windows Network Drive
15.11 Using the Instrument as a Windows Network Drive Procedure Setting the SL1400 Follow the procedures in section 15.2 and section 15.6 to enter TCP/IP and user account settings, then connect to the network. Setting the PC Open Entire Network Places.
Page 490 • Change the directory structure of the SL1400 drive from the PC. • If you attempt to move a large file from the PC to the SL1400, the file may be lost due to the limitations of Windows. • You cannot manipulate the files simultaneously from multiple PCs.
Page 491: Changing The Message/Menu Language And Turning The Click Sound On/Off
Chapter 16 Other Operations 16.1 Changing the Message/Menu Language and Turning the Click Sound ON/OFF Procedure Press MENU. Press the Next 1/2 soft key. Press the System Config soft key. Setting the Message Language Press the Language soft key and press the soft key corresponding to the language you want to display.
Page 492: Switching The Screen Display Font Size
16.2 Switching the Screen Display Font Size Procedure Press MENU. Press Next 1/2 soft key. Press the System Config soft key. Press the Scale Font soft key to select Small or Large. If Large is selected, the waveform labels displayed at the upper left of the waveform display area, the scale values of the vertical axis, and the trace labels (waveform labels) are shown using a large font.
Page 493: Setting The Screen Color And Brightness
16.3 Setting the Screen Color and Brightness Procedure Press MENU. Press Next 1/2 soft key. Press the System Config soft key. Press the Graphic Color soft key. The Graphic setup menu appears. Setting the Color Use jog shuttle+SELECT to select the item you want to change the color. The color selection menu appears.
Page 494 16.4 Setting the Screen Color and Brightness Explanation Screen Color You can set arbitrary colors for the following items. The selectable colors vary depending on the item. See the color selection menu of each item. CH1 to CH16: Waveform color Math1 to Math8: Waveform color Logic A, Logic B:...
Page 495: Turning Off The Backlight And Setting The Brightness Of The Backlight
16.4 Turning OFF the Backlight and Setting the Brightness of the Backlight Procedure Press MENU. Press the Next 1/2 soft key. Press the Others soft key. Press the Next 1/2 soft key. Press the LCD soft key. Setting Backlight Auto Off Press the Auto OFF soft key to select ON or OFF.
Page 496: Locking The Keys
Releasing the Lock To release the lock, press PROTECT again. Explanation This function locks the operation keys so that the current SL1400 condition is not changed accidentally. When keys are locked, all keys other than the PROTECT key cannot be used.
Page 497: Chapter 17 Troubleshooting, Maintenance, And Inspection
Troubleshooting • If a message is displayed on the screen, read the next section. • If servicing is necessary, or if the instrument is not operating correctly after performing the corrective actions, contact your nearest YOKOGAWA dealer. Problem Probable Cause...
Page 498: Messages And Corrective Actions
The messages can be displayed either in English or Japanese (see section 16.1). If the corrective action requires servicing, contact your nearest YOKOGAWA dealer for repairs. In addition to the error messages below, there are communication error messages.
Page 499 17.2 Messages and Corrective Actions Errors in Execution (700 to 799) Code Message and Corrective Action Section Fine copy is not possible when waveform acquisition is in progress. Press the START/STOP 7.1, 12.1 key to stop the waveform acquisition first. Undo is not possible since data that existed immediately before initialization and auto setup 4.4, 4.5 is not available.
Page 500 17.2 Messages and Corrective Actions Code Message and Corrective Action Section Cannot start when the HISTORY menu is being displayed. 11.2 Press the ESC key to clear the menu before starting. Time base cannot be set to external clock when set to envelope or box average. 5.20, 7.2 Cannot set accumulate during roll mode display.
Page 501 17.2 Messages and Corrective Actions Errors in Setting (800 to 899) Code Message and Corrective Action Section Illegal date-time. Set the correct date and time. Illegal file name. The file name contains characters which are not allowed or the file name is not Chapter 13 a valid MS-DOS file name.
Page 502 17.2 Messages and Corrective Actions Code Message and Corrective Action Section It is an unacceptable parameter to set up to the present module. Chapter 5 Cannot be set to a range of 200 sec to 30 day during roll display. –...
Page 503 17.2 Messages and Corrective Actions Code Message and Corrective Action Section Slot 3 EEPROM error. – Slot 4 EEPROM error. – Slot 5 EEPROM error. – Slot 6 EEPROM error. – Slot 7 EEPROM error. – Slot 8 EEPROM error. –...
Page 504 17.2 Messages and Corrective Actions Code Message and Corrective Action Section 1024 File system failure. Check using another disk. Chapter 13 If the same message still appears, maintenance service is required. 1025 File system failure. Check using another disk. Chapter 13 If the same message still appears, maintenance service is required.
Page 505 17.2 Messages and Corrective Actions Code Message and Corrective Action Section 1106 File system failure. Chapter 13 1107 File system failure. Chapter 13 1108 File system failure. Chapter 13 1109 Invalid media format. Chapter 13 1110 Cannot load this file format. Files stored on other models (DL/AG series) cannot be loaded. Chapter 13 1111 File is now being accessed.
Page 506 17.2 Messages and Corrective Actions Printer Errors (1200 to 1299) Code Message and Corrective Action Section 1200 Move the release arm to the “HOLD” position. 1201 Paper empty. Load a roll chart. 1202 The printer head temperature is high. Printing will be aborted. –...
Page 507 Reenter the password for the second time. 1350 Failed to acquire time from SNTP server. 15.8 Confirm the network settings and connection. 1501 To apply the changes, power-cycle the SL1400. Chapter 15 1502 Executed the firmware overwriting of the frequency module. 17.4 1503 Overwriting firmware of the frequency module...
Page 508: Self Test
“FREQ VerUp” and “PRINTRE VerUp” that are displayed with the Test Item soft key are used when updating the frequency module firmware and the built-in printer firmware. For details on updating the firmware, go to the following website, and then browse to the download page. http://www.yokogawa.com/ymi/ 17-12 IM 701240-01E...
Page 509 17.3 Self-Diagnostic Test (Self Test) Executing the Printer Test In step 4, select Printer. Press the Test Exec soft key to execute the printer test. Executing the PC Card Interface, Internal Hard Disk, and SCSI Tests In step 4, select PC CARD, HDD, or SCSI. Press the Test Type soft key.
Page 510 If an Error Occurs during the Self Test If an error still occurs after carrying out the following procedure, contact you nearest YOKOGAWA dealer. • Perform the self test several more times. • Check whether the medium to be tested is inserted.
Page 511 FREQ (701280-X.XX/Y.YY) X.XX: Version of the firmware installed in the module. It is 0.41 in the screen above. Y.YY: Version of the firmware in the SL1400 that can be installed into the 701280 (FREQ). It is 1.01 in the screen above.
Page 512: Recommended Replacement Parts
Internal hard disk One year after purchase (data is excluded).) The following items are expendable items. It is recommended that the parts be replaced according to the period indicated below. Contact your nearest YOKOGAWA dealer to have parts replaced. Parts Name...
Page 513: Chapter 18 Specifications
Chapter 18 Specifications 18.1 Input Section Item Specifications Number of input channels 16 channels + 16-bit log (8 bits × 2) Type Plug-in input unit (two 26-pin connectors (Logic A/Logic B) for the logic input) Number of slots 8 (2 channels per slot) Maximum record length 2.5 MW/CH (16 analog channels + 16-bit logic),50 MW/channel max.
Page 514: Time Axis
18.2 Trigger Section Item Specifications Edge on A: Trigger occurs on the OR condition of the edge while condition A is true. Condition A: True/False Trigger occurs on the OR of trigger conditions that are specified on multiple trigger sources. The OR condition can also be specified on each logic bit.
Page 515: Display
18.4 Display Item Specifications Display 10.4-inch color TFT LCD monitor Effective display screen size 211.2 × 158.4 mm Display resolution* SVGA 800 × 600 dots Display resolution of the 650 × 512 (normal waveform display) or 750 × 512 (wide waveform display) selectable waveform display Display format Windows: Zoom: MAIN, MAIN&Z1, MAIN&Z2, MAIN&Z1&Z2, Z1only, Z2only, and Z1&Z2...
Page 516 18.5 Function Vertical and Horizontal Axes Settings Item Specifications Channel ON/OFF Independently turn ON/OFF CH1 to CH16, Logic A, and Logic B. ALL CH menu Set all channels while displaying waveforms. Operation using the USB keyboard and USB mouse is possible.
Page 517 18.5 Function Recorder Mode Item Specifications Realtime recording on T-Y waveform recording/numeric value recording: Output to the chart in realtime. the built-in printer X-Y Waveform Recording: Starts the data acquisition with START and generates X-Y waveforms in realtime. Outputs X- Y waveforms to the chart with STOP.
Page 518: Data Storage
Outputs screen image data, saves waveform data (binary, ASCII, or floating), activates buzzer notification, or sends e-mail messages each time a trigger occurs. Mail transmission function* Sends the SL1400 status periodically to a specified mail address via the Ethernet network. Also sends information as an action of action-on-trigger.
Page 519: Built-In Printer
Compatible cards* Flash ATA memory card (PC card TYPE II), PC card type, CF card + adapter card, and HDD PC card. * For details on compatible cards, contact your nearest YOKOGAWA dealer. • Internal Hard Disk (Option) Item Specifications...
Page 520: Usb Peripheral Interface
5 V, 500 mA (per port) Number of ports 1 For details on compatible USB devices, contact your nearest YOKOGAWA dealer. 2 Devices whose maximum current consumption exceeds 100 mA cannot be connected simultaneously to the two ports. 18.9 Auxiliary I/O Section...
Page 521 Current probe (701933 (30 A)) up to 2 probes * Up to four 700937 current probes can be used, but the 700937 is a discontinued product. For details on the usage conditions of each probe, contact your nearest YOKOGAWA dealer. Index 18-9...
Page 522: Computer Interface
For details on the specifications, see the Communication Interface User’s Manual on the CD-ROM. The SL1400 can be controlled remotely from a host such as a PC. For details, see the Communication Interface User’s Manual on the CD-ROM. A separate driver is needed to use this function. To download the driver, go to the following website, and then browse to the download page.
Page 523: General Specifications
355 mm (W) × 250 mm (H) × 180 mm(D) (excluding the handle and other projections) Weight Approx. 7.8 kg (only the SL1400 with all options (C8/C10/P4 options), without the chart paper) Approx. 11.8 kg (SL1400 + eight High-Speed 10 MS/s, 12-Bit Isolation Modules) Module: Approx.
Page 524 • Logic probe input Attach a ferrite core (TDK: ZCAT2035-0930A, YOKOGAWA: A1190MN) on one end (SL1400 end) of the cable to be connected to the logic probe input terminal. • Current probe (701930, 701931, and 701933)
Page 525 No change of actual operating state or stored data is allowed. 1 If the 701260 module is inserted into the SL1400, it will not comply with safety standard EN61010-1:2010 or EN61010-2- 030:2010. 2 The Overvoltage Category (Installation Category) is a value used to define the transient overvoltage condition and includes Index the impulse withstand voltage regulation.
Page 526 18.11 General Specifications 3 The measurement category of this instrument's signal input terminals varies depending on the modules that are installed. Use the instrument within the scope of the measurement category that corresponds to the module specifications. Do not use the instrument outside the scope of the measurement category that corresponds to the module specifications.
Page 527: Module Specifications
18.12 Module Specifications High-Speed 10 MS/s, 12-Bit Isolation Module (701250) Specifications Item Specifications Standard operating Temperature: 23±5°C conditions Humidity: 20 to 80%RH After a 30-minute warm-up and after calibration Effective measurement Twice the measurement range range Number of input channels 2 Input coupling AC, DC, and GND Maximum sample rate...
Page 528 Current probe (power can be supplied from the SL1400) 701930 (150 A), 701931 (500 A), and 701933 (30 A) High voltage differential probe (connect the GND cable provided with the probe to the SL1400 case) 700924 (1000:1, 100:1/1400 Vpeak): For measuring 1400 Vpeak or less Connection cable (for high voltage 1:1) 701901 (isolated type BNC-safety alligator clip adapter ×...
Page 529 18.12 Module Specifications High-Speed High-Resolution 1 MS/s, 16-Bit Isolation Module (701251) Specifications Item Specifications Standard operating Temperature: 23±5°C conditions Humidity: 20 to 80%RH After a 30-minute warm-up and after calibration Effective measurement Twice the measurement range range Number of input channels 2 Input coupling AC, DC, and GND Maximum sample rate...
Page 530 Current probe (power can be supplied from the SL1400) 701930 (150 A), 701931 (500 A), and 701933 (30 A) High voltage differential probe (connect the GND cable provided with the probe to the SL1400 case) 700924 (1000:1, 100:1/1400 Vpeak): For measuring 1400 Vpeak or less Connection cable (for high voltage 1:1) 701901 (isolated type BNC-safety alligator clip adapter ×...
Page 531 Current probe (power can be supplied from the SL1400) 701930 (150 A), 701931 (500 A), and 701933 (30 A) High voltage differential probe (connect the GND cable provided with the probe to the SL1400 case) 700924 (1000:1, 100:1/1400 Vpeak): For measuring 1400 Vpeak or less Connection cable (for low voltage 1:1) 366926 (non-isolated type BNC-alligator clip ×...
Page 532 • To prevent electric shock, be sure to furnish protective earth grounding of the SL1400. • To prevent electric shock, be sure to fasten the module screws. • The module screws must be fastened for the module to function as a non- isolation module.
Page 533 18.12 Module Specifications High-Voltage 100 kS/s, 16-Bit Isolation Module (with RMS) (701267) Specifications Item Specifications Standard operating Temperature: 23±5°C conditions Humidity: 20 to 80%RH After a 30-minute warm-up and after calibration Effective measurement Twice the measurement range range Number of input channels 2 Input coupling AC, DC, GND, AC-RMS, and DC-RMS Maximum sample rate...
Page 534 • To prevent electric shock, be sure to furnish protective earth grounding of the SL1400. • To prevent electric shock, be sure to fasten the module screws. Otherwise, the electrical and mechanical protection functions will not be activated.
Page 535 18.12 Module Specifications Universal (Voltage/Temp.) Module (701261) Specifications Universal (Voltage/Temp.) Module (with AAF) (701262) Specifications Item Specifications Standard operating Temperature: 23±5°C conditions Humidity: 20 to 80%RH After a 30-minute warm-up and after calibration Function Temperature (thermocouple) or voltage measurement (switchable) Effective measurement [Voltage measurement] Twice the measurement range range...
Page 536 • Do not apply input voltage exceeding the maximum input voltage or allowable common mode input voltage. • To prevent electric shock, be sure to furnish protective earth grounding of the SL1400. • To prevent electric shock, be sure to fasten the module screws. Otherwise, the electrical and mechanical protection functions will not be activated.
Page 537 18.12 Module Specifications Temperature, High Precision Voltage Isolation Module (701265) Specifications Item Specifications Standard operating Temperature: 23±5°C conditions Humidity: 20 to 80%RH After a 30-minute warm-up and after calibration Function Temperature (thermocouple) or voltage measurement (switchable) Number of input channels 2 Input coupling TC, DC, and GND TC: Temperature (thermocouple) measurement...
Page 538 • To prevent electric shock, be sure to furnish protective earth grounding of the SL1400. • To prevent electric shock, be sure to fasten the module screws. Otherwise, the electrical and mechanical protection functions will not be activated.
Page 539 18.12 Module Specifications Strain Module (NDIS) (701270) Specifications Item Specifications Standard operating Temperature: 23±5°C conditions Humidity: 20 to 80%RH After a 30-minute warm-up and after calibration and auto balance Effective measurement –FS to +FS (set using upper and lower limits) range Number of input channels 2 Maximum sample rate...
Page 540 • Some of the strain gauge sensors and bridge heads made by other manufacturers do not have sensing wires connected. (No such problems with bridge heads made by YOKOGAWA.) If such products are used, an error may result in the bridge voltage leading to measurement errors, because sensing does not work effectively.
Page 541 18.12 Module Specifications Strain Module (DSUB, Shunt-Cal) (701271) Specifications Item Specifications Standard operating Temperature: 23±5°C conditions Humidity: 20 to 80%RH After a 30-minute warm-up and after calibration and auto balance Effective measurement –FS to +FS (set using upper and lower limits) range Number of input channels 2 Maximum sample rate...
Page 542 • Some of the strain gauge sensors and bridge heads made by other manufacturers do not have sensing wires connected. (No such problems with bridge heads made by YOKOGAWA.) If such products are used, an error may result in the bridge voltage leading to measurement errors, because sensing does not work effectively.
Page 543 42 Vpeak) Voltage probe (10:1 passive probe) 701940 17 to 46 pF: For measuring 600 V (DC+ACpeak) or less Current probe (power can be supplied from the SL1400) 701930 (150 A), 701931 (500 A), and 701933 (30 A) Sensor supply current OFF or 4 mA±10% (approx.
Page 544 • To prevent electric shock, be sure to furnish protective earth grounding of the SL1400. • To prevent electric shock, be sure to fasten the module screws. Otherwise, the electrical and mechanical protection functions will not be activated.
Page 545 18.12 Module Specifications Frequency Module (701280) Specifications Item Specifications Standard operating Temperature: 23±5°C conditions Humidity: 20 to 80%RH After the warm-up time of 30 minutes has elapsed Measurement function Frequency, RPMs, RPSs, period, duty cycle, power supply frequency, pulse width, pulse integration, and velocity Effective measurement Twice the measurement range...
Page 546 • Do not apply input voltage exceeding the maximum input voltage, withstand voltage, or allowable surge voltage. • To prevent electric shock, be sure to furnish protective earth grounding of the SL1400. • To prevent electric shock, be sure to fasten the module screws. Otherwise, the electrical and mechanical protection functions will not be activated.
Page 547 18.12 Module Specifications Specifications by Measurement Modes Item Specifications Frequency Measurable frequency range 0.01 Hz to 200 kHz Selectable vertical axis sensitivity range 1 Hz to 500 kHz range (1-2-5 steps) Minimum resolution 0.001 Hz RPMs Measurable RPMs range 0.01 to 100000 rpm (where the input frequency is DC to 200 kHz). Selectable vertical axis sensitivity range 1 to 100000 rpm range (1-2-5 steps) Computing method...
Page 548 18.12 Module Specifications Functional Specifications Item Specifications Deceleration prediction Computes the deceleration condition in realtime when the pulse input is cut off. Can be specified when measuring the frequency, RPMs, RPSs, period, and velocity Stop prediction Sets the frequency to 0 after a certain time elapses after the pulse input is cut off. Stop interval setting: Set in the range of 1.5 to 10 times (10 settings) the period of the pulse measured last Can be specified when measuring the frequency, RPMs, RPSs, period, and velocity...
Page 549: Logic Probe Specifications
Specifications Number of inputs Input format Non-isolated (earth of all bits is common, SL1400 earth and earth of all bits are common) Maximum input voltage 42 V (DC+ACpeak) (CAT II, 30 Vrms) across the probe tip and earth (At 1 kHz or less) Response time 1 µs or less...
Page 550: External Dimensions
18.14 External Dimensions SL1400 Unit: mm Rear View 13.5 Unless otherwise specified, tolerance is ±3% (however, tolerance is ±0.3 mm when below 10 mm). 18-38 IM 701240-01E...
Page 551: Appendix 1
Appendix Appendix 1 Relationship between the Record Time, Sample Rate and Record Length in Memory Mode Sample Rate (S/s) Rec. Time 10 M 500 k 200 k 100 k 50 k 20 k 10 k 100 µs — — — —...
Page 552: Appendix
Appendix 2 Relationship between the Chart Speed, Sample Rate and Record Length in Recorder Mode The relationship between the chart speed, sample rate, and record length during Chart Recorder mode (see chapter 9) is as follows: Chart Speed Sample Rate Record Length Maximum Number Record Time...
Page 553: Axis Range That Allows Realtime Recording
Appendix 3 Maximum Number of Acquisitions to the History Memory and Time Axis Range That Allows Realtime Recording Maximum Number of Acquisitions to the History Memory The maximum number of acquisitions is as follows: Record Length Maximum Number of Acquisitions 2000 2.5 k 10 k...
Page 554: Appendix 4 How To Calculate The Area Of A Waveform
Appendix 4 How to Calculate the Area of a Waveform Int1TY Total Area for Positive Side Only: S Int2TY Total Area for both Positive and Negative Sides: S –S Int1XY (1) Multiple Loops (2) Non-Closed Curve Area S= S Area S= n×S Area Enclosed by n: Number of Loops a Curve Connecting...
Page 555 Appendix 4 How to Calculate the Area of a Waveform Int2XY (1) When Only One Y Data Corresponds to X Data X Axis (Y=0) Stop Point Start Point Area S= –S Area S=S Stop Point Start Point X Axis (Y=0) X Axis (Y=0) Start Point Stop Point...
Page 556 Appendix 5 ASCII Header File Format //YOKOGAWA ASCII FILE FORMAT $PublicInfo FormatVersion 1.11 Model SL1400 Endian DataFormat Trace GroupNumber TraceTotalNumber 13 DataOffset 111548 $Group1 TraceNumber BlockNumber TraceName BlockSize 10010 10010 10010 10010 VResolution 4.1666667E-04 2.0833333E-02 2.0833333E-02 2.0833333E-02 VOffset 1.0000000E+00 0.0000000E+00 0.0000000E+00...
Page 557 0.00000V 0.00000V 0.00000V 0.00000V 0.00000V 0.00000V 0.00000V 0.00000V 0.00000Hz 0.00000Hz Note The header file is a common file used by YOKOGAWA’s measuring instruments. Therefore, data that is not required by the SL1400 (0s) is also included. Index App-7 IM 701240-01E...
Page 558: Appendix 5 Ascii Header File Format
Appendix 5 ASCII Header File Format $PublicInfo (Common Information) FormatVersion: Header file version number (common to YOKOGAWA’s header files) Model: Model name Endian: Endian mode when saving data (Big/Ltl) DataFormat: Storage format of the binary waveform data (Trace/Block) GroupNumber: The number of “$Group”s indicated below...
Page 559 • ASCII header file (.hdr) The waveform data file can be recalled to the instrument using the FILE menu. The ASCII header files explained here cannot be viewed on the SL1400. Use the data on a PC for analysis. 1 Endian mode when saving data...
Page 560 Appendix 6 List of Default Values Soft Key Default Setting Soft Key Default Setting CH1 to 16 (HS10M12(701250)) CH1 to 16 (TEMP/HPV(701265)) Range 500 V Range 50.00 V Variable Variable Position 0.00 div Position 0.00 div Coupling Coupling Probe 10:1 BandWidth Full BandWidth...
Page 561 Appendix 6 List of Default Values Soft Key Default Setting Soft Key Default Setting START/STOP MATH STOP Mode Operation:Math1 Operation:Math2 Sample Rate 100 kS/s Operation:Math3 Record Time 100 ms Operation:Math4 Mode Normal Operation:Math5 Count Infinite RealTime Out Operation:Math6 Time Base Operation:Math7 Operation:Math8 SIMPLE/ENHANCED...
Page 562: Appendix 6 List Of Default Values
Appendix 6 List of Default Values Soft Key Default Setting MENU System Config:Language(Menu) Depends on the suffix code. System Config:Click Sound Self Test:SCSI ID:Own ID Self Test:SCSI ID:Internal ID Others:Video Out Others:HDD Motor Others:Start Mode Others:Action Mode Others:START/STOP Response Time Quick Others:LCD:Auto Off Others:LCD:Auto Off Time...
Page 563: Appendix 7 Key Assignments Of The Usb Keyboard
Appendix 7 Key Assignments of the USB Keyboard 104 Keyboard (US) When the Soft Keyboard Is Displayed With the Ctrl Key Held Down on on the SL1400 Other (Normal Condition) the USB Keyboard +Shift on the – USB Keyboard MENU menu...
Page 564 Appendix 7 Key Assignments of the USB Keyboard When the Soft Keyboard Is Displayed on the SL1400 With the Ctrl Key Held Down on Other (Normal Condition) the USB Keyboard +Shift on the – USB Keyboard CH11 menu Select soft key 1...
Page 565 Appendix 7 Key Assignments of the USB Keyboard 109 Keyboard (Japanese) When the Soft Keyboard Is Displayed on the SL1400 With the Ctrl Key Held Down on Other (Normal Condition) the USB Keyboard +Shift on the – USB Keyboard MENU menu...
Page 566 Appendix 7 Key Assignments of the USB Keyboard When the Soft Keyboard Is Displayed on the SL1400 With the Ctrl Key Held Down on Other (Normal Condition) the USB Keyboard +Shift on the – USB Keyboard CH11 menu Select soft key 1...
Page 567: After A Power Failure
Appendix 8 Waveform Acquisition Operation When the Power Supply Recovers after a Power Failure The waveform acquisition operation when the power supply recovers after a power failure varies depending on the following two conditions. • Start Mode (Power On) Whether to start the waveform acquisition at power on. •...
Page 568 ε = e in equation (6), ε = (4/K)×(V/E) In the case of a strain gauge sensor, set the Gauge Factor (K) to 2 on the SL1400. If you change the value of K, conversion is made using the above equation.
Page 569: Appendix 10 Shunt Calibration Of The Strain Module
Appendix 10 Shunt Calibration of the Strain Module Shunt calibration is used to correct the gain of strain measurements by inserting a known resistance (shunt calibration resistance (shunt resistance)) in parallel with the strain gauge. The Strain Module (701271(STRAIN_DSUB) supports shunt calibration and contains a built-in relay circuit for shunt calibration.
Page 570 Mode. In normal shunt calibration, only P2:Y is set. In addition to the normal shunt calibration (when the shunt calibration relay circuit is ON), the SL1400 allows the setting of a zero point when the relay circuit is OFF. This function is useful when the strain value is not 0 after the execution of balancing.
Page 571 Note • When executing shunt calibration, select an appropriate range so that the measured values do not exceed the range when the shunt calibration relay circuit is ON. The SL1400 attempts shunt calibration within the current specified range. • If shunt calibration fails (the measured value exceeds the range, for example), an error message is displayed.
Page 572 Appendix 10 Shunt Calibration of the Strain Module • Detailed Equation ×R ×R =E×(R –R )/{(R )×(R (1): Basic Equation of Wheatstone Bridge When shunt calibration is ON, ×R =E×(R –R'×R )/{(R +R')×(R (2): Equation when turned ON R'=R //Rs (3): Equation of combined resistance R' (4): Since R to R...
Page 573 Appendix 10 Shunt Calibration of the Strain Module Calculation Example • When Determining the Corresponding Shunt Resistance (Rs) from the Strain (ε) Given a gauge factor (K) of 2, Detailed equation Rs = R×(1–ε)/(2×ε) (equation B) General equation Rs = R×(1–2×ε)/(2×ε) (7): Error of 1 to 2% present (equation A) Desired Strain...
Page 574 Period (t) is the average value of multiple pulses. The frequency (f) is calculated as 1/period (t). If the input pulse period is short, the SL1400 automatically takes the average of multiple pulses and calculates the period and frequency. Therefore, the resolution does not degrade even when the input pulse period is short, and highly accurate measurement is possible.
Page 575 Appendix 11 Measurement Principles (Measurement Method and Update Rate) of the Frequency Module Pulse Width and Duty Cycle Measurement • When the input signal is less than or equal to 25 kHz, measurement is made as described in (1). • When the input signal is greater than or equal to 25 kHz, measurement is made from the last waveform in the measurement interval as described in (2).
Page 576: Appendix 11 Measurement Principles (Measurement Method And Update Rate) Of The Frequency Module
Appendix 11 Measurement Principles (Measurement Method and Update Rate) of the Frequency Module Computation Format (Resolution) of the Frequency Module The computation flow on the frequency module is indicated below. Range value Offset value Value/Div Internally, all calculations are performed using Floating 2400 LSB/div floating-point.
Page 577 The smoothing filter is a moving average filter in which computation is performed in realtime. The computation interval of moving average is 40 µs (25 kHz). It is constant independent of the sampling rate of the SL1400. The moving average order (the number of points of moving average) is specified in time.
Page 578 Appendix 12 List of Preset Settings of the Frequency Module Logic 5V Logic 24V Setup Item Setting Setup Item Setting V Range ±10 V V Range ±50 V Coupling Coupling Probe Probe Bandwidth Bandwidth Threshold 2.5 V Threshold 12 V Slope Slope Chatter Elimination...
Page 579 Appendix 12 List of Preset Settings of the Frequency Module AC100V EM Pickup Setup Item Setting Setup Item Setting V Range ±200 V V Range ±1 V Coupling Coupling Probe 10:1 Probe Bandwidth (Full is not allowed) Bandwidth Threshold Threshold Slope Rising edge Slope...
Page 580: Appendix 13 Tcp And Udp Port Number Used In Ethernet Communications
Appendix 13 TCP and UDP Port Number Used in Ethernet Communications The TCP and UDP port numbers that are used on the Ethernet interface of the SL1400 are as follows: TCP Port Numbers Port Number Description Function File Transfer [Default Data]...
Page 581 Appendix 14 High-Voltage 100 kS/s, 16-Bit Isolation Module (with RMS) (701260) Specifications The specifications for the High-Voltage 100 kS/s, 16-Bit Isolation Module (with RMS) (701260) are provided below. This input module (701260) will not comply with safety standard EN61010-1 or EN61010-2-030 after September 30, 2013. Item Specifications Standard operating...
Page 582: Appendix 14 High-Voltage 100 Ks/S, 16-Bit Isolation Module (With Rms) (701260) Specifications
Voltage probe (10:1 safety probe): Recommended 2 700929 (10:1 safety probe) .20 to 45 pF: For measuring 1000 V (DC+ACpeak) or less Current probe (power can be supplied from the SL1400) 701930 (150 A), 701931 (500 A), and 701933 (30 A) 1 Value measured under standard operating conditions (section 18.11).
