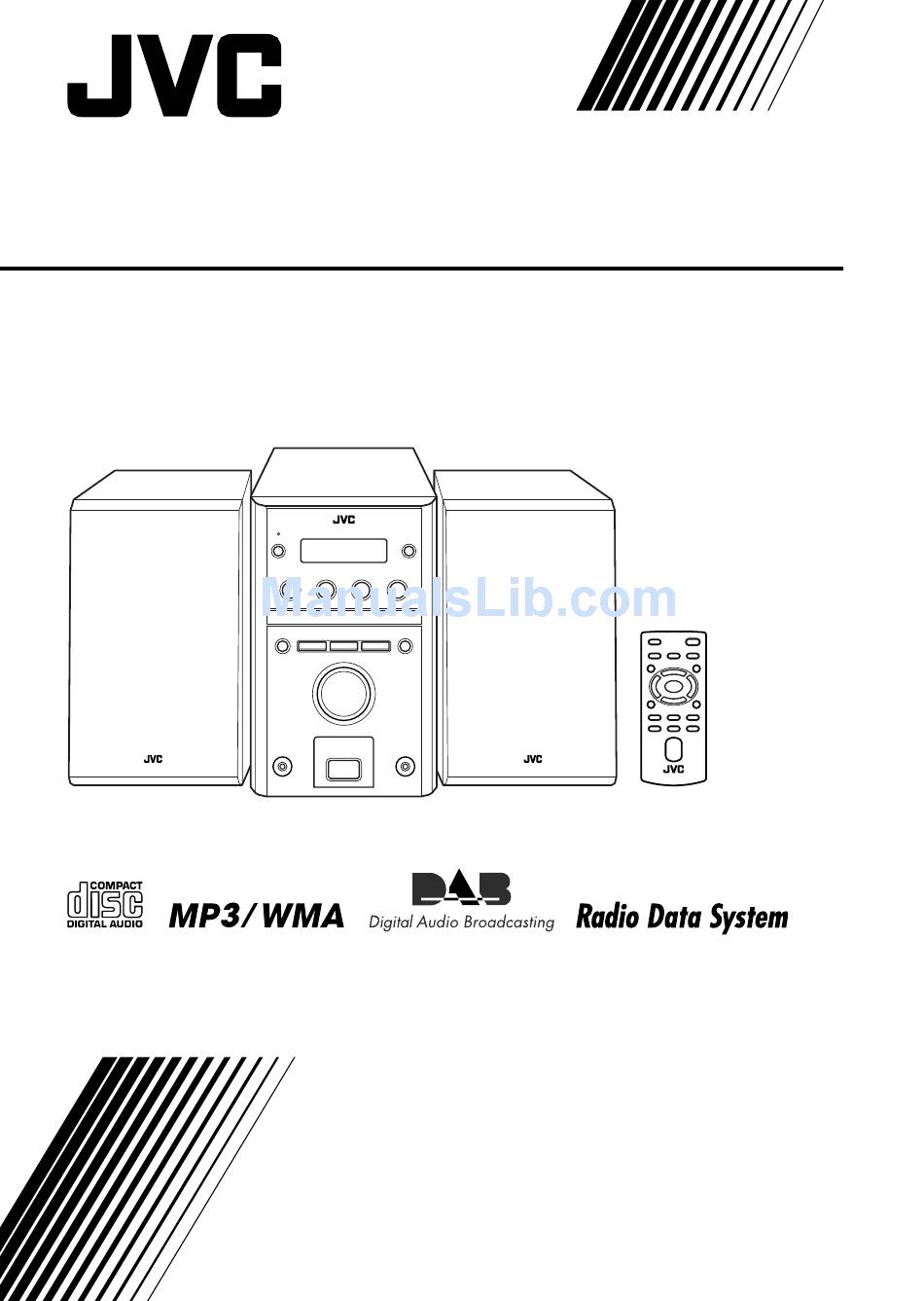

MICRO COMPONENT SYSTEM UX-G800D —Consists of CA-UXG800D and SP-UXG300 INSTRUCTIONS GVT0250-001A...
European representative of Victor Company of Japan, radiation when open. Do not view directly with Limited is: optical instruments. JVC Technical Services Europe GmbH 4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED Postfach 10 05 04 INSIDE THE UNIT. 61145 Friedberg...
European Union. national legislation. (Business users) If you wish to dispose of this product, please visit our web page www.jvc-europe. com to obtain information about the take-back of the product. [Other Countries outside the European Union] If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country for the treatment of old electrical and electronic equipment.
Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. Contents Precautions ..............Getting Started ..............Supplied Accessories ................... Prepare the Remote Control ................
Precautions Notes on the power cord • Do not expose the System to direct sunlight or place • When you are away on travel or otherwise for an it near a heating device. extended period of time, remove the plug from the Notes on installation wall outlet.
Connections Do not connect the AC power cord until all other connections have been made. NOTES: • Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. Also, keep the antennas away from metallic parts of the System, connecting cords, and the AC power cord. This could cause poor reception.
To connect the FM antenna (supplied) Extend it so that you can obtain the best reception. FM antenna (supplied) Outdoor FM antenna For better FM reception (not supplied) Disconnect the supplied FM antenna, and connect to an outdoor FM antenna using a 75 Ω wire with coaxial type connector (IEC or DIN45325).
Basic and Common Operations Point at the remote sensor on the front panel. (The operating range is approx. 7 m.) STANDBY lamp PHONES jack Stereo mini plug cord How to cancel the demonstration Press and hold DEMO button while on standby. (Refer to the attached “Information about the demonstration function.”) Using Headphones Be sure to turn down the volume before connecting or putting on the headphones.
Press Indication/Result System Remote Turn on or off (standby) The STANDBY lamp on the System turns off/on. the power Select a source See “Playing Back a Disc/USB Mass Storage Class Device” on page 7. See “Listening to the Radio” on page 9. See “Listening to Digital Audio Player”...
Playing Back a Disc/USB Mass Storage Class Device • Do not disconnect the USB mass storage class device The following operations are explained using when the System is turned on. It may cause malfunction the remote control, unless mentioned otherwise. of both this System and the device.
NOTES: Playing at Random—Random Play • If no disc is inserted or no USB mass storage class device is Press until the RND (random) indicator connected, “NO DISC” or “NO USB” appears on the main lights up before you start playback. display.
Listening to the Radio For DAB The following operations are explained using To select an ensemble the remote control, unless mentioned otherwise. However, if the System has the same or similar button Press 4/¢ while “ENSEMBLE” is names, they can also be used for the operations. displayed.
Improving the DAB Reception Press to store the station/service. With the supplied DAB antenna, you may not be able to receive L-Band ensembles. You can improve the NOTES: reception of both L-Band and Band III ensembles by • If you store a new station/service into an occupied preset connecting an active antenna (see page 3).
• For details about PTY codes, see page 17. Receiving FM Stations with Radio Press to enter the PTY code setting Data System mode. Radio Data System allows FM stations to send an “PTY” and “SELECT” appear additional signal along with their regular program alternately.
How the Enhanced Other Networks function actually works: Case 1 If no station/service is broadcasting the program of your choice The System continues tuning in to the current station/service. \ When a station/service starts broadcasting the program of your choice, the System automatically switches to that station/service.
Setting the Clock and Using Timers Setting the Sleep Timer The following operations are explained using the remote control, unless mentioned otherwise. When the System is on, press repeatedly to However, if the System has the same or similar button specify the time (in minutes) as follows: names, they can also be used for the operations.
Setting the Daily Timer Using Daily Timer, you can wake up with your favorite music. • You can store three Daily Timer settings; however, you can activate only one of the Daily Timers. Press repeatedly to select one of the timer setting modes you want to set—DAILY 1 ON time, DAILY 2 ON time, or DAILY 3 ON time—as follows: 1 Adjust the hour then the minute for on-time.
Troubleshooting If you are having a problem with your System, check Sounds from USB mass storage class device are this list for a possible solution before calling for service. interrupted. \ Noise and static electricity may stop the sound. In this case, disconnect and connect the USB mass General storage class device again after turning off the...
Learning More about This System • This System can recognize up to 99 groups in a disc. Basic and Common Operations (see pages 5 and 6) The total number of groups and tracks (in a disc) that • Pressing one of the source buttons also turns on the can be recognized by the System is 512 (for MP3/ System and starts playing back if the source is ready WMA).
Description of the PTY codes for Radio Data System and DAB NEWS: News. FINANCE: Stock Market reports, commerce, trading AFFAIRS: Topical program expanding or enlarging etc. upon the news—debate, or analysis. CHILDREN: Programs targeted at a young audience. INFO: Programs the purpose of which is to SOCIAL: Programs about sociology, history, impart advice in the widest sense.
Display Information 1 Source indicators (See page 6.) 9 FM reception indicators (See page 9.) 2 File type indicators (See page 7.) p DAB ensembles (L-Band and Band III) indicators (See 3 Play mode indicators (See page 8.) page 10.) 4 Surround mode indicator (See page 6.) q Main display 5 S.TURBO (Sound Turbo) indicator (See page 6.)
Signal-to-noise ratio: 85 dB Wow and flutter: Immeasurable USB storage JVC bears no responsibility for any loss of data in USB USB specification: Compatible with USB 2.0 Full mass storage class device while using this System. Speed Microsoft and Windows Media are either registered...
SAFETY INSTRUCTIONS “SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT” This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. Do read the operating instructions before you attempt to use the equipment.
