Status Display - Swisscom Magic-Box Setup Manual

Connect a Connection Kit to the Magic-Box
(optional)
«Would you like to avoid long cables installed in your home? You can e.g. connect
your Swisscom TV-Box to a Universal Connection Kit UNO (sold separately).»

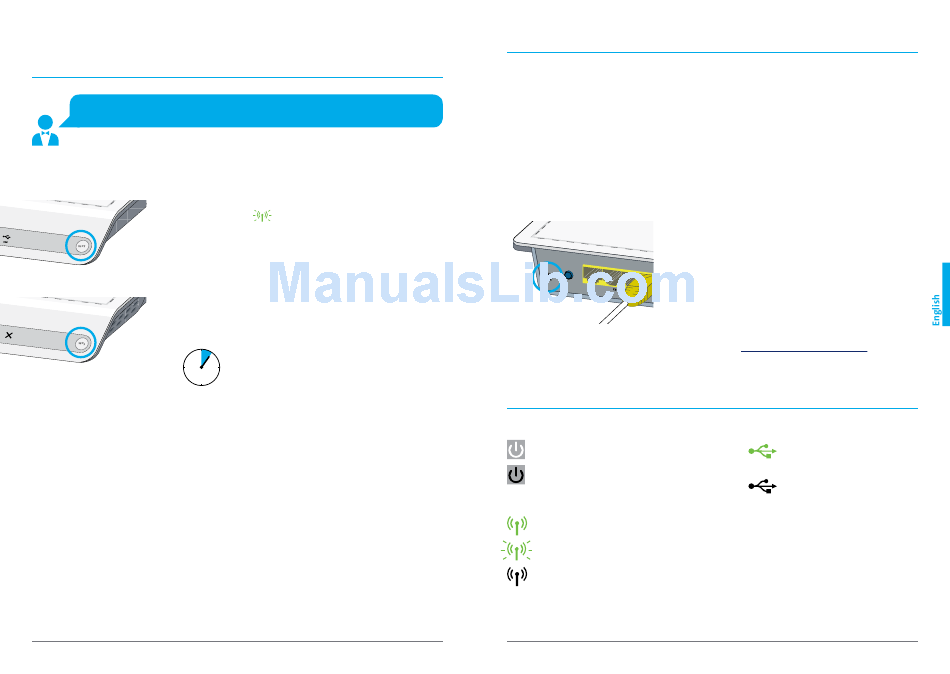

1.
Place the Connexion Kit at ca. three meters from your Magic-
Box and connect it to the power socket. Wait until all the LEDs
are lit continuously.
Magic-Box 2.
Push the WPS button on the Magic-Box during five seconds.
The WLAN LEDs (
2.
Universal Connection Kit UNO
3.
Immediately after this, push the WPS button on your
Connection Kit. Maintain the button pushed for five seconds,
3.
until all LEDs start to blink. Both devices will now connect
automatically. The connection time can be up to 5 minutes.
You are now connected to the Internet!
Note: if you are not connected to the Internet, repeat steps 2
and 3.
32
) will start to blink in green.
up to 5 min.
Help
How can I improve the connection quality?
> Deactivate the WLAN network provided by your router
> Do not put your Magic-Box inside a closed cabinet
> Place the devices at a minimal distance of 15 cm from the wall
> Maintain the smallest possible distance between the devices
> Do not place your devices next to Bluetooth devices or to a microwave oven
Have you forgotten your password? The device no longer works properly?
You can reset your device to its factory settings. To do so, push the Reset button at the rear of
your switched on device for ten seconds. The device will then be restored to its original factory
settings.
Magic-Box
1
2
3
4
WL AN On/
Off
For more help
Frequently asked questions and their answers are here www.swisscom.ch/magicbox.

Status display

Power LED
on device is on
off device is off
WLAN LED (wireless Internet)
on WLAN is active
blinking WLAN connection is being established
off the WLAN network is inactive
Pow er On/
Off
USB LED
on connected to the
USB hard drive
off no hard drive is
connected or
no access
33
