Section 2 QuicTest Sample Head Overview
2
1
4

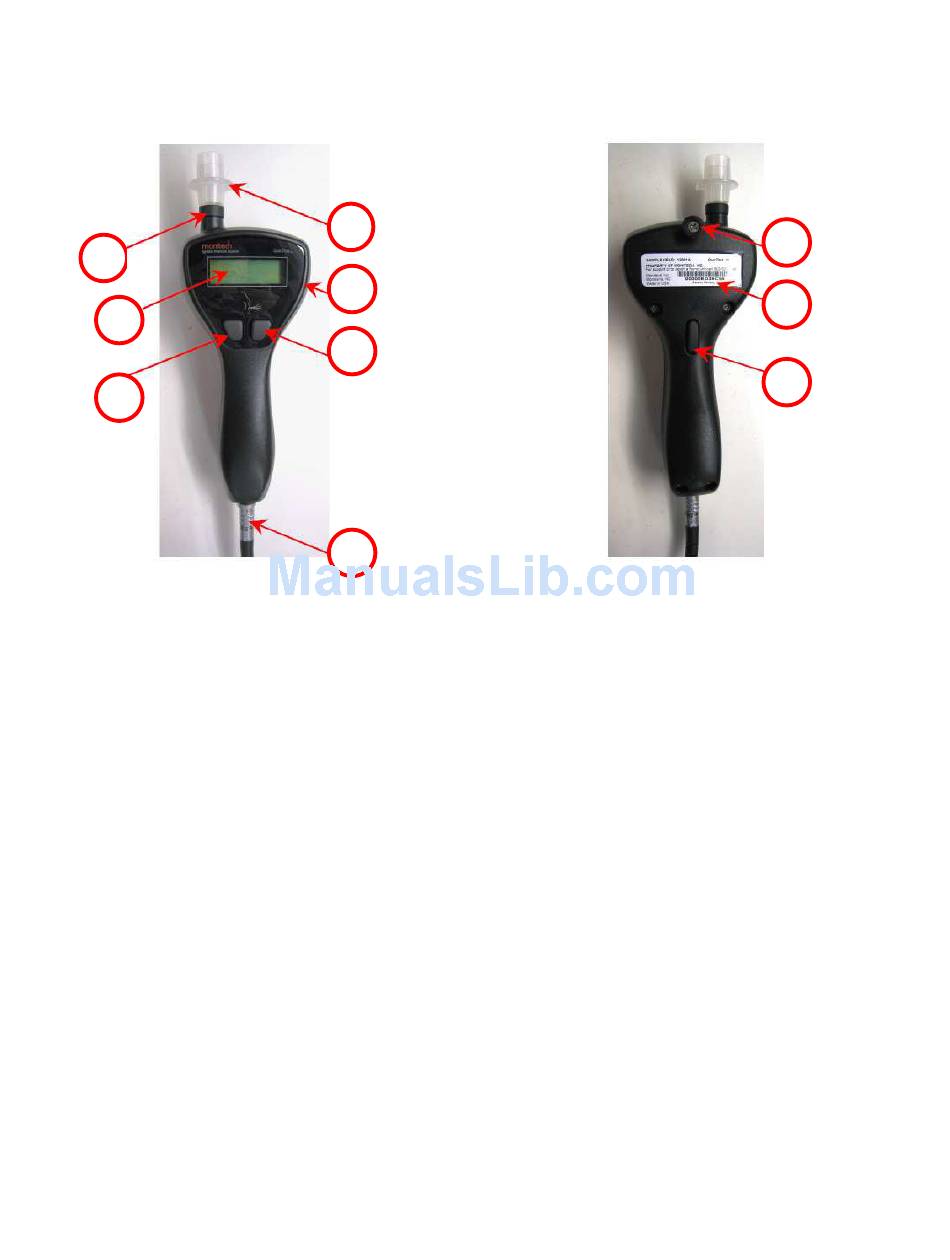

Figure 2-1 Sample Head – Front View
1. Display Window
2. Mouth Piece Port
3. Disposable Mouth Piece
4. Left (Back, <<<) Button
5. Right (Next, >>>) Button
6. Detachable Coil Cord Connector
7. Speaker Ports
Section 3 QuicTest User Menu
Unit Wake Up
Under normal circumstances, the unit will go to "sleep" within 3 to 6 minutes (sometimes longer).
This is indicated by an asterisk (*) that slowly moves across the bottom of the display. To wake
the unit up you may either pick it up and move it, or press any button. The unit will wakeup and
say "QuicTest by Monitech". A brief stand by period (countdown) may begin, depending on how
long the unit has been asleep and the outside temperature. During this time the unit is verifying
that it is functioning properly and warming up. At the end of the standby period, the LCD will
display "START TEST", unless there are lockouts, recalls, or other service needs. These will be
addressed in a later section.

Menu Mode

After the unit has woke up and played any recall messages or other notifications, the display will
read "START TEST". At this point the unit is in MENU MODE, and any of the following functions
described below are available by using the BACK, NEXT and TRIGGER buttons.
