Summary of Contents for Monitech Interlock Systems QuicTest QT-1

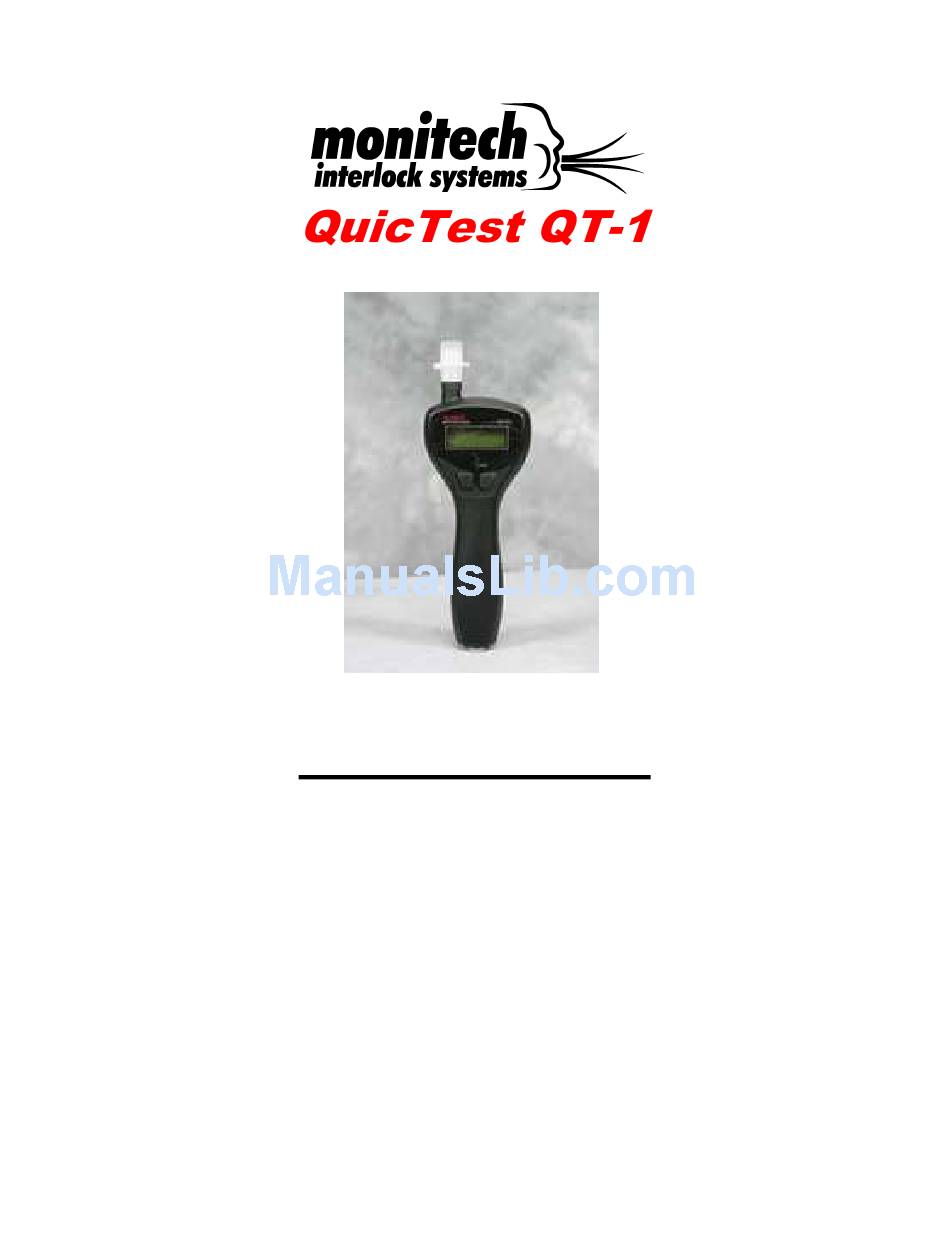

- Page 1 Monitech Interlock Systems QuicTest User Manual Rev A 2-16-08 Operators Manual Monitech Interlock Systems 215 Southport Drive Suite 400 Morrisville, NC 27560 919 459 1700 local 800-521-4246 toll free Page 1 of 17...
-
Page 2: Table Of Contents
Monitech Interlock Systems QuicTest User Manual Rev A 2-16-08 Table of Contents 1. Important Information……………………………………………………. 3 2. QuicTest Overview………………………………………………………. 4 3. QuicTest Menu Functions • Wakeup…………………………………………………………..4 • Menu Mode………………………………………………………… 4 • Redundant buttons………………………………………………. 5 • Personal Identification Number (PIN)………………………….. 5 •... -
Page 3: Important Information
Monitech Interlock Systems QuicTest User Manual Rev A 2-16-08 Section 1 IMPORTANT INFORMATION for the QuicTest BAIID The QuicTest Breath Alcohol Ignition Interlock Device offers state of the art alcohol measuring and driver interaction, however, the use of this device does not guarantee the driver’s ability to safely operate a motor vehicle. -
Page 4: Quictest Overview
Monitech Interlock Systems QuicTest User Manual Rev A 2-16-08 Section 2 QuicTest Sample Head Overview Figure 2-1 Sample Head – Front View Figure 2-2 Sample Head – Back View 1. Display Window 1. Trigger Button 2. Mouth Piece Port 2. Serial Number 3. -
Page 5: Redundant Buttons
Monitech Interlock Systems QuicTest User Manual Rev A 2-16-08 Redundant Buttons In the event that any of the 3 buttons used to operate the unit becomes inoperable, the remaining buttons will assume that function, as follows: • If the LEFT button is not working, use the RIGHT button to scroll all the way around. -
Page 6: Service Mode
Monitech Interlock Systems QuicTest User Manual Rev A 2-16-08 When you reconnect the unit, it may require a short amount of time to re-establish communication, do a system check and warm up. When you see the asterisk (*) scroll across the bottom of the screen, you may wake the unit up and proceed. - Page 7 Monitech Interlock Systems QuicTest User Manual Rev A 2-16-08 Breath Alcohol Ignition Interlock Device (BAIID) – A device that prevents a vehicle from starting based on a Breath Alcohol Sample. Breath Alcohol (BrAC) – The level of alcohol present in a deep lung (alveolar) breath sample.
-
Page 8: Taking A Breath Test
Monitech Interlock Systems QuicTest User Manual Rev A 2-16-08 Recall – A requirement to bring your vehicle back to your Interlock Provider’s Service Center within a limited number of days for servicing of the unit. This is generated by a pending Monitor Appointment, a program violation, unit malfunction, or suspected tampering or abuse of the unit. -
Page 9: Starting Your Vehicle With Quictest
Monitech Interlock Systems QuicTest User Manual Rev A 2-16-08 or arriving at your destination. Make sure that you have a Monitech Disposable Mouthpiece inserted into the Mouthpiece Port, as shown in Figure 2-1. 2. When instructed by the device, press and hold the TRIGGER, take a deep breath and blow into the mouthpiece. - Page 10 Monitech Interlock Systems QuicTest User Manual Rev A 2-16-08 2. Follow the instructions above (Section 5) to take a Breath Test. 3. The unit will display PASS, WARN or FAIL If the unit indicates PASS: WAIT a brief moment, until the unit displays “OK TO START”.
-
Page 11: Information About Alcohol Failures
Monitech Interlock Systems QuicTest User Manual Rev A 2-16-08 established for your Interlock Program – however it appears that it may be due to a high level of Mouth Contamination (see Glossary of Terms), not a true deep lung BrAC. If it is Mouth Contamination, it will decrease quickly. -
Page 12: Running Mode
Monitech Interlock Systems QuicTest User Manual Rev A 2-16-08 2. As you are driving, there are timed events that you will be required to comply with as part of your State Agency Interlock Program. a. RANDOM RUNNING TEST: The first of these is the Random Running Test. If required by your program, you will be asked to take a RUNNING TEST at random time intervals. -
Page 13: If Your Vehicle Stalls
Monitech Interlock Systems QuicTest User Manual Rev A 2-16-08 If you do not take an Engine Off Test in the 10 minutes provided, the ALARM MODE will be activated, your siren will sound and your hazard lights will flash. You MUST pull off the road in a safe place and turn off the vehicle at this time. -
Page 14: Override Mode
Monitech Interlock Systems QuicTest User Manual Rev A 2-16-08 Section 9 (Vehicle) Service Mode This section describes how a mechanic can troubleshoot and service your vehicle with the QuicTest Interlock installed. If your vehicle needs automotive service – your mechanic can troubleshoot and repair it with the QuicTest Installed, without having to take Breath Tests. -
Page 15: Potential Difficulties With Quictest
Monitech Interlock Systems QuicTest User Manual Rev A 2-16-08 • Do not attempt to introduce anything other than clean human breath into the device. Introduction of any other sample will result in an INVALID SAMPLE, and abort the test, and prevent your vehicle from starting. -
Page 16: Monitor Appointments
Monitech Interlock Systems QuicTest User Manual Rev A 2-16-08 • If the Interlock does not power up, your battery may be completely discharged. Have your automotive repair center (ie. service mechanic, auto parts store, etc.) check your battery. They can advise you as to whether your battery may need to be charged or replaced. If your Interlock does not power up after this or any other repair work has taken place on the vehicle, call Monitech immediately. - Page 17 Monitech Interlock Systems QuicTest User Manual Rev A 2-16-08 Section 15 Do’s and Don’t of your Interlock Program • Do contact Monitech emergency service if the vehicle must be used by untrained persons in an emergency situation or if the emergency has caused you to be unable to successfully complete the test.
