SSD Drives 512C Quick Setup

Table of Contents

Download this manual

Application Note

Document Number:

4002

Objective

512C Quick Set-Up

Note: Text in bold are default switch settings.

Single phase supply to L1 and L2/N

Motor armature to A+ and A-

Motor field to F+ and F-

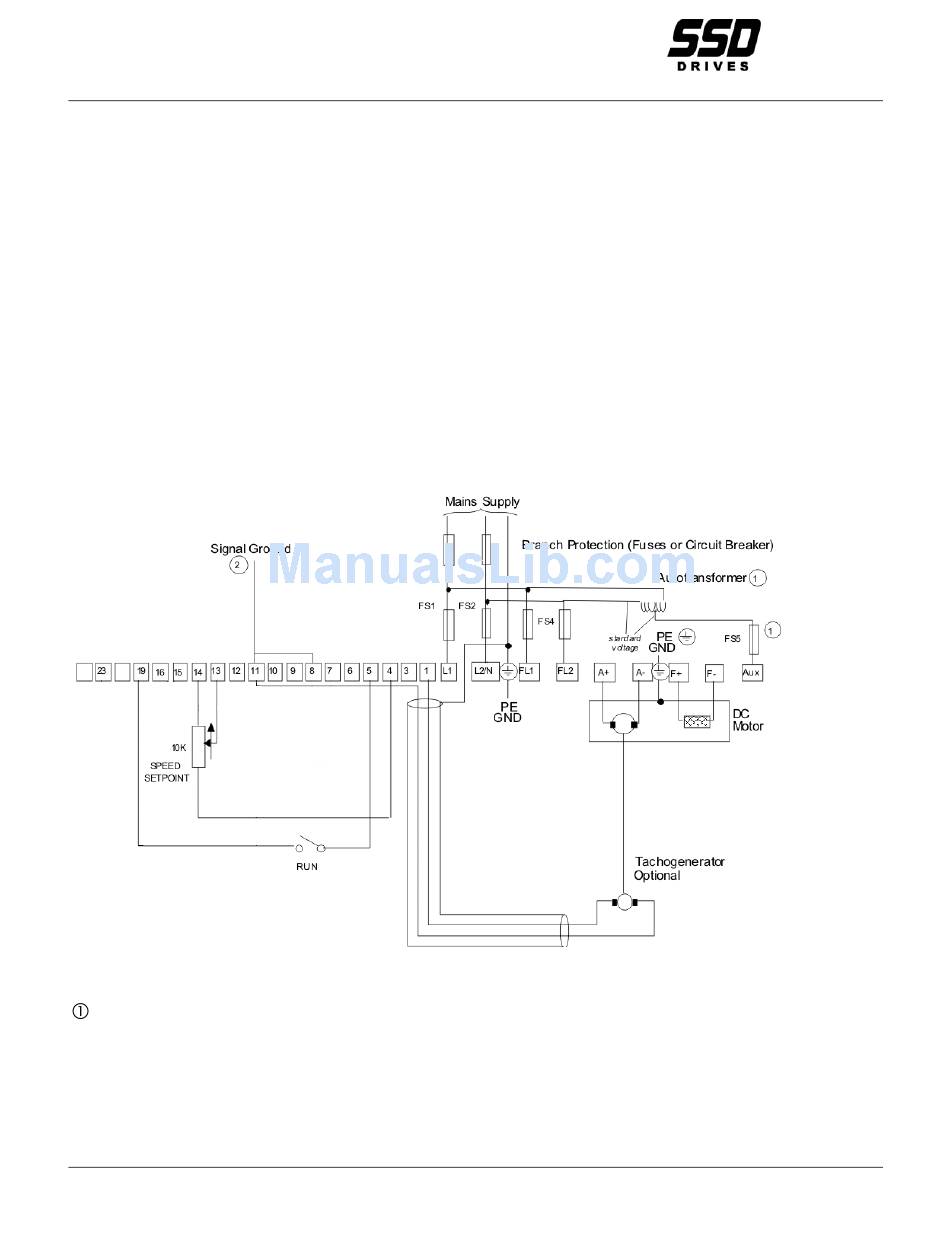

Basic Wiring Diagram: Below are the minimum connections required to run the drive in speed

control mode with a tachometer. If you are not using a tachometer, ignore the tachometer

connections and set switch SW3 to the "ON" position.

When the mains voltage is non-standard, i.e. not selectable via the transformer tapping link

(380/415V, 220/240V or 110/120V), connect a low power Autotransformer to generate a standard

voltage. Connect the output of the Autotransformer to the AUX terminal. Move the Supply Selector

from "MAINS" to "AUX". Select the appropriate voltage via the transformer tapping link. The

Autotransformer must be connected to the same phase as the incoming power to provide correct

coding to the controller.

If you have questions, please call the Product Support Group at (704) 588-3246.

Issue 1.1 4-Jun-10

Product:

512C

Keywords: Quick Set-Up

www.comoso.com

Page 1 of 4

Table of Contents

Do you have a question about the 512C and is the answer not in the manual?

Page 1 512C Document Number: 4002 Keywords: Quick Set-Up Objective 512C Quick Set-Up Note: Text in bold are default switch settings. Power connections: Single phase supply to L1 and L2/N Motor armature to A+ and A- Motor field to F+ and F- Basic Wiring Diagram: Below are the minimum connections required to run the drive in speed control mode with a tachometer.
Page 2 Application Note Product: 512C Document Number: 4002 Keywords: Quick Set-Up It is recommended that the “0V/common” be connected to protective earth/ground for safety reasons. In a system comprising of more than one controller, the “0V/common” signals should be connected together and joined to protective earth/ground at one point only.
Page 3 Current Motor Scaling (OFF) Current Meter Buffered Current Meter Output 5V Equivalent to 100% of Controller Current Rating. i.e. 4 Amp on 512C/04 8 Amp on 512C/08 16 Amp on 512C/16 32 Amp on 512C/32 (ON) Current Meter Buffered Current Meter Output 5V Equivalent to 100% of Calibrated Current Rating.
Page 4 Application Note Product: 512C Document Number: 4002 Keywords: Quick Set-Up P3 Speed Loop Optimises Speed Loop Stability. ( Excessive Same Stability adjustment may lead to instability) as 512 P4 I Limit Rotate Clockwise to increase Maximum Output Same Current. as 512...
